Eurolite 50531100 Controller 768 W (max) 8 A 12 - 24 12 V, 24 V Metal (L x W x H) 16.4 x 6.6 x 3.8 cm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Controller
Operating voltage
12 V
24 V
Material
Metal
Length
16.4 cm
Energy efficiency rating
n.rel.
Highlights & Details

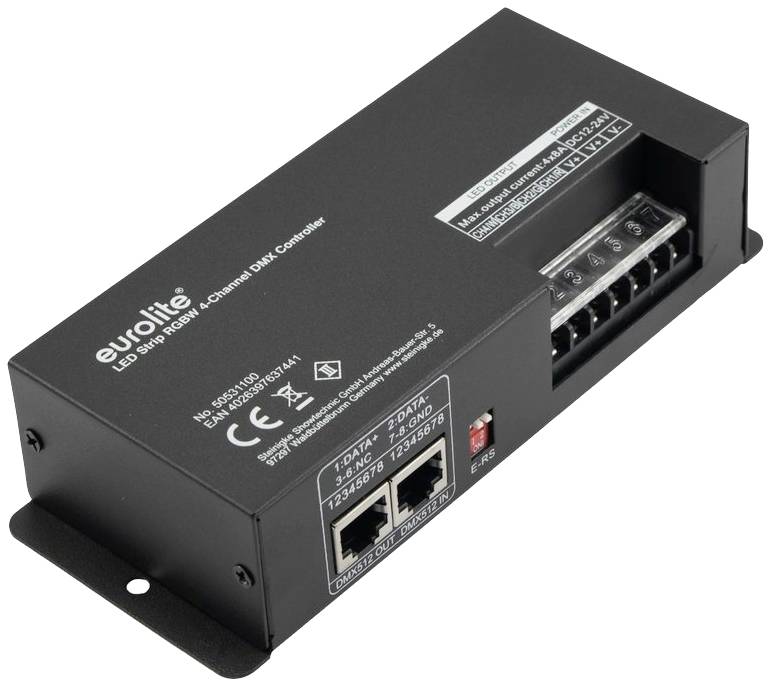

Eurolite LED strip RGBW 4-channel DMX controller
- Converts standard DMX512 signals in PWM signals e.g. for LED strips
- 4 separate control channels for color mixing
Technical specifications
- Product type
Controller
- Connection
Screw terminal
- Number of pins
3
- Operating voltage
12 V
24 V
- Max. power
768 W
- Material
Metal
- LED features
Digital dimming
- Width
6.6 cm
- Height
3.8 cm
- Length
16.4 cm
- Dim
(L x W x H) 16.4 x 6.6 x 3.8 cm
- No. of outputs
2 x
- No. of inputs
2 x
- Output voltage (min.)
12 V DC
- Output voltage (max.)
24 V DC
- Max. output current
8 A
n.rel.
- Weight
300 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2890513 Eurolite 50531100 Controller 768 W (max) 8 A 12 - 24 12 V, 24 V Metal (L x W x H) 16.4 x 6.6 x 3.8 cm 1 pc(s)
Description
4-channel LED controller with DMX interface for RGBW LEDs 12-24 V Compact LED controller to control RGBW LEDs (12-24 V) via DMX
This text is machine translated.
This text is machine translated.
Features
- Converts standard DMX512 signals in PWM signals e.g. for LED strips
- 4 separate control channels for color mixing of red, green, blue and white LEDs
- Integrated programs for standalone mode (single colors, color change, color mixing, flow speed)
- DMX addressing and settings via the DIP switch
- Switchable terminating resistor
- Screw-plug terminals for
- Connection of the LEDs and the power supply
- RJ45 sockets for series connection
- Robust black metal housing
- Usable in 4 CH DMX-mode
- Power supply 12/24V DC
- Total connection value: Max. 384 W 12 V DC
- Max. 768 W 24 V DC
- Max. 96 W 12 V DC per channel
- Max. 192 W 24 V DC per channel Output current: Max. 4 x 8 A per channel
- Power connection: Via screw terminal

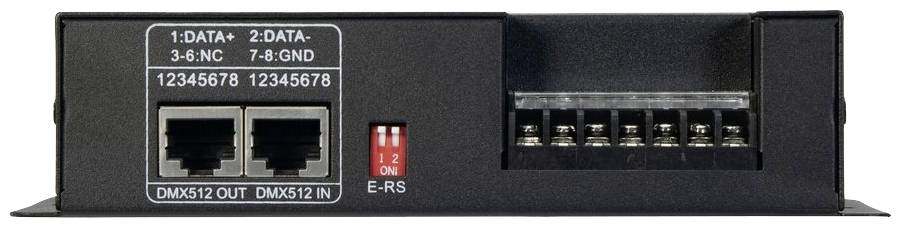

- Current output: Screw terminal DMX-channels: 4 DMX-input: 3-pin XLR (M) mounting version
- 1 x RJ-45 (W) Installation version DMX output 3-pin XLR (W) Installation version
- RJ-45 (W) Installation version
Scope of delivery
- 1 x device
- 1 x Operating manual
