1/3
Eurolite 50531113 Controller 240 W (max) 4 A 12 V, 24 V (L x W x H) 16.4 x 4.4 x 2.5 cm Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Controller
Operating voltage
12 V
24 V
Length
16.4 cm
Energy efficiency rating
n.rel.
Highlights & Details

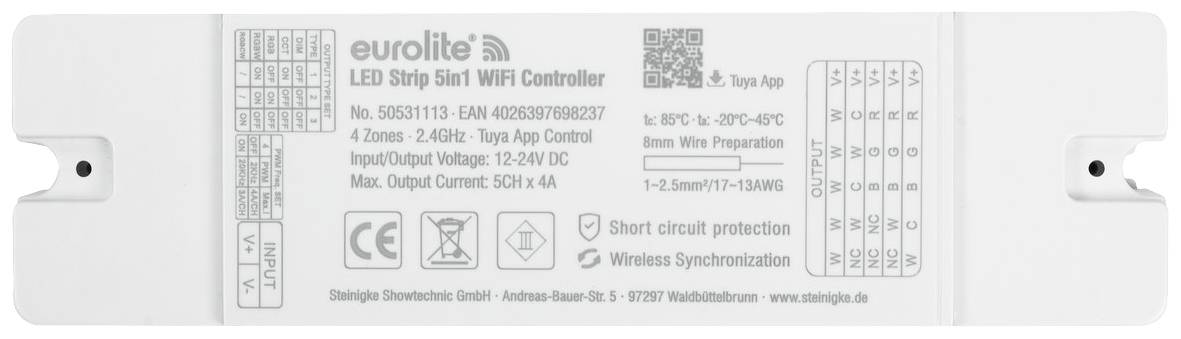

Eurolite LED strip 5in1 Wi-Fi controller
- 5in1 feature for controlling multi-color (CCT, RGB, RGBW, RGB + CCT) and single-color LED tape lights
- Can be controlled via W-LAN; Amazon Alexa; Google assistant; IFTTT; Tuya Smart APP
Technical specifications
- WLAN
- Packaging type
Piece
- Product type
Controller
- Connection
Screw terminal
- Operating voltage
12 V
24 V
- Max. power
240 W
240 W
- Factory colour
White
- LED features
multicolour
- Width
4.4 cm
- Height
2.5 cm
- Length
16.4 cm
- Dim
(L x W x H) 16.4 x 4.4 x 2.5 cm
- No. of outputs
5 x
- Max. output current
4 A
n.rel.
- Colour
Warm white to cool white
- Colour temperature (max.)
6500 K
- Min. colour temperature
3000 K
3000 K
- Weight
120 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2890514 Eurolite 50531113 Controller 240 W (max) 4 A 12 V, 24 V (L x W x H) 16.4 x 4.4 x 2.5 cm Piece 1 pc(s)
Description

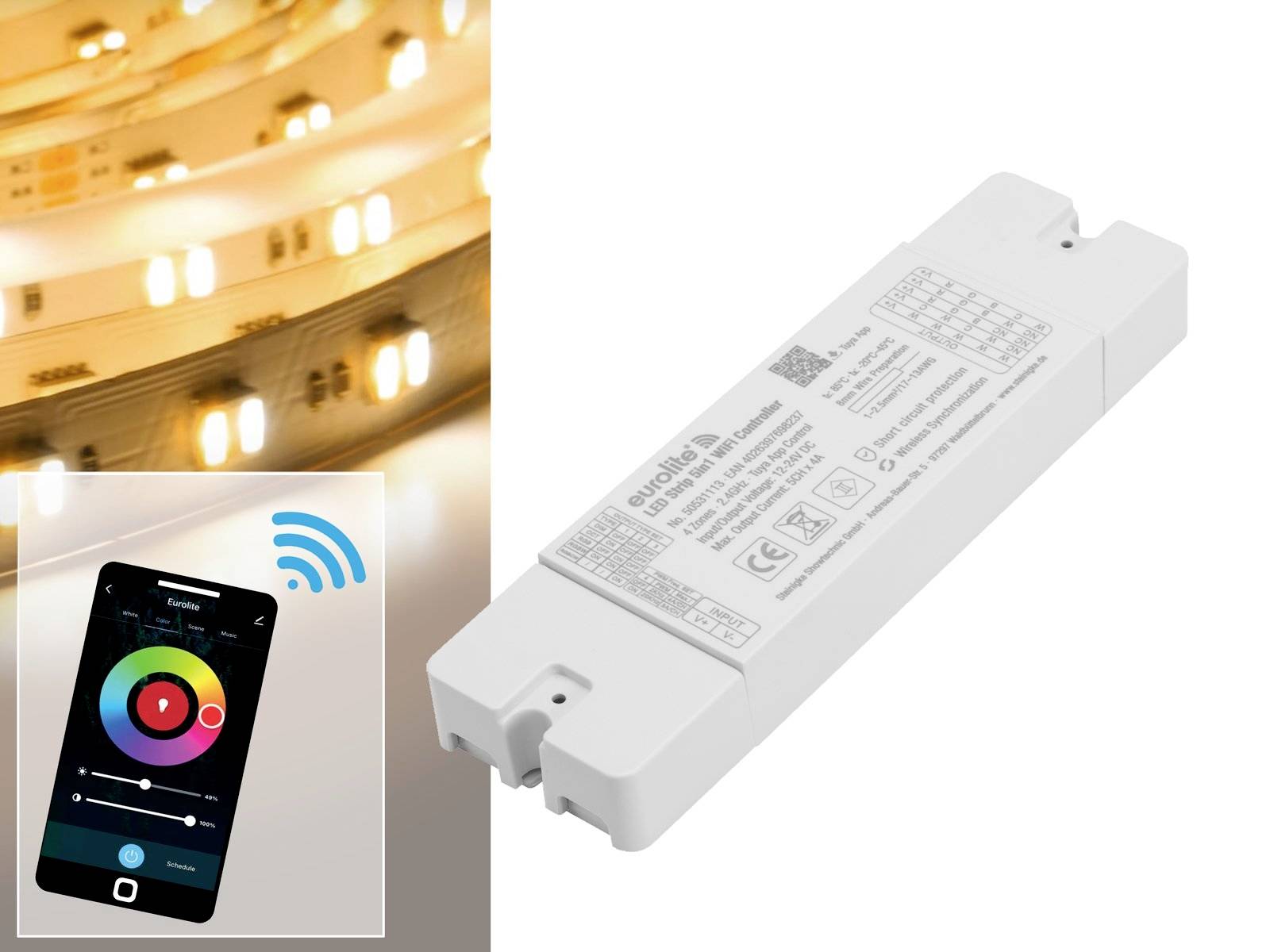

Smart 5-channel Wi-Fi controller for RGB/W+CCT LEDs with APP, Alexa & Google control LED controller with Wi-Fi technology for the smart home.
This text is machine translated.
This text is machine translated.
Features
- 5in1 feature for controlling multi-color (CCT, RGB, RGBW, RGB + CCT) and single-color LED tape lights
- Supports voice control with Amazon Alexa, Google Assistant, Siri and other services
- Works without a bridge or hub
- Multiple controllers can be controlled at the same time
- Simple dimming
- CCT color temperature control from warm white to cold white (3,000-6,500 K)
- RGB color change
- Intelligent group control, light scenes, timer run and music synchronization to suit any mood
- Excellent signal transmission with 2.4 GHz - no difference to a cabled system perceptible
- Several controllers can be controlled synchronously and asynchronously simply and comfortably with a single remote control
- Synchronous color sequences even over hours for several controllers with different LED types
- All controllers are linked together and enable high ranges
- Suitable for use with modern LED strips thanks to PWM switched outputs Ideal
- Memory function stores the last setting when switch off
- Can be controlled via W-LAN; Amazon Alexa; Google assistant; IFTTT; Tuya Smart APP

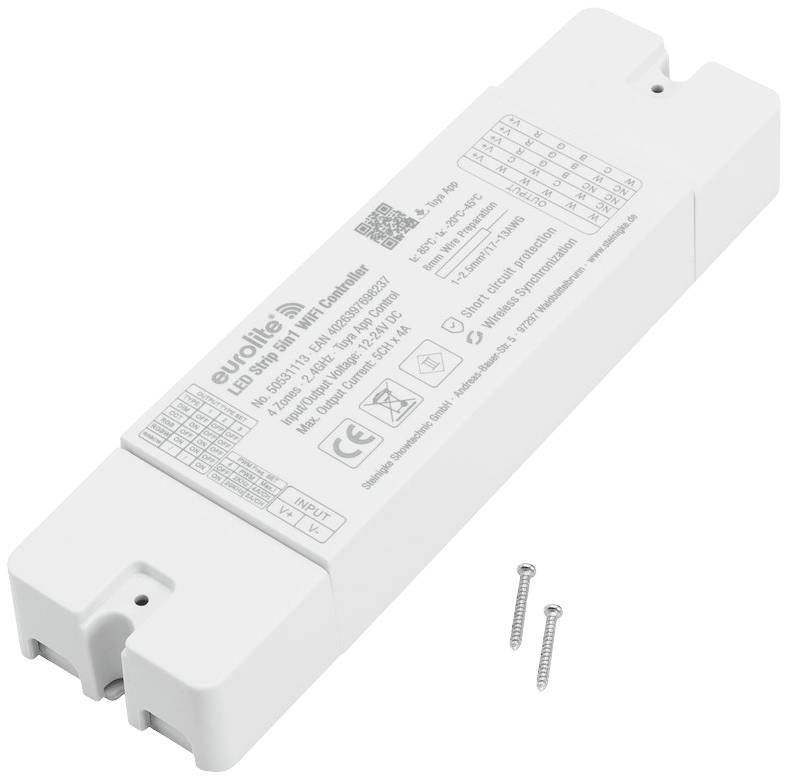

- 1 x controller, 1 x user manual, 1 x confirmation statement, 2 x screws
- Power supply 12/24V DC
- Total connection value: Max. 240 W 12 V DC
- Max. 480 W 24 V DC Output current: Max. 5 x 4 A per channel
- Power connection: Via screw terminal
- Current output: Screw terminal WLAN: Standard: IEEE 802.11 b/g/n
- Control: W-LAN; Amazon Alexa; Google assistant; IFTTT; Tuya Smart APP carrier frequency: 2.4 GHz
Scope of delivery
- 1 x controllers
- 1 x declaration of conformity
- - 2 x screws
- 1 x Operating manual
