Eurolite 51786070 TMH-S30 Moving head No. of LEDs (details):1 30 W
EAN:
Part number:
Item no:
Highlights & Details

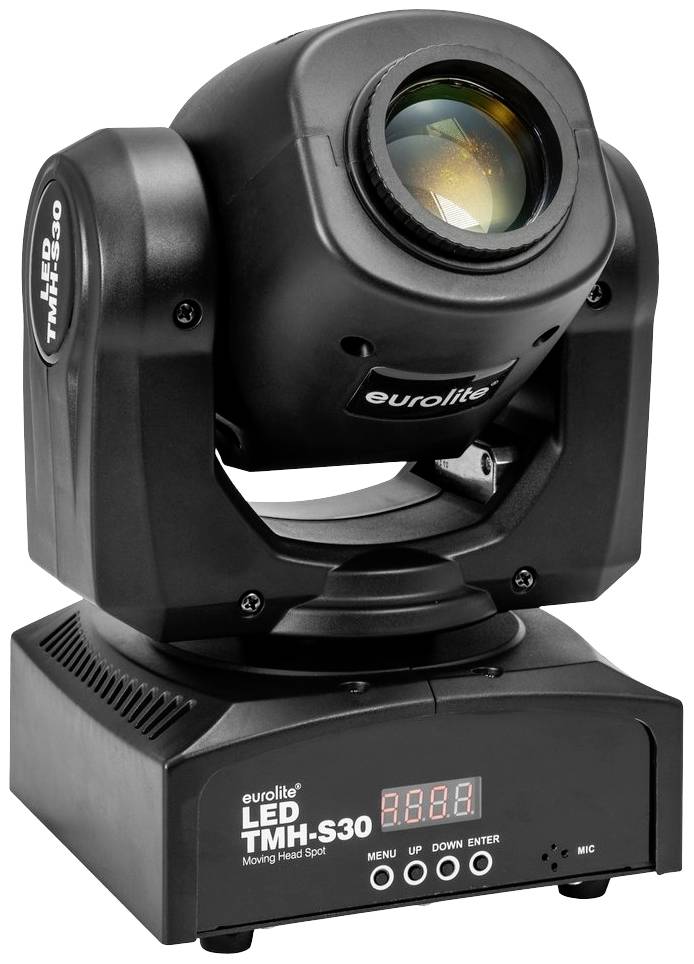

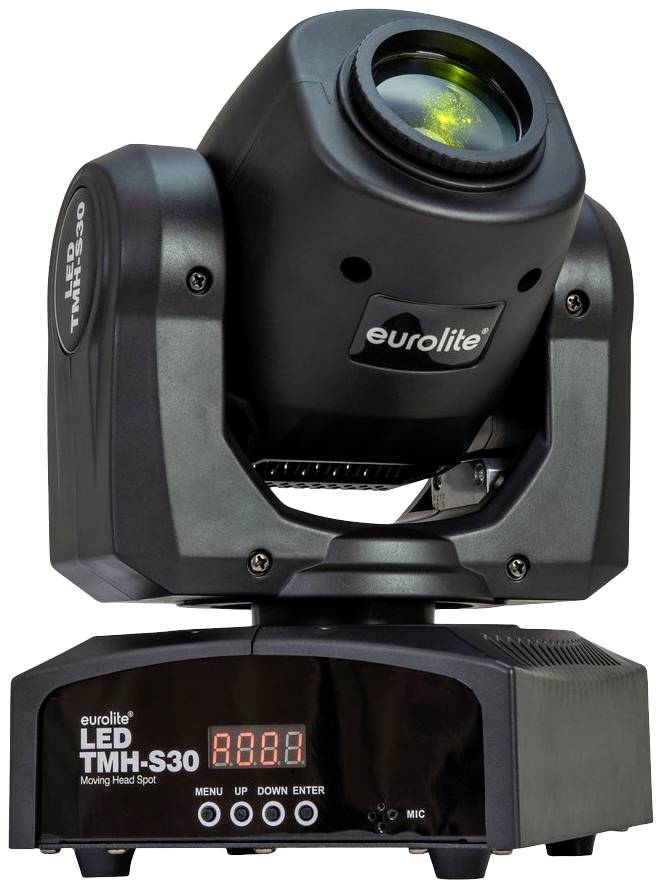

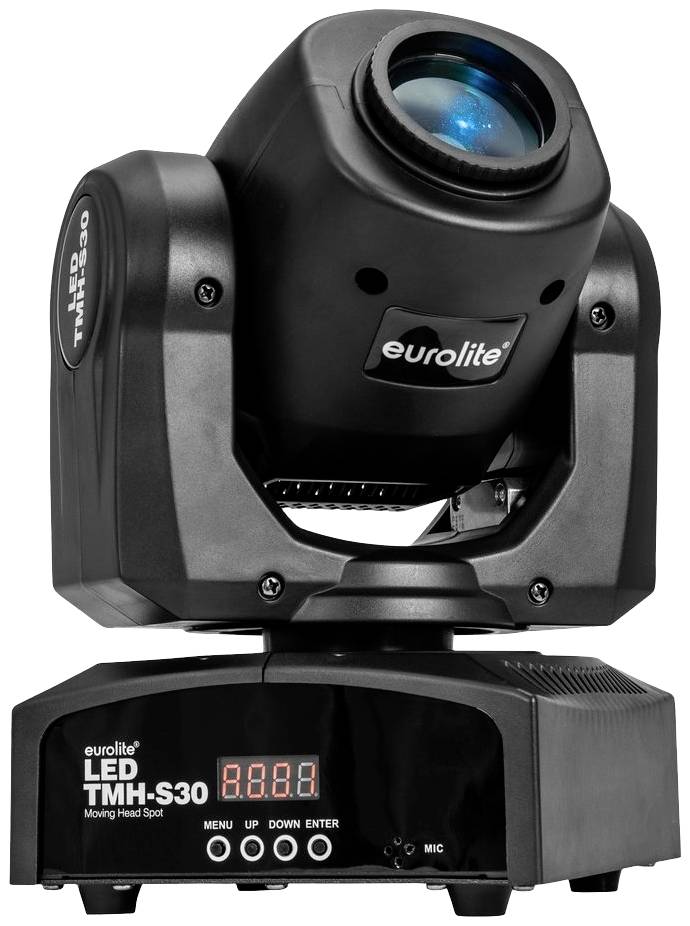

Eurolite LED TMH-S30 moving head Spot
- Compact moving head spot with 30 W-LED, gobos and color wheel
- 1 powerful LED 30 W COB (chip-on-board) cold-white (CW)
- Positioning within 540° pan and 170° tilt
- Exact positioning (16-bit resolution)
Technical specifications
- Product type
Moving head
45 W
- LEDs
1
- Colour
Cool white
- Dim
(L x W x H) 170 x 150 x 240 mm
- Weight
3.03 kg
n.rel.
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
150 mm
- Height
240 mm
- Length
170 mm
- Watt per LED
30 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131222 Eurolite 51786070 TMH-S30 Moving head No. of LEDs (details):1 30 W
Description
Colour wheel; manual focus; gobo wheel with rotating gobos
Beam effect; Stroboscope-effect
Colour wheel with 7 dichroic colors and open
Half colors can be selected, Rainbow effect with variable speed in both the directions
Gobo wheel with rotating gobos, 7 gobos and open
Shake Effect
Exchangeable gobos
Slot-In-Gobo-System for easy gobo change
Integrated show programs
The device is cooled by a fan
Controllable via stand-alone; DMX; music control via microphone; Master/Slave function; CRMX by Lumen Radio via USB (optional); W-DMX by Wireless Solution via USB (optional); QuickDMX via USB (optional)
Flicker-free
With an angle of radiation of 8°
4 digit 7-segment LED display
Electronic dimmer
Pre-programmed at Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3
Rubber feet
For application areas such as: Clubs/dance schools; wedding/gala/events; party cellar; mobile DJ's/solo entertainer
Possible application: Standing; flying
This text is machine translated.
Beam effect; Stroboscope-effect
Colour wheel with 7 dichroic colors and open
Half colors can be selected, Rainbow effect with variable speed in both the directions
Gobo wheel with rotating gobos, 7 gobos and open
Shake Effect
Exchangeable gobos
Slot-In-Gobo-System for easy gobo change
Integrated show programs
The device is cooled by a fan
Controllable via stand-alone; DMX; music control via microphone; Master/Slave function; CRMX by Lumen Radio via USB (optional); W-DMX by Wireless Solution via USB (optional); QuickDMX via USB (optional)
Flicker-free
With an angle of radiation of 8°
4 digit 7-segment LED display
Electronic dimmer
Pre-programmed at Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; EASY SHOW 3
Rubber feet
For application areas such as: Clubs/dance schools; wedding/gala/events; party cellar; mobile DJ's/solo entertainer
Possible application: Standing; flying
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 45 W
- Power connection: Power feed via P-Con (blue), installation version power connection cable with safety plug (included)
- Display type: 4 digit 7-segment LED display
- Cooling: Fans
- Housing colour black.
- Protection class: IP20
- Control: Stand-alone
- Transport aid: Rubber feet
- LED lamp type
- LED:1 x 30 W COB (chip-on-board) cold-white (CW)
- Colour temperature: 8000K
- Equipment: Colour wheel
- Manual focus: Manual focus
- DMX channels: 10

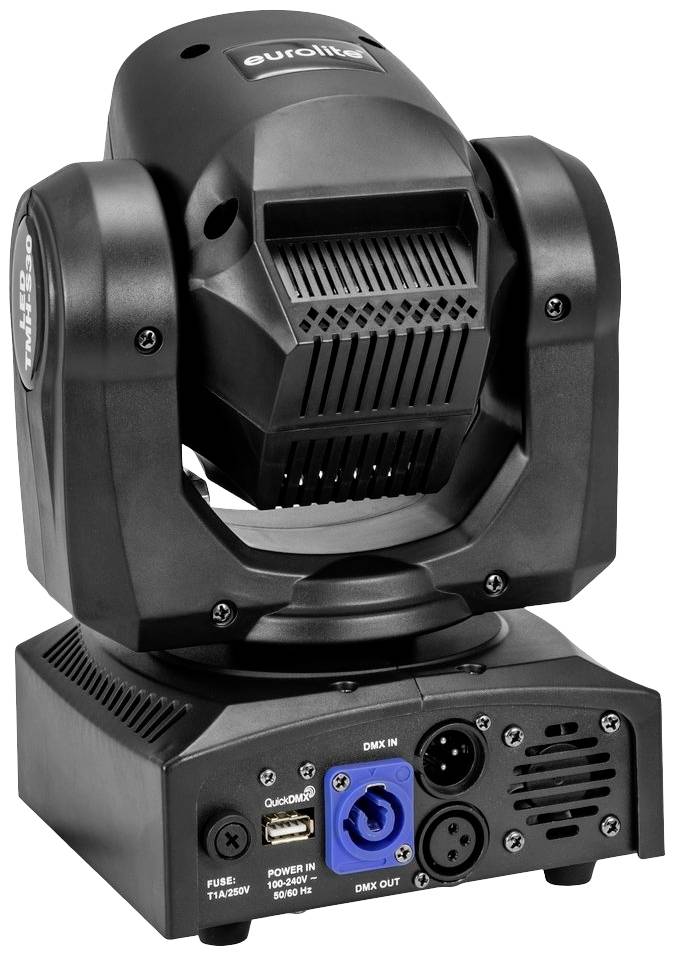

- DMX input 3-pin XLR (M), built in version
- Master/slave function: Master/slave function
- DMX
- Pre-programmed at: Light´J
- Light captain: Light captain
- Beam angle: 8°
- Beam angle (1/2 peak) 8°
- Gobos: Gobo wheel with rotating gobos, 7 gobos and open
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- Fuse: T 1 A fuse can be replaced
- DMX output 3-pin XLR (W) built-in version
- Illuminance (lx): 377 lx
- Music control via microphone
- CRMX by Lumen Radio via USB (optional)
- W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional)
- LED PC Control 512
- Max. Tilt movement TILT: 170° Exact positioning (16-bit resolution)
- Max. Pan motion: 540° Exact positioning (16-bit resolution)
- Gobo wheel with rotating gobos: Gobo wheel with rotating gobos
- Colour generation: Colour wheel with 7 dichroic colors and open
- Half colors can be selected, Rainbow effect with variable speed in both the directions
- Outer diameter 14mm
- Image diameter 10mm
- Shake Effect: Shake effect
- Exchangeable gobos
- Slot-In-Gobo-System for easy gobo change
Scope of delivery
- Moving light
- User manual
- Network cable/power cable

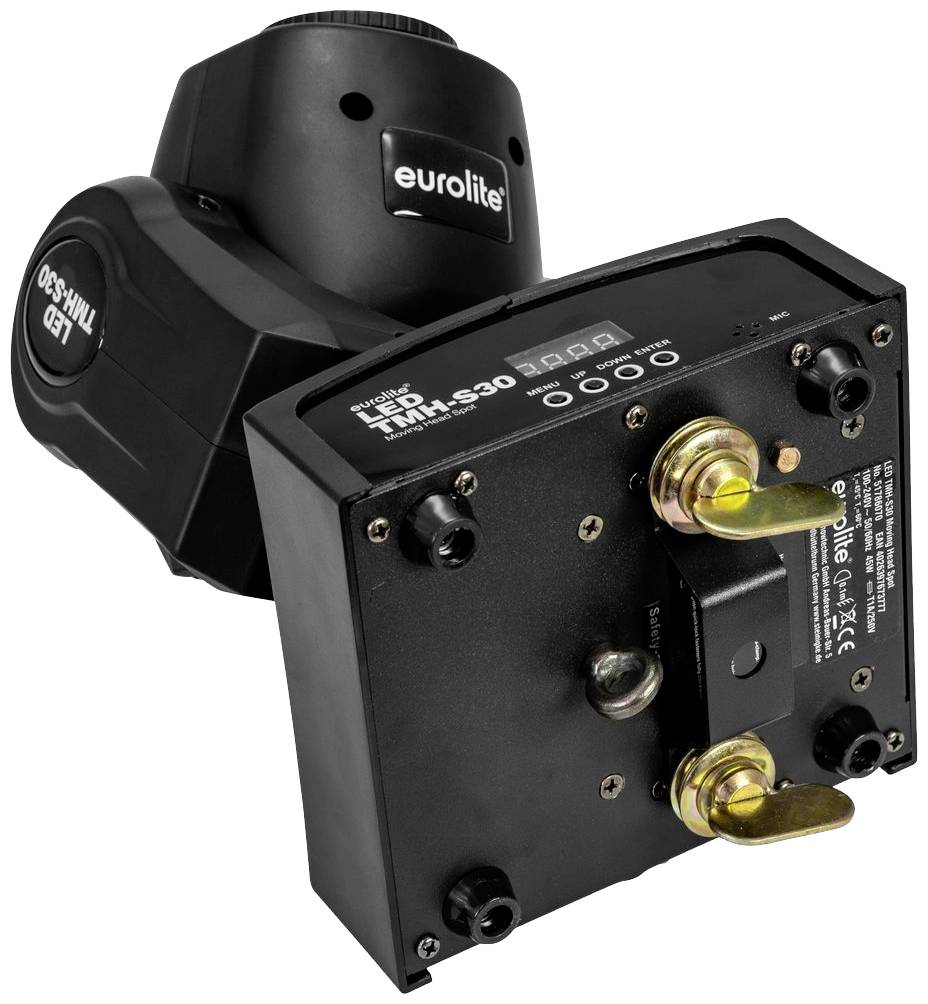

- Omega clip
- Safety cable solution
