Eurolite 51786077 TMH-H90 LED moving head spot No. of LEDs (details):7
EAN:
Part number:
Item no:
Highlights & Details

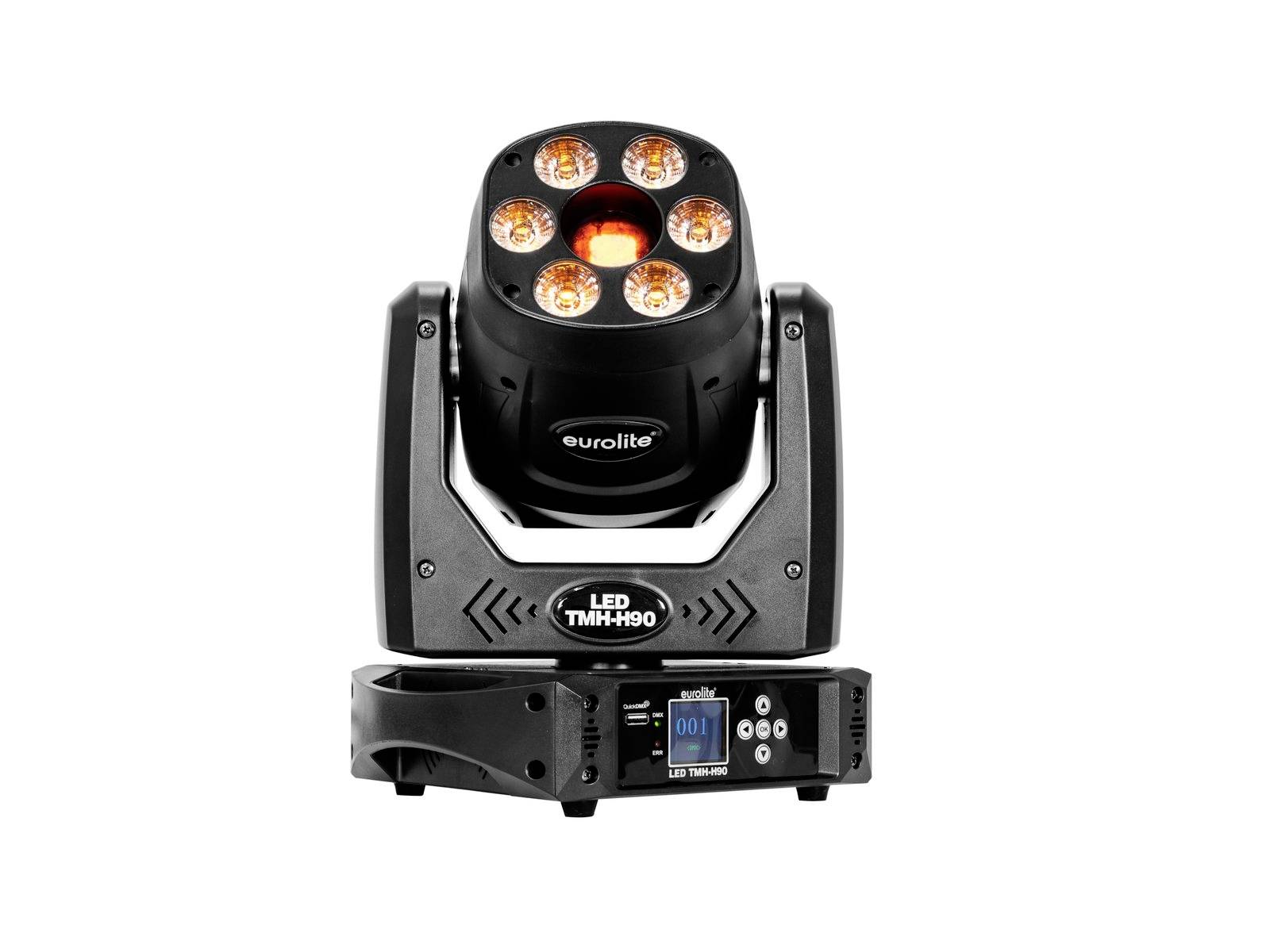

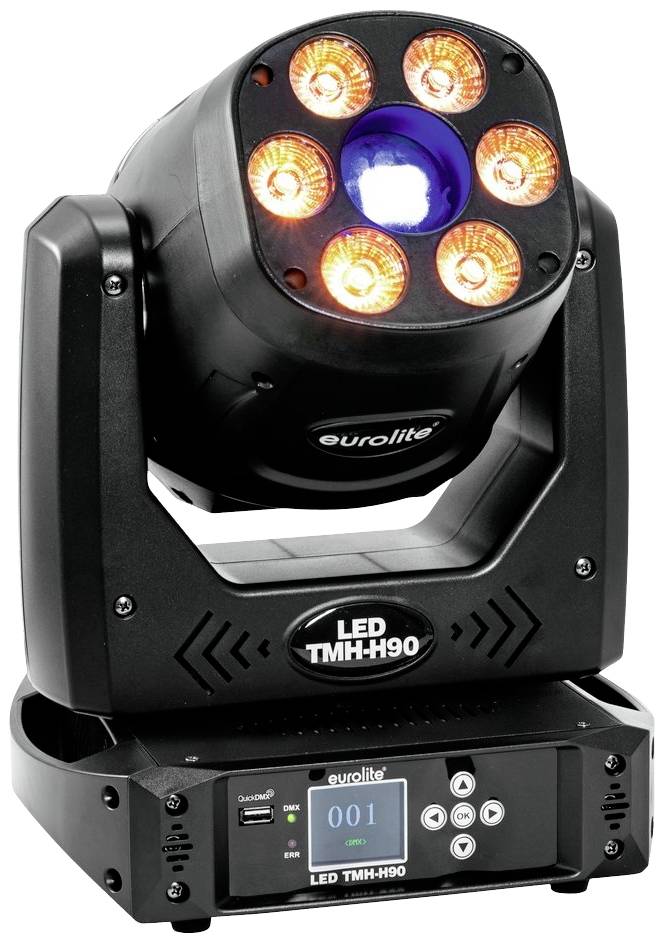

Eurolite LED TMH-H90 hybrid moving-head spot/wash COB
- LED Moving-Head Hybrid Spot/Wash with color wheel, static and rotating gobo-wheel, prism and focus
- Bright spotlight and full-fledged washlight in one device
- 1 powerful LED 90 W COB (chip-on-board) cold-white (CW)
- 6 powerful LEDs 10 W high-power 6in1 HCL RGBWA/UV (homogeneous color mixing)
Technical specifications
- Product type
LED moving head spot
135 W
- LEDs
7
- Colour
RGBAW
UV/blacklight
- Dim
(L x W x H) 250 x 220 x 360 mm
- Weight
6.5 kg
n.rel.
- Features
Dimmable
Selectable colour
Audio control via built-in mic
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
220 mm
- Height
360 mm
- Length
250 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131240 Eurolite 51786077 TMH-H90 LED moving head spot No. of LEDs (details):7
Description
Positioning within 540° pan and 200° tilt
Auto position correction (feedback)
Exact positioning (16-bit resolution)
Prism 3-way; gobo wheel with rotating gobos; gobo wheel with static gobos; focus motorized; color wheel
Gobo effect
Colour wheel with 7 dichroic colors and open
Half colors can be selected, Rainbow effect with variable speed in both the directions
Gobo wheel with static gobos, 7 gobos and open
Shake Effect
Gobo wheel with rotating gobos, 6 gobos and open
Shake Effect
Exchangeable gobos
Slot-In-Gobo-System for easy gobo change
Integrated show programs
The device is cooled by a fan
Can be controlled via stand alone; DMX; music control via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With an angle of radiation of 13°
Multi-colored LCD display
Electronic dimmer
Pre-programmed by Light Captain; EASY SHOW 3
For applications such as: Clubs/dance schools; wedding/gala/events; stage; mobile DJ's/solo entertainer
Possible application: Standing; flying
This text is machine translated.
Auto position correction (feedback)
Exact positioning (16-bit resolution)
Prism 3-way; gobo wheel with rotating gobos; gobo wheel with static gobos; focus motorized; color wheel
Gobo effect
Colour wheel with 7 dichroic colors and open
Half colors can be selected, Rainbow effect with variable speed in both the directions
Gobo wheel with static gobos, 7 gobos and open
Shake Effect
Gobo wheel with rotating gobos, 6 gobos and open
Shake Effect
Exchangeable gobos
Slot-In-Gobo-System for easy gobo change
Integrated show programs
The device is cooled by a fan
Can be controlled via stand alone; DMX; music control via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With an angle of radiation of 13°
Multi-colored LCD display
Electronic dimmer
Pre-programmed by Light Captain; EASY SHOW 3
For applications such as: Clubs/dance schools; wedding/gala/events; stage; mobile DJ's/solo entertainer
Possible application: Standing; flying
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 135 W
- Power connection: Power feed via P-Con (blue), installation version power connection cable with safety plug (included)
- Display type: Multicolor LCD display
- Protection class SK I
- Cooling: Fans
- Housing colour black.
- Protection class: IP20
- Control: Stand-alone
- LED lamp type
- LED:1 x 90 W COB (chip-on-board) cold-white (CW)
- Features: 3-way prism
- DMX channels: 25
- DMX input 3-pin XLR (M), built in version
- Master/slave function: Master/slave function
- DMX
- Pre-programmed with: Light Captain
- Angle of radiation 13°
- Angle of radiation (1/2 peak) Spot 13°
- Beam angle (1/10 peak): Wash effect 38°
- Gobos: Gobo wheel with static gobos, 7 gobos and open
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- 5 x 20 mm, T 2 A fuse can be replaced
- DMX output 3-pin XLR (W) built-in version
- Illuminance (lx): 1606 lx
- P-Con (gray), installation version
- Flash rate 2 - 30 Hz
- Music control via microphone: Music control via microphone
- CRMX by Lumen Radio via USB (optional): CRMX by LumenRadio via USB (optional)
- W-DMX by Wireless Solution via USB (optional): W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional): QuickDMX via USB (optional)
- EASY SHOW 3: EASY SHOW 3
- Max. Tilt movement TILT: 200° Exact positioning (16-bit resolution) Auto position correction (feedback)
- Max. Swivel movement PAN: 540° accurate positioning (16-bit resolution) Auto position correction (feedback)
- Gobo wheel with rotating gobos: Gobo wheel with rotating gobos
- Colour generation: Colour wheel with 7 dichroic colors and open
- Half colors can be selected, Rainbow effect with variable speed in both the directions: Semi-colors can be selected, Rainbow effect with variable speed in both the directions
- Shake Effect: Shake effect
- Exchangeable gobos: Interchangeable
- Slot-In-Gobo-System for easy gobo change: Slot-in-gobo system for easy gobo change
- Gobo wheel with static gobos: Gobo wheel with static gobos
- Motor-driven focus: Motor-driven focus
- Colour wheel: Colour wheel
- Gobo wheel with rotating gobos, 6 gobos and open
- Outer diameter 21.8 mm
- Image diameter 16 mm
- 6 x 10 W high-power 6in1 HCL RGBWA/UV (homogeneous color mixing)
- Wash-Effect 20°: Wash Effect 20°
- Wash Effect Red (R) 1 m: 26 Lux
- Wash Effect Green (G) 1 m: 66 lx
- Wash Effect blue (B) 1 m: 13 lx
- Wash effect cold-white (CW) 1m: 69 lx
- Wash Effect Amber (A) 1m: 21 lx
- Wash Effect ultraviolet (UV) 1m: 1 lx
- Wash effect every 1m: 184 lx
Scope of delivery
- Moving light
- User manual
- Network cable/power cable
- Omega clip
- Safety cable solution
