Eurolite 51786085 TMH-H180 LED moving head spot No. of LEDs (details):10
EAN:
Part number:
Item no:
Highlights & Details

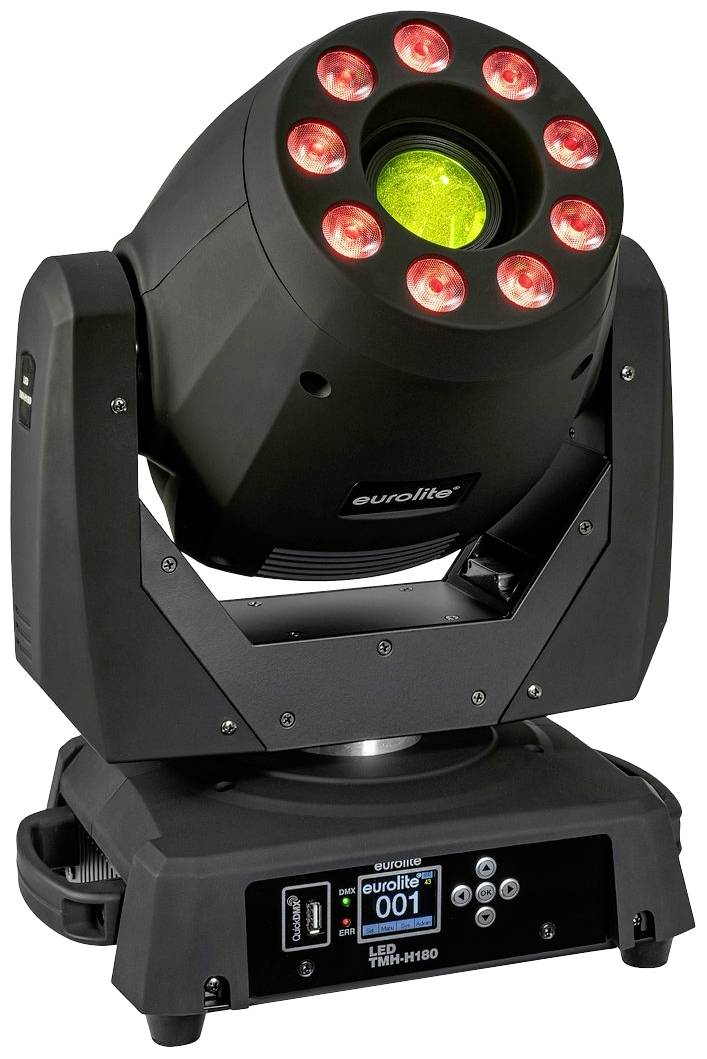

Eurolite LED TMH-H180 hybrid moving-head spot/wash COB
- LED Moving Head Hybrid Spot/Wash with rotating gobos, color wheel, prism and QuickDMX socket
- Bright spotlight and full-fledged washlight in one device
- 1 powerful LED 200 W COB (chip-on-board) cold-white (CW)
- 9 powerful LEDs 8 W high-power 4in1 QCL RGBW (homogeneous color mixing)
Technical specifications
- Product type
LED moving head spot
280 W
- LEDs
10
- Colour
RGBW
Cool white
- Dim
(L x W x H) 320 x 225 x 450 mm
- Weight
12 kg
n.rel.
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
225 mm
- Height
450 mm
- Length
320 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131242 Eurolite 51786085 TMH-H180 LED moving head spot No. of LEDs (details):10
Description
Positioning within 540° pan and 220° tilt
Auto position correction (feedback)
Exact positioning (16-bit resolution)
Prism 3-way rotating; focus motorized; gobo wheel with rotating gobos
Colour wheel with 8 dichroic colors and open
Half colors can be selected, Rainbow effect with variable speed in both the directions
Gobo wheel with rotating gobos, 7 gobos and open
Slot-In-Gobo-System for easy gobo change
Shake Effect
Integrated show programs
The device is cooled by a temperature controlled fan
Already pre-programmed at Light Captain; LED PC Control 512
Flicker-free
With an angle of radiation of 10°
Multi-colored LCD display
Electronic dimmer
Controllable via stand-alone; DMX; music control via microphone; QuickDMX via USB (optional); CRMX by Lumen Radio via USB (optional); W-DMX by Wireless Solution via USB (optional); Master/Slave function
Gobo effect; Stroboscope-effect
With Omega clip
Power input and power output for simple connection of up to 8 devices
For application areas like: Clubs/dance schools; stage; distributor
Possible application: Standing; flying
This text is machine translated.
Auto position correction (feedback)
Exact positioning (16-bit resolution)
Prism 3-way rotating; focus motorized; gobo wheel with rotating gobos
Colour wheel with 8 dichroic colors and open
Half colors can be selected, Rainbow effect with variable speed in both the directions
Gobo wheel with rotating gobos, 7 gobos and open
Slot-In-Gobo-System for easy gobo change
Shake Effect
Integrated show programs
The device is cooled by a temperature controlled fan
Already pre-programmed at Light Captain; LED PC Control 512
Flicker-free
With an angle of radiation of 10°
Multi-colored LCD display
Electronic dimmer
Controllable via stand-alone; DMX; music control via microphone; QuickDMX via USB (optional); CRMX by Lumen Radio via USB (optional); W-DMX by Wireless Solution via USB (optional); Master/Slave function
Gobo effect; Stroboscope-effect
With Omega clip
Power input and power output for simple connection of up to 8 devices
For application areas like: Clubs/dance schools; stage; distributor
Possible application: Standing; flying
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 280 W
- Power supply: Power feed via P-Con (blue), installation version power supply cable with safety plug
- Display type: Multicolor LCD display
- Protection class SK I
- Cooling: Fan temperature controlled
- Housing colour black.
- Protection class: IP20
- Recording system 2 x Omega-shaped loops
- Control: Stand-alone
- LED lamp type
- LED:1 x 200 W COB (chip-on-board) cold-white (CW)
- Prism 3-way rotating
- DMX channels: 21
- DMX input 3-pin XLR (M), built in version
- Master/slave function: Master/slave function
- DMX
- Pre-programmed with: Light Captain
- Beam angle: 10°
- Angle of radiation (1/2 peak) Spot 10°
- Beam angle (1/10 peak): Wash effect 30°
- Gobos: Gobo wheel with rotating gobos, 7 gobos and open
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- 5 x 20 mm, T 3.15 A fuse can be replaced
- DMX output 3-pin XLR (W) built-in version
- Illuminance (lx): 5598 lx
- P-Con (gray), installation version
- Flash rate 1 - 20 Hz.
- Music control via microphone: Music control via microphone
- CRMX by Lumen Radio via USB (optional): CRMX by LumenRadio via USB (optional)
- W-DMX by Wireless Solution via USB (optional): W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional): QuickDMX via USB (optional)
- LED PC Control 512 LED PC Control 512
- Max. Tilt movement TILT: 220° Exact positioning (16-bit resolution) Auto position correction (feedback)
- Max. Swivel movement PAN: 540° accurate positioning (16-bit resolution) Auto position correction (feedback)
- Gobo wheel with rotating gobos: Gobo wheel with rotating gobos
- Colour generation: Colour wheel with 8 dichroic colors and open
- Half colors can be selected, Rainbow effect with variable speed in both the directions: Semi-colors can be selected, Rainbow effect with variable speed in both the directions
- Shake Effect: Shake effect
- Slot-In-Gobo-System for easy gobo change: Slot-in-gobo system for easy gobo change
- Motor-driven focus: Motor-driven focus
- Image diameter 16mm: Image diameter 16mm
- Wash Effect Red (R) 1 m: 41 Lux
- Wash Effect Green (G) 1 m: 41 lx
- Wash Effect blue (B) 1 m: 17 lx
- Wash effect cold-white (CW) 1m: 123 lx
- Wash effect every 1m: 206 lx
- 9 x 8 W high-power 4in1 QCL RGBW (homogeneous color mixing): 9 x 8 W high-power 4in1 QCL RGBW (homogeneous color mixing)
- External diameter 24 mm: External diameter 24 mm
- 23: 23
- Wash-Effect 14°: Wash Effect 14°
Scope of delivery
- Moving light
- User manual
- Network cable/power cable
- 2 x Omega brackets
