Eurolite 51786126 TSL-1000 LED effect light No. of LEDs (details):1
EAN:
Part number:
Item no:
Highlights & Details

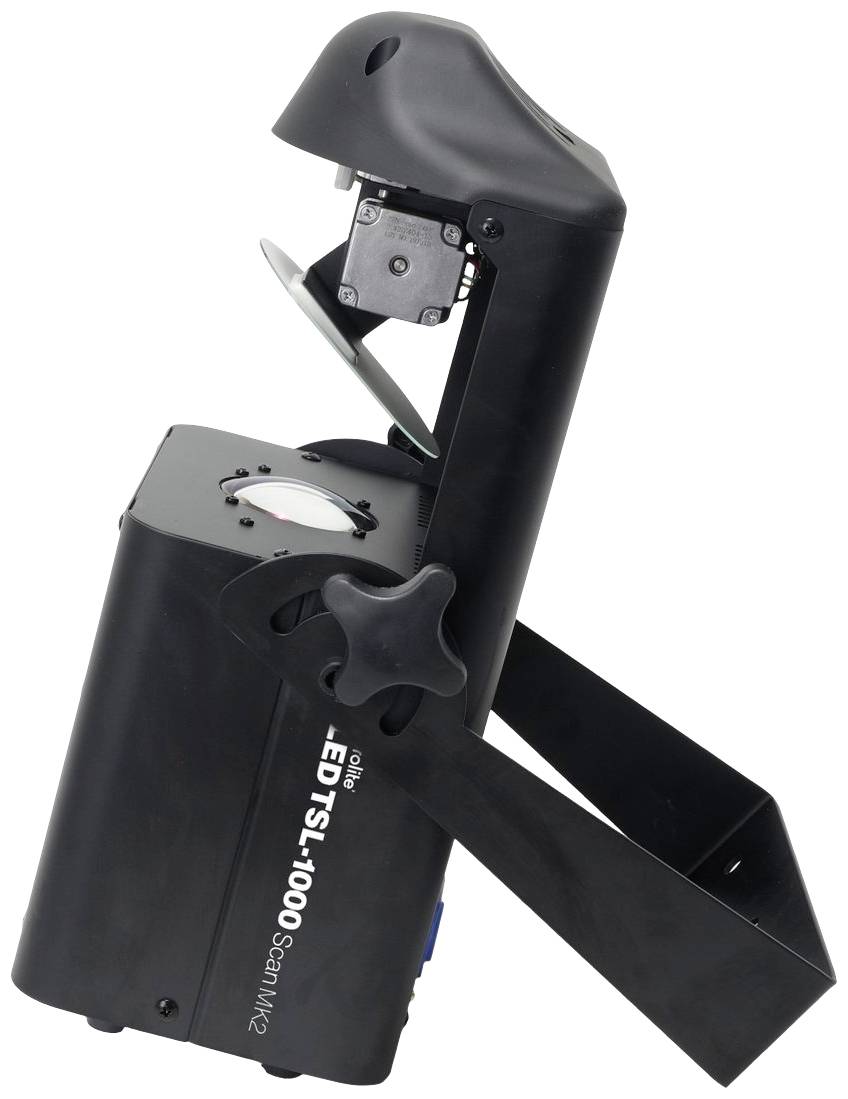

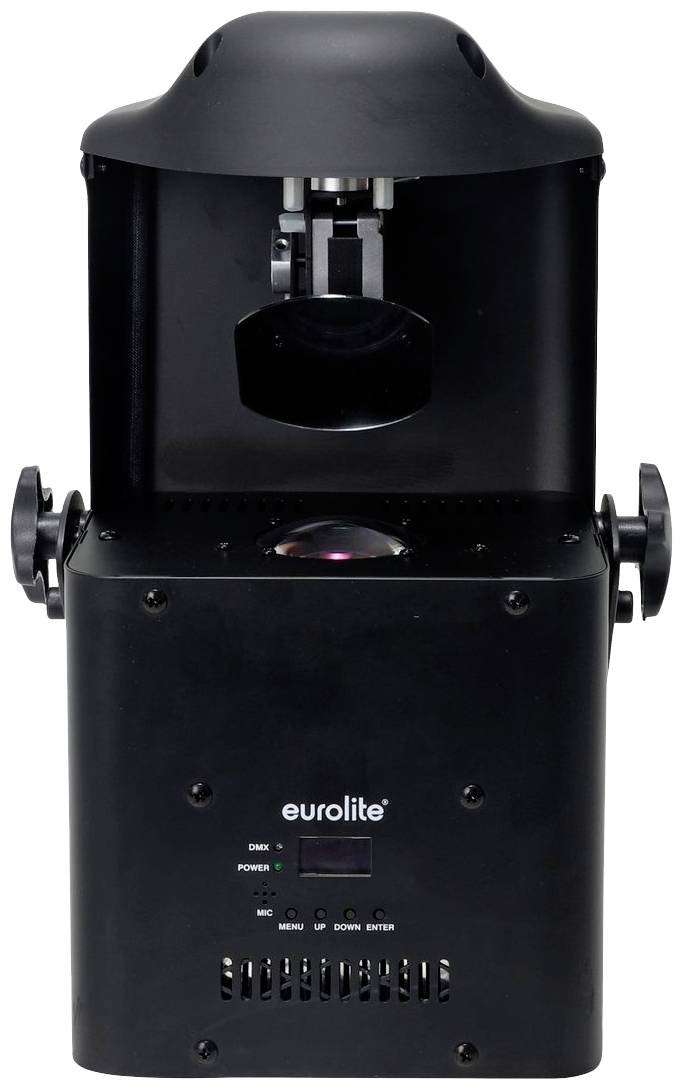

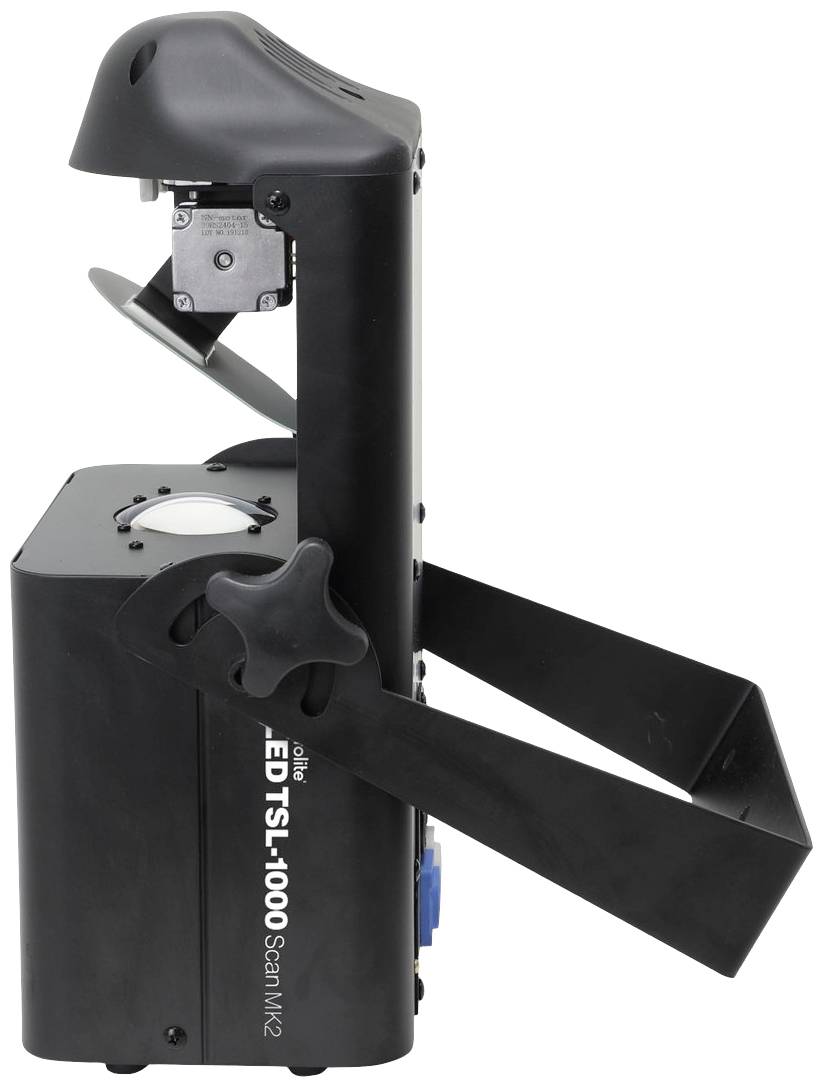

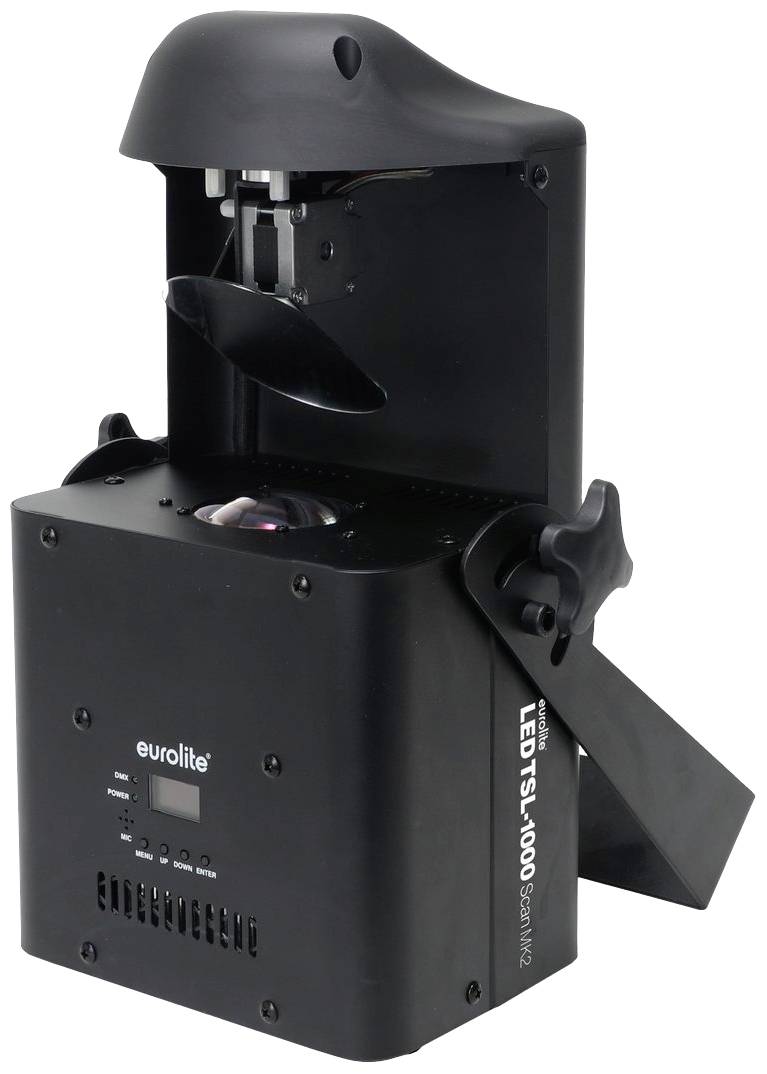

Eurolite LED TSL-1000 scan MK2
- 1 powerful LED 100 W COB (chip-on-board) cold-white (CW)
- Positioning within 160° pan and 50° tilt
- Exact positioning (16-bit resolution)
- Focus motorized; color wheel; gobo-wheel with rotating gobos; prism 3-fold
Technical specifications
- Product type
LED effect light
60 W
- LEDs
1
- Colour
RGBW
- Dim
(L x W x H) 251 x 141 x 377 mm
- Weight
5750 g
n.rel.
- Features
Audio control via built-in mic
Dimmable
- Factory colour
Black
- Bulb type
LED (monochrome)
- Width
141 mm
- Height
377 mm
- Length
251 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131286 Eurolite 51786126 TSL-1000 LED effect light No. of LEDs (details):1
Description
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motor focus
Note: The macro programs of the previous model (No. 51786122) are not identical, therefore synchronous master/slave operation is not possible with these devices.
Gobo effect; Stroboscope-effect
Colour wheel with 8 dichroic colors and open
Half colors can be selected, Rainbow effect with variable speed in both the directions
Gobo wheel with rotating gobos, 7 gobos and open
Shake Effect
Exchangeable gobos
Slot-In-Gobo-System for easy gobo change
Integrated show programs
The device is cooled by a fan
Can be controlled via stand-alone; DMX; master/slave function; music control via microphone
Flicker-free
With an angle of radiation of 20°
OLED Display
Electronic dimmer
Pre-programmed at Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Rubber feet
Power input and power output for simple connection of up to 8 devices
For applications such as: Clubs/dance schools; wedding/gala/events; mobile DJ's/solo entertainer; rental
Possible application: Standing; flying; on a tripod
This text is machine translated.
Note: The macro programs of the previous model (No. 51786122) are not identical, therefore synchronous master/slave operation is not possible with these devices.
Gobo effect; Stroboscope-effect
Colour wheel with 8 dichroic colors and open
Half colors can be selected, Rainbow effect with variable speed in both the directions
Gobo wheel with rotating gobos, 7 gobos and open
Shake Effect
Exchangeable gobos
Slot-In-Gobo-System for easy gobo change
Integrated show programs
The device is cooled by a fan
Can be controlled via stand-alone; DMX; master/slave function; music control via microphone
Flicker-free
With an angle of radiation of 20°
OLED Display
Electronic dimmer
Pre-programmed at Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Rubber feet
Power input and power output for simple connection of up to 8 devices
For applications such as: Clubs/dance schools; wedding/gala/events; mobile DJ's/solo entertainer; rental
Possible application: Standing; flying; on a tripod
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 110 W

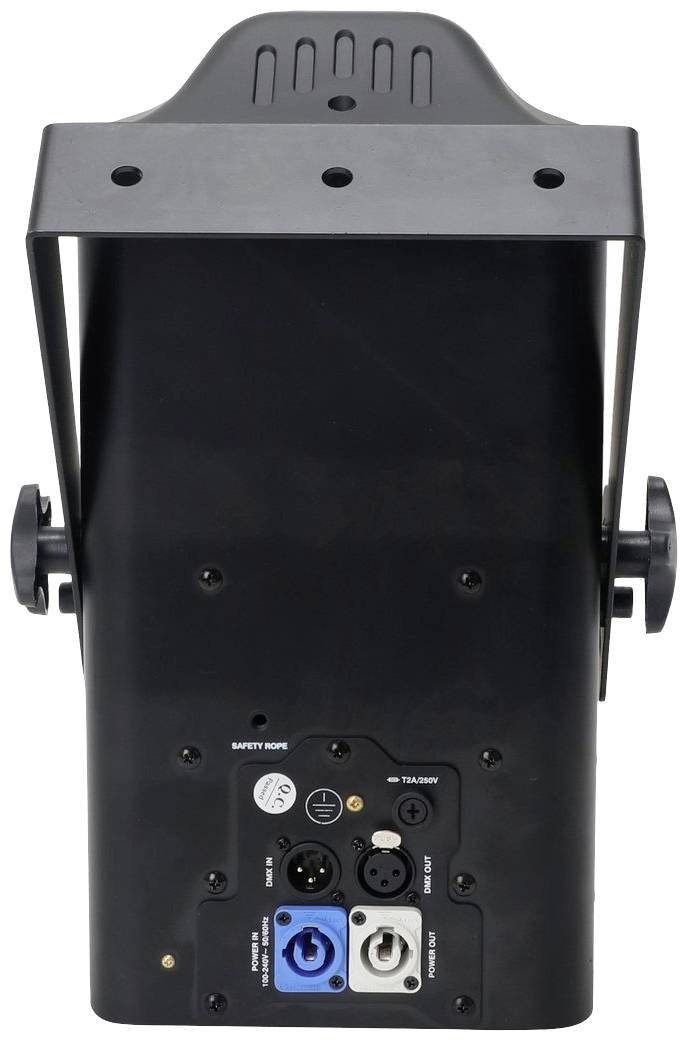

- Power connection: Power feed via P-Con (blue), installation version power connection cable with safety plug (included)
- OLED display
- Protection class SK I
- Cooling: Fans
- Housing colour black.
- Protection class: IP20
- Control: Stand-alone
- Transport aid: Rubber feet
- LED lamp type
- LED:1 x 100 W COB (chip-on-board) cold-white (CW)
- Colour temperature: 8000K
- Features: Motor focus
- DMX channels: 10
- DMX input 3-pin XLR (M), built in version
- Master/slave function: Master/slave function
- DMX
- Pre-programmed at: Light´J
- Light captain: Light captain
- Beam angle: 20°
- Beam angle (1/2 peak) 20°
- Gobos: Gobo wheel with rotating gobos, 7 gobos and open
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- 5 x 20 mm, T 4 A fuse can be replaced
- DMX output 3-pin XLR (W) built-in version
- Illuminance (lx): 1055 lx
- P-Con (gray), installation version
- Flash rate 1 - 25 Hz.
- Music control via microphone
- EASY SHOW 2
- EASY SHOW 3
- Max. Tilt movement TILT: 50° Exact positioning (16-bit resolution)
- Max. Pan motion: 160° Exact positioning (16-bit resolution)
- Gobo wheel with rotating gobos
- Colour generation: Colour wheel with 8 dichroic colors and open
- Half colors can be selected, Rainbow effect with variable speed in both the directions
- Shake Effect
- Exchangeable gobos
- Slot-In-Gobo-System for easy gobo change
- Colour wheel
- 3-way prism
Scope of delivery
- Lighting effect
- User manual
- Network cable/power cable
- Safety cable solution
