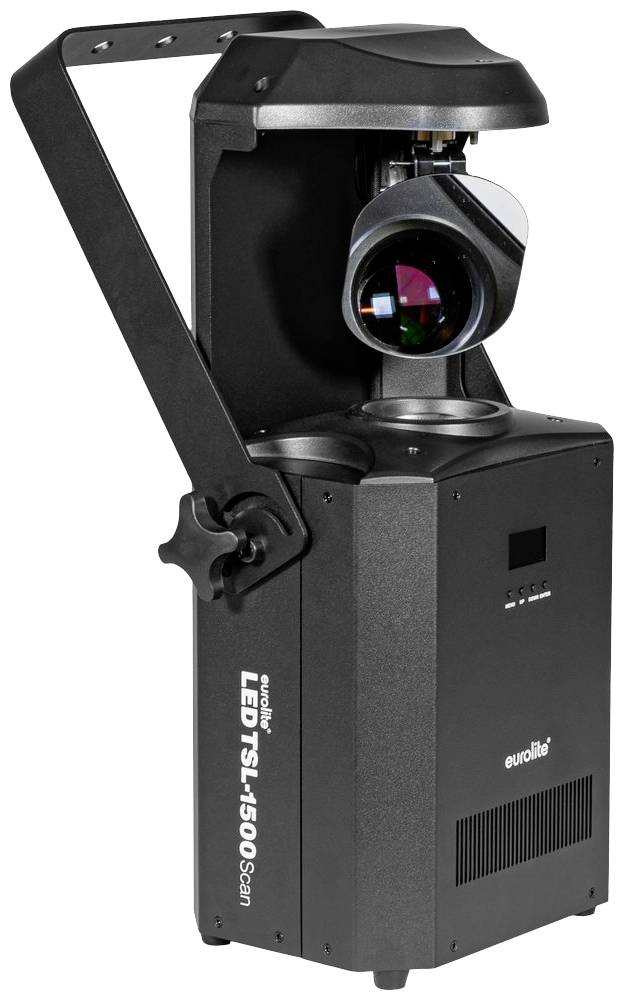

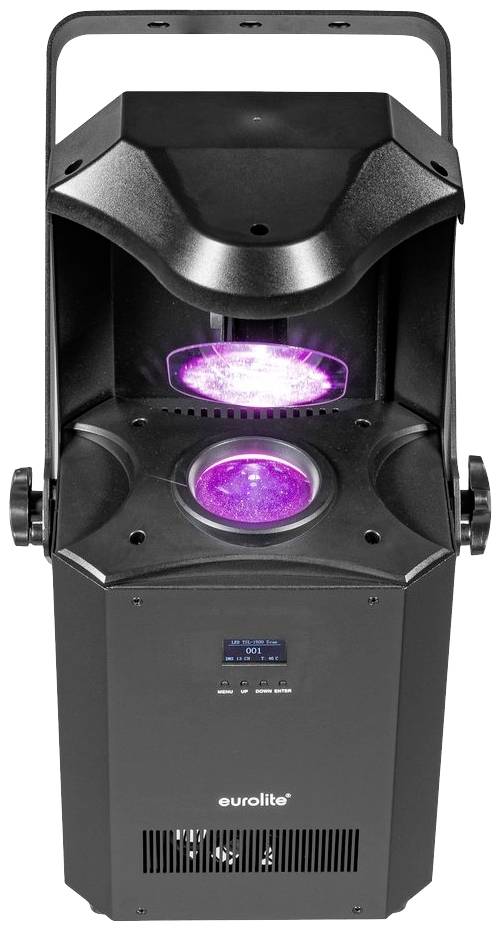

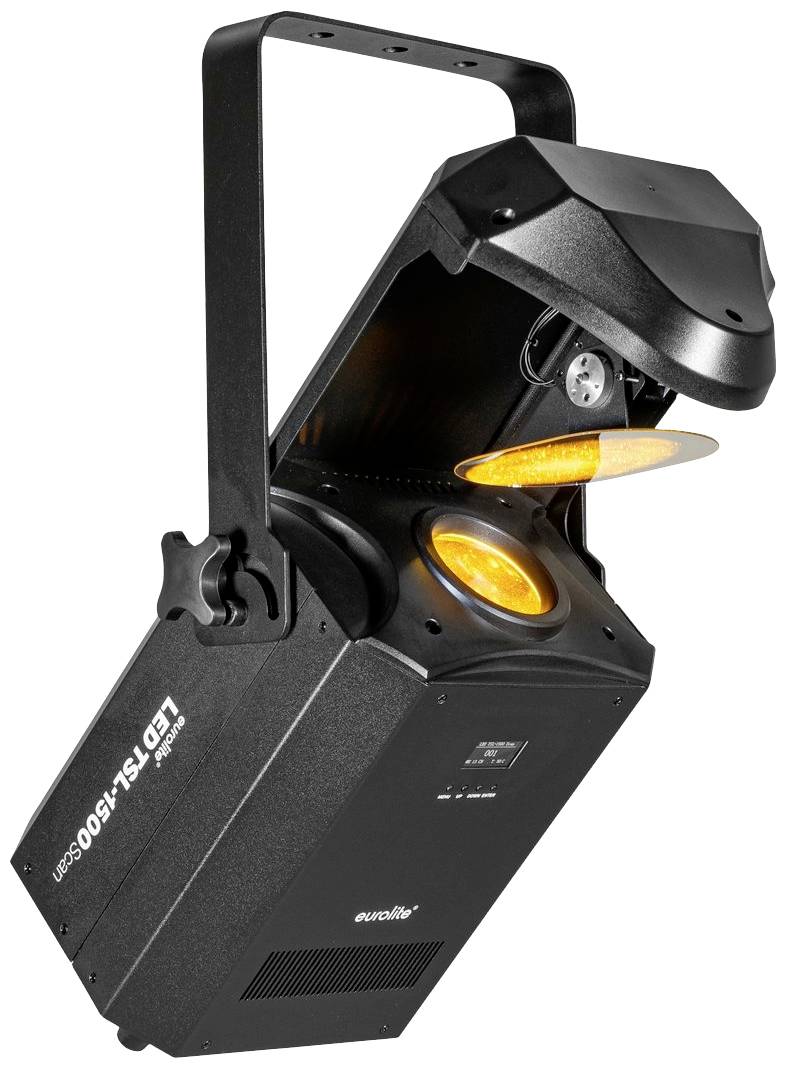

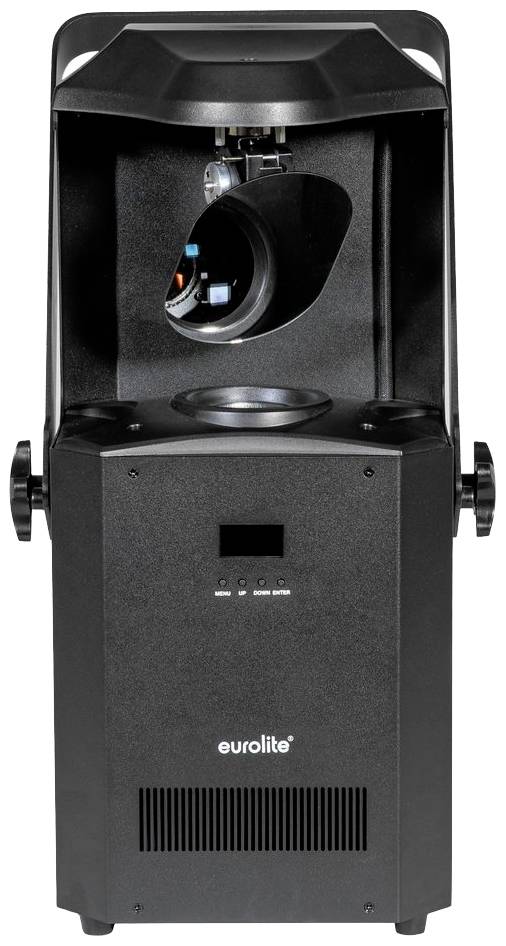

Eurolite 51786127 TSL-1500 Scan LED effect light
EAN:
Part number:
Item no:
Technical specifications
- 150 W COB (Chip-on-board) cold-white (CW)
- Colour temperature: 10000K
- Max. Tilt movement TILT: 70° positioning
- Max. Pan motion 180°
- Flash rate 1 - 30 Hz.
- DMX channels: 13

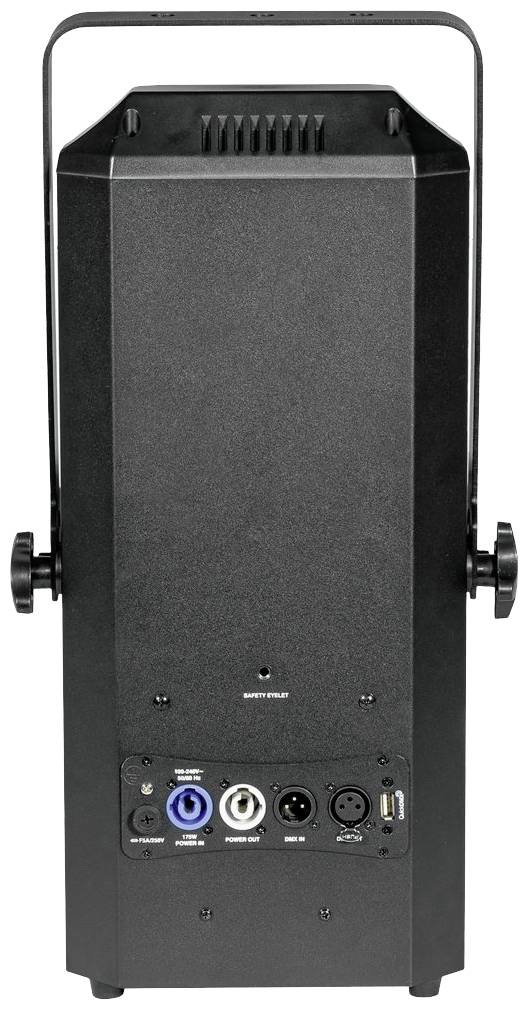

- DMX input 3-pin XLR (M), built in version
- DMX output 3-pin XLR (W) built-in version
- Beam angle: 11°
- Beam angle (1/2 peak) 11°
- Illuminance (lx): Cold white (CW) 3M: 15649 lx, 6m: 4147 lx
- Protection class: IP20
- Protection class: I
- Product type
LED effect light
- Colour
Cool white
- Dim
(L x W x H) 165 x 335 x 470 mm
- Weight
7050 g
n.rel.
- Bulb type
LED (monochrome)
- Width
335 mm
- Height
470 mm
- Length
165 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2898799 Eurolite 51786127 TSL-1500 Scan LED effect light
Description
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motor focus.
This text is machine translated.
This text is machine translated.
Features
- Strobe effect with variable speed, random strobe & pulse effects
- Electronic dimmer
- Power input and power output for simple connection of up to 8 devices
- 1 powerful LED 150 W COB (Chip-on-board) cold-white (CW)
- Positioning within 180° pan and 70° tilt
- Motorised focus; color wheel; gobo wheel with rotating gobos; prism 4-fold rotating
- Gobo effect
- Colour wheel with 8 dichroic colors and open
- Rainbow effect with variable speed in both the directions
- Gobo wheel with rotating gobos, 7 gobos and open
- Shake Effect
- Exchangeable gobos
- Slot-In-Gobo-System for easy gobo change
- 9 integrated show programs
- Usable in 13 CH DMX-mode
- The device is cooled by a temperature controlled fan
- Can be controlled via stand alone; music control via microphone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Pre-programmed by Light Captain
- Flicker-free
- With an angle of radiation of 11°
- OLED Display
- Rubber feet
Scope of delivery
- TSL-1500 scan
- Safety cable solution
- Power cable;
- User manual
