Eurolite 51787330 DMX LED effect light No. of LEDs (details):1
EAN:
Part number:
Item no:
Highlights & Details

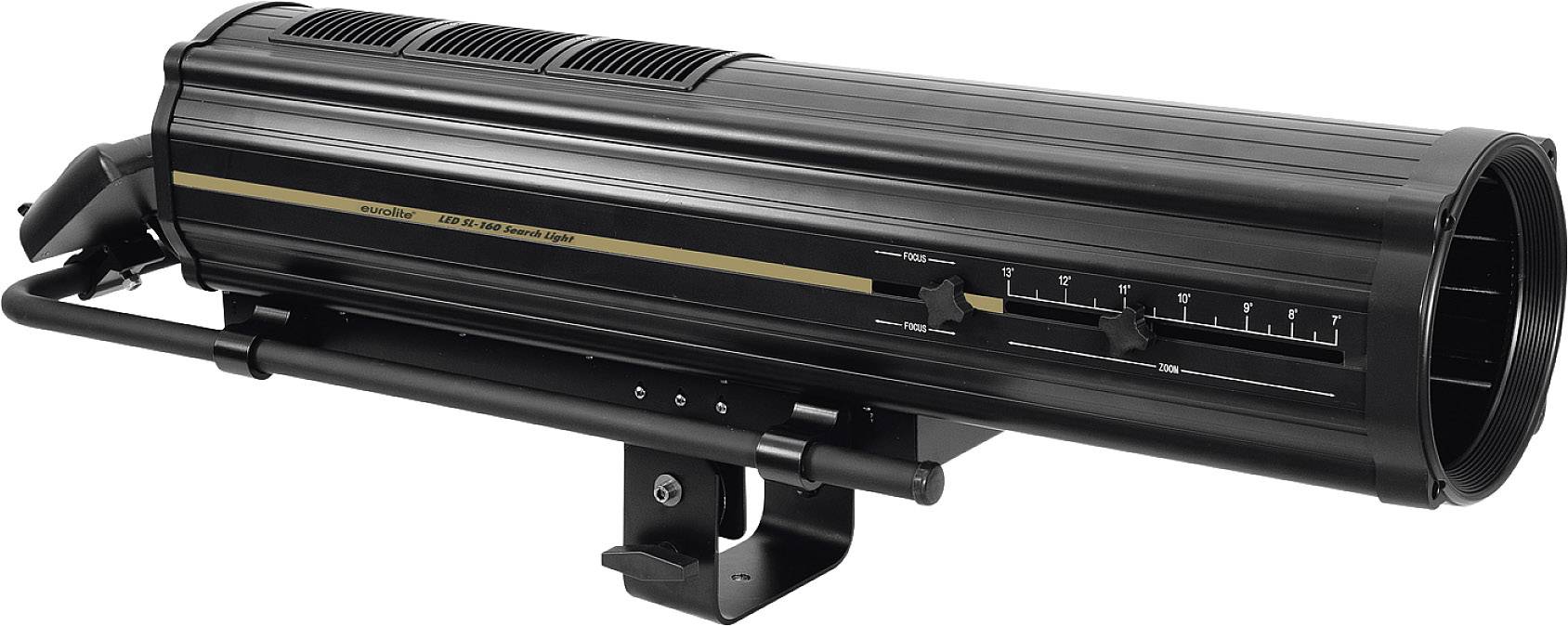

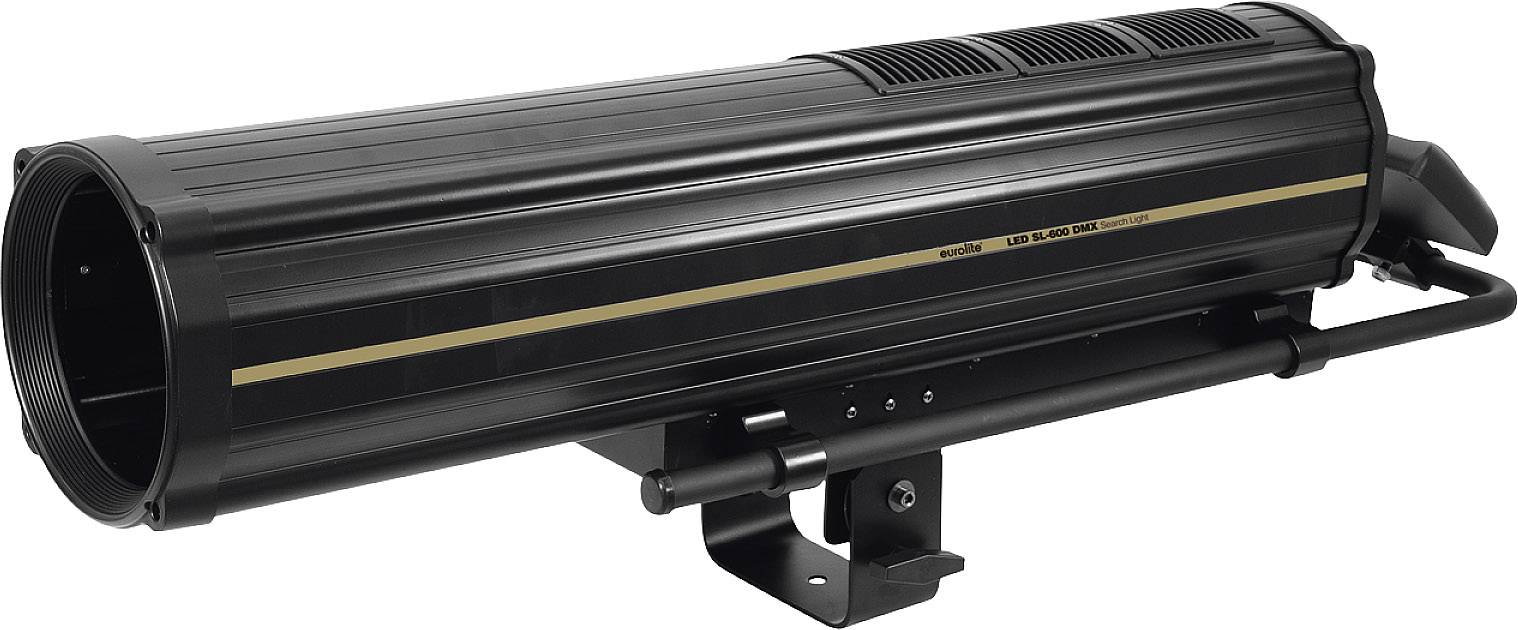

LED SL-600 DMX search light
- Can be operated in manual mode or via DMX
- Suitable for a projection range from 50 to 120 meters
- Manual control via control panel with buttons and faders
- This text is machine translated.
Technical specifications
- Power supply 100-240 V AC, 50/60 Hz
- Total connected wattage 640 W
- Protection class: IP20
- Power connection: Power feed P-Con (blue), built-in version Power connection cable with earthing contact (included)
- LED: 1 x COB (chip-on-board) 600 W CW (homogeneous color mixing)
- Colour temperature: 6500K
- Flash rate 1 - 20 Hz.
- DMX channels: 5
- DMX input 1 x 3-pin XLR (M) panel-mounted version; 1 x 5-pin XLR (M) panel-mounted version
- DMX output: 1 x 3-pin XLR (W) mounted version; 1 x 5-pin XLR (W) built-in version
- Fan: Yes
- Housing colour black.
- Product type
DMX LED effect light
- LEDs
1
- Colour
Cool white
- Dim
(L x W x H) 1050 x 230 x 340 mm
- Weight
18.5 kg
n.rel.
- Bulb type
LED (monochrome)
- Width
230 mm
- Height
340 mm
- Length
1050 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2236106 Eurolite 51787330 DMX LED effect light No. of LEDs (details):1
Description
Features

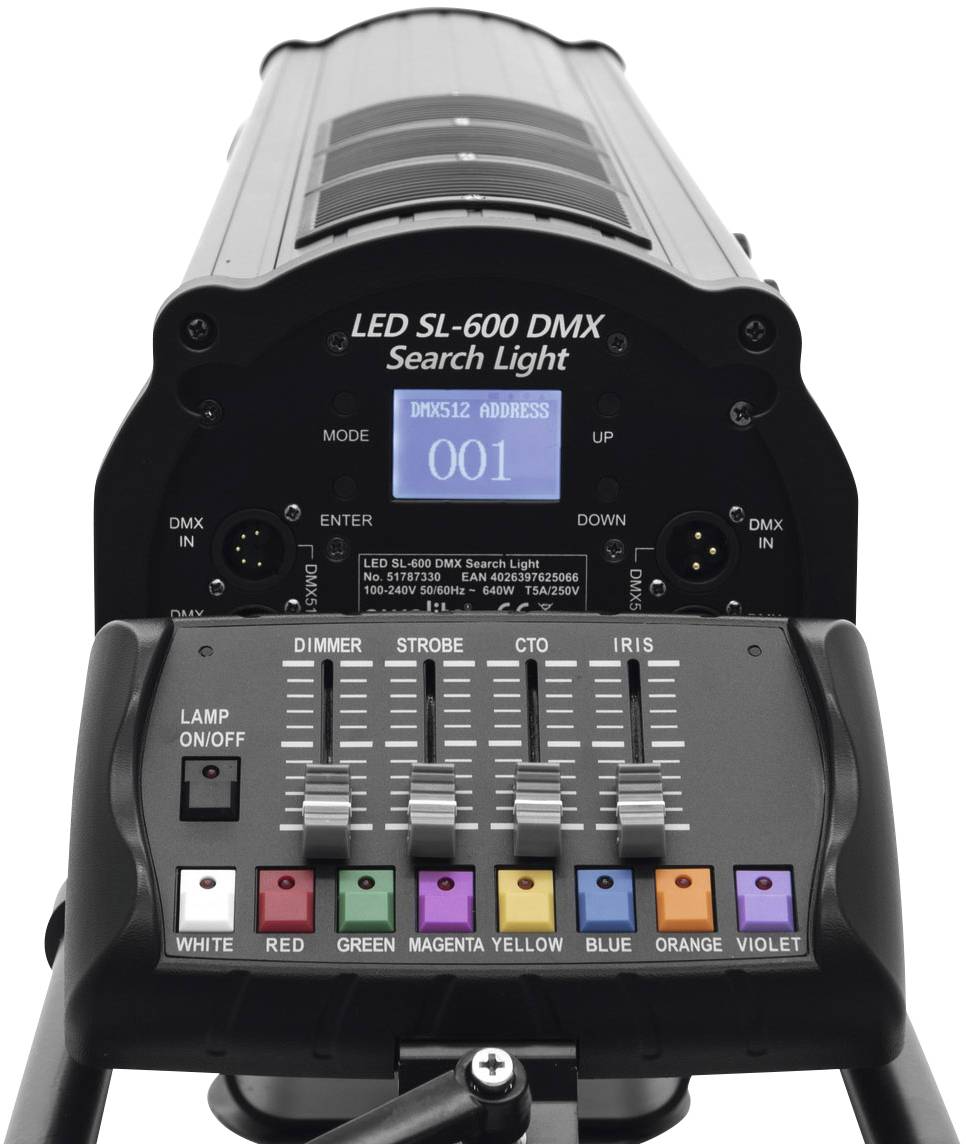

- The control panel can be removed to mount it on the side for easier operation of the control board with control buttons
- DMX addressing via LCD and four control buttons
- Color wheel with 7 different dichroic color filters and open
- Strobe effect with variable speed (1 - 20 flashes/sec.)
- Three color correction filters for warmer light color
- Continuously adjustable iris from 5 - 100 %
- Dimmer for continuous adjustment of the light output brightness between 0 % and 100 %

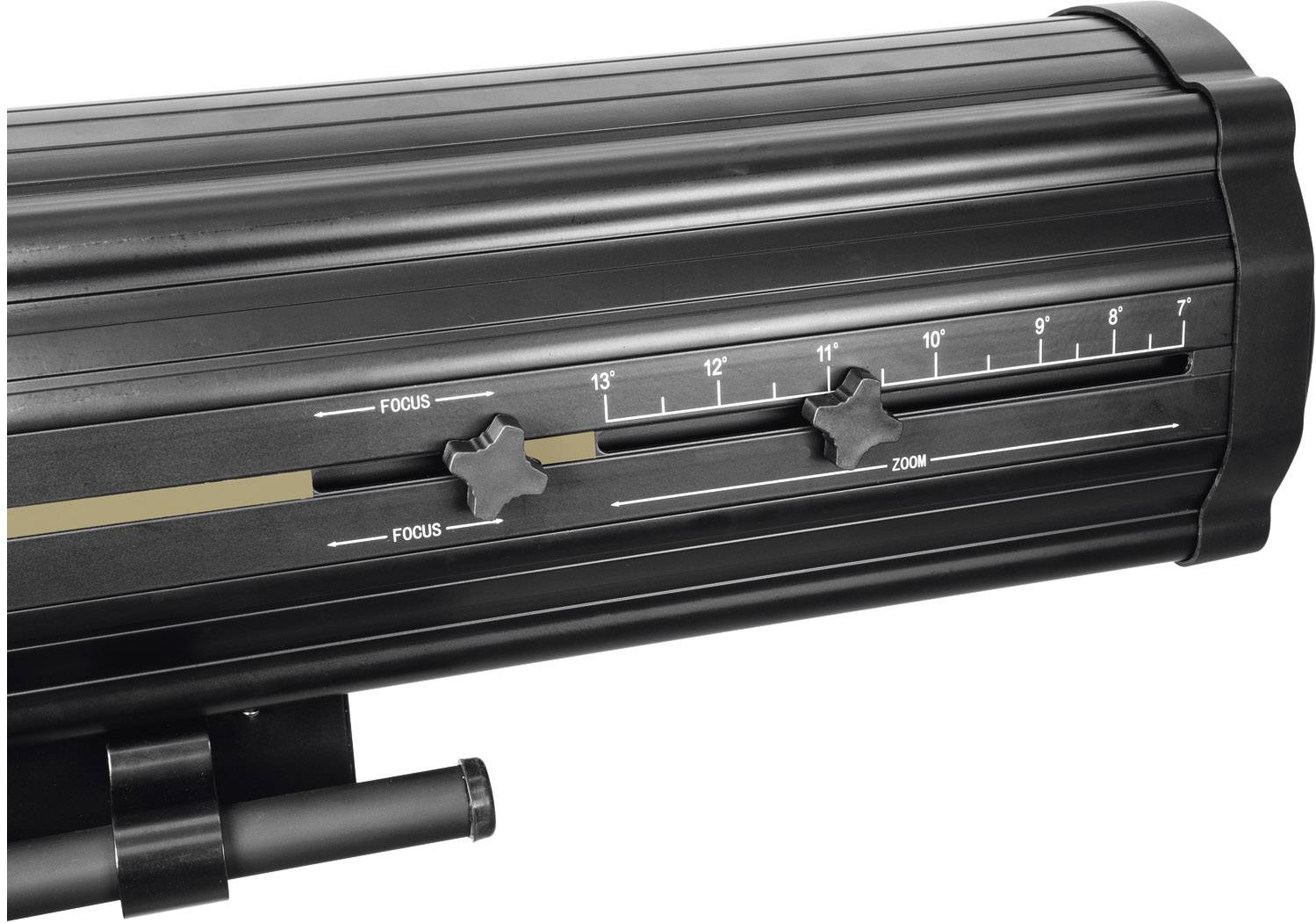

- Manual focus
- Manual zoom (from 7° to 13°)
- Holding bracket for mounting on a tripod
- Equipped with 1 x 600 W LED
- Switched-mode power supply technology for mains voltage between 100 and 240 volts
- Mains connection via P-Con socket and supplied power cable
- Control: Stand-alone; DMX.
