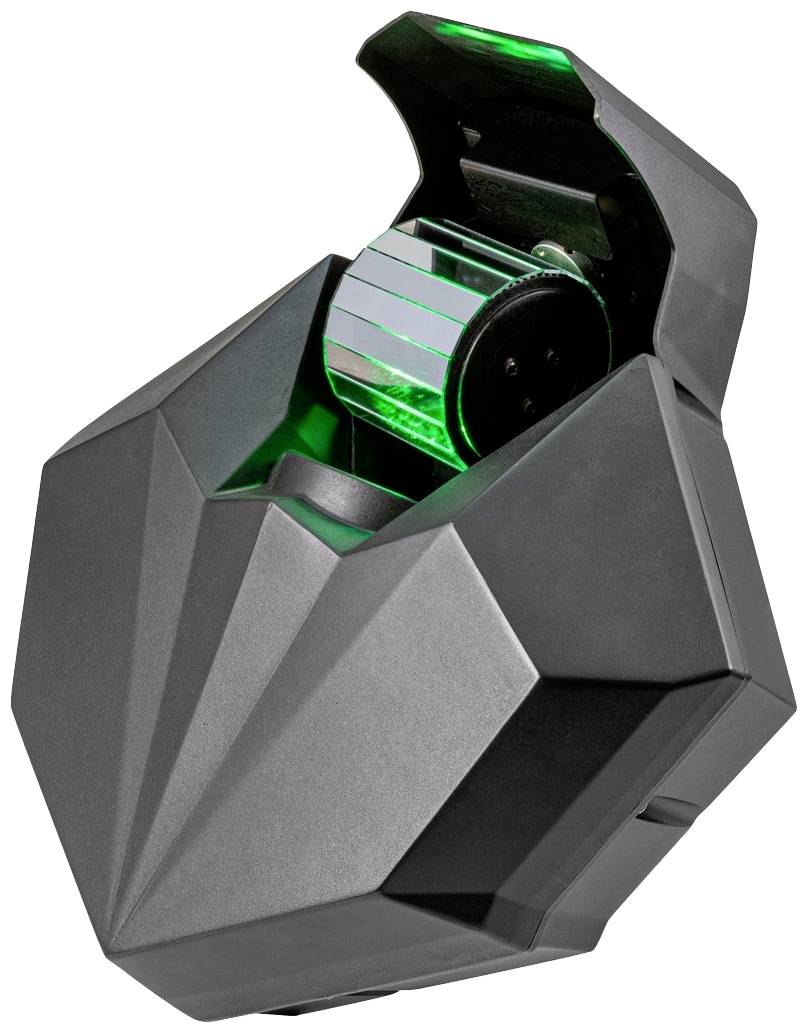

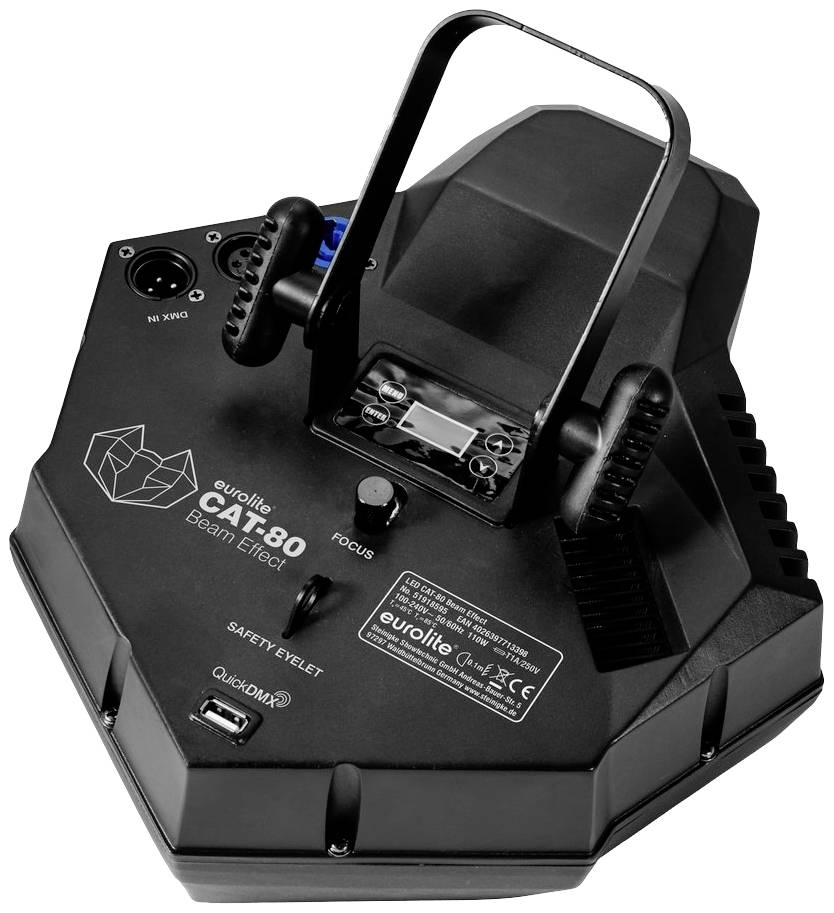

Eurolite 51918595 CAT-80 LED effect light
EAN:
Part number:
Item no:
Technical specifications
- 1 x 80 W COB (Chip-on-board) cold-white (CW)
- Flash rate 0 - 25 Hz
- DMX channels 7
- DMX input 3-pin XLR (M), built in version
- DMX output 3-pin XLR (W) built-in version
- Protection class: IP20
- Protection class: I
- Product type
LED effect light
- Colour
Cool white
- Dim
(L x W x H) 185 x 290 x 315 mm
n.rel.
- Bulb type
LED (monochrome)
- Width
290 mm
- Height
315 mm
- Length
185 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2898818 Eurolite 51918595 CAT-80 LED effect light
Description
The CAT-80 from Eurolite impresses through a very high brightness and a lot of variation.
A 80 Watt strong LED provides high light output not only in the party area, but also on concert stages and at other larger events.
Nine gobos, a mirror roller and a rotating facets mirror shape the light to interesting shapes and reproduce them. The mirror and the roller can rotate at adjustable speed to create variable motion. In addition, the roller itself can be adjusted in its inclination and thus the motion level can be adjusted.
The result of all these possibilities is a large number of rays of light that move dynamically through the room. From static images to gentle journeys to rapid movements, this effect certainly doesn't make it boring. The effect is applicable both on small stages as well as in clubs and discotheques.
This text is machine translated.
A 80 Watt strong LED provides high light output not only in the party area, but also on concert stages and at other larger events.
Nine gobos, a mirror roller and a rotating facets mirror shape the light to interesting shapes and reproduce them. The mirror and the roller can rotate at adjustable speed to create variable motion. In addition, the roller itself can be adjusted in its inclination and thus the motion level can be adjusted.
The result of all these possibilities is a large number of rays of light that move dynamically through the room. From static images to gentle journeys to rapid movements, this effect certainly doesn't make it boring. The effect is applicable both on small stages as well as in clubs and discotheques.
This text is machine translated.
Features
- LED-radiation effect with 80-W-COB-LED in cold-white and gobo-wheel 3 different movement axes
- Rotating facet mirror inside

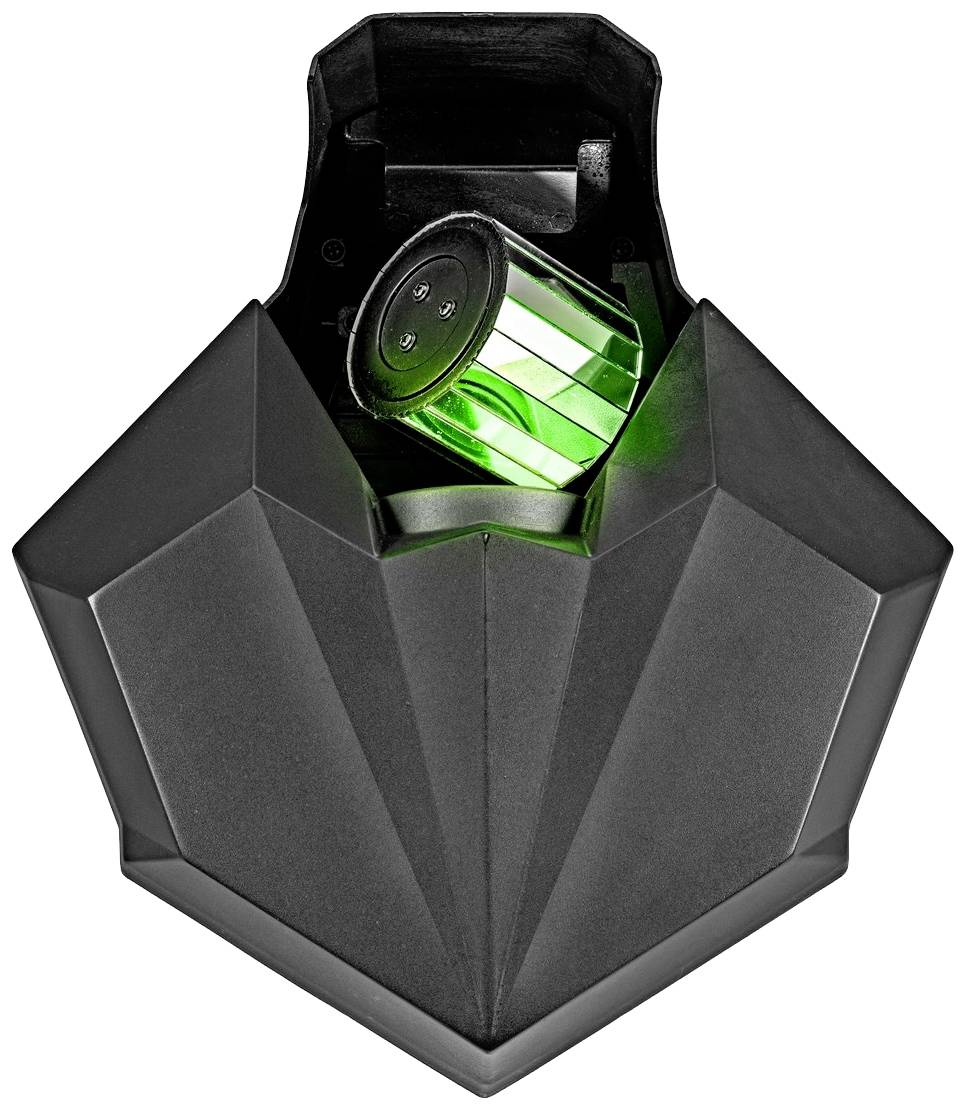

- Rotating and swiveling mirror roller
- Creates countless moving patterns in space
- Manual focus
- Electronic dimmer
- 1 powerful LED 80 W COB (Chip-on-board) cold-white (CW)
- Gobo wheel with static gobos; focus manually
- Mirror-roller effect; Stroboscope-effect
- Strobe effect with variable speed

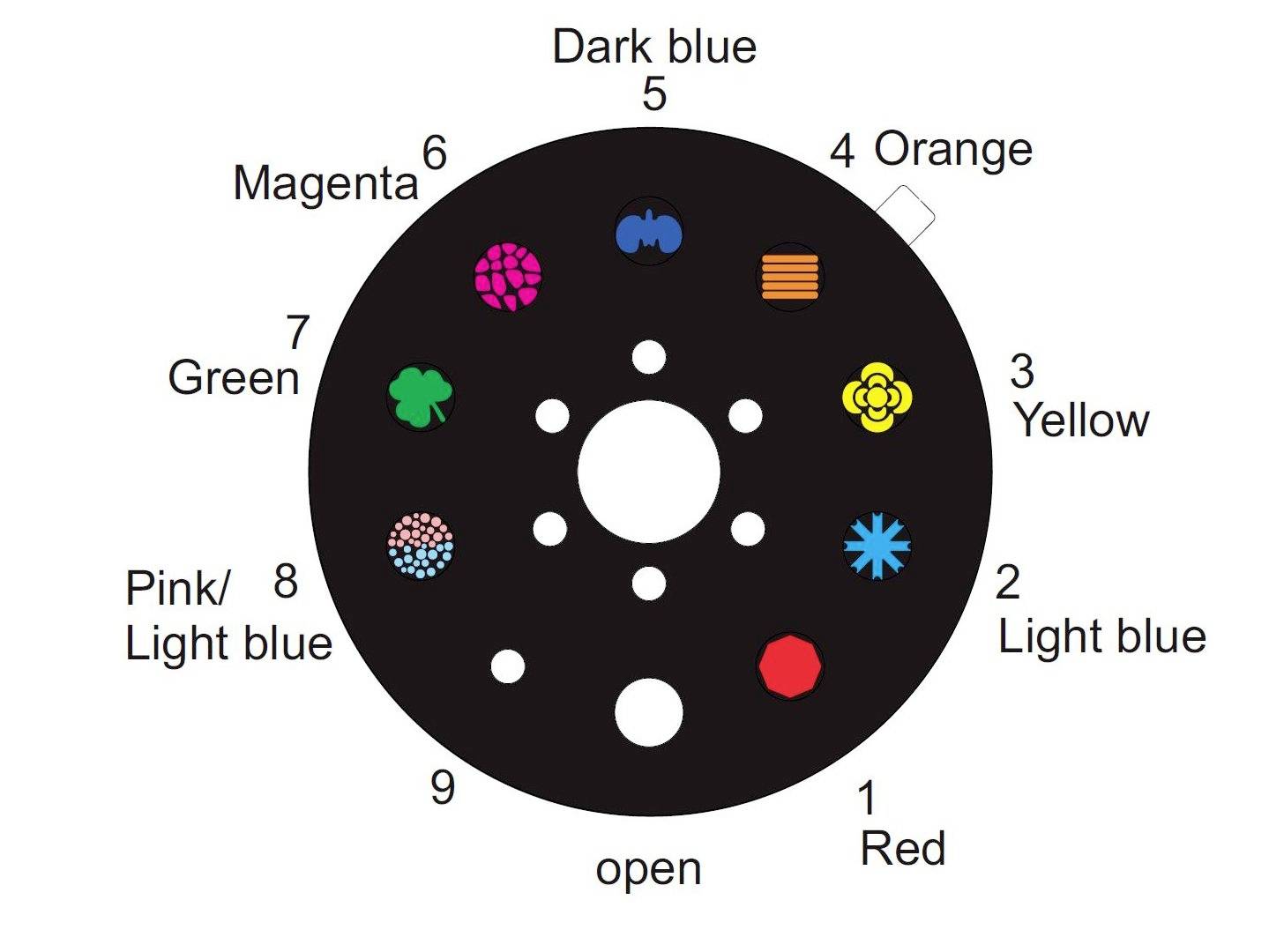

- Gobo wheel with static gobos, 1 gobo, 8 color gobos and open
- Usable in 7 CH DMX-mode
- The device is cooled by a fan
- Can be controlled via stand alone; master/slave function; music control via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Pre-programmed at Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
- Flicker-free
- OLED Display
Scope of delivery
- Lighting effect
- XLR cable
- Power cable;
- User manual
