Buy Eurolite 51918596 CAT-80 LED effect light No. of LEDs (details):1 80 W

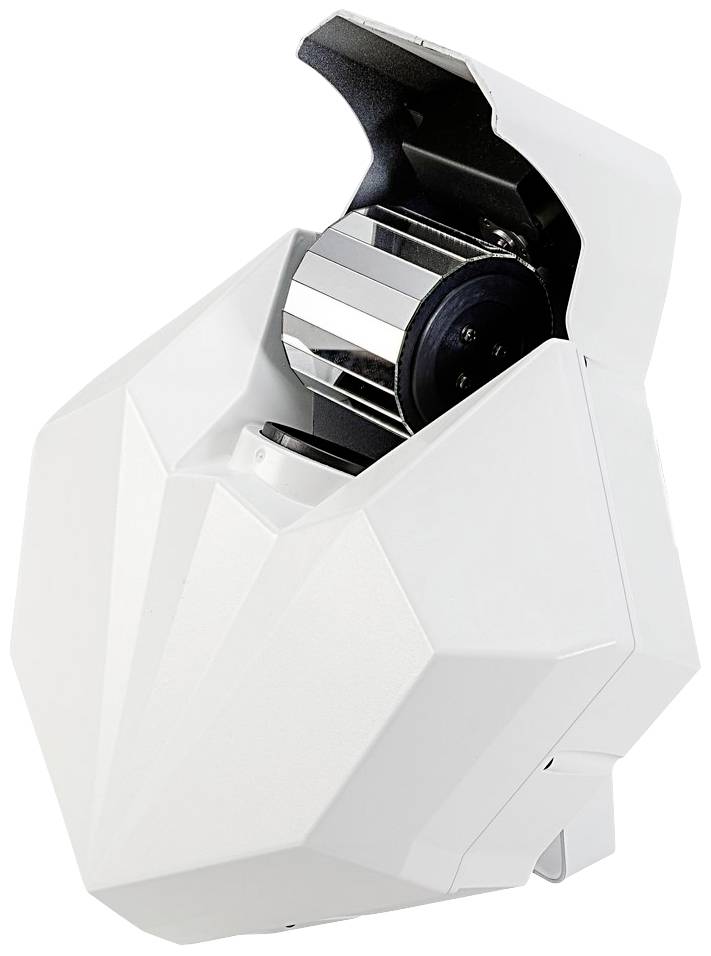

A white, modern electronic device with angled surfaces and a shiny, visible, cylindrical element inside.

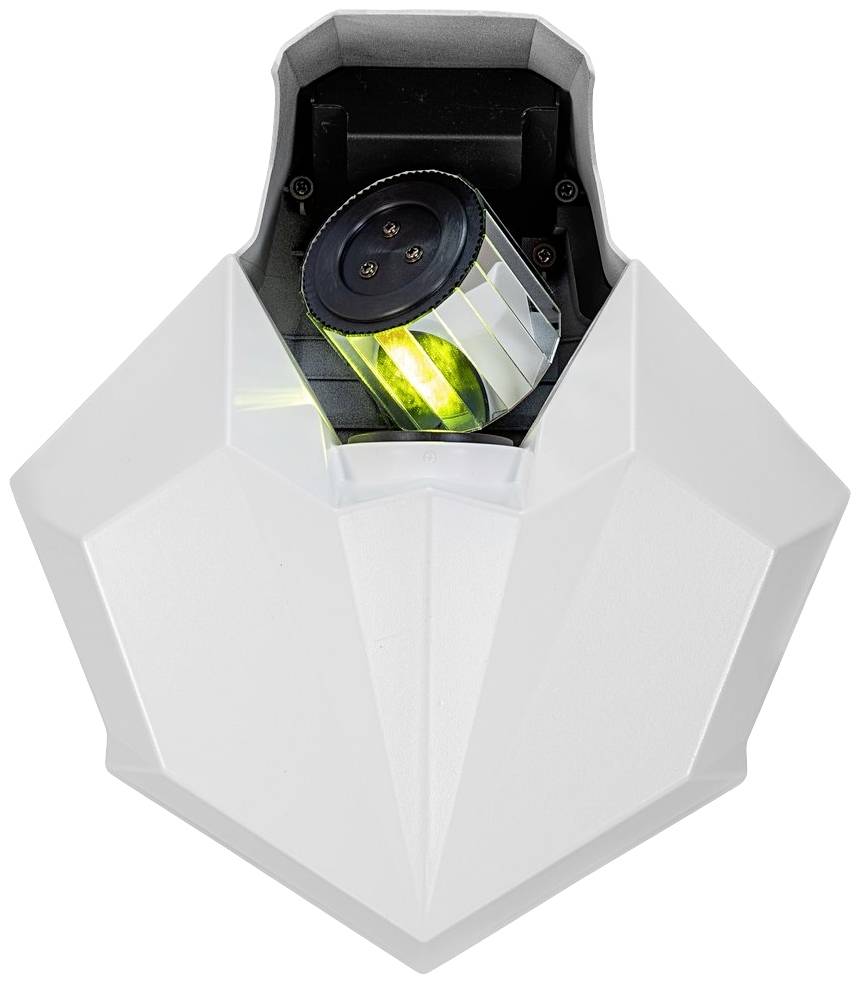

Movable LED light effect with a white housing, revealing a rotating lens inside that projects colourful lights.

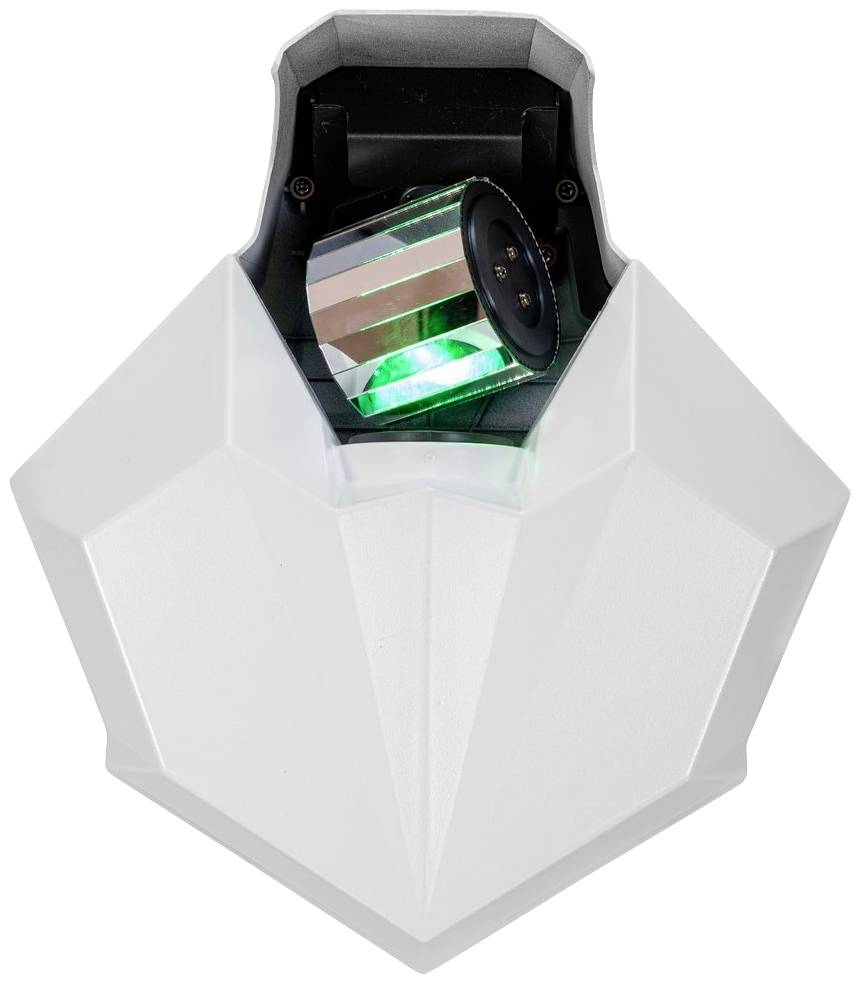

A white, heart-shaped device with a prismatic lens projects greenish light rays.

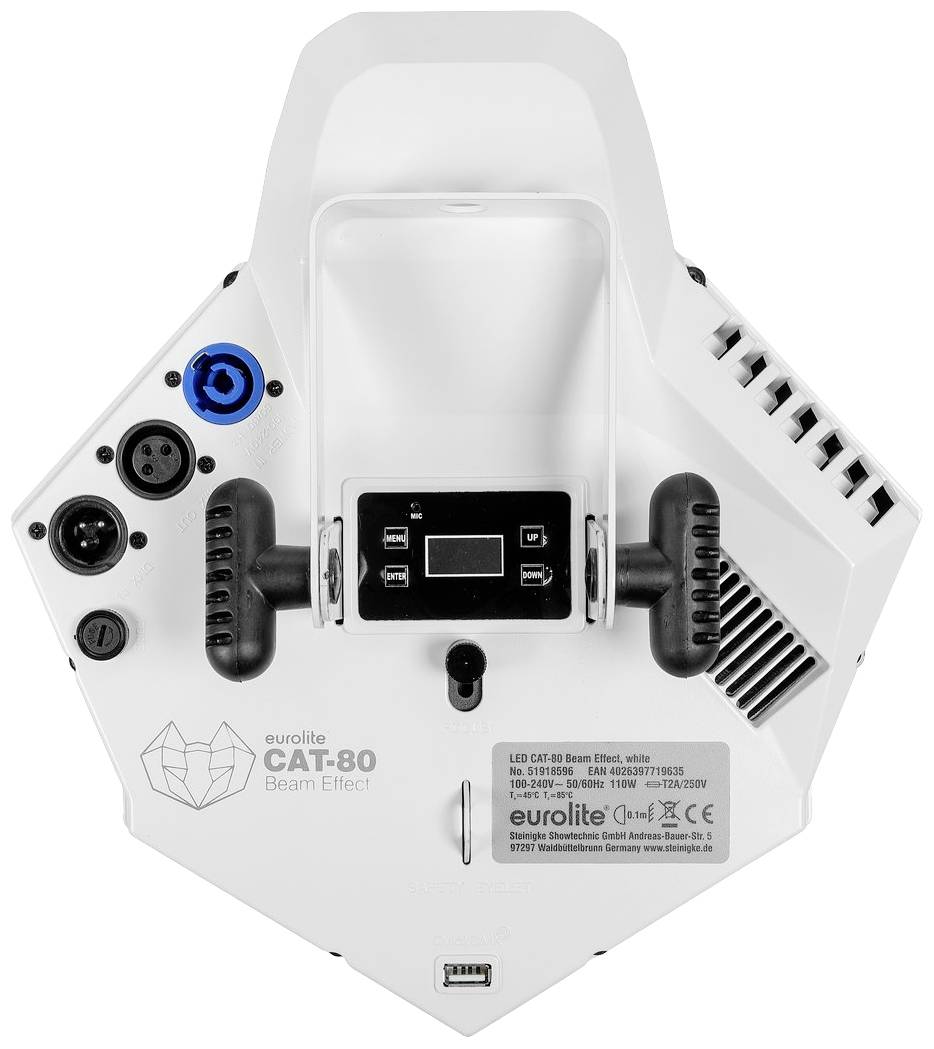

A white, hexagonal device with control buttons and connectors is shown. It is a 'Eurolite CAT-80 Beam Effect'.

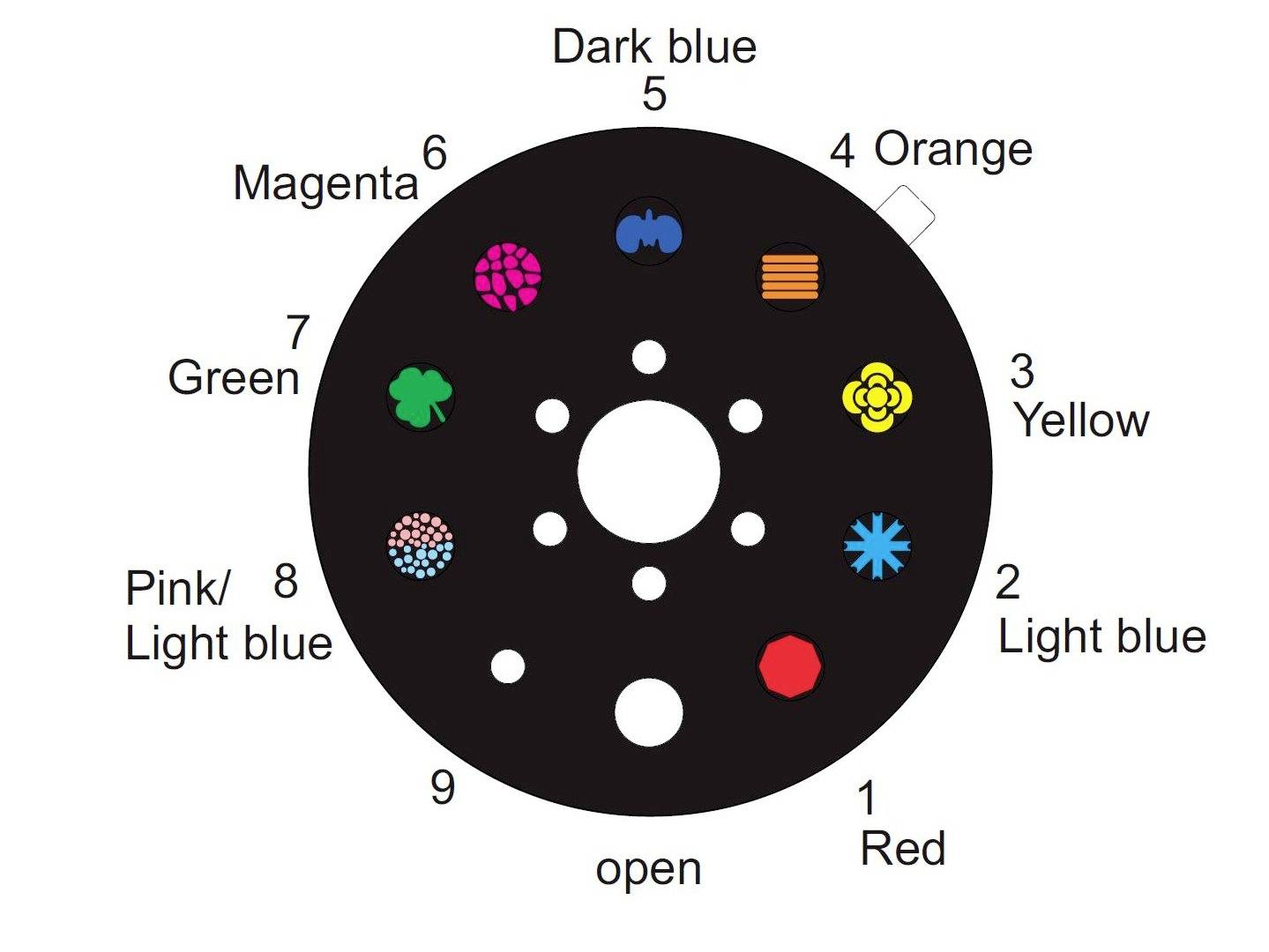

'Wheel with openings, numbered from 1 to 9: 1 Red, 2 Light Blue, 3 Yellow, 4 Orange, 5 Dark Blue, 6 Magenta, 7 Green, 8 Pink/Light Blue, 9 open.'

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Eurolite LED cat-80 radiator effect ws

LED-radiation effect with 80-W COB-LED in cold-white and gobo-wheel
3 different motion axes
Rotating facet mirror inside
Rotating and swiveling mirror roller

Technical specifications

Product type: LED effect light

: 110 W

LEDs: 1

Colour: Cool white

Dim: (L x W x H) 290 x 185 x 315 mm

Weight: 3.12 kg

: n.rel.

Features: USB connector

Factory colour: White

Bulb type: LED (monochrome)

Width: 185 mm

Height: 315 mm

Length: 290 mm

Watt per LED: 80 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3131245 Eurolite 51918596 CAT-80 LED effect light No. of LEDs (details):1 80 W

Description

Creates countless moving patterns in space
1 powerful LED 80 W COB (chip-on-board) cold-white (CW)
Gobo wheel with static gobos; focus manually
Electronic dimmer
Mirror-roller effect; Stroboscope-effect
Gobo wheel with static gobos, 9 color gobos and open
The device is cooled by a fan
Can be controlled via stand alone; master/slave function; music control via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Pre-programmed at Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Flicker-free
OLED Display
For application areas such as: Clubs/dance schools; party cellar; stage; mobile DJ's/solo entertainer; distributor
Possible application: On-the-fly; on a tripod

This text is machine translated.

Features

Power supply: 100 - -240 V AC 50/ 60 Hz
Total connected wattage 110 W
Power supply: Power feed via P-Con (blue), installation version power supply cable with safety plug
OLED display
Protection class SK I
Cooling: Fans
Housing color: White
Protection class: IP20
Control: Stand-alone
LED lamp type
LED:1 x 80 W COB (chip-on-board) cold-white (CW)
Gobo wheel with static gobos
Manual focus: Manual focus
DMX channels 7
DMX input 3-pin XLR (M), built in version
Master/slave function: Master/slave function
DMX
Pre-programmed at: Light´J
Light captain: Light captain
Gobos: Gobo wheel with static gobos, 9 color gobos and open
Special product: Not intended for room lighting in homes
Intended use: Lighting for show effects
5 x 20 mm, T 2 A fuse can be replaced
DMX output 3-pin XLR (W) built-in version
Flash rate 0 - 25 Hz
Music control via microphone
CRMX by Lumen Radio via USB (optional)
W-DMX by Wireless Solution via USB (optional)
QuickDMX via USB (optional)
EASY SHOW 2
EASY SHOW 3

Scope of delivery

Lighting effect
User manual
Network cable/power cable
XLR cable
