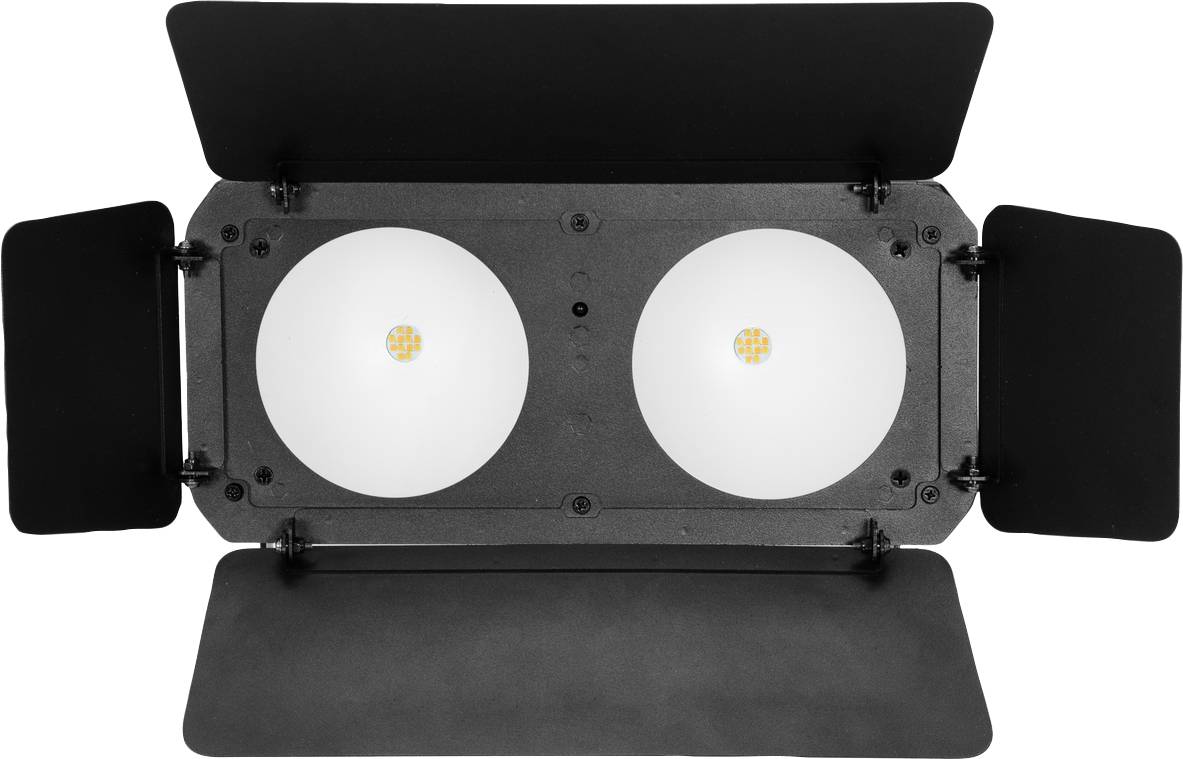

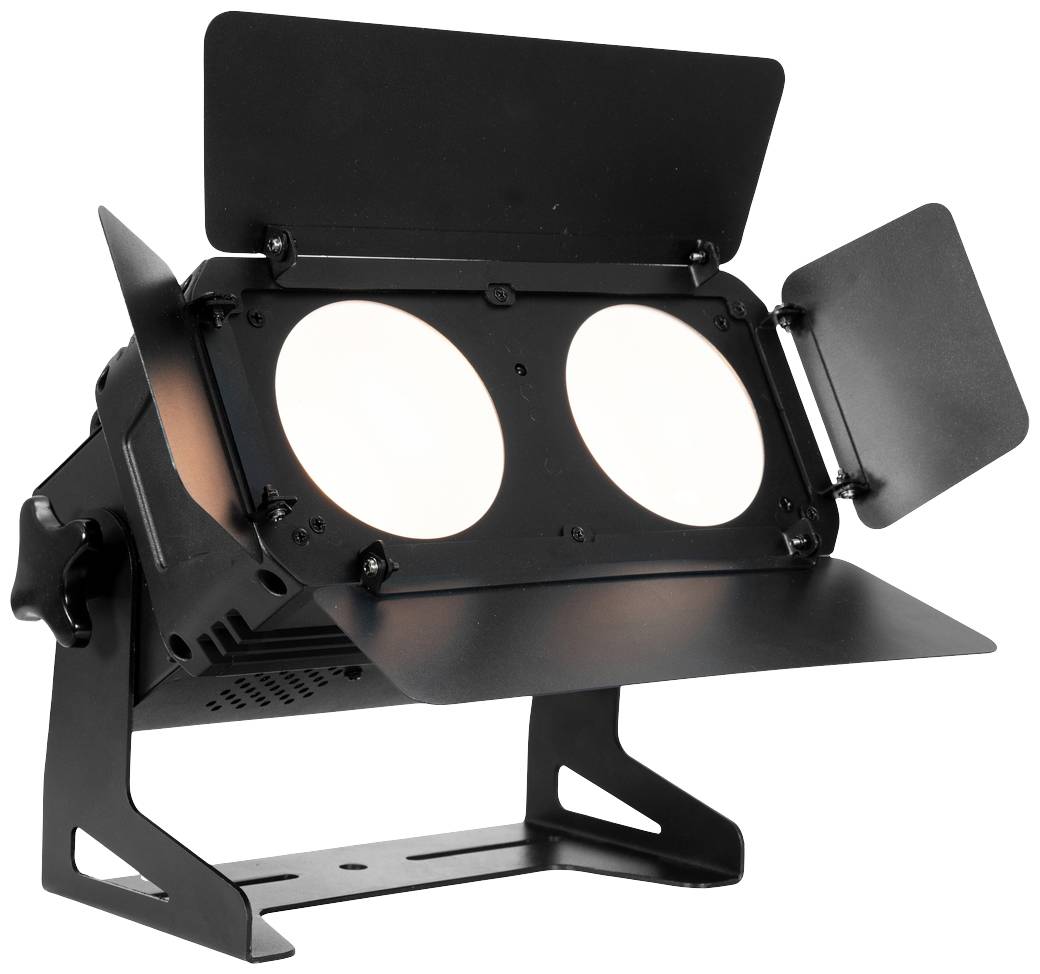

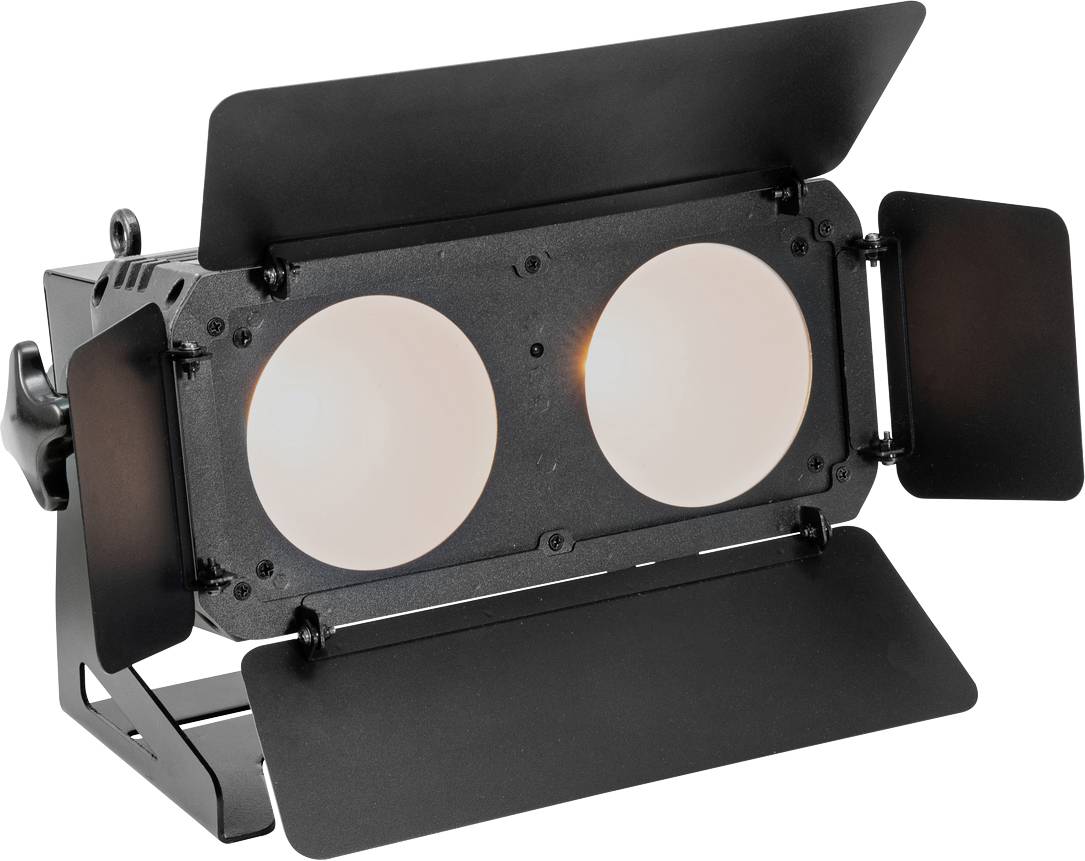

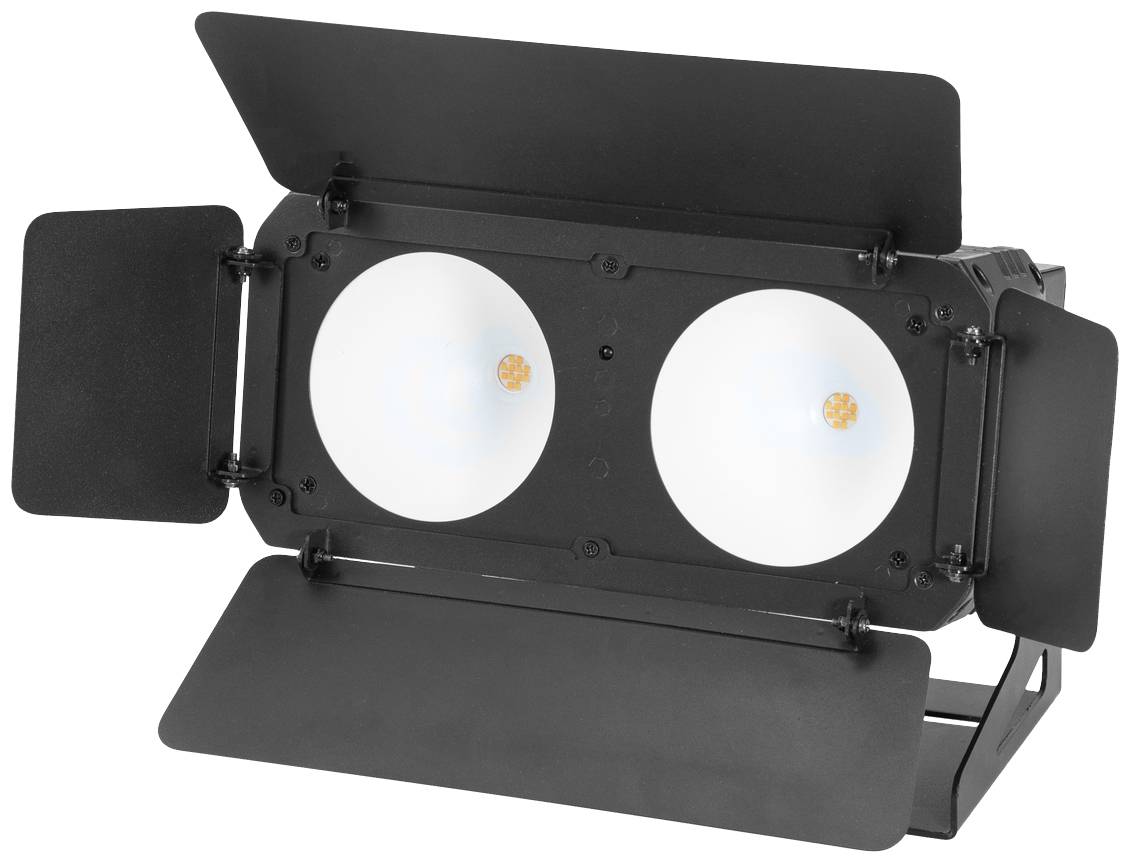

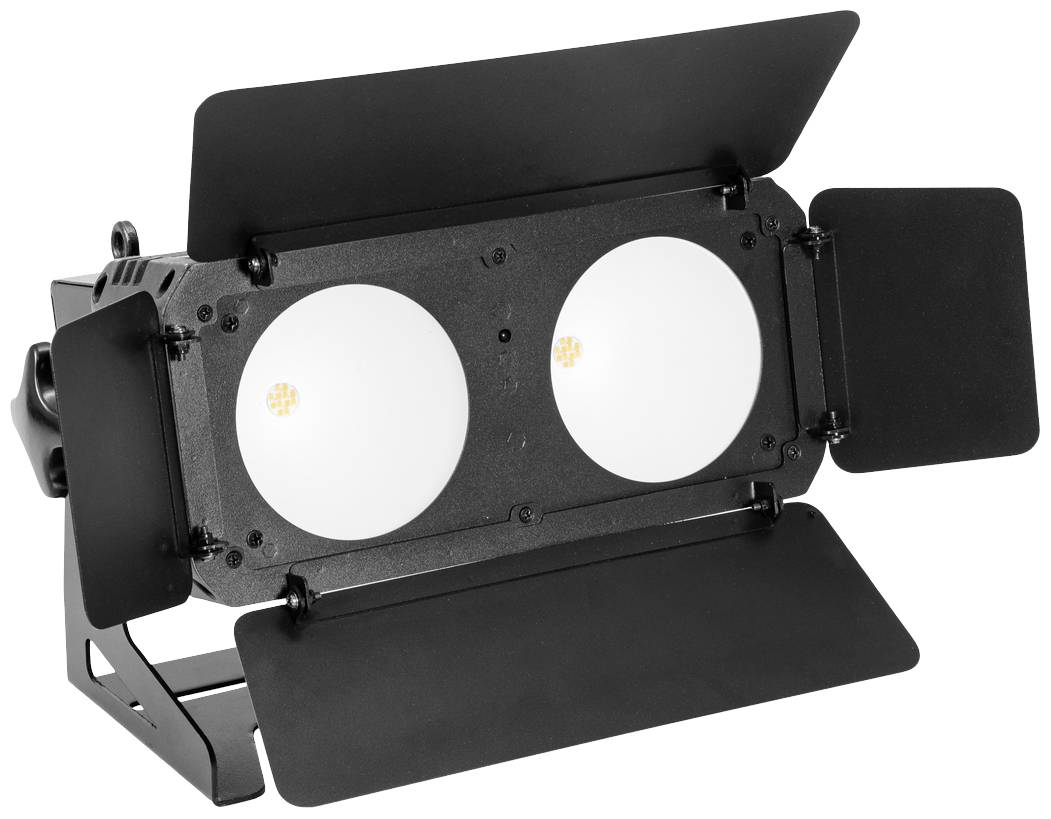

Eurolite 51930272 LED CBB-2 WW/CW Fairlight DMX LED effect light
EAN:
Part number:
Item no:
Highlights & Details
Eurolite LED CBB-2 WW/CW Fairlight
- 2 powerful warm and cold white 50 W LEDs Direct color selection for 27 colorsVery high color rendering index (CRI 90)Auto, music, master/slave and DMX mode
Technical specifications

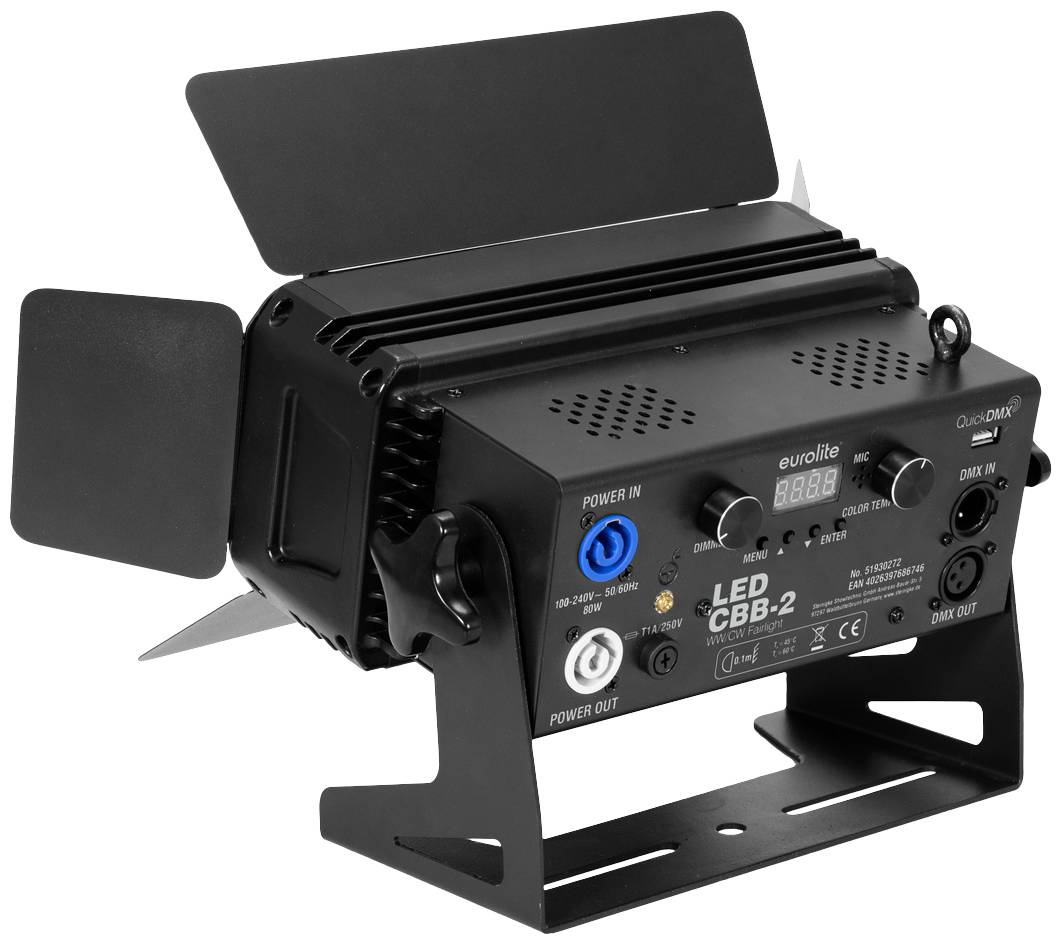

- Color rendering index (CRI) greater than: 90 RaPower supply 100-240 V AC, 50/60 HzTotal connected wattage 80 WProtection class: IP20Protection class SK IType of lamp: LED lampLED: 2 x COB (chip-on-board) 50 W 2in1 BCL CW/WW (homogeneous color mixing)Color temperature: 2400K - 5000K adjustableFlash rate 0 - 20 HzDMX channels: 2; 3; 4; 6DMX input: 3-pin XLR (M) mounted versionDMX output: 3-pin XLR (W) mounted versionCooling: FanControl: Stand-alone; DMX; IR remote control; quick selection potentiometer for brightness and color temperature; master/slave function; music control via microphone; QuickDMX via USB (optional)Angle of radiation: 40°Beam angle (1/2 peak): 40°Beam angle (1/10 peak): 75°Illuminance in lux (lx): Warm white (WW) 1m: 928 lx, 3 m: 123 lx, 6m: 36 lxCold white (CW) 1m: 1662 lx, 3 m: 220 lx, 6m: 65 lxAll 1m: 2522 lx, 3 m: 331 lx, 6m: 97 lxHousing colour black.Display type: 4-digit 7-segment LED displayDimensions: Width: 26.6 cmDepth 16.95 cmHeight: 1.8" (19.4 cm)Weighs 3.57 kg.Noise classification: Class 2 (light noise)Remote controlBattery: 1 x button cell 3.0 V CR2025 lithium manganese (included)Legal SpecificationsSpecial product: Not intended for domestic lightingIntended use: Lighting for show effects
- Product type
DMX LED effect light
80 W
- Colour
Warm white
- Dim
(W x H x D) 26.6 x 19.4 x 16.95 cm
- Weight
3.57 kg
n.rel.
- Factory colour
Black
- Width
26.6 cm
- Height
19.4 cm
- Depth
16.95 cm
- No. of bulbs
2
IP20
- Radiation angle
40°
- Operating voltage
100 V
240 V
2400 K
- Protection class
I
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2533005 Eurolite 51930272 LED CBB-2 WW/CW Fairlight DMX LED effect light
Description
LED light effect strip with WW/CW COB LEDs, incl. IR remote control
This text is machine translated.
This text is machine translated.
Features

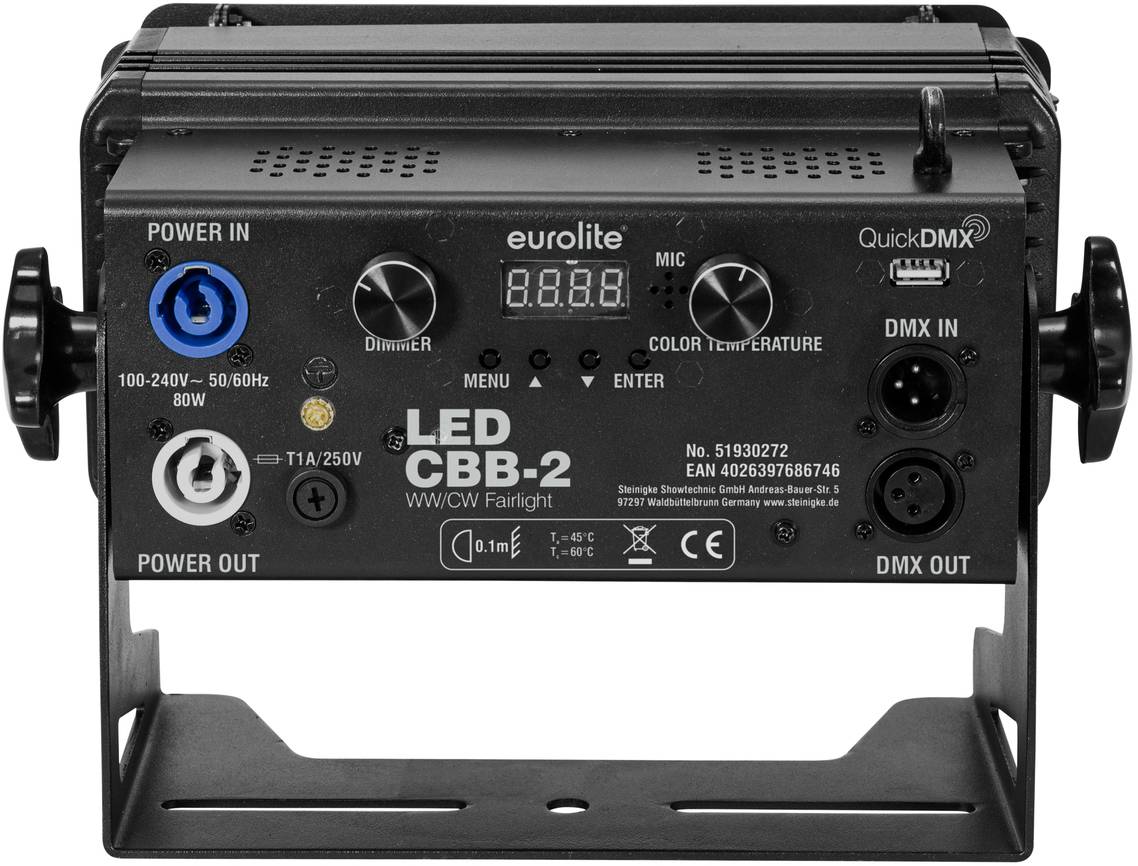

- Integrated show programs in auto and music modeControl for brightness and color temperatureDimmer and strobe effectAddressing and settings via control unit with four-digit LED displayConvenient remote control via the supplied IR remote control EUROLITE IR-7Music control via in-built microphone with adjustable microphone sensitivityCompatible with QuickDMX - the radio DMX system from EurolitePhantom-powered USB socket for QuickDMX receiver (accessories)2, 3, 4 or 6 DMX channels can be selectedWing limiter included in deliverySwivelling Mounting BracketP-Con mains connection for simple series connection of up to 8 devices
Scope of delivery
- Eurolite LED CBB-2 WW/CW Fairlight
