Eurolite 51930394 LED bar No. of LEDs (details): 6
EAN:
Part number:
Item no:
Highlights & Details

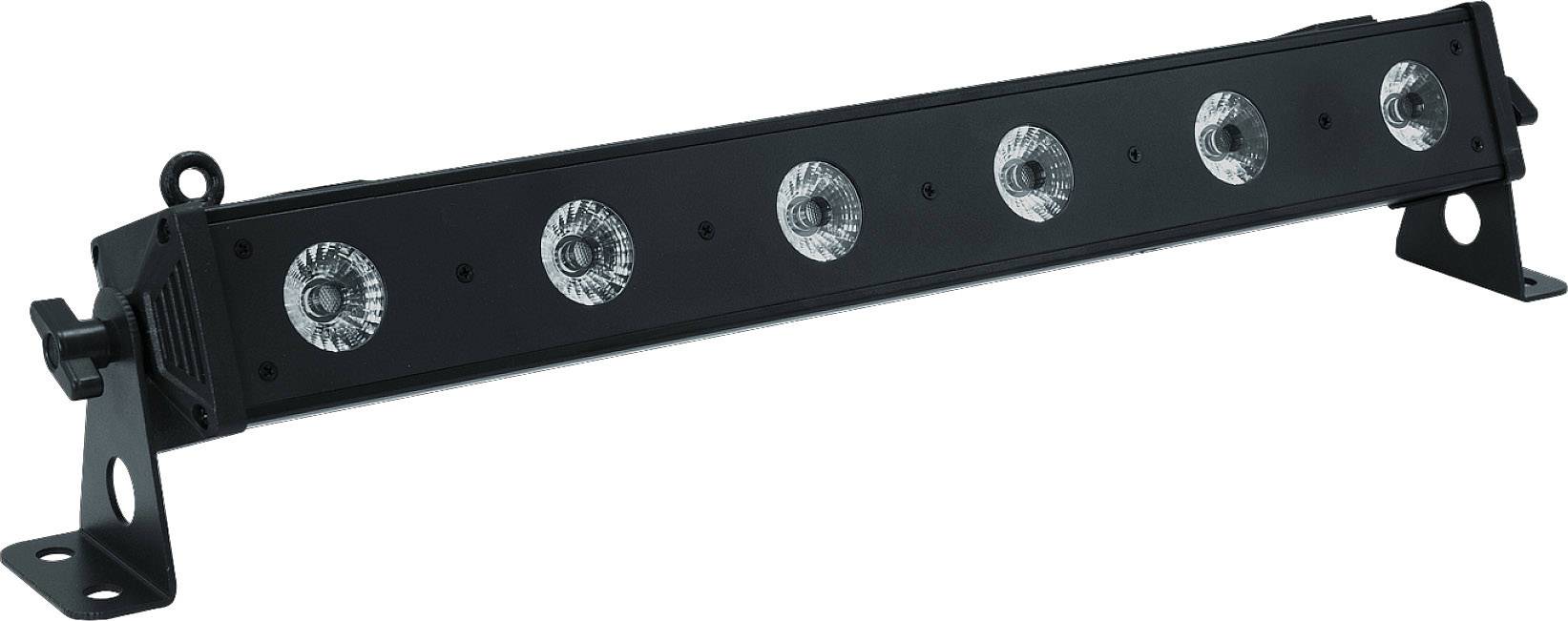

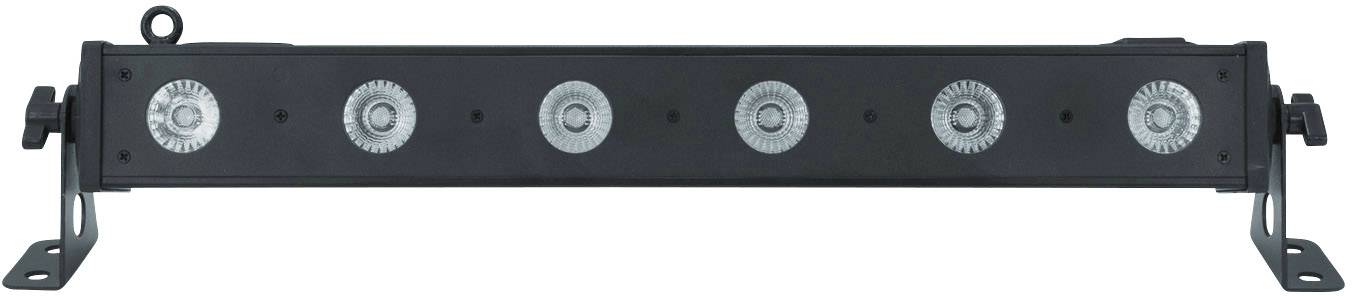

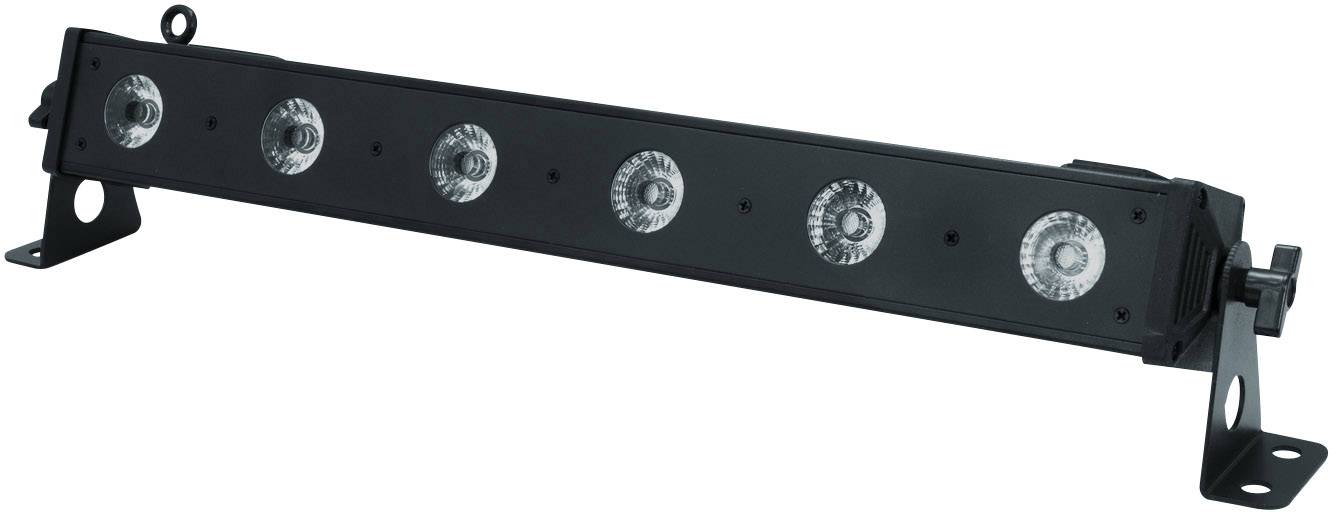

LED BAR-6 QCL RGB+UV STRIP
- 6 powerful 4 W RGB + UV LEDs (4in1)
- Auto, music, master/slave and DMX mode
- Integrated show programs in auto and music mode
- This text is machine translated.
Technical specifications
- Power supply 100-240 V AC, 50/60 Hz
- Total connected wattage 14 W
- Protection class: IP20
- Power connection: Power feed cold devices (M) Built-in version Power connection cable with earthing contact (included)
- Power output: 1 x cold device (W) built-in version
- LED: 6 x high-power 4 W 4in1 QCL RGB/UV (homogeneous color mixing)
- Beam angle: 20°
- Flash rate 0 - 20 Hz
- DMX channels: 2; 4; 5; 9; 6
- DMX input: 1 x 3-pin XLR (M) mounted version
- DMX output: 1 x 3-pin XLR (W) mounted version
- Fan: Without, because convection cooled
- Housing colour black.
- Product type
LED bar
- LEDs
6
- Colour
RGB
UV/blacklight
- Dim
(L x W x H) 595 x 65 x 103 mm
- Weight
1.75 kg
n.rel.
- Width
65 mm
- Height
103 mm
- Length
595 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2236133 Eurolite 51930394 LED bar No. of LEDs (details): 6
Description
Features
- Direct color selection for 20 colors
- Continuous RGB+UV color mixing, color change, color blending, dimmer and strobe effect

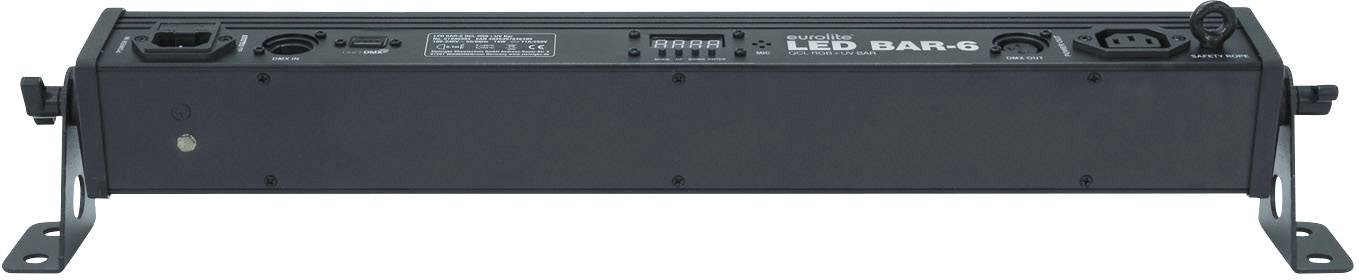

- Addressing and settings via control unit with four-digit LED display
- Music control via in-built microphone with adjustable microphone sensitivity
- Compatible with QuickDMX - the radio DMX system from Eurolite
- Phantom-powered USB socket for QuickDMX receiver (accessories)
- 2, 4, 5, 6 or 9 DMX channels can be selected
- Swivelling Mounting Bracket
- Power connections for easy connection of up to 8 devices
- Switched-mode power supply technology for mains voltage between 100 and 240 volts
- Control: QuickDMX via USB (optional); stand-alone; music control via microphone; DMX
- Projection: Flicker-free
- Effect: Stroboscope effect; UV.
