Eurolite 70064565 DMX controller 20-channel
EAN:
Part number:
Item no:
Highlights & Details

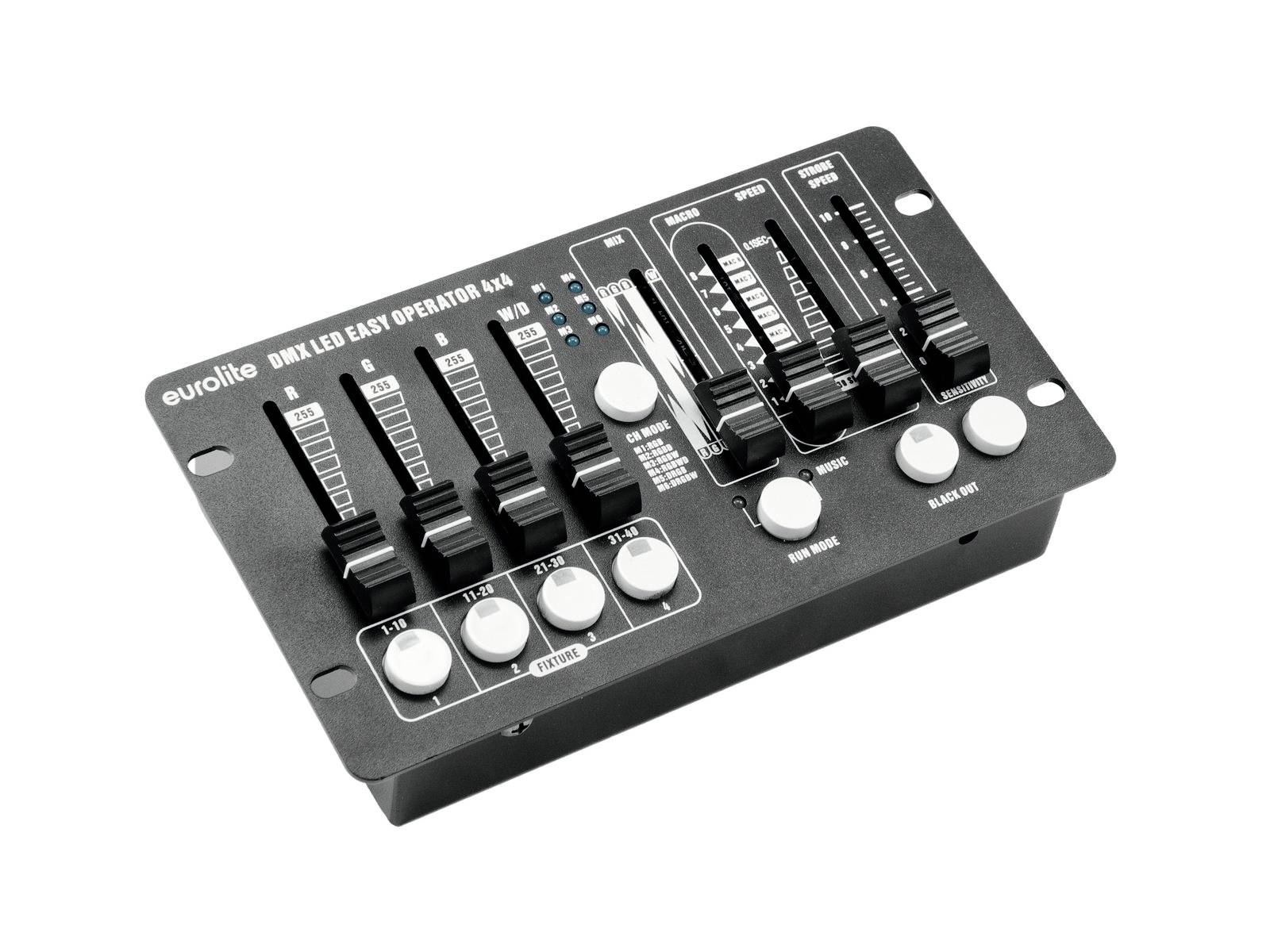

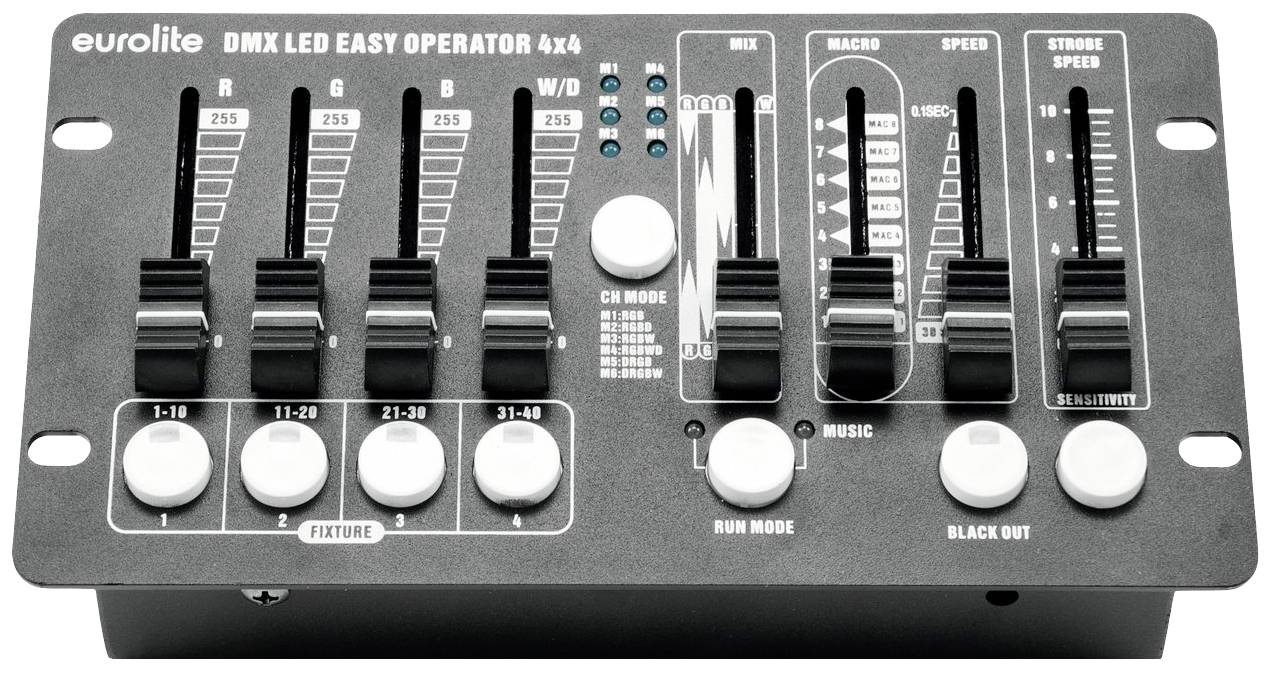

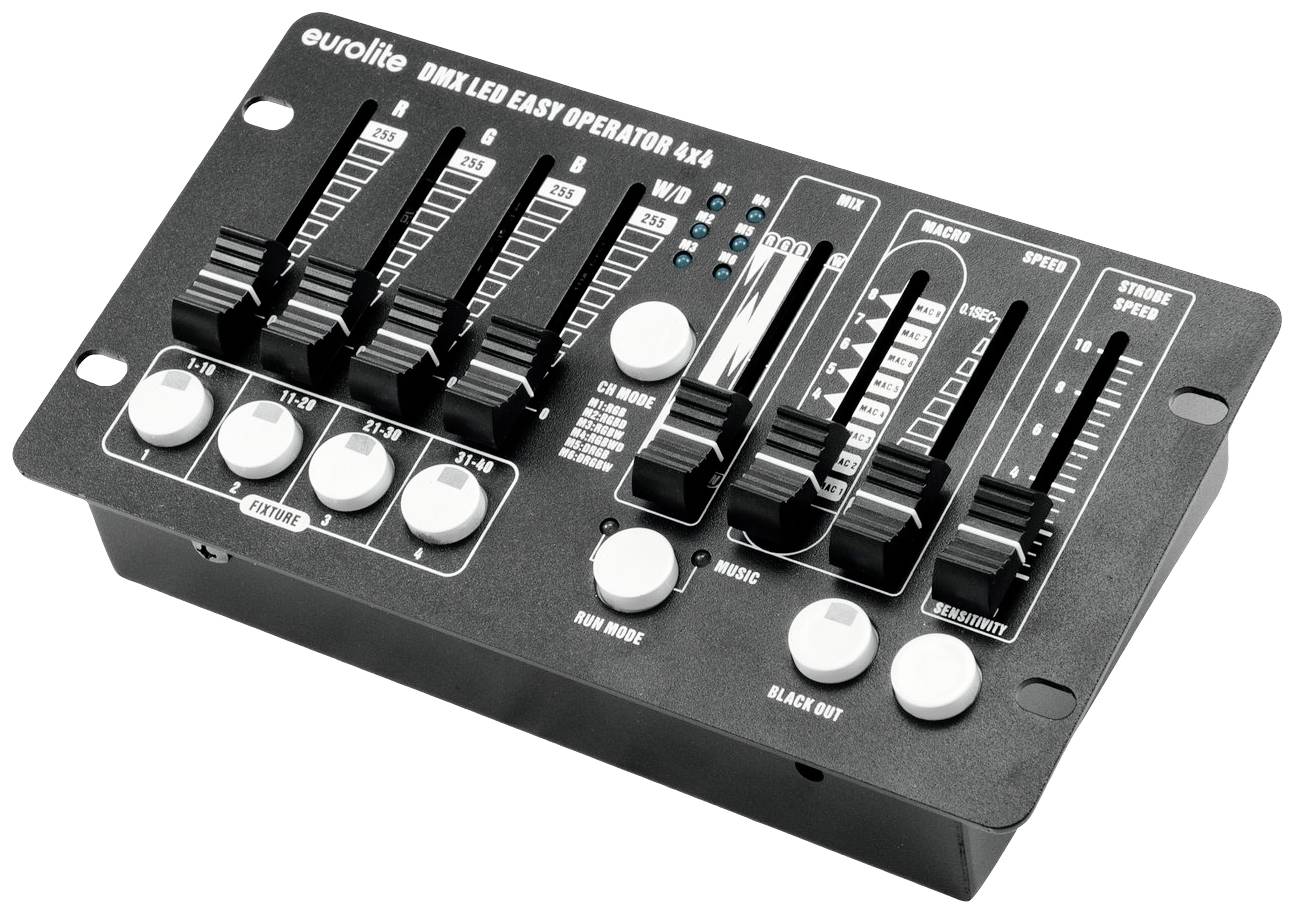

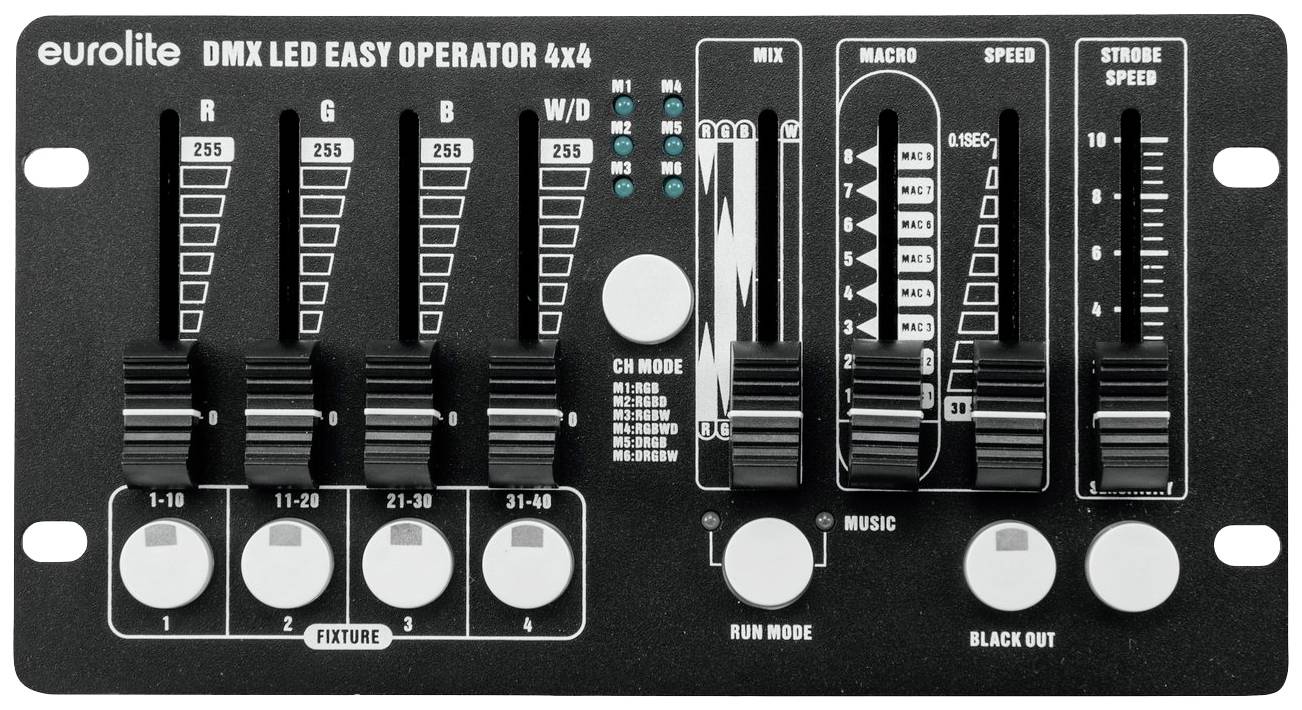

Eurolite DMX LED EASY Operator 4x4
- 4 spotlights with RGBW LEDs can be controlled separately or combined
- DMX channels for red, green, blue, white and Master
- Different modes for the sequence of the DMX channels can be selected
Technical specifications
- Product type
DMX controller
- No. of channels
20-channel
- No. of scenes
4
- Weight
86 g
- Width
115 mm
- Height
55 mm
- Length
2 mm
- Factory colour
Black
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3132740 Eurolite 70064565 DMX controller 20-channel
Description
Compact DMX controller for 4 LED-headlights each with max. 4 colors
DMX-controller for controlling the common LED-headlights
This text is machine translated.
DMX-controller for controlling the common LED-headlights
This text is machine translated.
Features
- Easy to use
- Manual control via 4 faders
- 1 faders for direct RGBW color mixing
- Adjustable strobe function
- Blackout function
- 8 integrated show programs
- Can transmit up to 20 DMX channels
- Can be controlled via DMX; music control via microphone; stand-alone
- Table stand case
- For application areas like: Party cellar; mobile DJ´s/solo entertainer
- Noiseless operation
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 10 W
- Power connection: Power feed via hollow plug (M) Installation version Power connection cable with plug-in power supply (included)
- Housing design: Table stand housing
- Protection class SK III.
- Housing colour black.
- Protection class: IP20
- DMX control
- DMX channels: Output 20
- Noise classification: Class 0 (no noise)

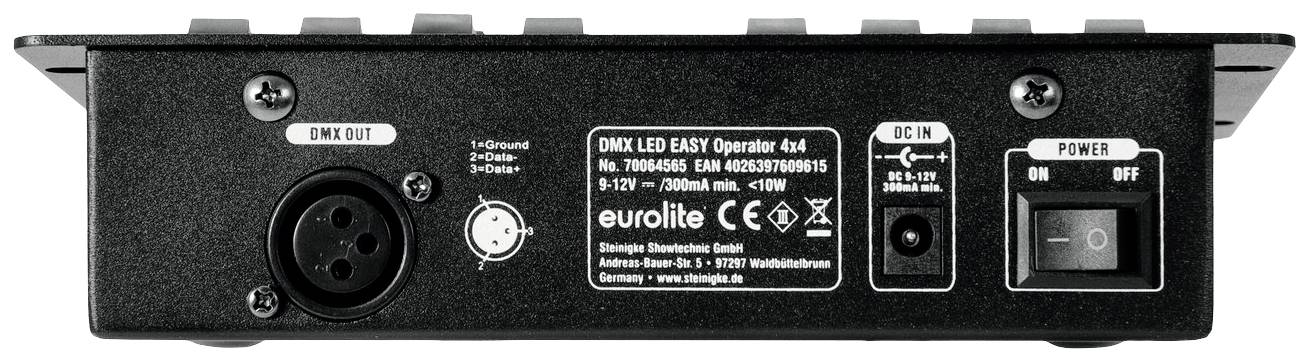

- DMX output 3-pin XLR (W) built-in version
- Music control via microphone: Music control via microphone
- Stand-alone: Stand-alone
- Programs: Pre-programmed 8 Scenes/Chases )
- 9 V/DC, 800 mA
Scope of delivery
- Controller
- External mains adapter
- User manual
