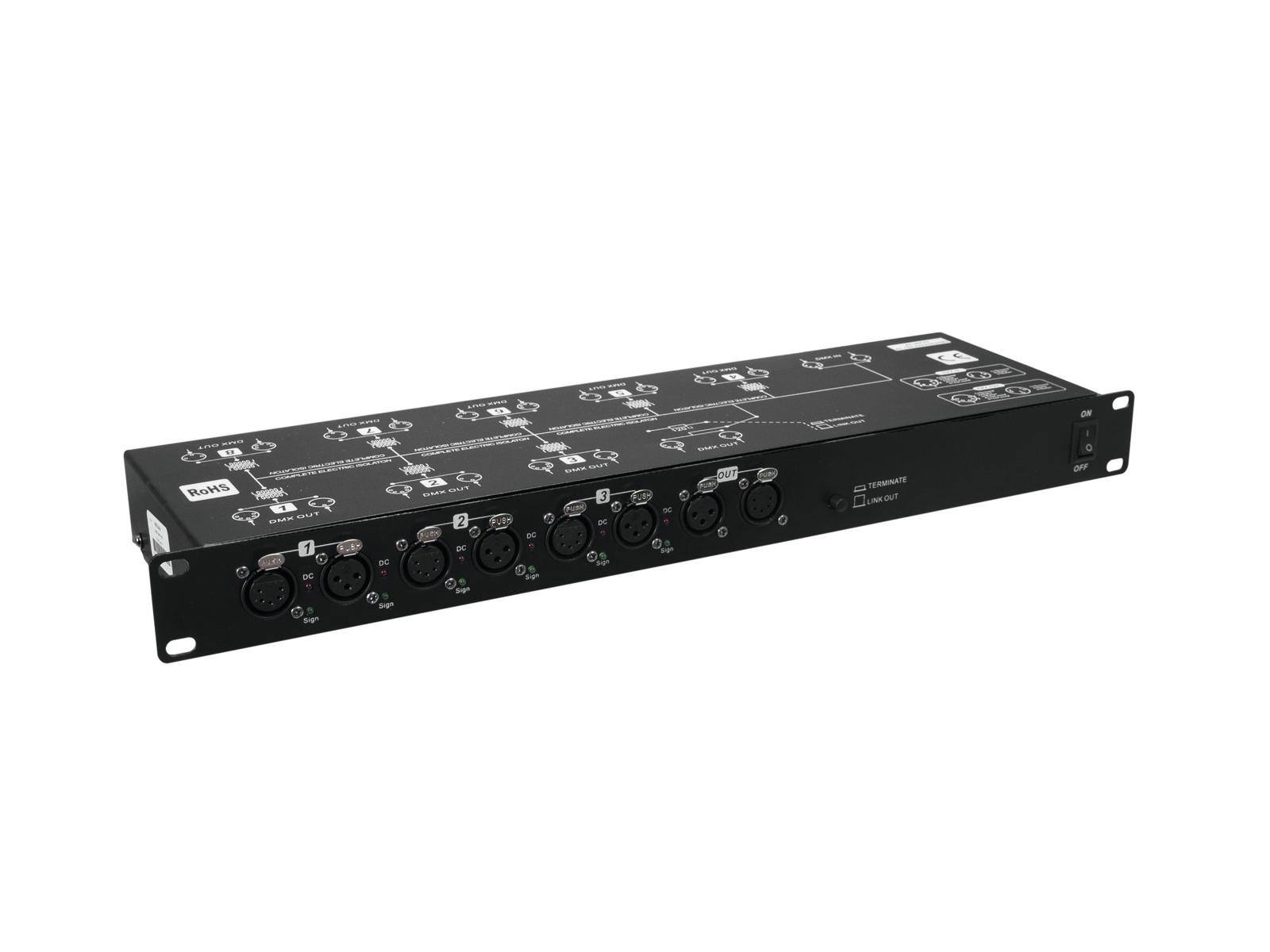

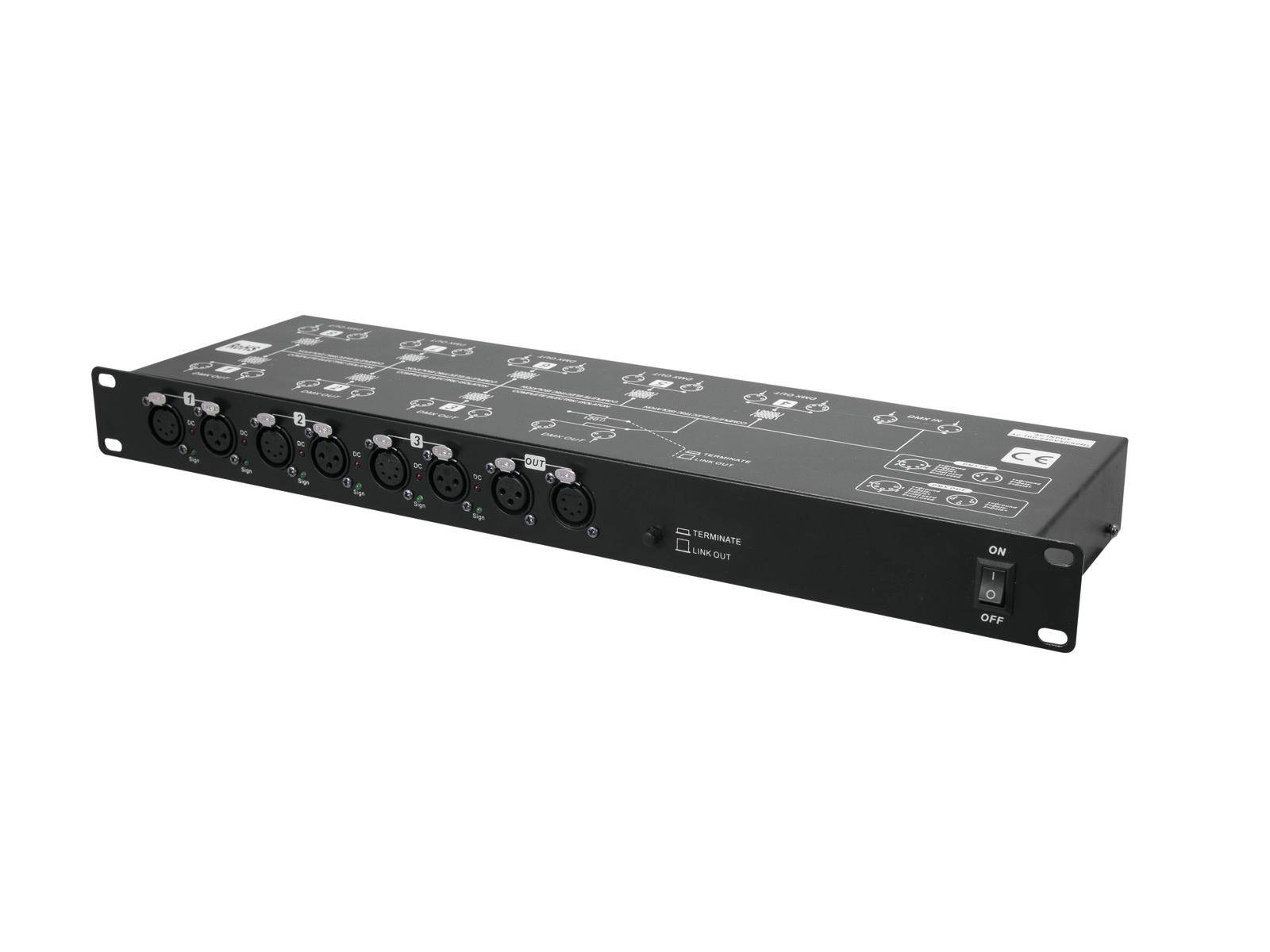

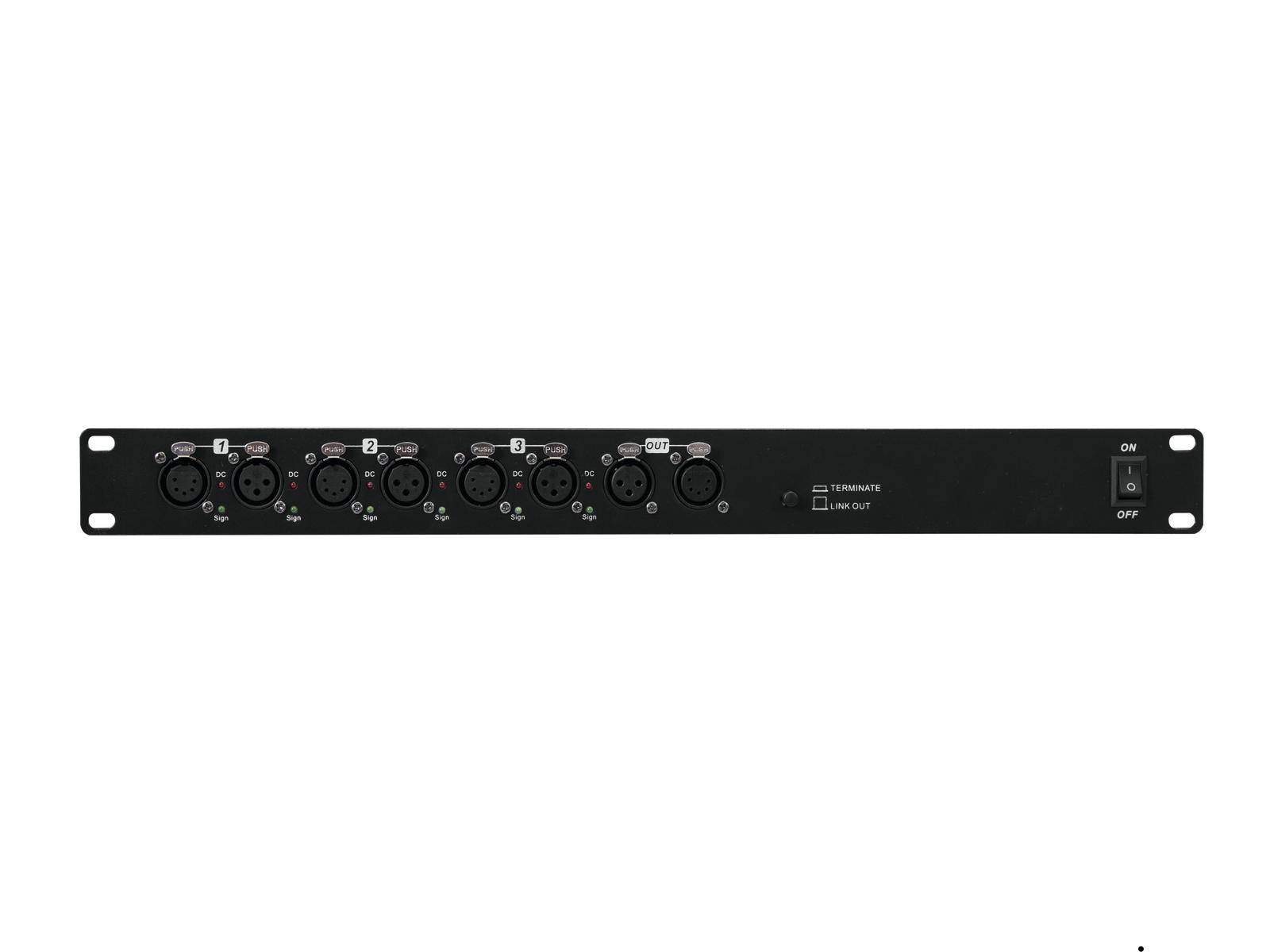

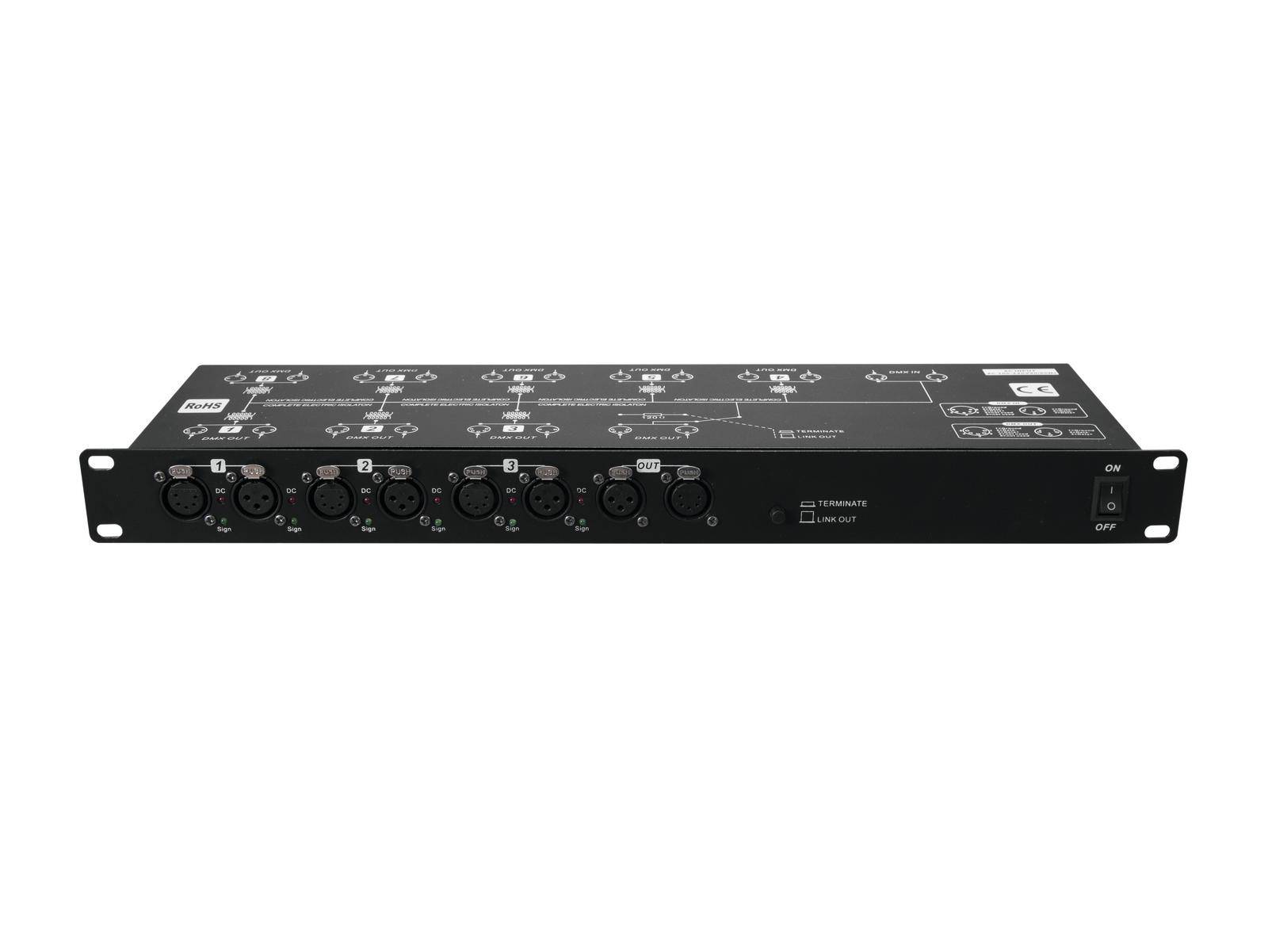

Eurolite 70064825 DMX splitter 8-channel
EAN:
Part number:
Item no:
Technical specifications
- Power supply: 100-240 V AC 50/60 Hz ~
- Total connection value: 5 W
- DMX 512-connections: 3-pin and 5-pin XLR
- QuickDMX-connection: 5-pin XLR
- Dimensions (L x W x H): 483 x 145 x 45 mm
- Weight: 2 kg.
- Shipping weight: 2,400 kg
- Product type
DMX splitter
- No. of channels
8-channel
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1375956 Eurolite 70064825 DMX splitter 8-channel
Description
8x DMX-splitter for rack mounting.
This text is machine translated.
This text is machine translated.
Features
- DMX distributor for the allocation of a DMX input signal on 8 DMX outputs

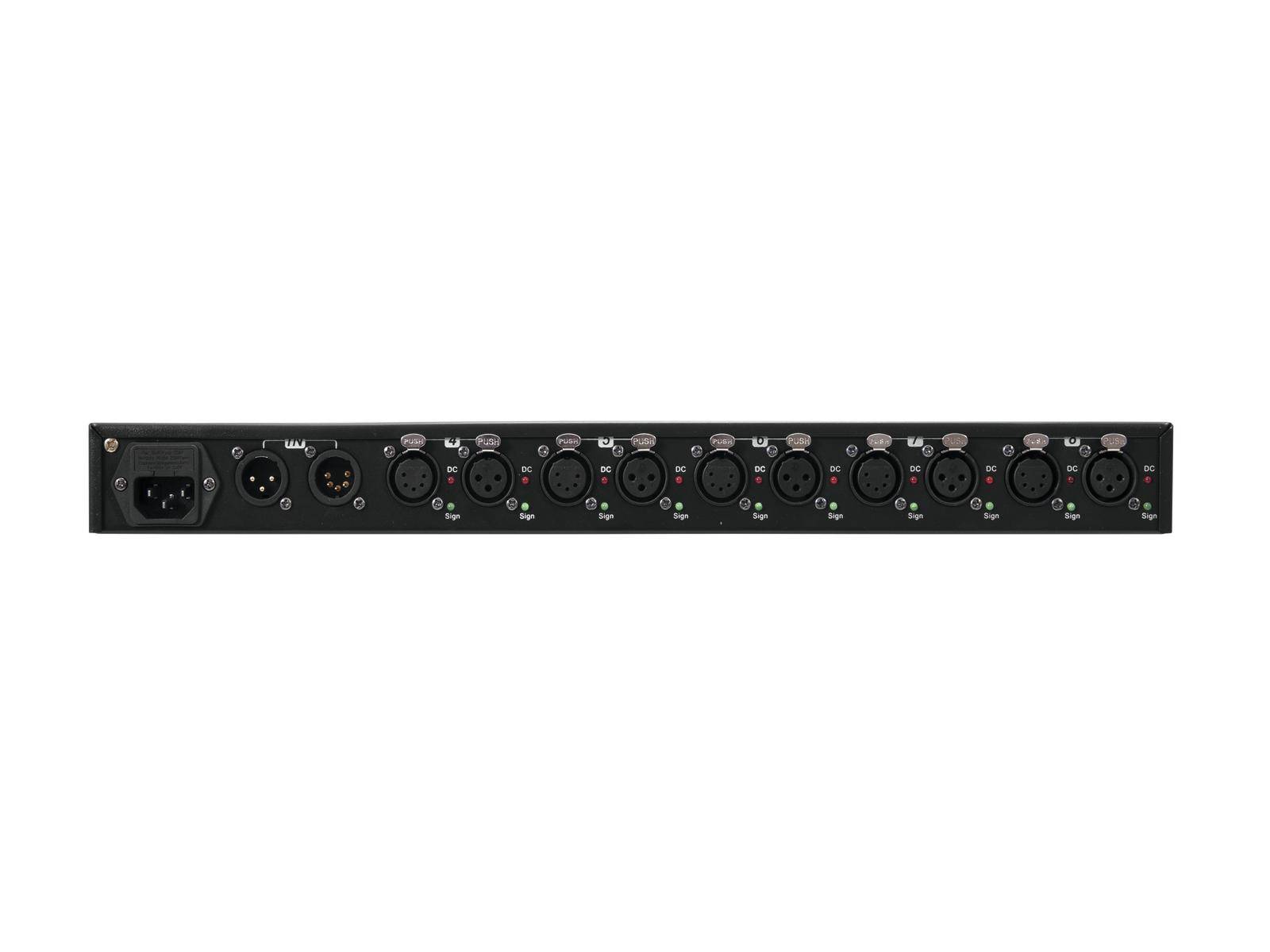

- Connections: 1 x DMX input, 1 x DMX-loop, 8 x DMX output
- Additional QuickDMX-input for the wireless reception of DMX signals
- Input and outputs to XLR 3-pin and 5-pin
- Input and outputs galvanically separated
- Each DMX output with independent driver and status indicators
- Input and outputs with internal 500-mA-fuse
- Switchable terminating resistor
- Rack installation
