Eurolite 70064886 DMX controller 1-channel
EAN:
Part number:
Item no:
Highlights & Details

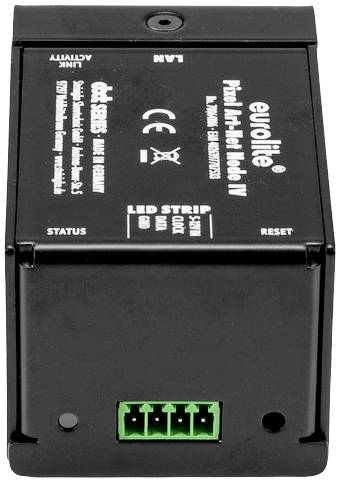

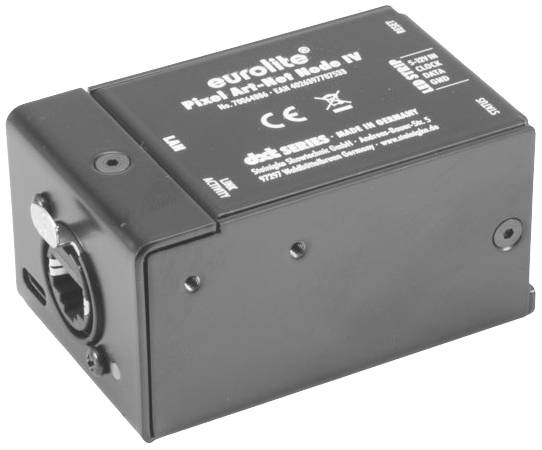

Eurolite DXT pixel art-net node IV.
- Can receive and process up to 2048 DMX channels
- 1 to 6 colors per pixel
Technical specifications
- Product type
DMX controller
- No. of channels
1-channel
- Weight
25 g
- Width
50 mm
- Height
42 mm
- Length
78 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131173 Eurolite 70064886 DMX controller 1-channel
Description
ART-Net interface for controlling 50000 digital LED channels.
This text is machine translated.
This text is machine translated.
Features
- Creating pixel groups (1 - 9999)
- Can be controlled via ArtNet; sACN
- Configuration via website or ART-Net
- Suitable for WS2801; WS2811, WS2812, SK6812; APA102 LEDs
- No separate power supply required - power supply via LED strips (5-12 V)
- Sturdy metal housing
- Table stand case
- Made in Germany
- The device can be connected to the PC via RJ-45 etherCON (W) installation version, in connection with e.g. Freestyler, DMXControl 3, PC_DIMMER, Lightkey (MAC)
- Neutrik connector installed
- Power supply 5-12 V DC
- Total connected wattage 1 W
- Current connection: Power feed via 4-pin screw connector (M) Installation version
- Status LED: Signal, link

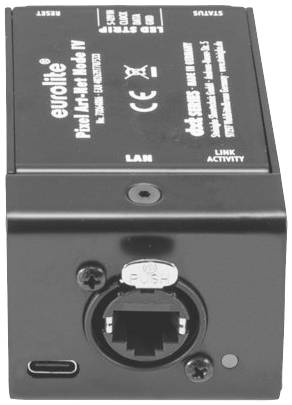

- 1 x RJ-45 etherCON (W) mounting version

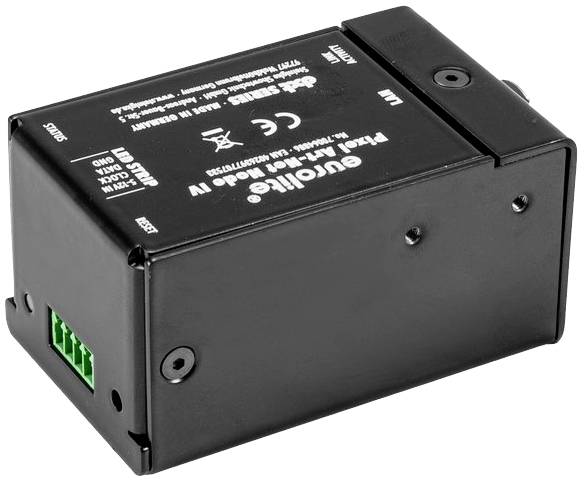

- Output: Screw plug terminals
- PC connect: E.G. Freestyler, DMXControl 3, PC_DIMMER, Lightkey (MAC) via RJ-45 EtherCon (W) fitting version
- Housing design: Table stand housing
- Housing colour black.
- Protection class: IP20
- Control: ArtNet
- Width 5.0 cm
- DMX channels: Input 2048
- Network connection: Ethernet TCP/IP via 1x RJ-45 etherCON (W) installation version, 10 Mbit/s.
- Control channels 50000
- Brand use: Integrated Neutrik connector
- Pin assignment: Pin1 (GND) / Pin2 (DATA) / Pin3 (CLOCK) / Pin4 (VIN)
- IEEE 802.3u standard
- SACN: SACN
