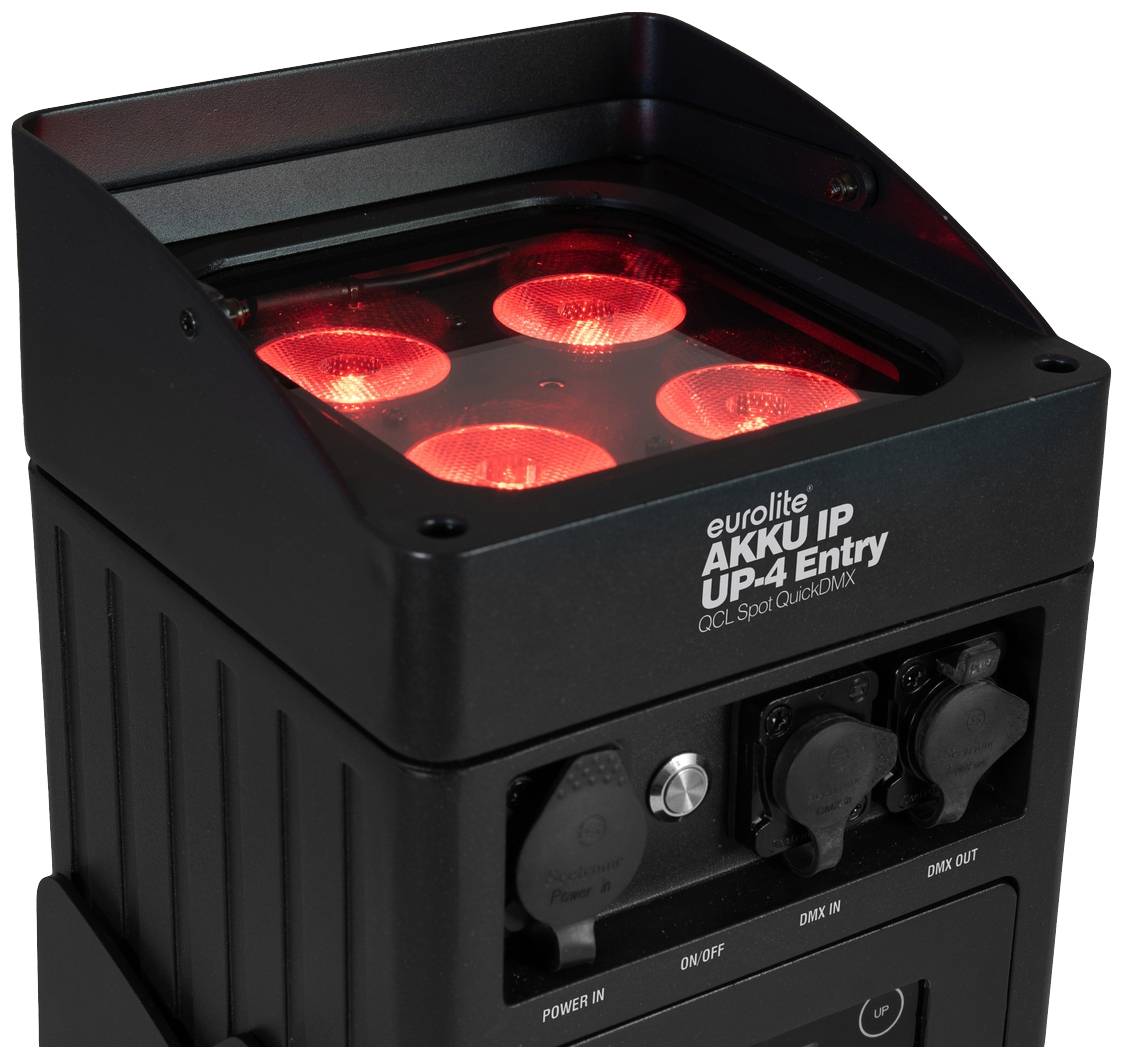

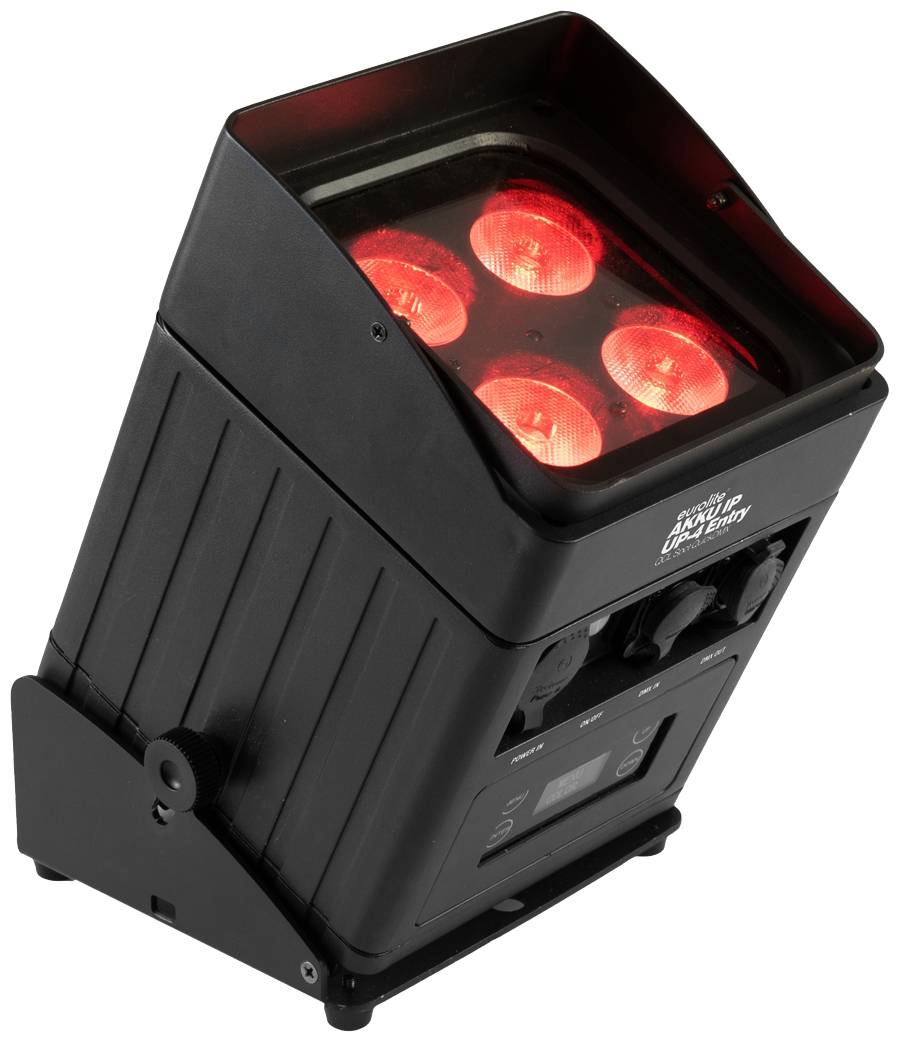

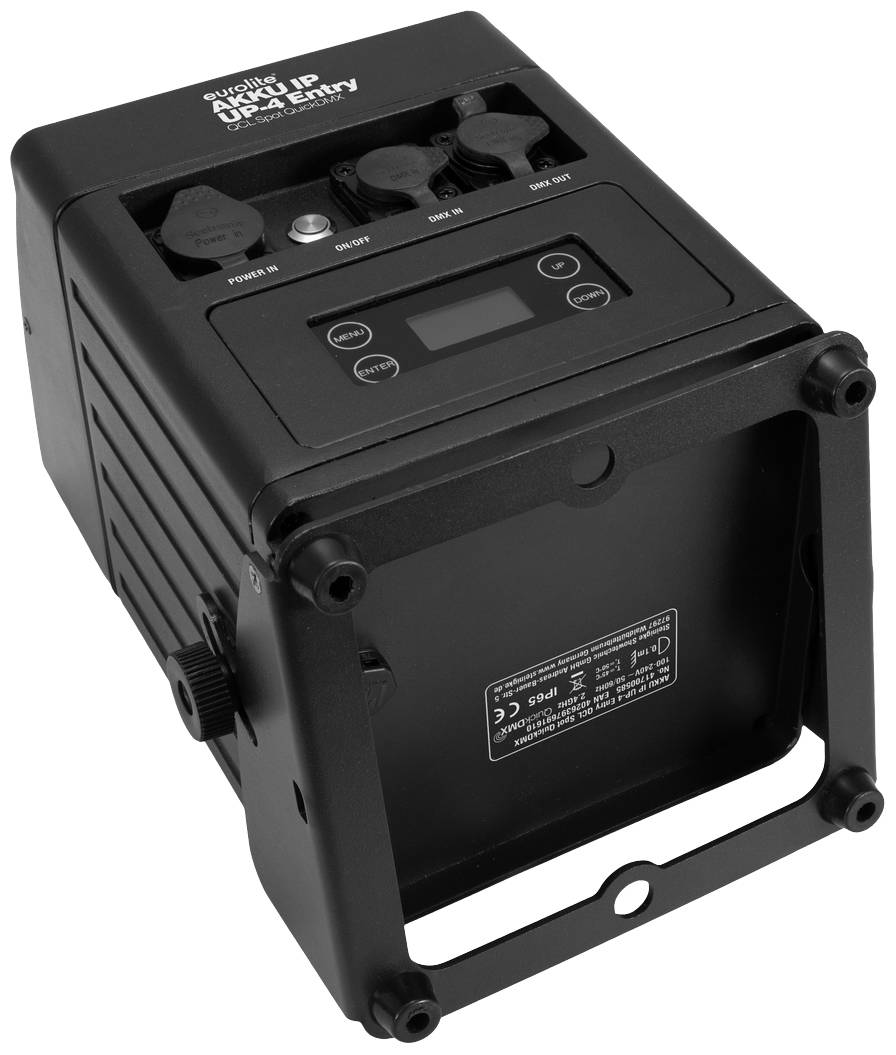

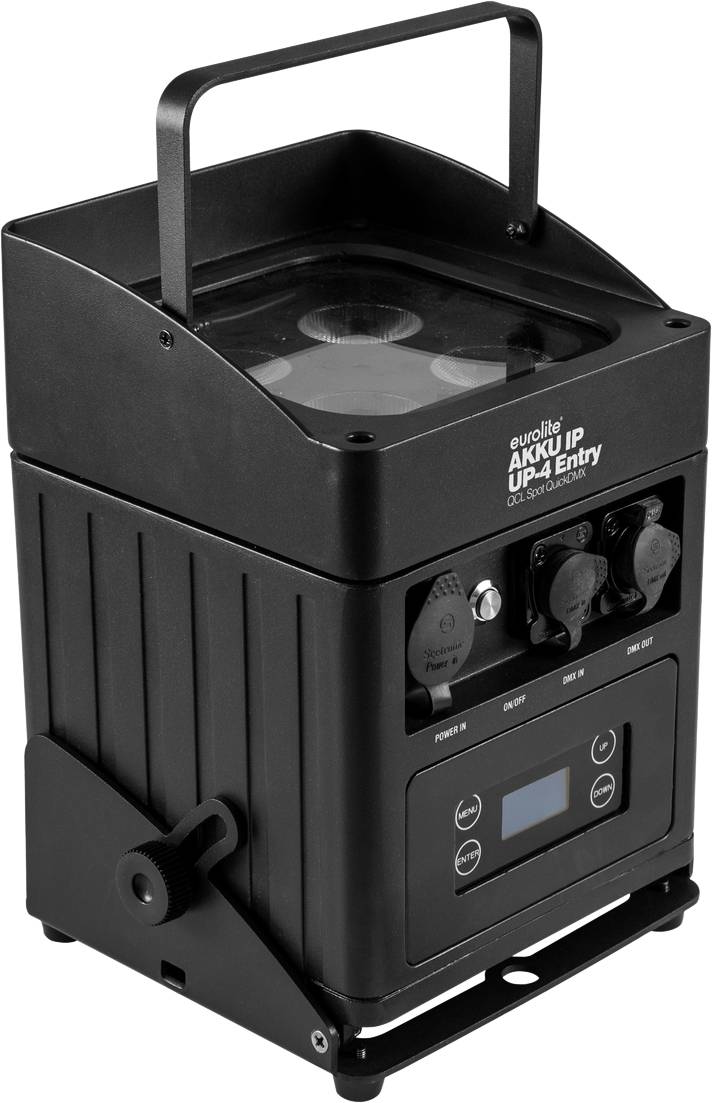

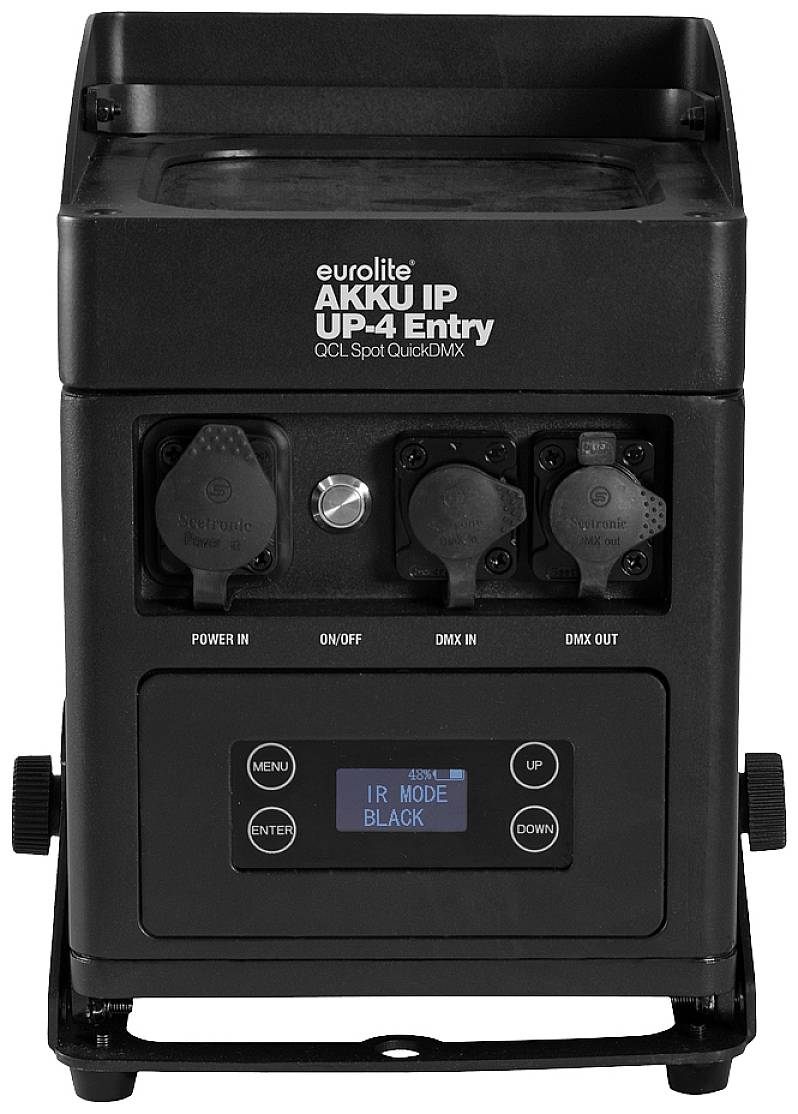

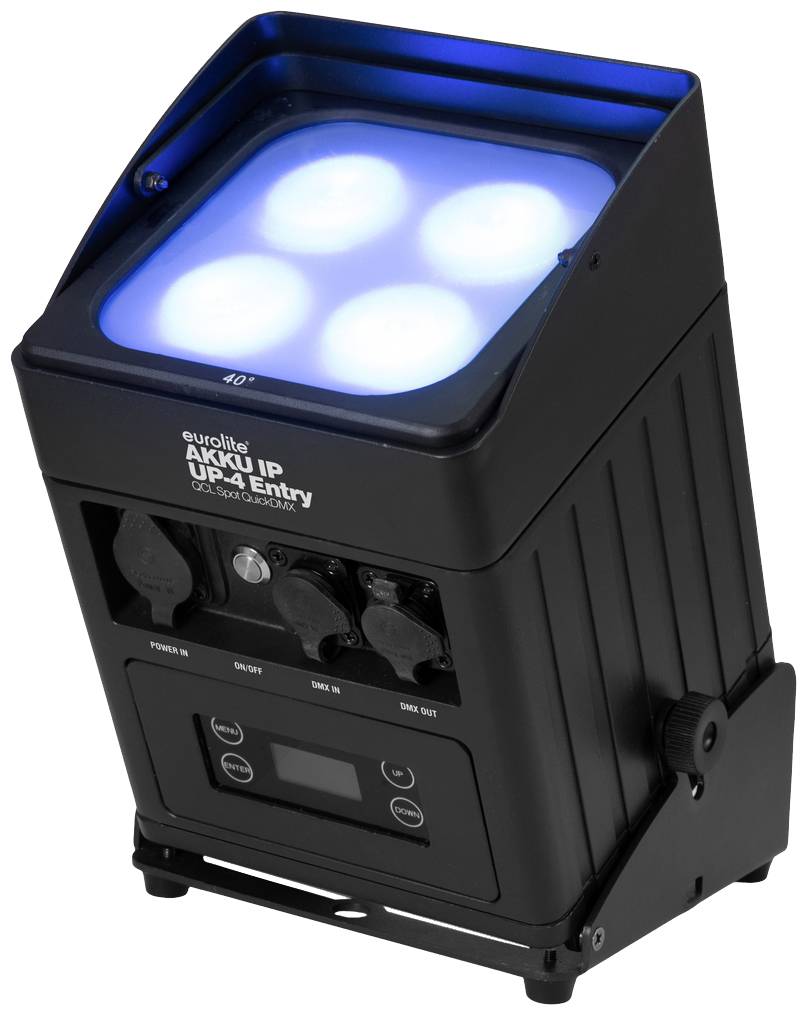

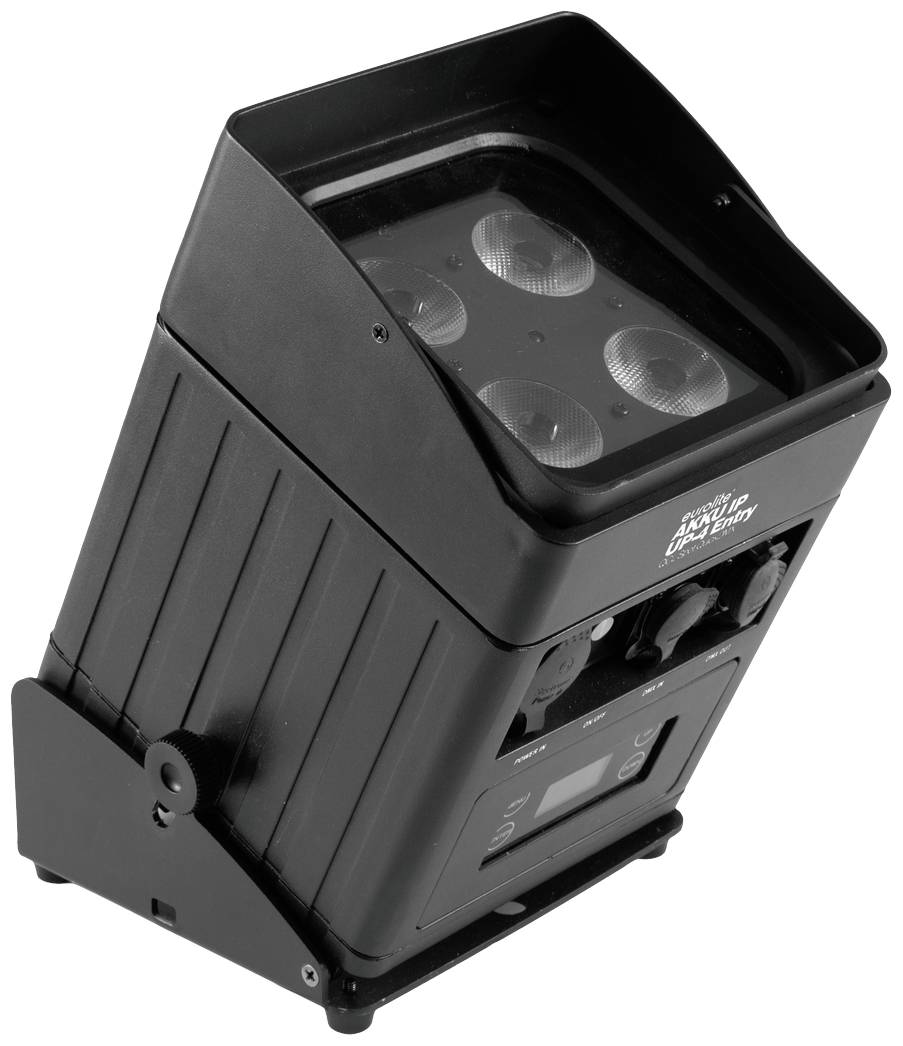

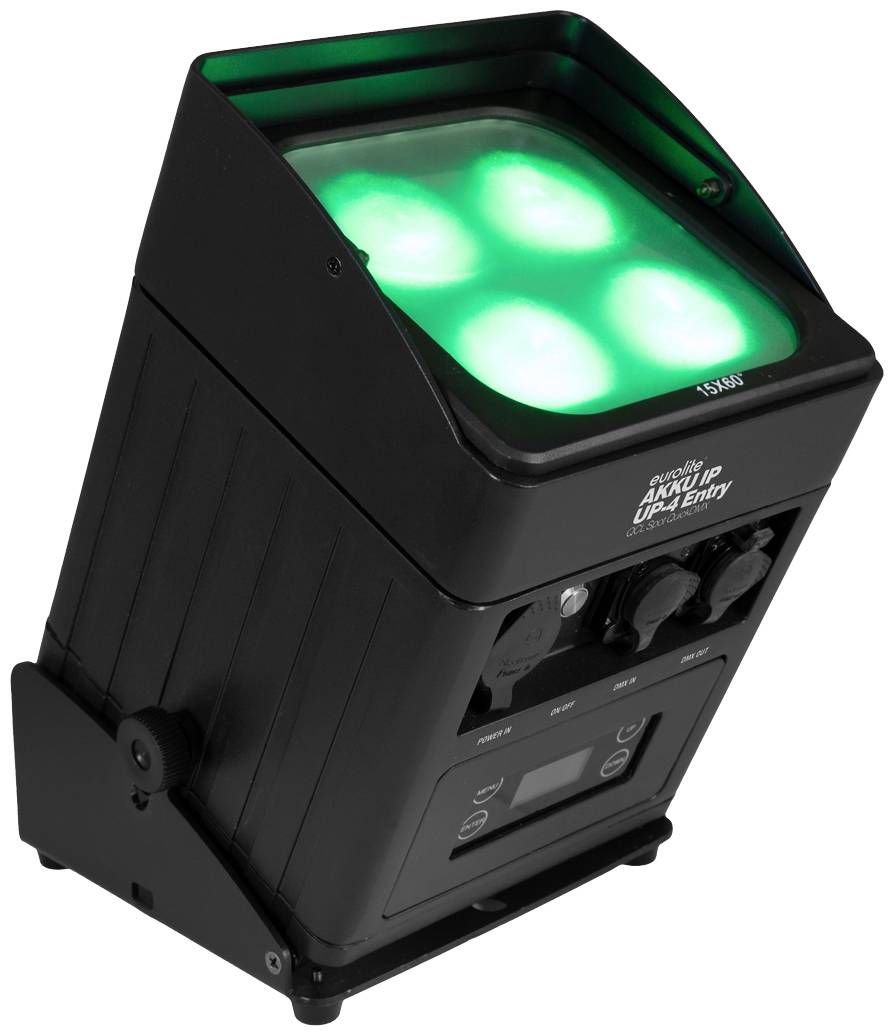

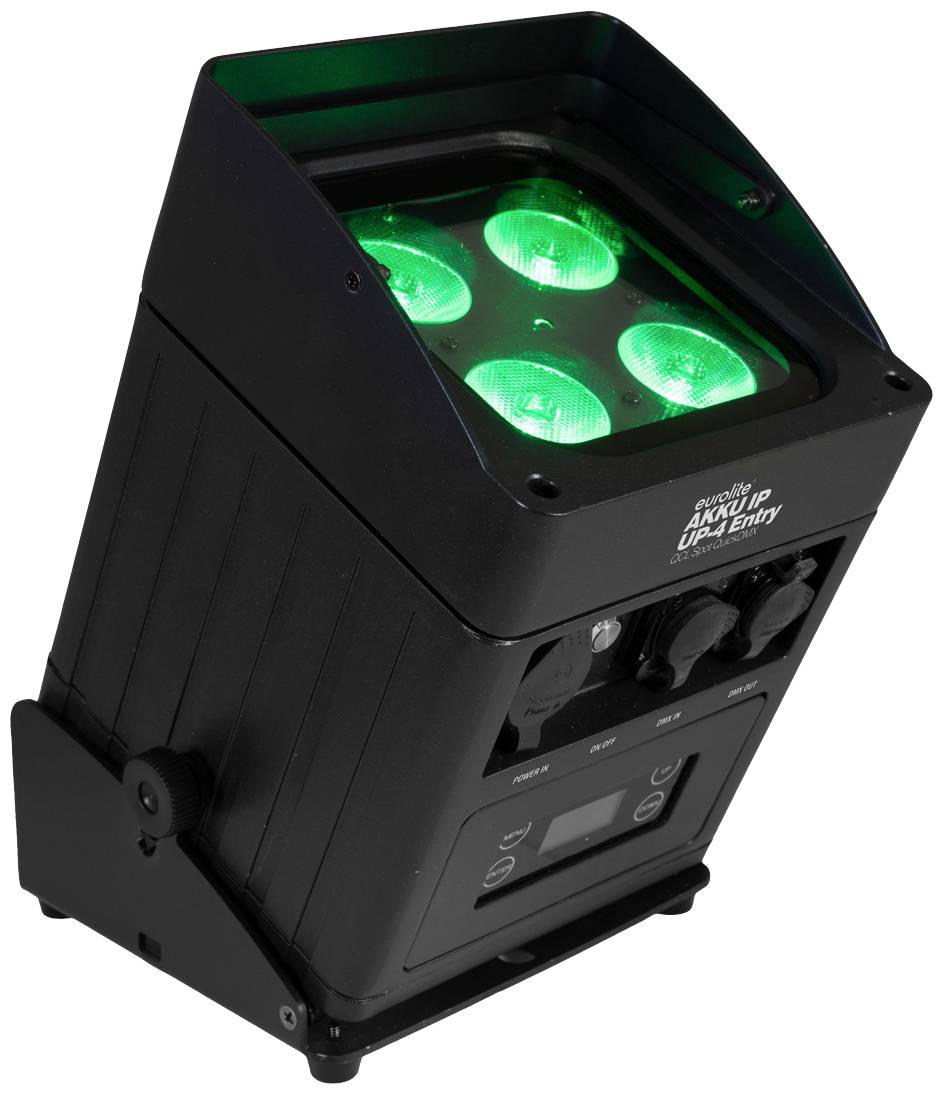

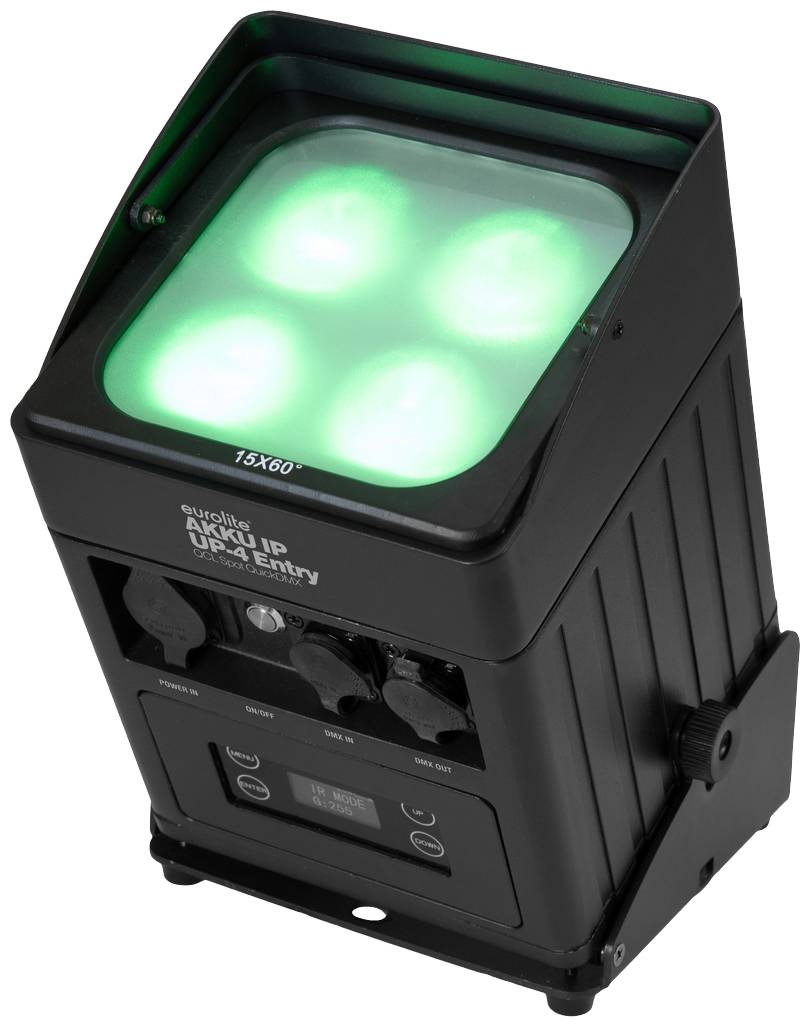

Eurolite AKKU IP UP-4 Entry QCL Spot QuickDMX LED cordless spolight
EAN:
Part number:
Item no:
Highlights & Details
Eurolite BATTERY IP UP-4 Entry QCL Spot QuickDMX

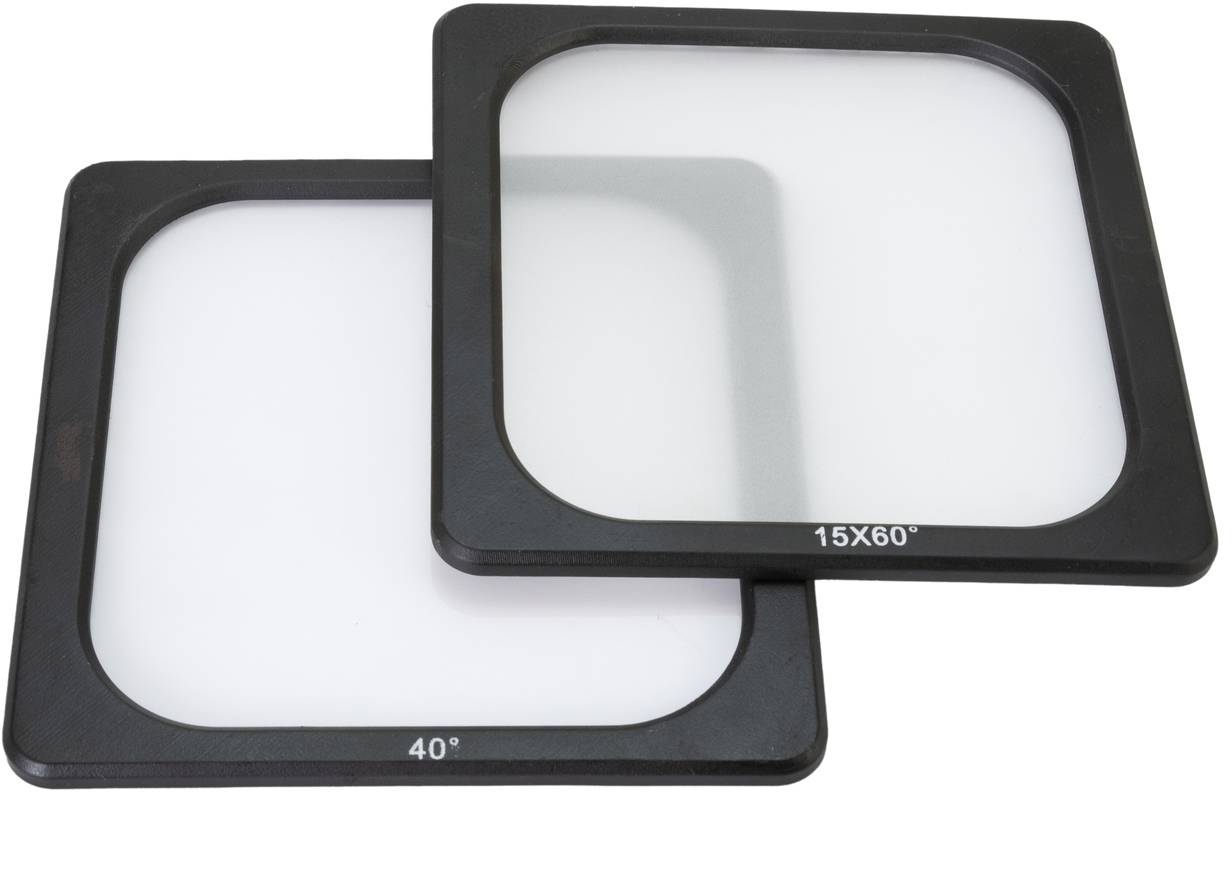

- Integrated QuickDMX radio transmitter/receiver for wireless transmission of DMX512 signals4 powerful 8W RGBW LEDs (4in1)2 diffuser discs (15x60° or 40°) for different angles of radiation (optional accessory)Battery life up to 12 hours (depending on the program used), charging time 3 hours
Technical specifications

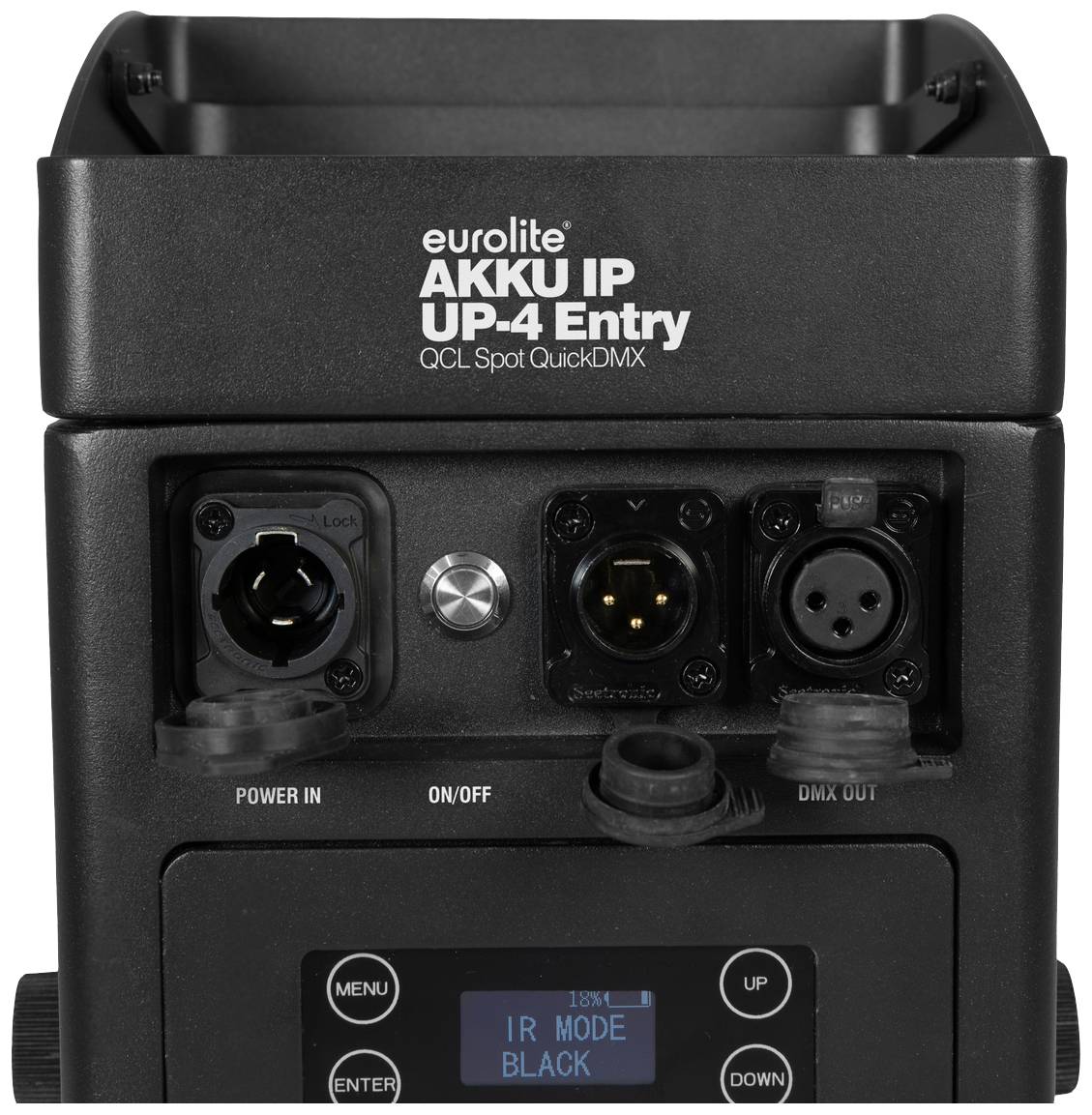

- Power supply 100-240 V AC, 50/60 HzProtection system: IP65Protection class SK IPower connection: Battery/rechargeable battery installedPower feed IP T-Con (M) Built-in version Power connection cable with safety plug (included)Battery type: 1 x Lithium-Ion 11.1 V, 4400 mAh, 48.84 WhBattery: Operating time up to 12h depending on the program usedCharging time 3hType of lamp: LED lampLED 4 x COB (chip-on-board) 8 W 4in1 QCL RGBW (homogeneous color mixing)DMX channels: 3; 4; 5; 6; 9DMX input: 3-pin XLR (M) Built-in version IPDMX output: 3-pin XLR (W) Built-in version IPCooling: Passive convection coolingControl: Stand-alone; IR remote control; DMX; Master/Slave function; QuickDMX integratedBeam angle: 16°Beam angle (1/2 peak): 16°Beam angle (1/10 peak): 32Housing colour black.Display type: OLED displayCarrier frequency 2.4 GHzDimensions: Width: 19 cmDepth: 15.50 cmHeight: 23.25 cmWeight: 4.40 kgRemote controlBattery: Button cell 3.0 V CR2025 lithium manganese (included)Legal SpecificationsSpecial product: Not intended for domestic lightingIntended use: Lighting for show effects
- Product type
LED cordless spolight
- Dim
(W x H x D) 19.00 x 23.25 x 15.50 cm
n.rel.
- Weight
4.40 kg
- Width
19.00 cm
- Height
23.25 cm
- Factory colour
Black
- Depth
15.50 cm
- No. of bulbs
4
IP65
- Radiation angle
16°
- Operating voltage
100 V
240 V
- Protection class
I
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2533024 Eurolite AKKU IP UP-4 Entry QCL Spot QuickDMX LED cordless spolight
Description
IP65 battery uplight with RGBW LEDs, QuickDMX and IR remote control
This text is machine translated.
This text is machine translated.
Features
- Auto, master/slave and DMX modeWireless master/slave operation via QuickDMXIntegrated show programs in the car modeDirect color selection for 19 colorsContinuous RGBW color mixing, color change, color blending, dimmer and strobe effect with variable speedAddressing and setting via control unit with OLED display and 4 control buttonsConvenient remote control via the supplied IR remote control EUROLITE IR-73, 4, 5, 6 or 9 DMX channels can be selectedRobust housing with carrying handle and folding foot for angled setting upAdditional rubber feetSwitched-mode power supply technology for mains voltage between 100 and 240 voltsBattery type: 1 x Lithium-Ion 11.1 V, 4400 mAh, 48.84 Wh
Scope of delivery
- Eurolite BATTERY IP UP-4 Entry QCL Spot QuickDMX
