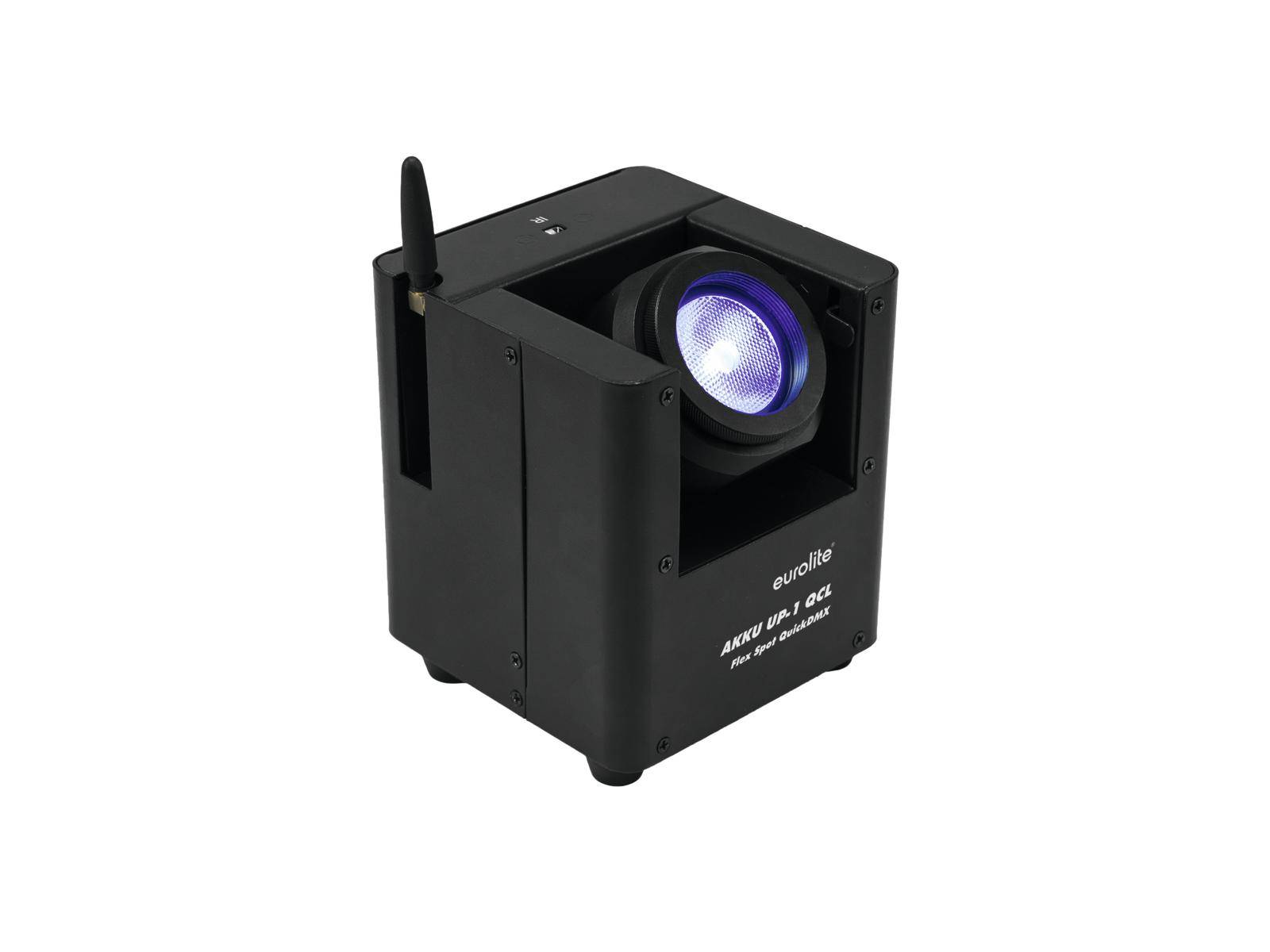

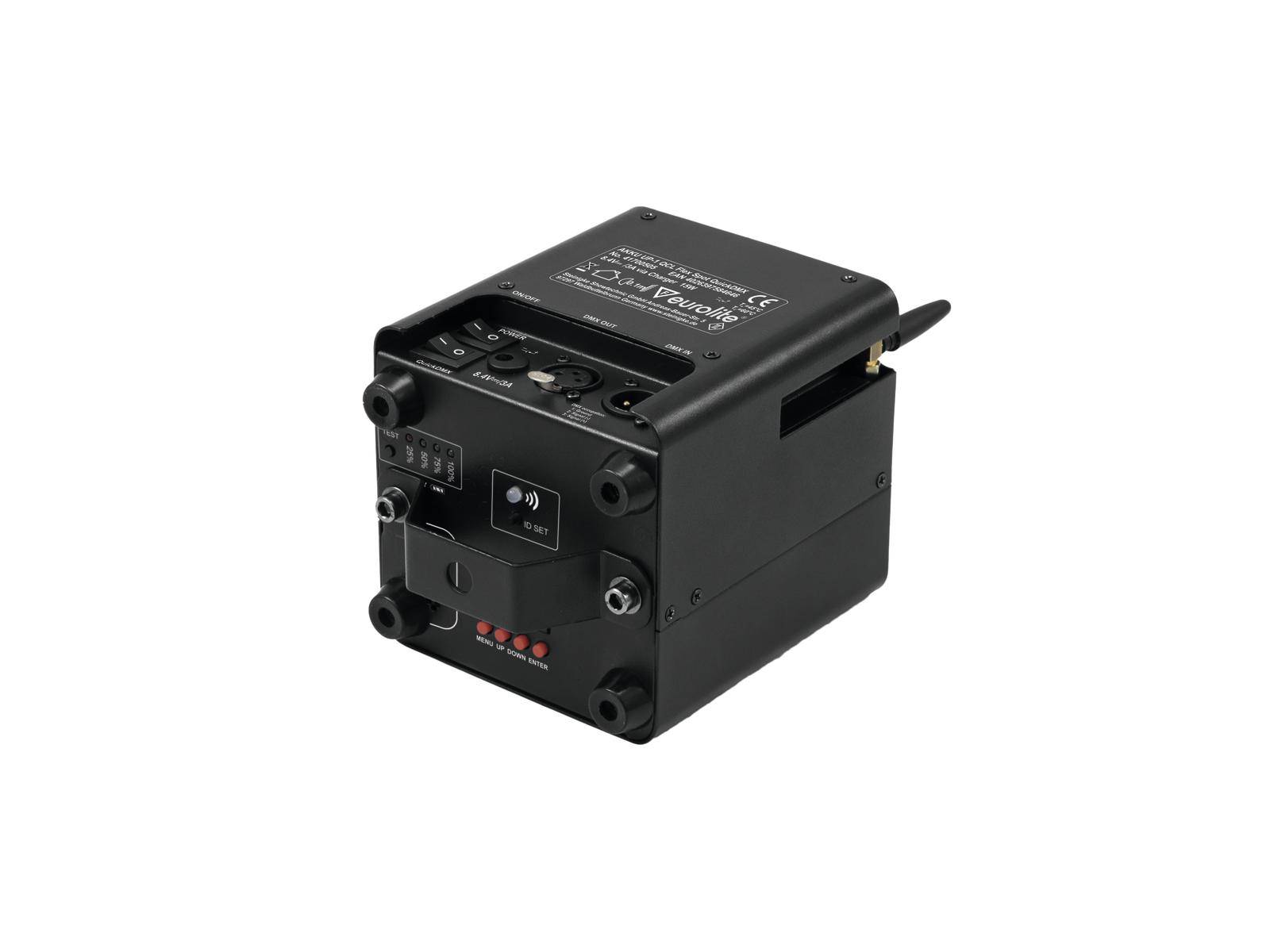

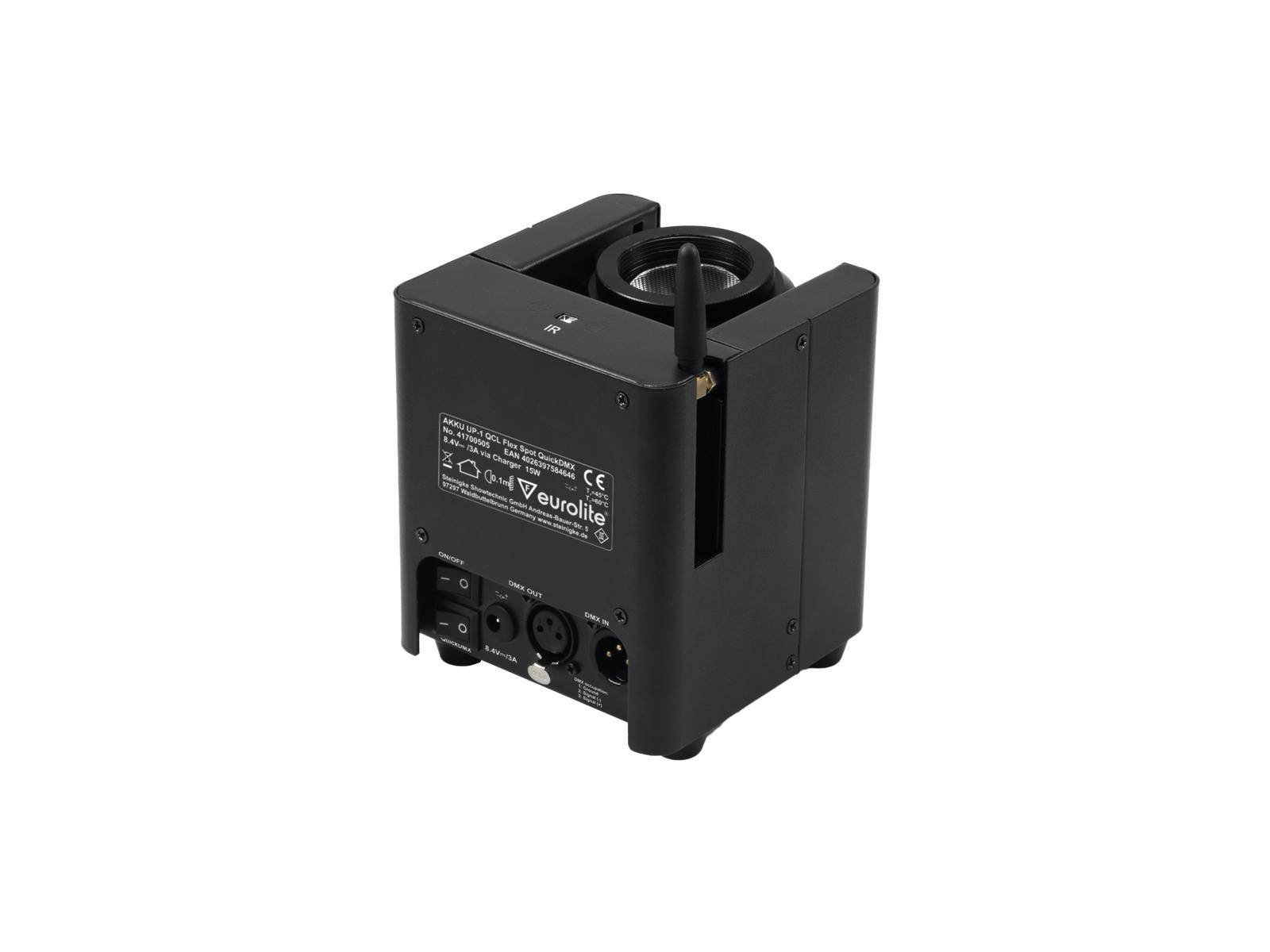

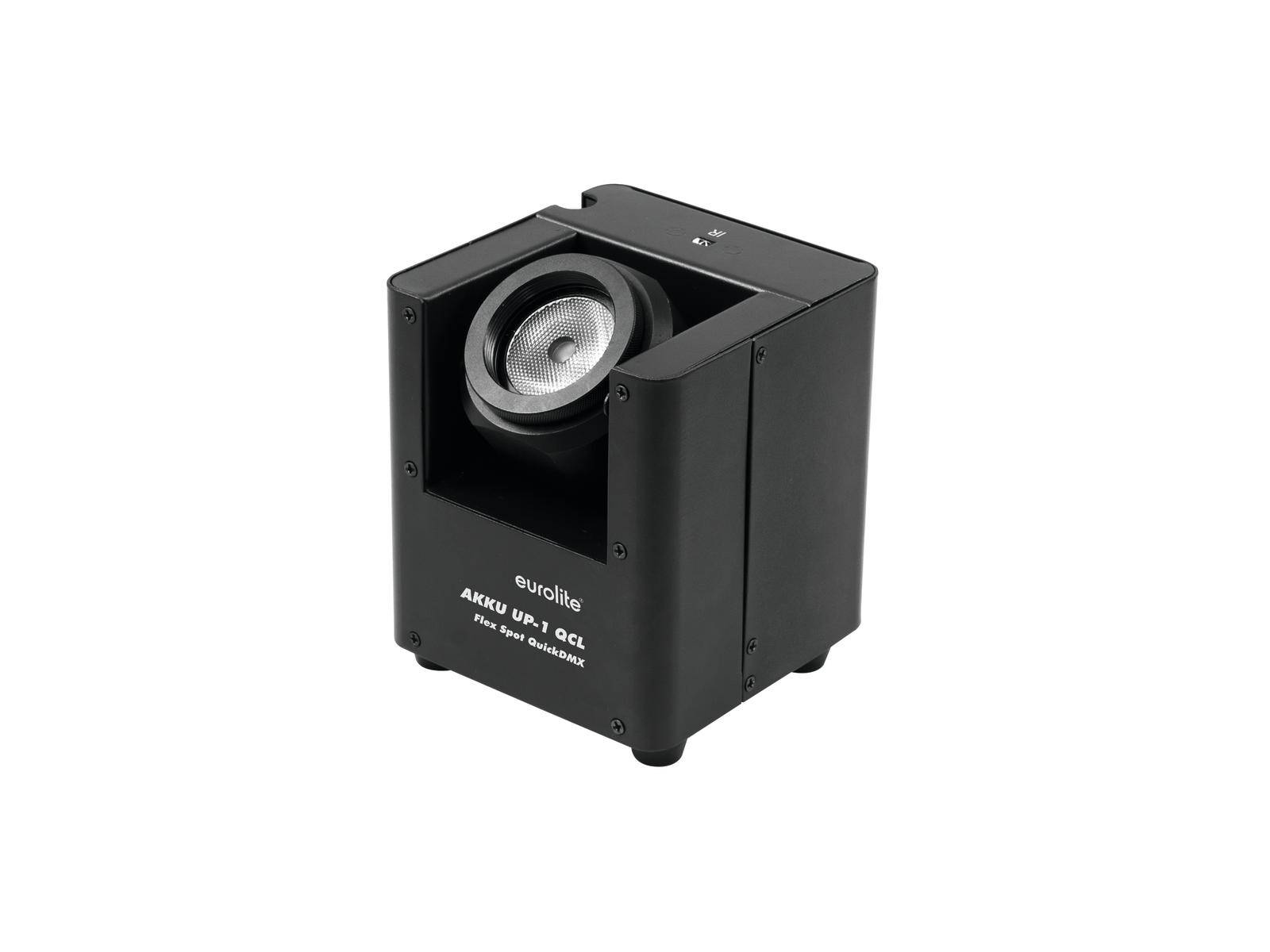

Eurolite AKKU UP-1 QCL LED wall light No. of LEDs (details): 1 x 15 W Black
EAN:
Part number:
Item no:
Highlights & Details
Handy battery-LED uplight with QuickDMX-radio receiver and tilting LED-head
- Equipped with a 15-W-QCL (Quad color LED) in red, green, blue and white
- Angle of inclination of the LED head manually adjustable
- Change of the beam angle (from 9° to 15°) through additional lens possible (included)
- Operated by supplied mains supply or built-in lithium-ion battery with up to 18 hours operating time
- Can be controlled via EUROLITE IR-13 remote control, included in the delivery
- This text is machine translated.
Technical specifications
- Power supply: 7.4 V, 8800 mAh About Li-ion battery
- 8.4 V, 3A via charging power supply (100-240 V AC 50/60 Hz)
- Total connection value: 15 W
- Battery type: Li-ion 7.4 V, 8800 mAh (65,12 Wh)
- Battery operating time: depending on the program up to 18 hours
- Battery Charging time: 6 hours
- Battery remote control: CR2032 button cell, 3 V
- DMX control channels: 3/4/6/8/10
- DMX512 connection: 3-pin. XLR
- Music control: via built-in microphone
- Wireless signal transmission: 2.4 GHz (ISM), 78 channels
- LED type: 15-W-Qcl
- Number of LEDs: 1
- Beam angle: 9°/15°
- Dimensions (L x W x H): 120 x 120 x 142 mm
- Weight: 2.1 kg
- Shipping weight: 2.46 kg
- Subject to eco-design: Yes
- Special product: not intended for the room lighting in households
- Purpose: lighting for show effects
- Product type
LED wall light
- Case colour
Black
- Colour
RGB
15 W
- Dim
(L x W x H) 120 x 120 x 142 mm
n.rel.
- LEDs
1 x
- Weight
2.1 kg
- Width
120 mm
- Height
142 mm
- Length
120 mm
- Watt per LED
15 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1529955 Eurolite AKKU UP-1 QCL LED wall light No. of LEDs (details): 1 x 15 W Black
Description
Features
- Compact and powerful light
- Equipped with a 15-W-QCL (Quad color LED) in red, green, blue and white
- Angle of inclination of the LED head manually adjustable
- Change of the beam angle (from 9° to 15°) through additional lens possible (included)
- With built-in QuickDMX-receiver for wireless reception of DMX512 signals
- Flicker-free projection
- Operated by supplied mains supply or built-in lithium-ion battery with up to 18 hours operating time
- Integrated automatic charger with charging display
- Can be controlled via EUROLITE IR-13 remote control, included in the delivery
- DMX-controlled operation or standalone mode with master/slave function is possible
- 3, 4, 6, 8 or 10 DMX channels can be selected
- Functions: static colors, fully variable RGBW color mixing, internal programs, dimmer, strobe effect with adjustable speed, music control
- Dimmer speed (step response) adjustable
- Microphone sensitivity can be adjusted

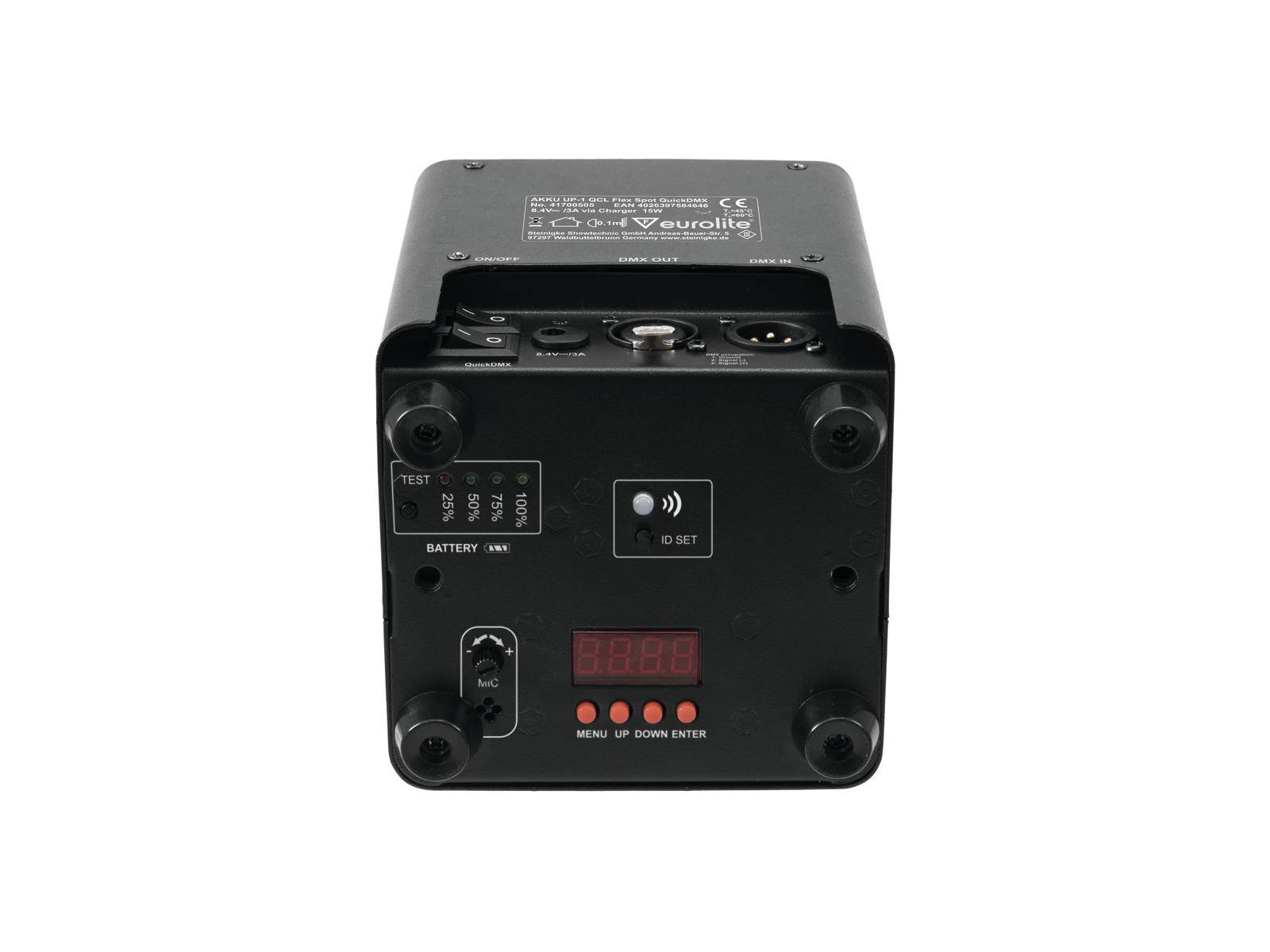

- Addressing and settings via control unit with four-digit LED display
- Charging power supply included in delivery
- Switched-mode power supply technology for mains voltage between 100 and 240 Volt
- DMX512 control is possible with any standard DMX controller
