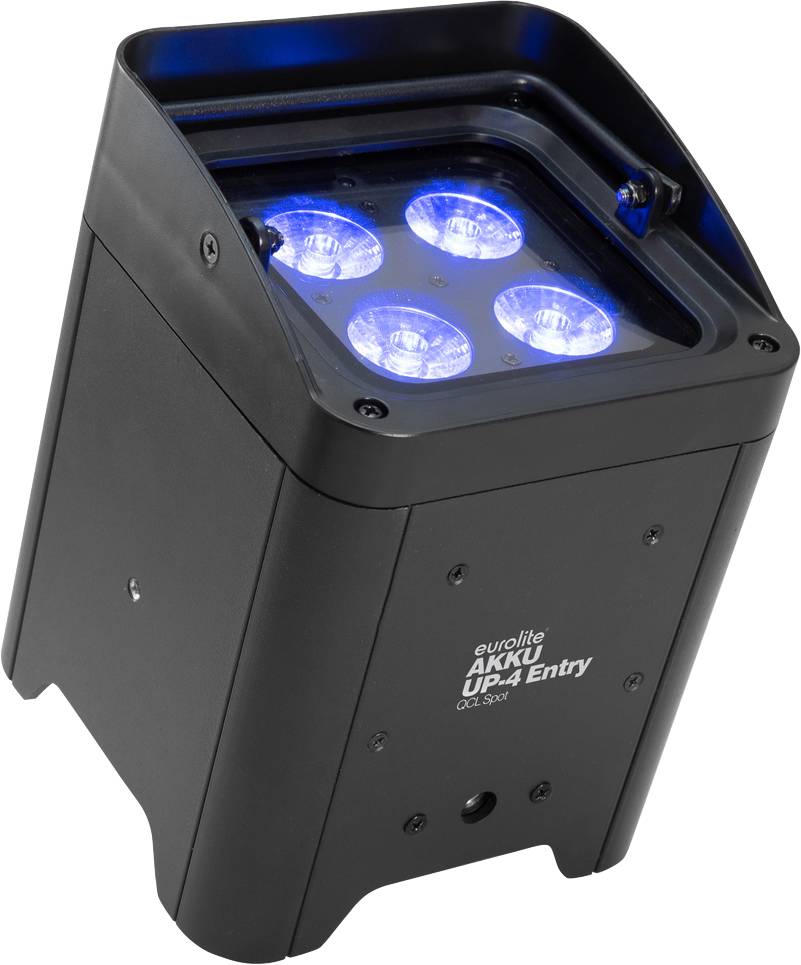

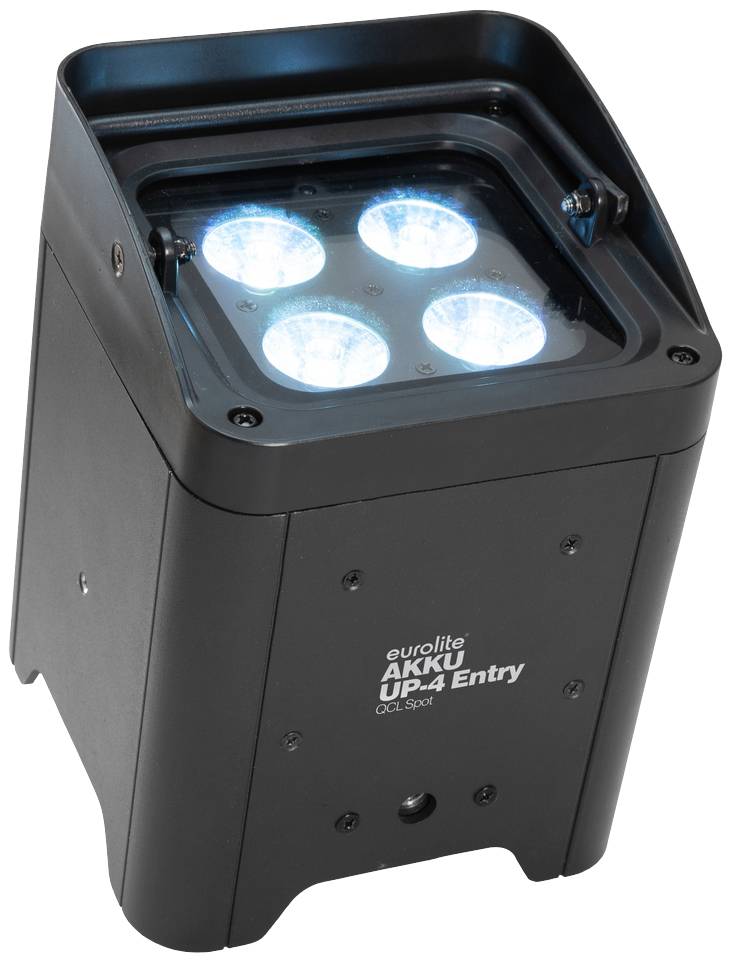

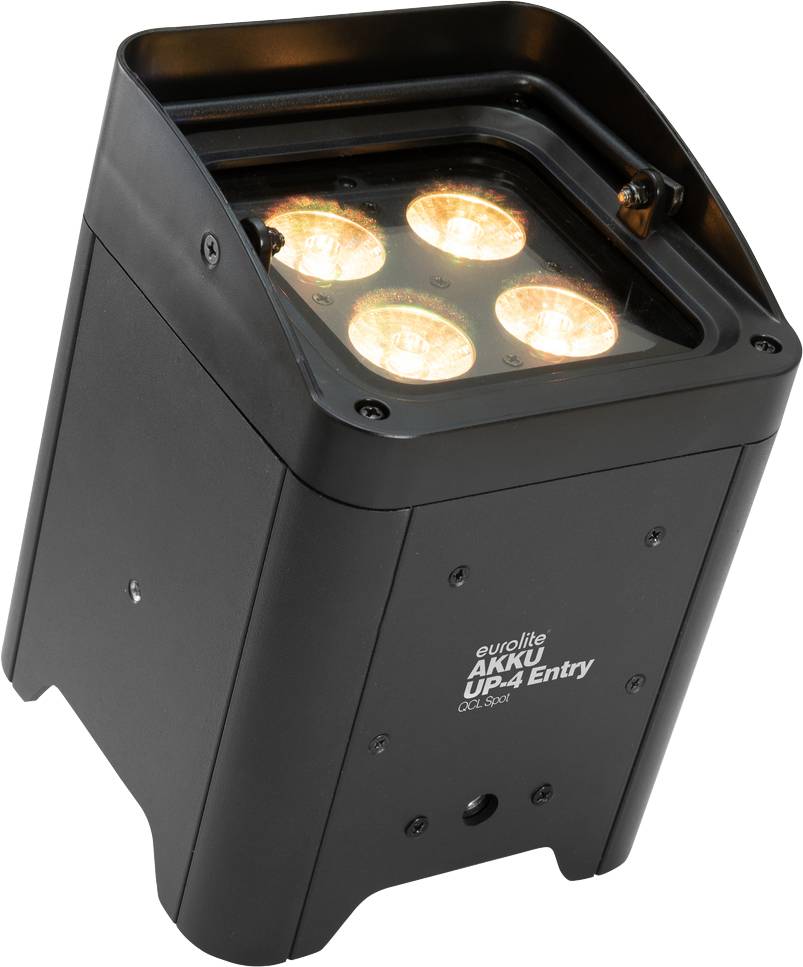

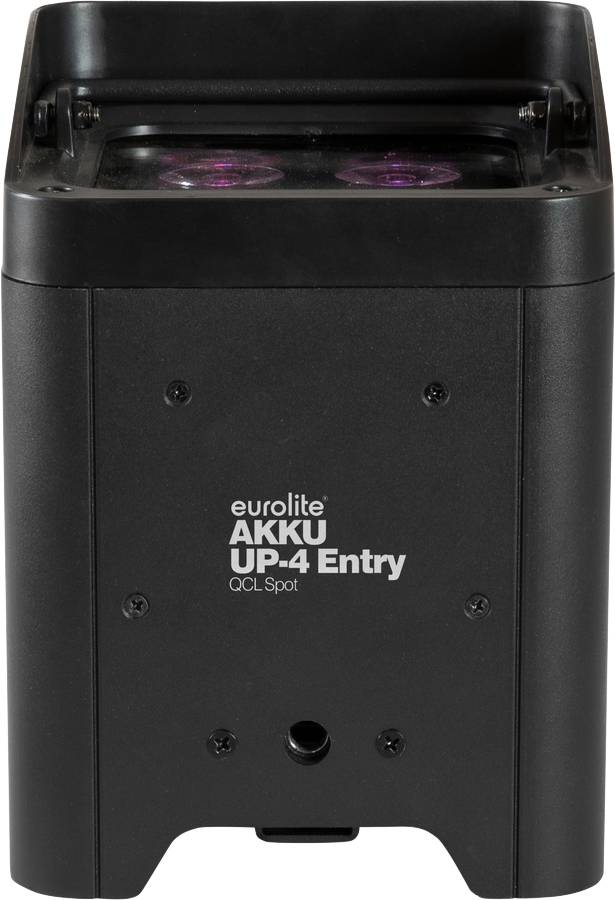

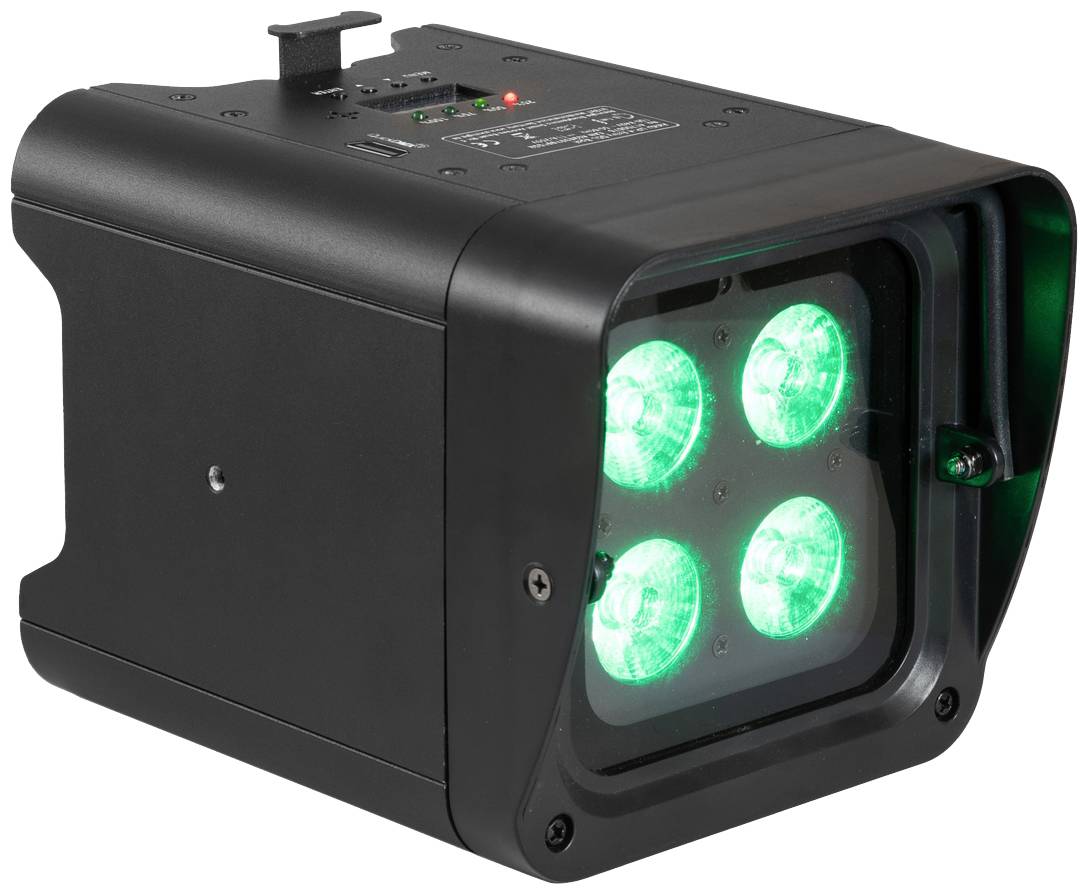

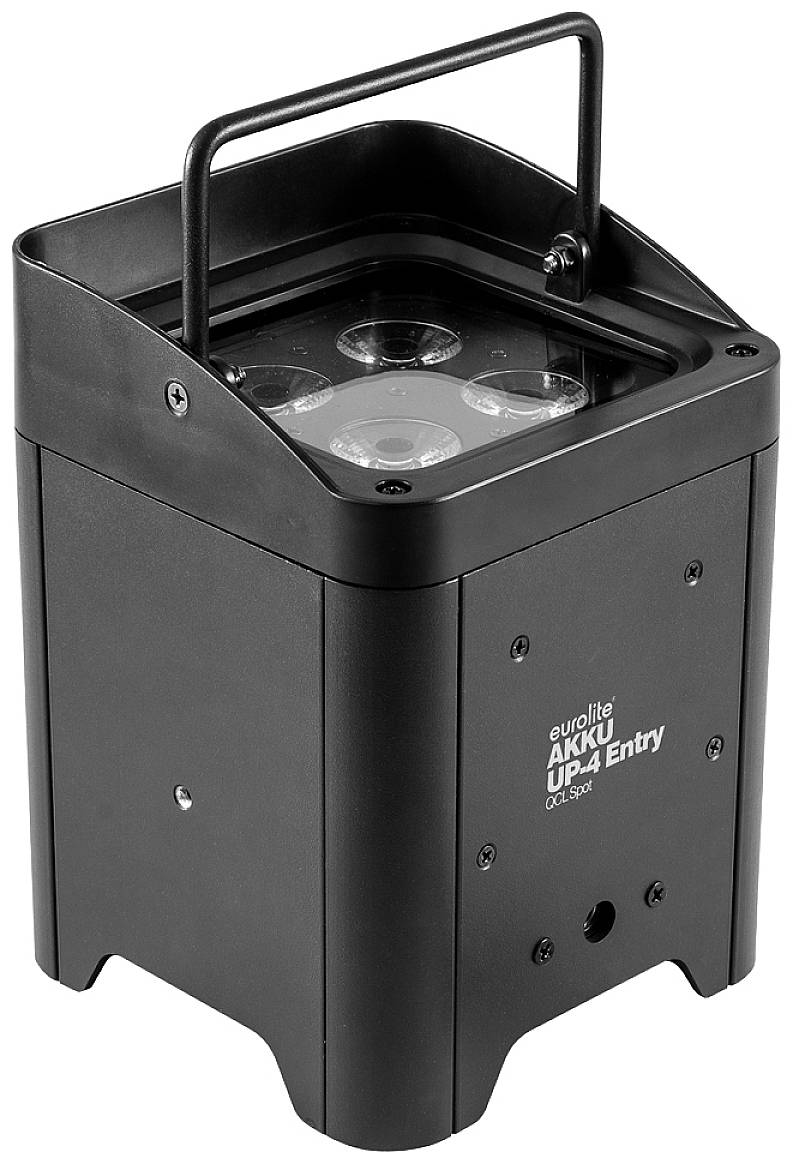

Buy Eurolite AKKU UP-4 Entry QCL Spot LED cordless spolight

1/11

Datasheet (PDF)

Unavailable

13 Piece(s)

Sales and shipping:

Highlights & Details

Equipped with 4 powerful 8 W QCL LEDs in red, green, blue and white (4in1)Compact and brightWireless, flexible and versatileOperation via mains connection or built-in lithium-ion battery with up to 14 hours operating time (depending on the program used)

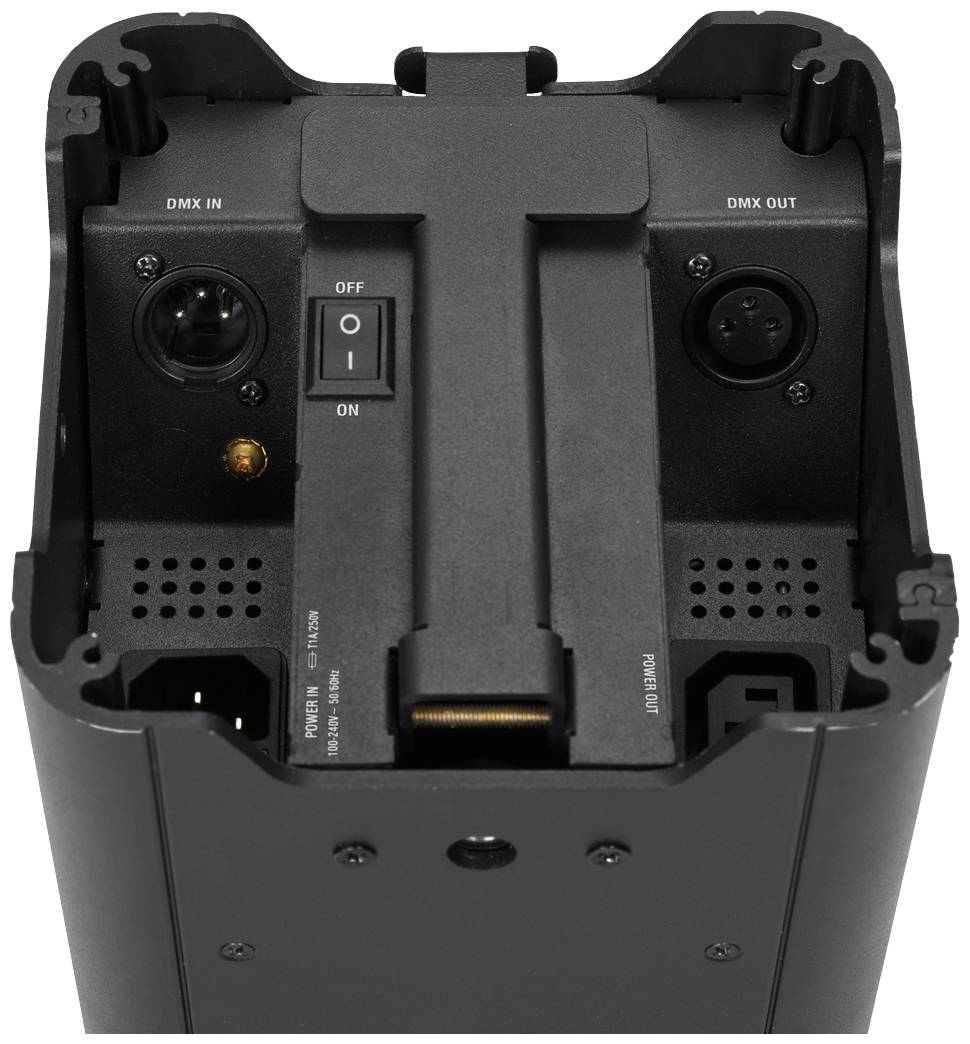

Power supply 100-240 V AC, 50/60 HzProtection class: IP20Protection class SK IPower connection: Power feed cold devices (M) Built-in version Power connection cable with earthing contact plug (included)Power output: Cold-devices (W) built-in versionFuse: T 1 A fuse replaceableBattery type: 1 x Lithium-Ion 11.1 V, 4400 mAh,Battery: Operating time up to 14h depending on the program usedCharging time 4hType of lamp: LED lampLED: 4 x high-power 8 W 4in1 QCL RGBW (homogeneous color mixing)Flash rate 0 - 20 HzDMX channels: 3; 4-1; 4; 6; 8DMX input: 3-pin XLR (M) mounted versionDMX output: 3-pin XLR (W) mounted versionCooling: Passive convection coolingControl: Stand-alone; IR remote control (included); DMX; master/slave function; music control via microphone; QuickDMX via USB (optional)Beam angle: 17°Beam angle (1/2 peak): 17°Beam angle (1/10 peak): 34°Housing colour black.Display type: 4-digit 7-segment LED displayDimensions: Width: 14.4 cmDepth: 14.4 cmHeight: 1.8" (19.1 cm)Weight: 2.35 kgRemote controlBattery: 1 x button cell 3.0 V CR2025 lithium manganese (included)Legal SpecificationsSpecial product: Not intended for domestic lightingIntended use: Lighting for show effects

Datasheet 2533022 Eurolite AKKU UP-4 Entry QCL Spot LED cordless spolight

User & Safety Instructions 2533022 Eurolite AKKU UP-4 Entry QCL Spot LED cordless spolight

BATTERY uplight with 4 x 8 watt 4in1 LED and IR remote control

This text is machine translated.

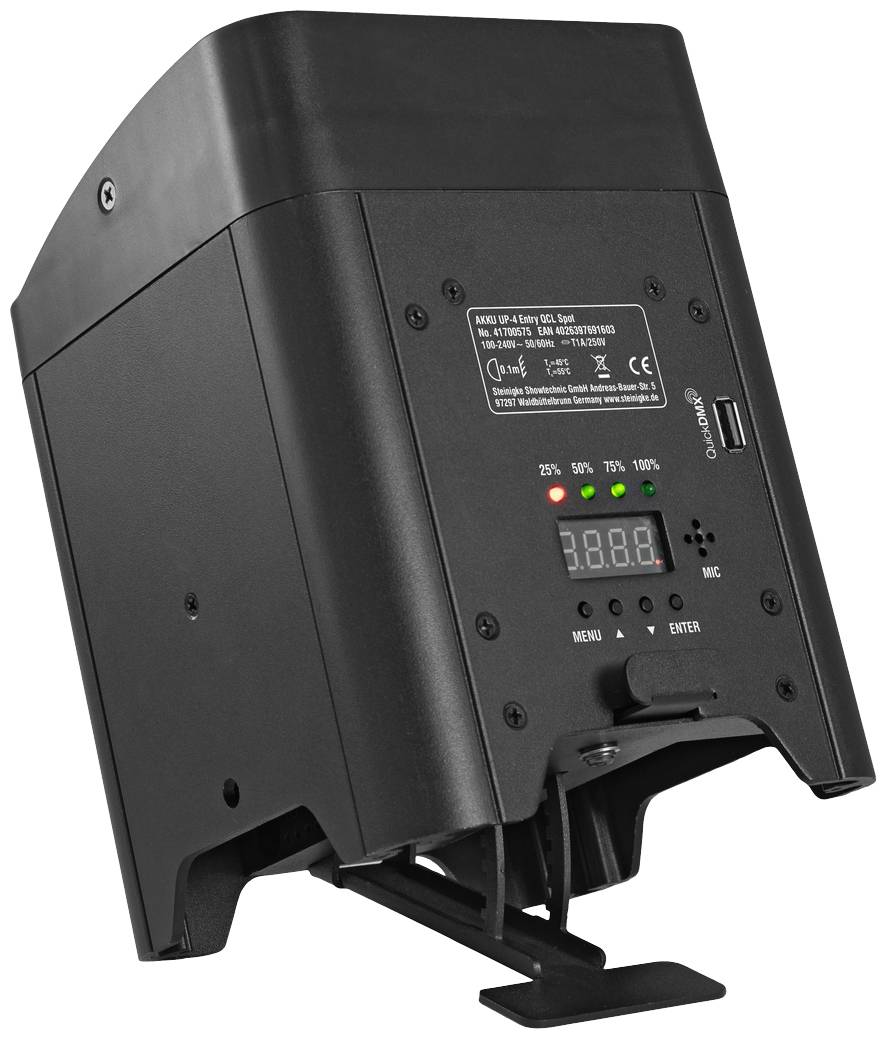

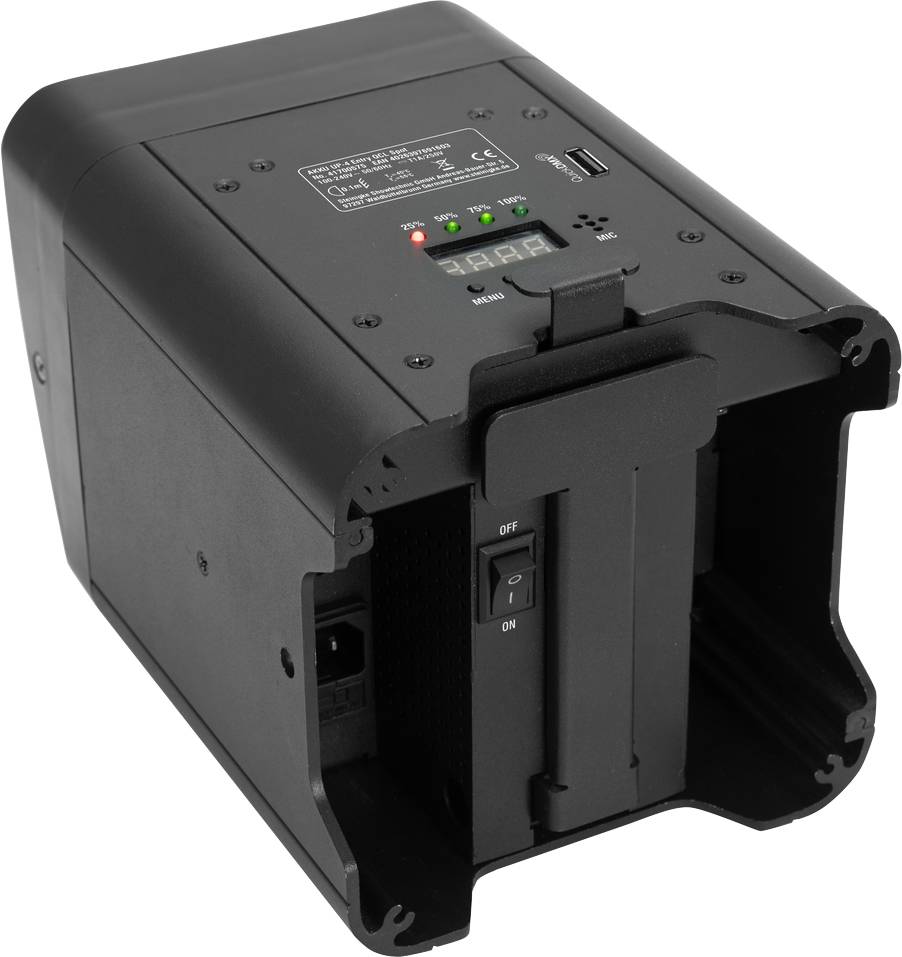

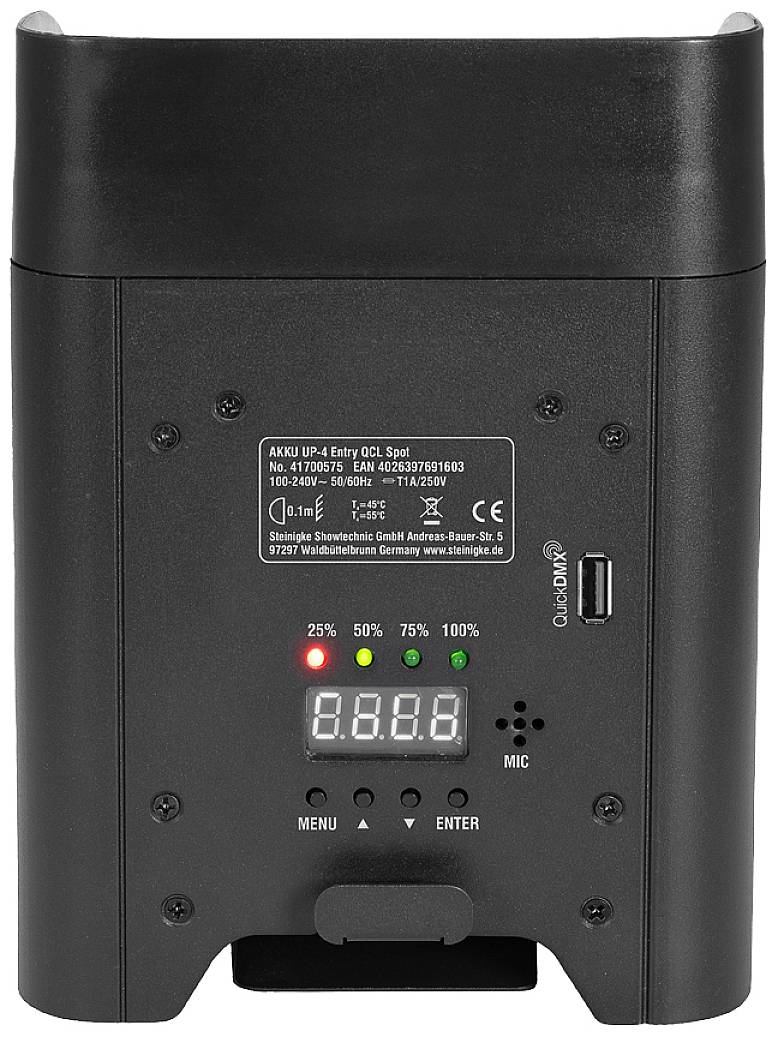

Charging time 4 hourspower-saving modeAuto, music, master/slave and DMXIntegrated show programs in auto and sound modeDirect color selection for 17 colorsContinuous RGBW color mixing, color change, color blending, dimmer and strobe effect with variable speed, music controlAddressing and settings via control unit with four-digit LED displayConvenient remote control via the supplied IR remote control EUROLITE IR-7Music control via in-built microphone with adjustable microphone sensitivity3, 4-1, 4, 6 or 8 DMX channels can be selectedCompatible with QuickDMX - the radio DMX system from EurolitePhantom-powered USB socket for QuickDMX receiver (accessories)Hanging as well as standing mounting is possibleM10 threaded insert for hanging mountingRobust housing with carrying handle and folding foot for angled setting upIEC mains connections for simple series connection of up to 8 devicesSwitched-mode power supply technology for mains voltage between 100 and 240 voltsBattery type: 1 x Lithium-Ion 11.1 V, 4400 mAh,
