Eurolite AVS-402 Composite switch + overwrite function
EAN:
Part number:
Item no:
Highlights & Details

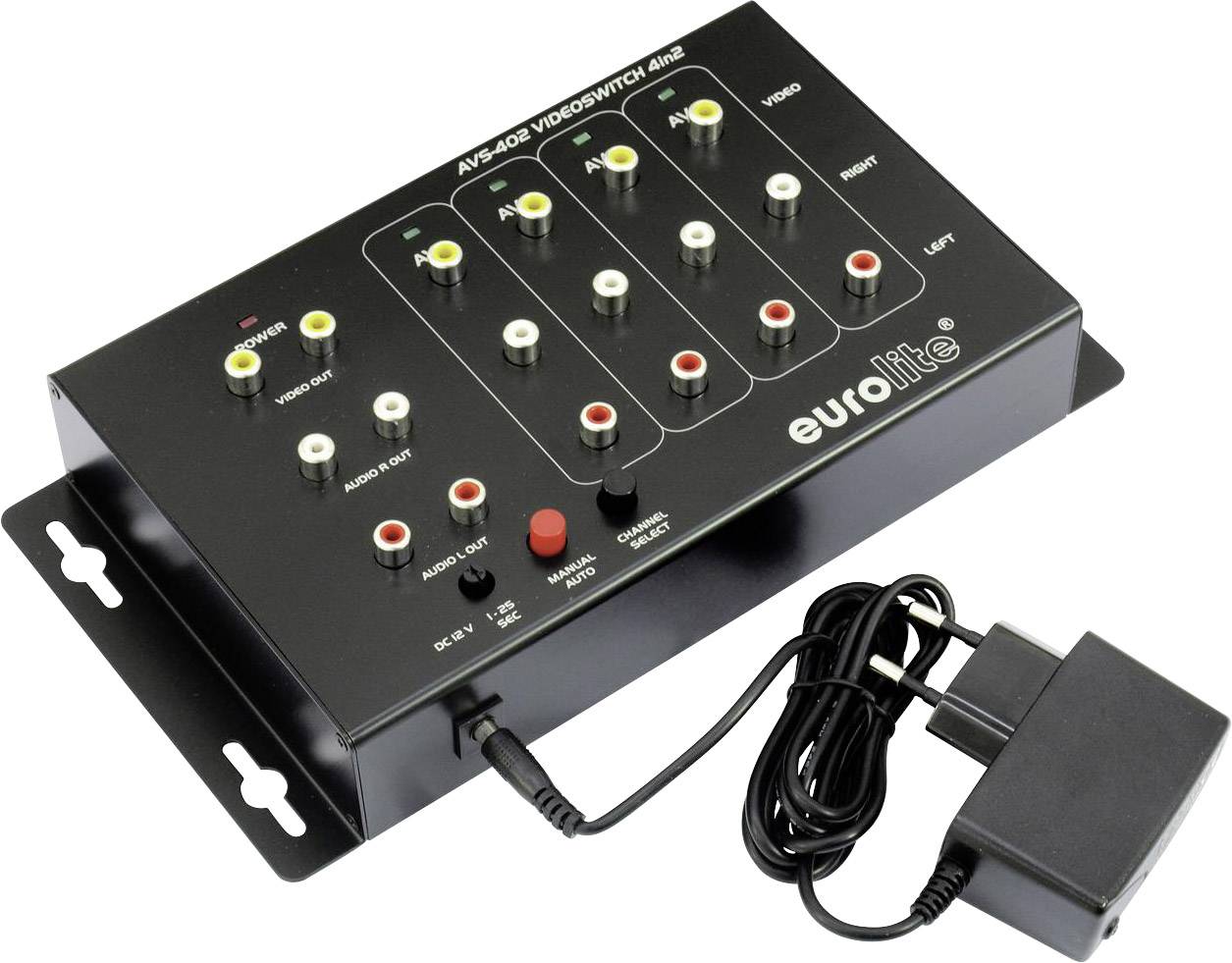

Eurolite AVS-402 video switch 4in2
- 4-way AV-switch
- This text is machine translated.
Technical specifications
- Product type
Composite switch
- Supported monitors
2
- Interfaces (input)
RCA (VHS)
- Interfaces (output)
RCA (VHS)
- No. of inputs
2 x
- No. of outputs
4 x
- Switch function
Manual
Automatic
- Distributor/switch features
+ overwrite function
- Factory colour
Black
- Power supply (LOV)
mains-powered
- Width
24.2 cm
- Height
5 cm
- Depth
12.8 cm
- Weight
750 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1899910 Eurolite AVS-402 Composite switch + overwrite function
Description
Features
- For switching from four AV sources (audio, composite video and S-Video TV signals) to up to two TV monitors
- Typical applications are camera surveillance systems and information systems in clubs, restaurants, shops, etc.
- 4 inputs (phono), can be switched manually or automatically
- Automatic switching time can be set between 1 and 25 seconds
- 2 outputs (phono)
- Simultaneous recording to one or two video/DVD recorders is possible
- Connection of a HiFi-system possible via second output
- 12 V power supply via supplied power supply.
