Eurolite BAR-12 QCL LED bar No. of LEDs (details): 12
EAN:
Part number:
Item no:
Highlights & Details

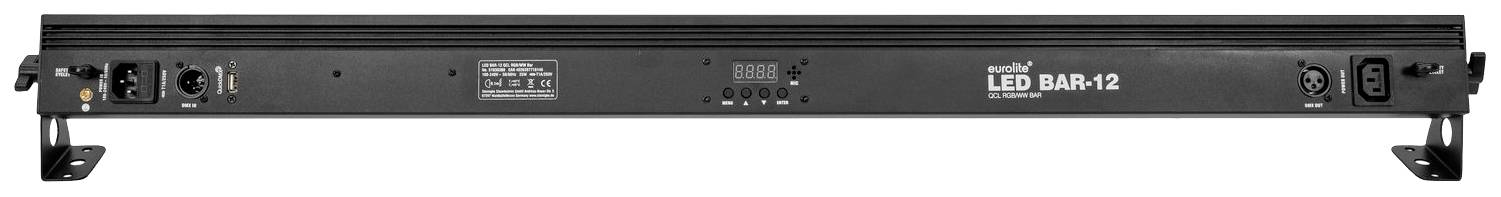

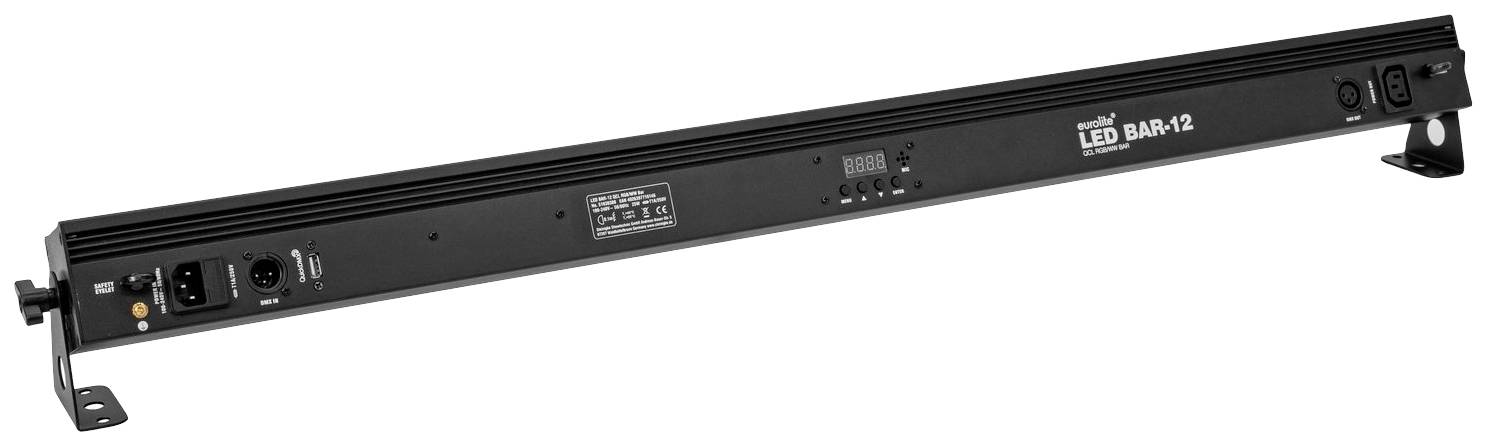

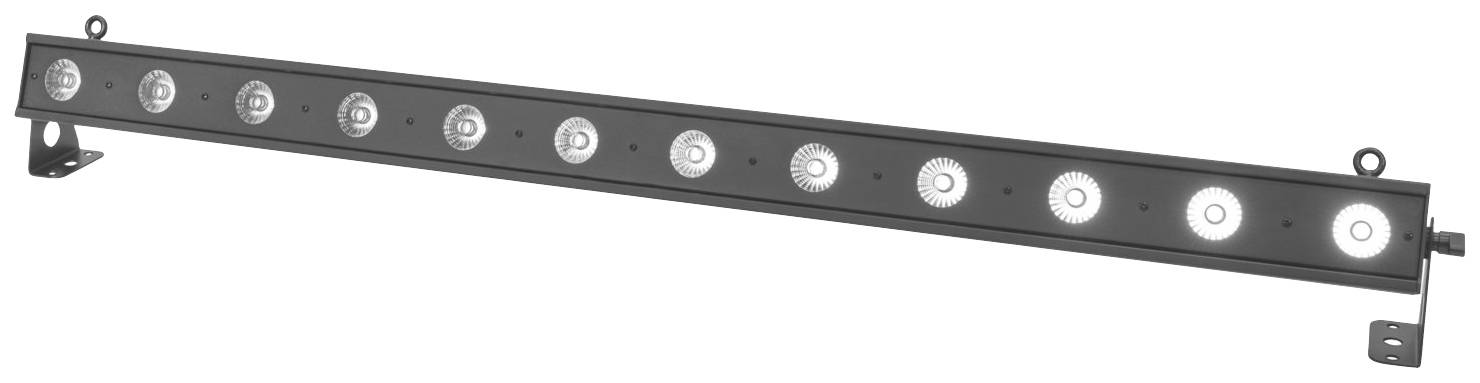

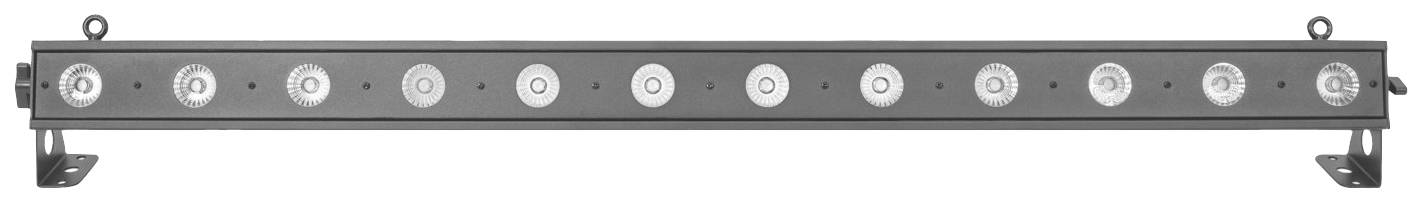

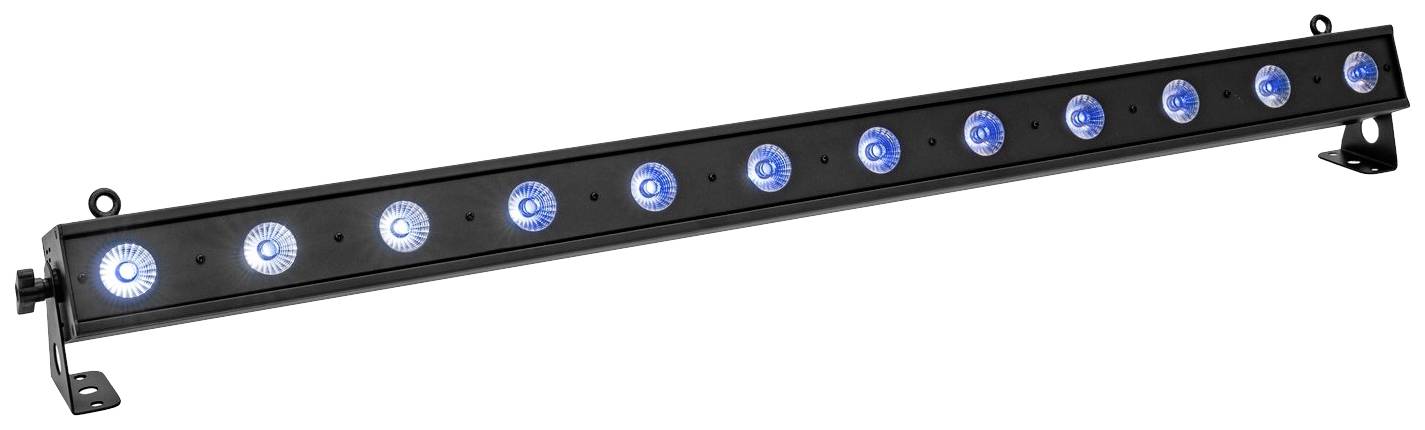

Eurolite LED BAR-12 QCL RGB+WW strips
- LED light effect strip (1 m) with RGB + WW color mixing
- 12 powerful LEDs 7 W high-power 4in1 QCL RGB/WW (homogeneous color mixing)
- 3 integrated show programs
- Direct color selection for 20 colors
Technical specifications
- Operating voltage
100 - 240 V
- Product type
LED bar
25 W
- LEDs
12
- Colour
RGB
Warm white
- Dim
(L x W x H) 1006 x 88.5 x 109 mm
- Weight
2.68 kg
n.rel.
- DMX control
Yes
- Width
88.5 mm
- Height
109 mm
- Length
1006 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131234 Eurolite BAR-12 QCL LED bar No. of LEDs (details): 12
Description
The device is cooled by passive convection cooling
Flicker-free
Stroboscope-effect
With an angle of radiation of 20°
With mounting bracket
4 digit 7-segment LED display
Variable color temperature 2700 K - 8000 K
Colour mixing infinitely variable; color change adjustable, color cross-fading adjustable, dimmer electronic
Pre-programmed with EASY SHOW 1; Light´J; EASY SHOW 2; EASY SHOW 3
Can be controlled via stand alone; DMX; music control via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Power input and power output for simple connection of up to 8 devices
For application areas like: Clubs/dance schools; party cellar; mobile DJs/solo entertainers; restaurants, bars and hotels
Noiseless operation
Possible application: Flying
This text is machine translated.
Flicker-free
Stroboscope-effect
With an angle of radiation of 20°
With mounting bracket
4 digit 7-segment LED display
Variable color temperature 2700 K - 8000 K
Colour mixing infinitely variable; color change adjustable, color cross-fading adjustable, dimmer electronic
Pre-programmed with EASY SHOW 1; Light´J; EASY SHOW 2; EASY SHOW 3
Can be controlled via stand alone; DMX; music control via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Power input and power output for simple connection of up to 8 devices
For application areas like: Clubs/dance schools; party cellar; mobile DJs/solo entertainers; restaurants, bars and hotels
Noiseless operation
Possible application: Flying
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 25 W
- Power connection: Power feed via cold devices (M) Installation version Power connection cable with safety plug (supplied)
- Display type: 4 digit 7-segment LED display
- Protection class SK I
- Cooling: Passive convection cooling
- Housing colour black.
- Protection class: IP20
- Support system: 2x mounting bracket
- Control: Stand-alone
- LED lamp type
- 12 x 7 W high-power 4in1 QCL RGB/WW (homogeneous color mixing)
- Adjustable color temperature 2700K - 8000k
- DMX channels: 2
- DMX input 3-pin XLR (M), built in version
- Master/slave function: Master/slave function
- Pre-programmed at: EASY SHOW 1
- Beam angle: 20°
- Beam angle (1/2 peak) 20°
- Beam angle (1/10 peak) 33°
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- Fuse: T 1 A fuse can be replaced
- DMX output 3-pin XLR (W) built-in version
- Power output 1 x cold devices (W) in built version
- Flash rate 0 - 20 Hz
- Music control via microphone
- CRMX by Lumen Radio via USB (optional)
- W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional)
- Light J
- EASY SHOW 2
- EASY SHOW 3
Scope of delivery
- Strip
- User manual
- Network cable/power cable
- 2 x mounting bracket
- 2 x washers
- 2 x Knurled screw
