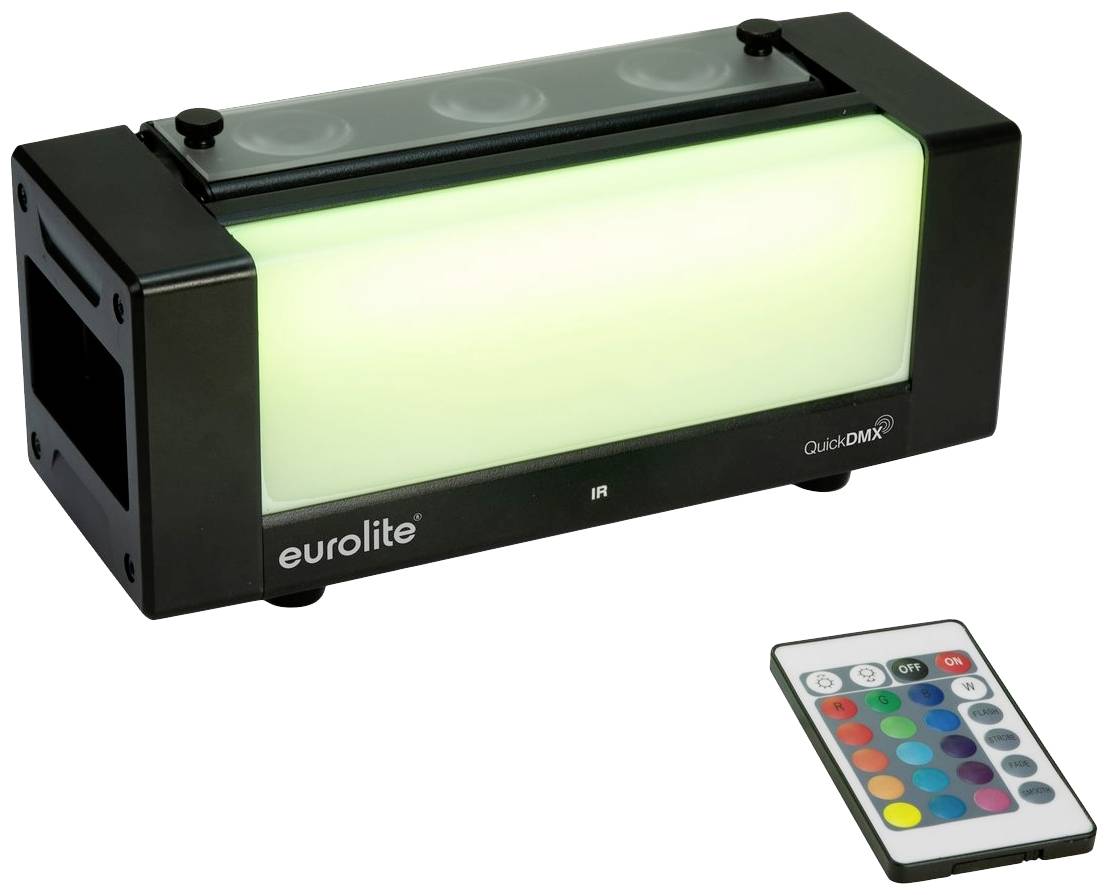

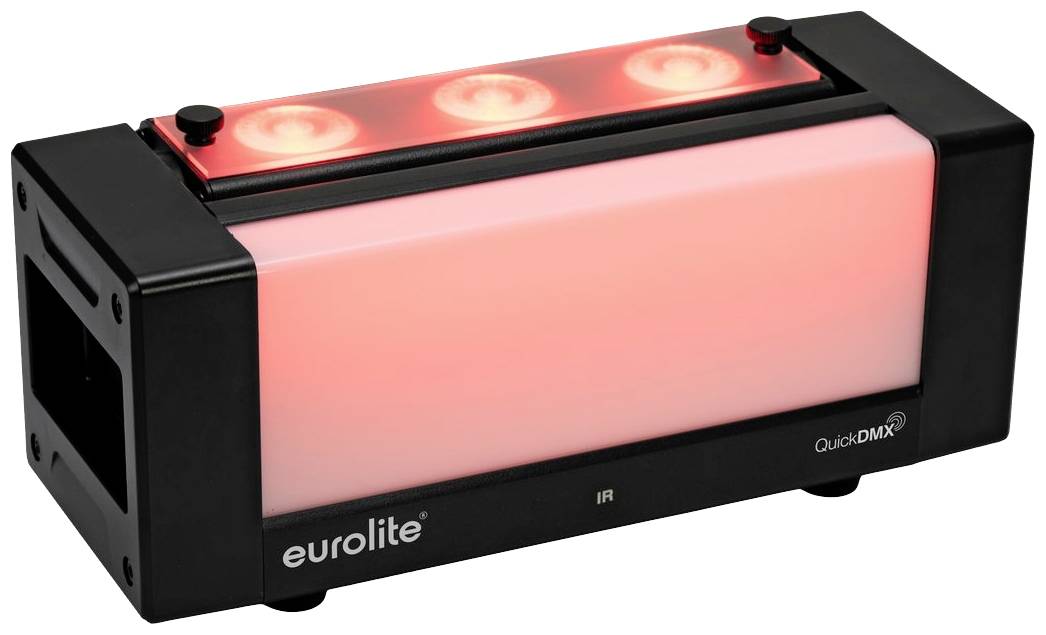

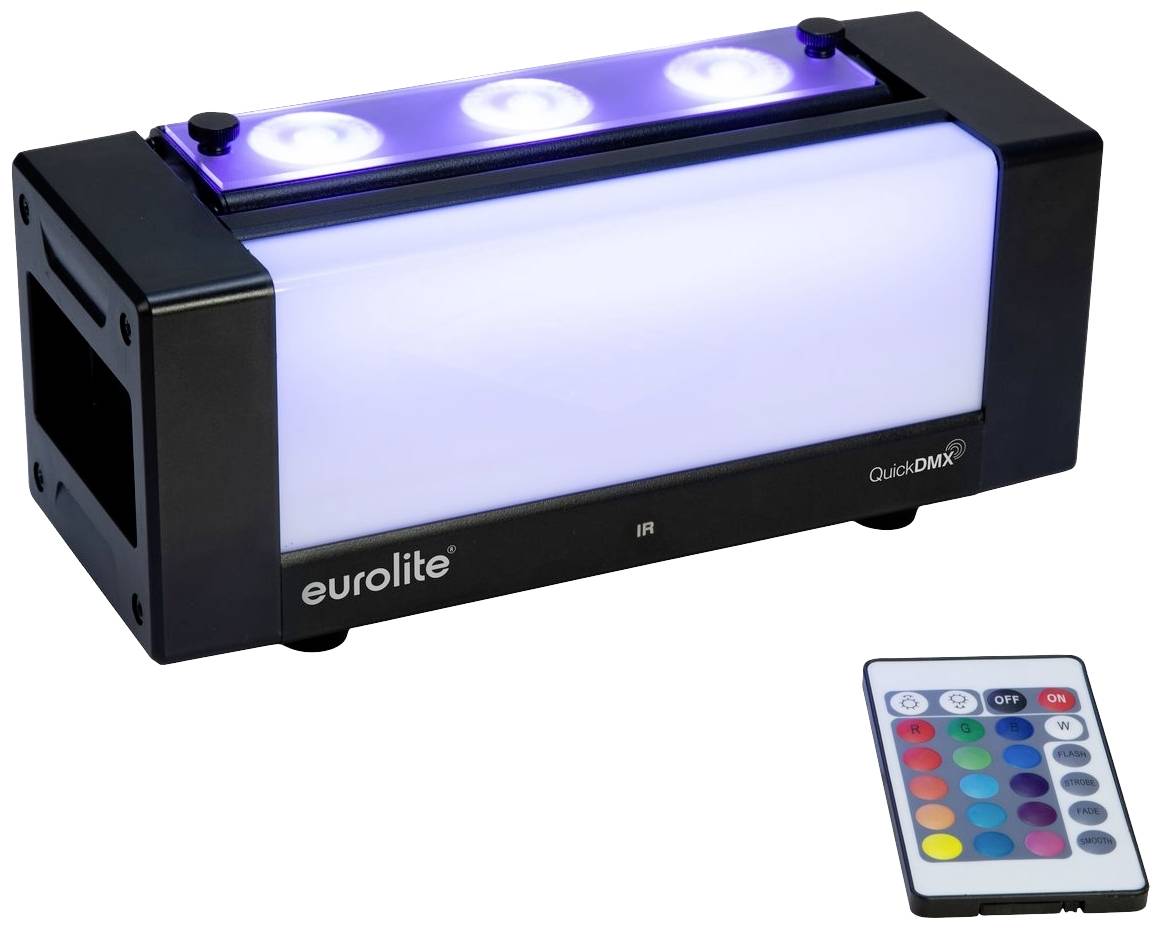

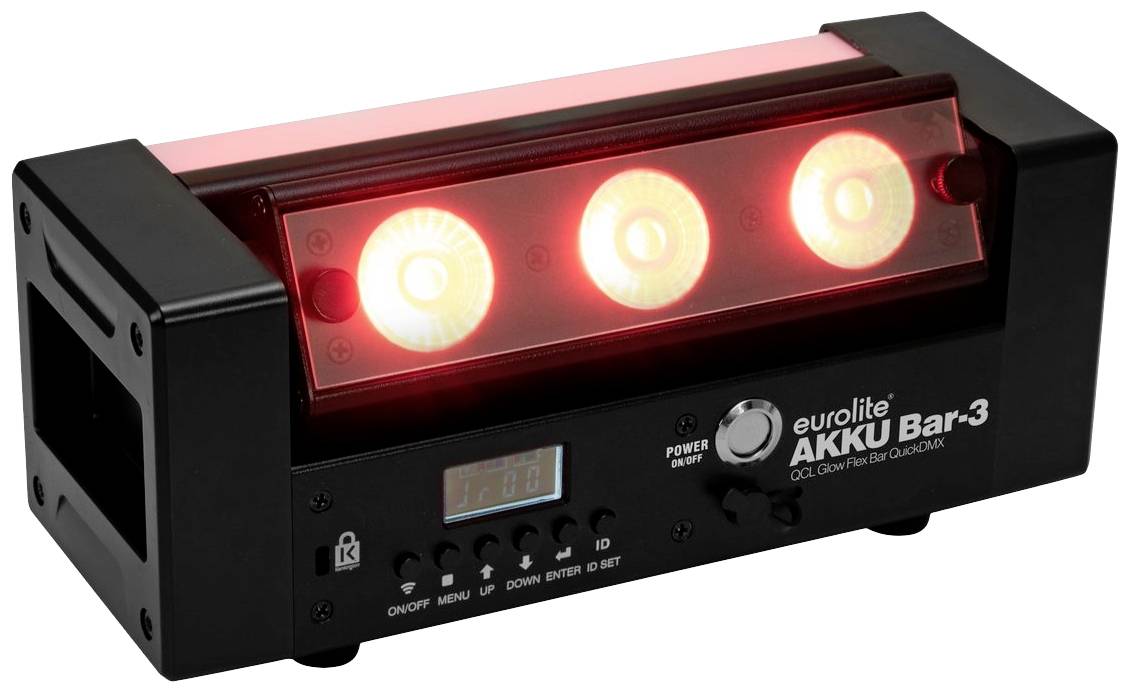

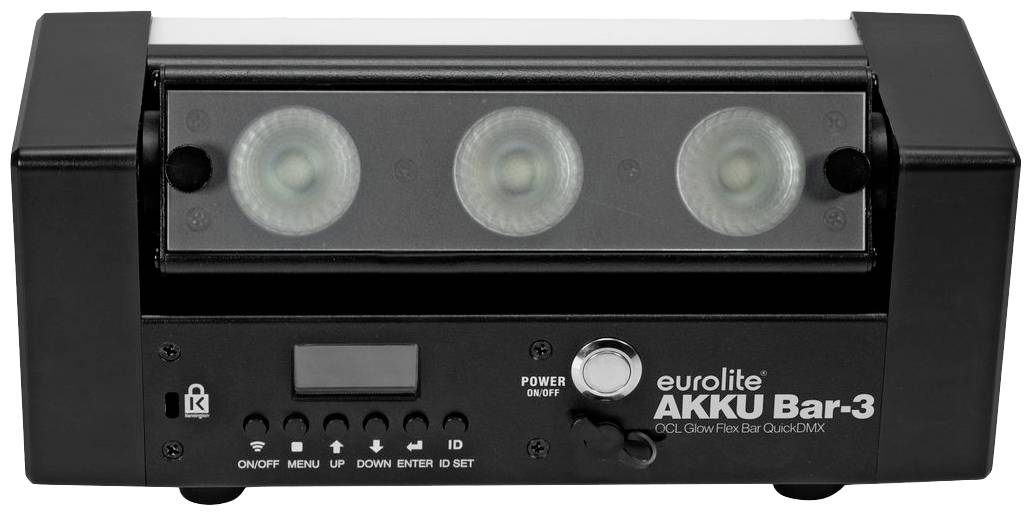

Eurolite Bar-3 Glow QCL LED bar No. of LEDs (details): 18
EAN:
Part number:
Item no:
Highlights & Details
Eurolite BATT. Bar-3 glow QCL Flex QuickDMX
- Inclinable battery-LED-strip and Mood-Light with 4-in-1 LEDs and Quick
- Operating time up to 13h depending on the program used
- 15 powerful LEDs 0.25 W SMD 5050 4in1 QCL RGBW (homogeneous color mixing)
- 3 powerful LEDs 8 W high-power 4in1 QCL RGBW (homogeneous color mixing)
Technical specifications
- Operating voltage
11.1 V
- Product type
LED bar
30 W
- LEDs
18
- Colour
RGBW
- Dim
(L x W x H) 246 x 95 x 105 mm
- Weight
1.93 kg
n.rel.
- DMX control
Yes
- Width
95 mm
- Height
105 mm
- Length
246 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131259 Eurolite Bar-3 Glow QCL LED bar No. of LEDs (details): 18
Description
DMXaround 90° inclinable panel with 3 powerful 8 W-RGBW LEDs (4-in-1) and removable frost filter
Mood light with a rich front panel for a pleasant soft light with 15 SMD RGBW LEDs (4 in 1)
Integrated QuickDMX transceiver for wireless DMX control
Colour mixing variable; color change adjustable; color cross-fading adjustable; dimmer electronic; dimmer speed (step response) can be set
Stroboscope-effect
Integrated show programs
Direct color selection for 35 colors
The device is cooled by passive convection cooling
Can be controlled via IR remote control; stand-alone; QuickDMX; Master/Slave function; music control via microphone
Flicker-free
With an angle of radiation of 11°
Multi-colored LCD display
With a KENSINGTON LOCK anti-theft device
For applications such as: Wedding/gala/events; mobile use; mobile DJ's/solo entertainer; small rental
Pre-programmed at Light´J; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
Wireless, flexible and versatile
Integrated automatic charging and status display
Noiseless operation
Possible application: Standing; flying; on a tripod
This text is machine translated.
Mood light with a rich front panel for a pleasant soft light with 15 SMD RGBW LEDs (4 in 1)
Integrated QuickDMX transceiver for wireless DMX control
Colour mixing variable; color change adjustable; color cross-fading adjustable; dimmer electronic; dimmer speed (step response) can be set
Stroboscope-effect
Integrated show programs
Direct color selection for 35 colors
The device is cooled by passive convection cooling
Can be controlled via IR remote control; stand-alone; QuickDMX; Master/Slave function; music control via microphone
Flicker-free
With an angle of radiation of 11°
Multi-colored LCD display
With a KENSINGTON LOCK anti-theft device
For applications such as: Wedding/gala/events; mobile use; mobile DJ's/solo entertainer; small rental
Pre-programmed at Light´J; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3
Wireless, flexible and versatile
Integrated automatic charging and status display
Noiseless operation
Possible application: Standing; flying; on a tripod
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 30 W
- Power connection: Power feed via hollow plug (M) Installation version Power connection cable with Euro plug (supplied)
- Display type: Multicolor LCD display
- Protection class SK II.
- Cooling: Passive convection cooling
- Housing colour black.
- Protection class: IP20
- Controls IR remote control
- Width: 9.5 cm
- Battery type 1 x Lithium-Ion 11.10 V/5200 mAh/57.72 Wh
- Battery: Operating time up to 13h depending upon the program used
- LED lamp type
- 15 x 0.25 W SMD 5050 4in1 QCL RGBW (homogeneous color mixing)
- DMX channels: 3
- Master/slave function: Master/slave function
- Pre-programmed at: Light´J
- Light captain: Light captain
- Beam angle: 11°
- Beam angle (1/2 peak) 11°
- Beam angle (1/10 peak) 30°
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- Music control via microphone
- Stand-alone
- EASY SHOW 1
- EASY SHOW 2
- EASY SHOW 3
- Quick DMX
- Carrier frequency 2.4 GHz
- Charging time 3h
- 3 x 8 W high-power 4in1 QCL RGBW (homogeneous color mixing)
- Theft protection KENSINGTON lock
- 12.6 V DC 2 A
Scope of delivery
- Device
- External mains adapter
- Remote control
- Omega clip
- - 2 x screws
- Diffuser disk
- Battery
- Declaration of Conformity
- User manual
