Eurolite BAR-6 QCL LED bar No. of LEDs (details): 6
EAN:
Part number:
Item no:
Highlights & Details

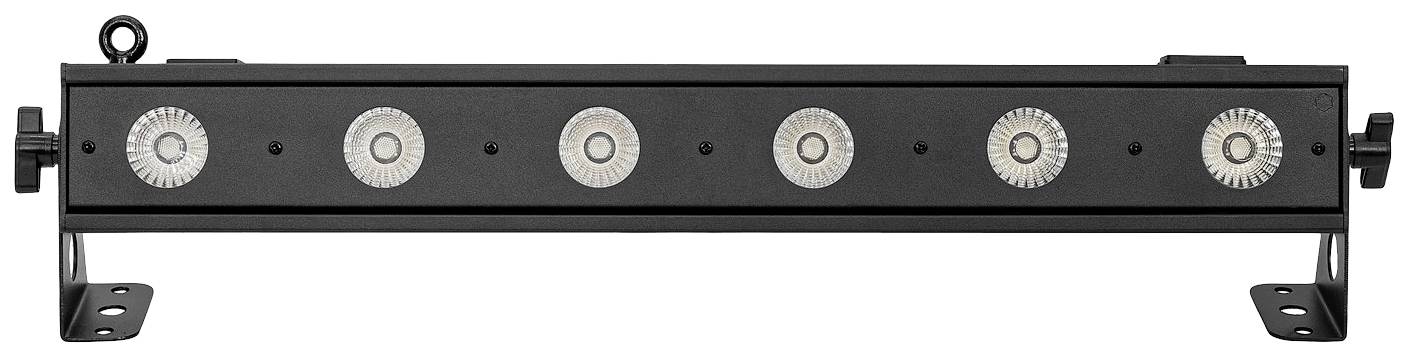

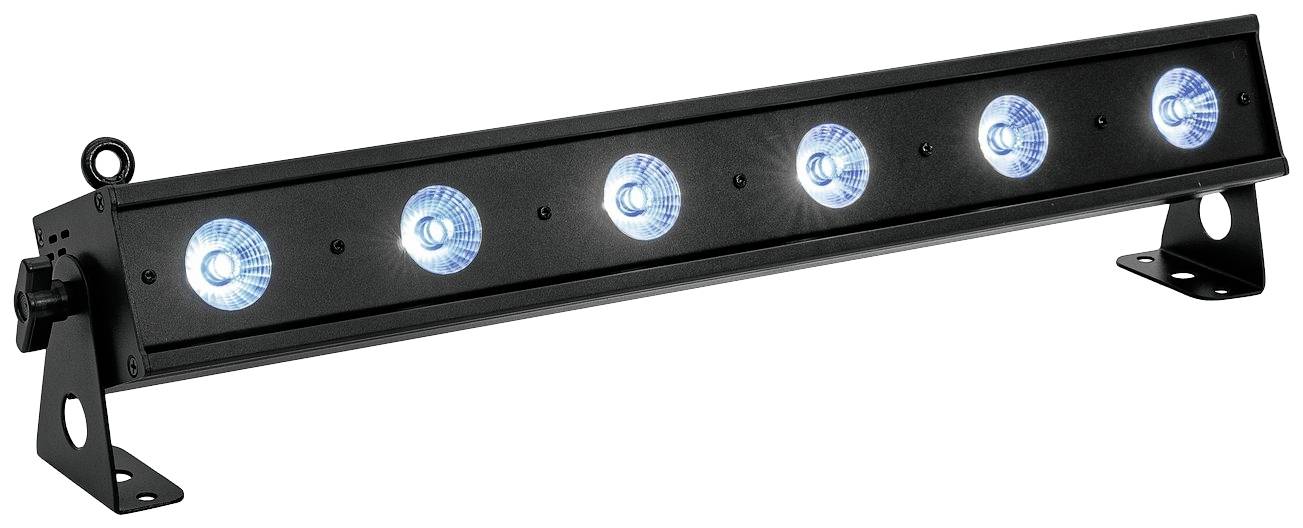

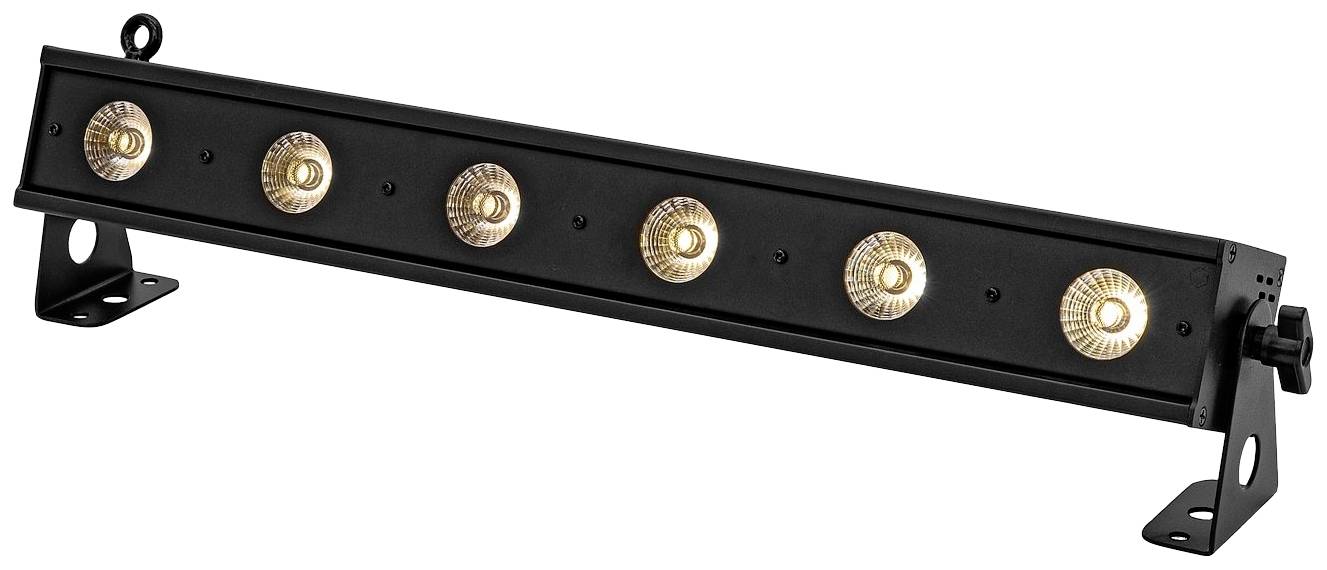

Eurolite LED BAR-6 QCL RGB+WW strips
- LED light effect strip (60 cm) with RGB + WW color mixing
- 6 powerful LEDs 7 W high-power 4in1 QCL RGB/WW (homogeneous color mixing)
- Variable color temperature 2700 K - 8000 K
- 3 integrated show programs
Technical specifications
- Operating voltage
100 - 240 V
- Product type
LED bar
14 W
- LEDs
6
- Colour
RGB
Warm white
- Dim
(L x W x H) 566 x 88.5 x 109 mm
- Weight
1.65 kg
n.rel.
- DMX control
Yes
- Width
88.5 mm
- Height
109 mm
- Length
566 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131235 Eurolite BAR-6 QCL LED bar No. of LEDs (details): 6
Description
Direct color selection for 20 colors
The device is cooled by passive convection cooling
Can be controlled via stand alone; DMX; music control via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Stroboscope-effect
With an angle of radiation of 20°
4 digit 7-segment LED display
With mounting bracket
Flicker-free
Colour mixing infinitely variable; color change adjustable, color cross-fading adjustable, dimmer electronic
Pre-programmed by Light Captain
Power input and power output for simple connection of up to 8 devices
For application areas like: Clubs/dance schools; party cellar; mobile DJs/solo entertainers; restaurants, bars and hotels
Noiseless operation
Possible application: Flying
This text is machine translated.
The device is cooled by passive convection cooling
Can be controlled via stand alone; DMX; music control via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Stroboscope-effect
With an angle of radiation of 20°
4 digit 7-segment LED display
With mounting bracket
Flicker-free
Colour mixing infinitely variable; color change adjustable, color cross-fading adjustable, dimmer electronic
Pre-programmed by Light Captain
Power input and power output for simple connection of up to 8 devices
For application areas like: Clubs/dance schools; party cellar; mobile DJs/solo entertainers; restaurants, bars and hotels
Noiseless operation
Possible application: Flying
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 14 W
- Power connection: Power feed via cold devices (M) Installation version Power connection cable with safety plug (supplied)

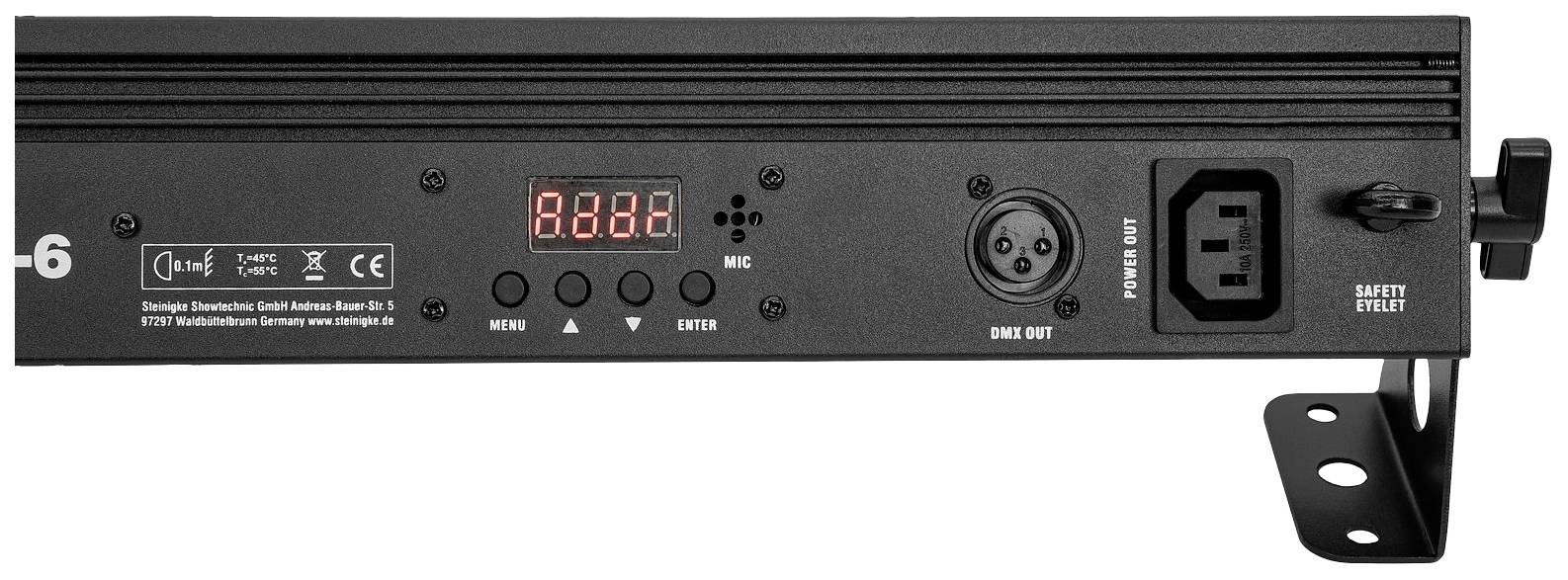

- Display type: 4 digit 7-segment LED display
- Protection class SK I
- Cooling: Passive convection cooling
- Housing colour black.
- Protection class: IP20
- Supporting system: Mounting bracket
- Control: Stand-alone
- LED lamp type
- 6 x 7 W high-power 4in1 QCL RGB/WW (homogeneous color mixing)
- Adjustable color temperature 2700K - 8000k
- DMX channels: 2

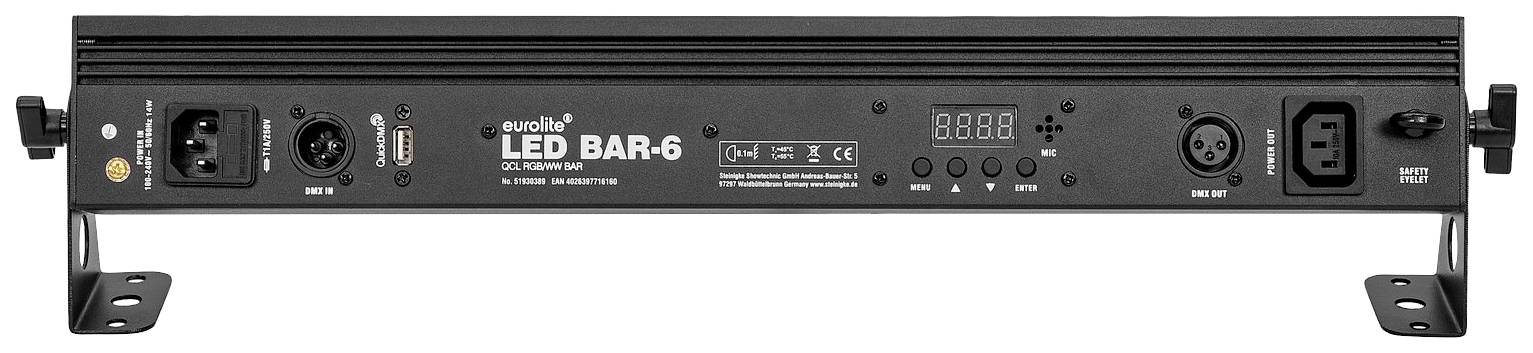

- DMX input 1 x 3-pin XLR (M) installation version
- Master/slave function: Master/slave function
- Pre-programmed with: Light Captain
- Beam angle: 20°
- Beam angle (1/2 peak) 20°
- Beam angle (1/10 peak) 33°
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- Fuse: T 1 A fuse can be replaced
- DMX output 1 x 3-pin XLR (W) built-in version
- Diameter of mounting holes 1 x Ø20mm
- Power output 1 x cold devices (W) in built version
- Flash rate 0 - 20 Hz
- Music control via microphone
- CRMX by Lumen Radio via USB (optional)
- W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional)
- 1 x Ø11mm
- 1 x Ø8mm
Scope of delivery
- Strip
- User manual
- Network cable/power cable
- 2 x mounting bracket
- 2 x washers
- 2 x Knurled screw
