Eurolite BAR-8 Swing QCL LED bar No. of LEDs (details): 183
EAN:
Part number:
Item no:
Highlights & Details

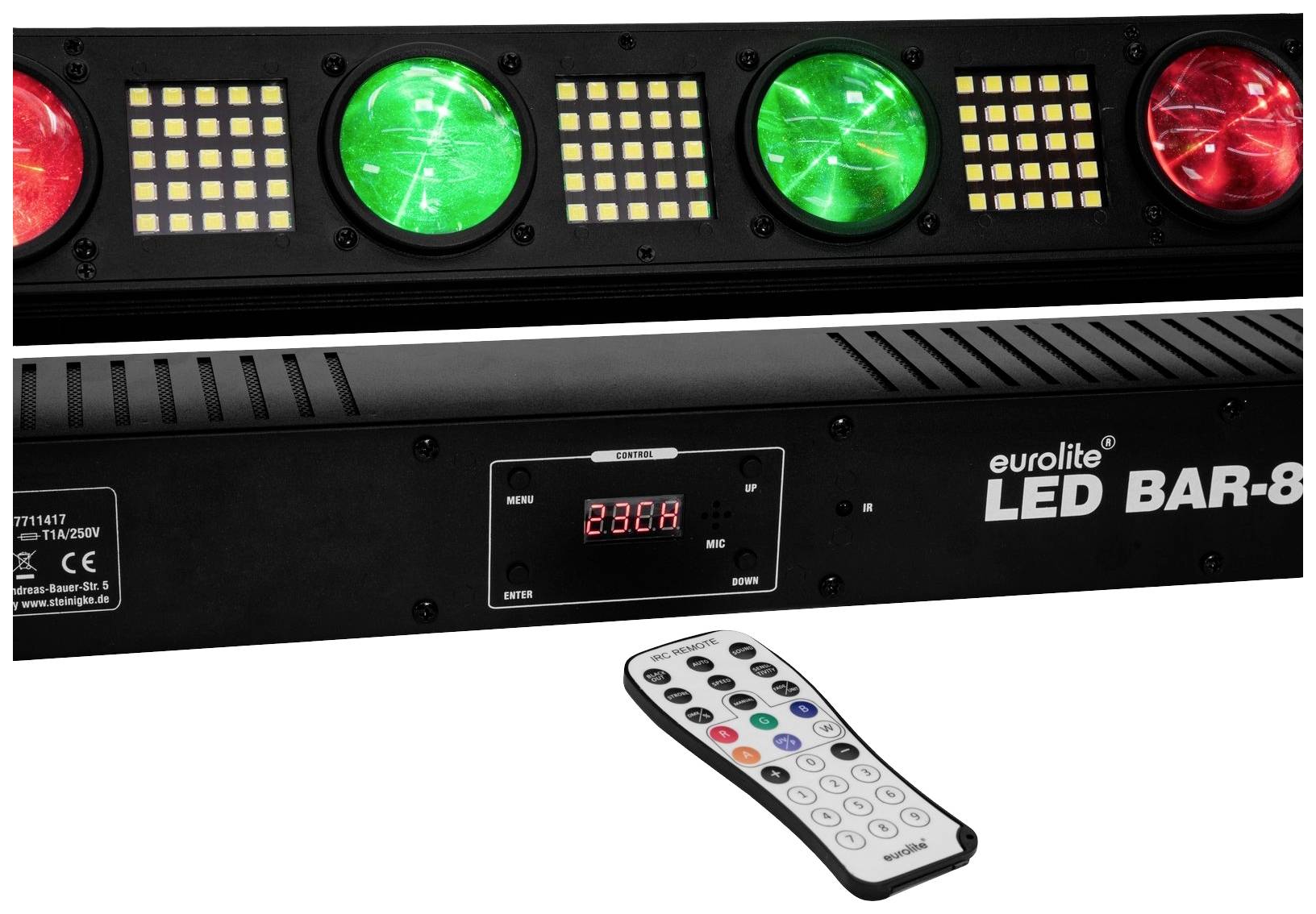

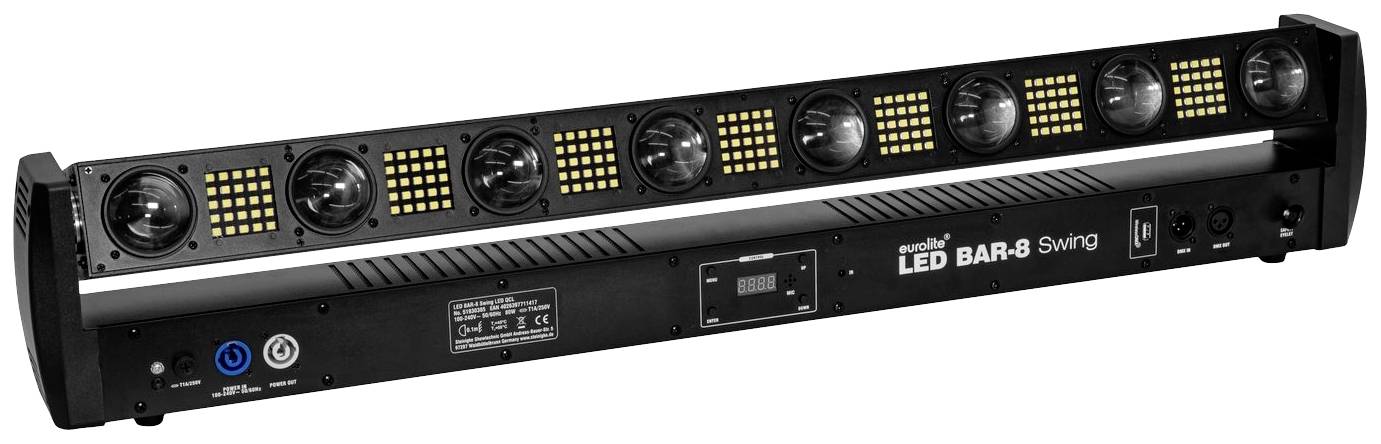

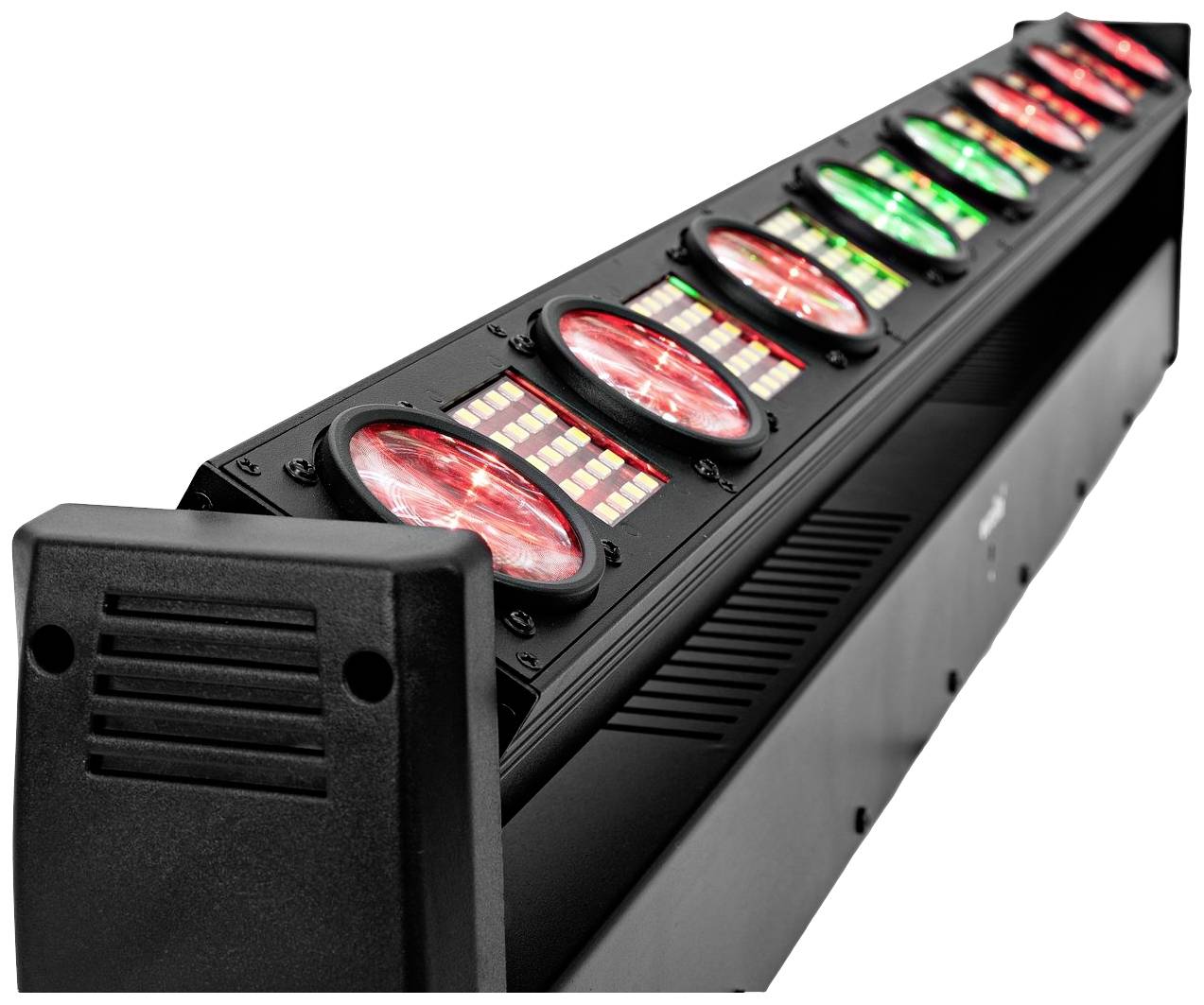

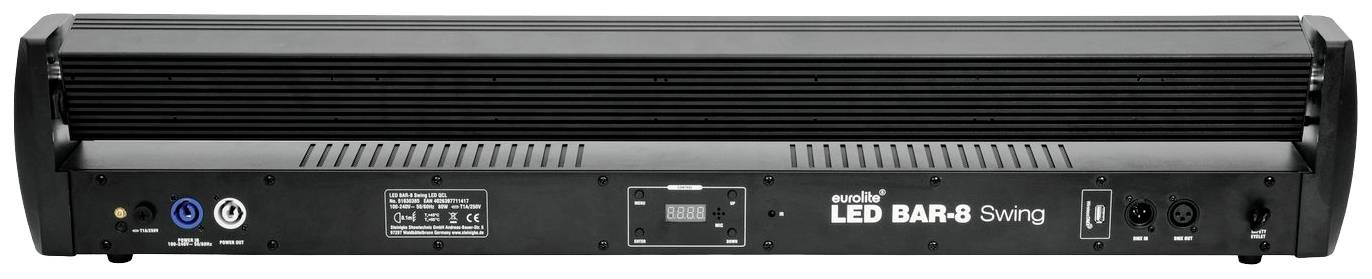

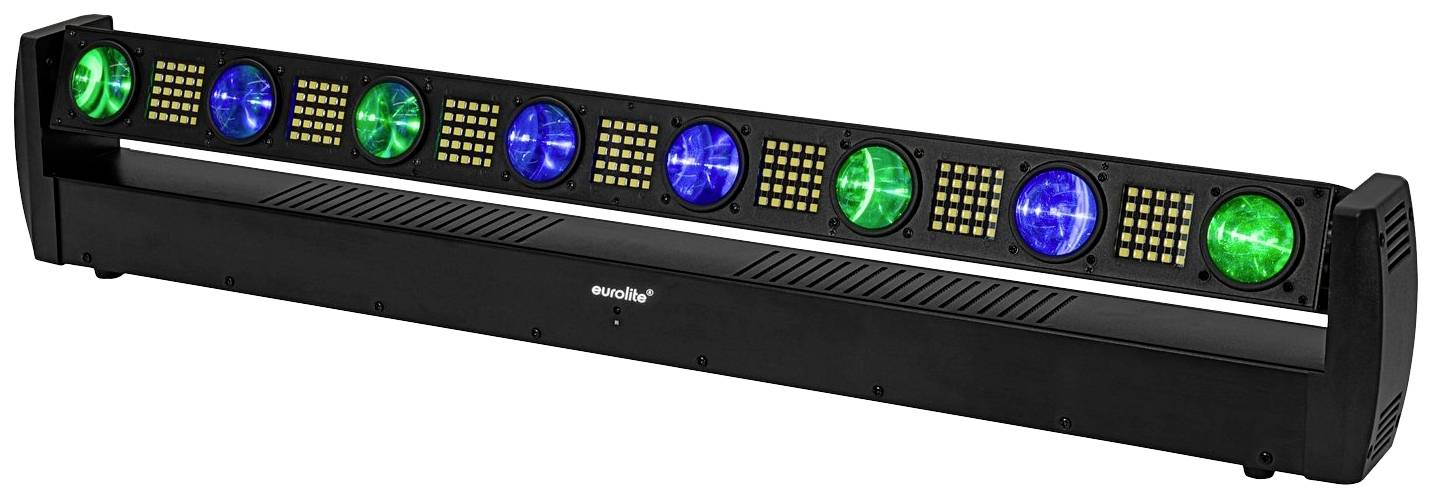

Eurolite LED BAR-8 swing QCL strip
- Tilt able LED light effect strip with 8 beams and strobe effect
- Stroboscope-effect; uplight-effect; Radiation-effect
- Vertical angle of inclination can be set
- Direct color selection for 18 colors
Technical specifications
- Operating voltage
100 - 240 V
- Product type
LED bar
80 W
- LEDs
183
- Colour
RGBW
Cool white
- Dim
(L x W x H) 1000 x 107 x 251 mm
- Weight
7.3 kg
n.rel.
- DMX control
Yes
- Width
107 mm
- Height
251 mm
- Length
1000 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131260 Eurolite BAR-8 Swing QCL LED bar No. of LEDs (details): 183
Description
The device is cooled by passive convection cooling
Can be controlled via stand alone; IR remote control; DMX; QuickDMX via USB (optional); Master/Slave function; W-DMX by Wireless Solution via USB (optional); CRMX by Lumen Radio via USB (optional); music synchronization via microphone
4 digit 7-segment LED display
Electronic dimmer; color fading; color change; color mixing can be set; color selection
5 integrated show programs
Already pre-programmed by Colorchief; Light Captain
With mounting bracket
Power input and power output for simple connection of up to 8 devices
For applications such as: Clubs/dance schools; stage; mobile DJ's/solo entertainer; distributor
Very quiet operation
Possible application: Standing; flying
Headlights 8 powerful LEDs 8 W high-power 4in1 QCL RGBW
8 segments can be controlled individually
With an angle of radiation of 1°
Stroboscope 175 powerful LEDs 0.2 W SMD 5050 cold-white (CW)
7 segments can be controlled individually
With an angle of radiation of 120°
This text is machine translated.
Can be controlled via stand alone; IR remote control; DMX; QuickDMX via USB (optional); Master/Slave function; W-DMX by Wireless Solution via USB (optional); CRMX by Lumen Radio via USB (optional); music synchronization via microphone
4 digit 7-segment LED display
Electronic dimmer; color fading; color change; color mixing can be set; color selection
5 integrated show programs
Already pre-programmed by Colorchief; Light Captain
With mounting bracket
Power input and power output for simple connection of up to 8 devices
For applications such as: Clubs/dance schools; stage; mobile DJ's/solo entertainer; distributor
Very quiet operation
Possible application: Standing; flying
Headlights 8 powerful LEDs 8 W high-power 4in1 QCL RGBW
8 segments can be controlled individually
With an angle of radiation of 1°
Stroboscope 175 powerful LEDs 0.2 W SMD 5050 cold-white (CW)
7 segments can be controlled individually
With an angle of radiation of 120°
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 80 W
- Power connection: Power feed via P-Con (blue), installation version power connection cable with safety plug (included)
- Display type: 4 digit 7-segment LED display
- USB connection (type A)
- Protection class SK I
- Cooling: Passive convection cooling
- Housing colour black.
- Protection class: IP20
- Supporting system: Mounting bracket
- Control: Stand-alone
- LED:175 x 0.2 W SMD 5050 cold-white (CW)
- DMX channels: 8
- DMX input 3-pin XLR (M), built in version
- Master/slave function: Master/slave function
- Pre-programmed at: Colorchief
- Light captain: Light captain
- Beam angle: 120°
- Noise classification: Class 1 (very light noise, suitable for noise-sensitive environments)
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- 5 x 20 mm, T 1 A fuse can be replaced
- DMX output 3-pin XLR (W) built-in version
- P-Con (gray), installation version
- Flash rate 0 - 20 Hz
- Music control via microphone
- CRMX by Lumen Radio via USB (optional)
- W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional)
- IR remote control
- Max. Tilt movement TILT: 215° positioning
Scope of delivery
- Lighting effect
- User manual
- Network cable/power cable
- Remote control
- Battery
