Eurolite CLS-18 QCL LED flasher
EAN:
Part number:
Item no:
Technical specifications
- 18 x 7 W 4in1 QCL RGB/WW (homogeneous color mixing)
- Flash rate 1 - 23 Hz.
- DMX channels 3; 4; 6; 8; 11
- DMX input 1 x 3-pin XLR (M) installation version, 1 x 5-pin XLR (M) installation version
- DMX output 1 x 3-pin XLR (W) installation version, 1 x 5-pin XLR (W) installation version
- Beam angle: 11°
- Angle of radiation (1/2 peak): 11°, frost filter 15°
- Angle of radiation (1/10 peak): 26°, frost filter 37°
- Button cell 3.0 V CR2032 Lithium manganese built-in
- Product type
LED flasher
- Colour
RGB
Warm white
- Dim
(L x W x H) 396 x 143 x 213 mm
- Weight
4750 g
n.rel.
- LEDs
18
- Bulb type
LED (monochrome)
- Width
143 mm
- Height
213 mm
- Length
396 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2898804 Eurolite CLS-18 QCL LED flasher
Description

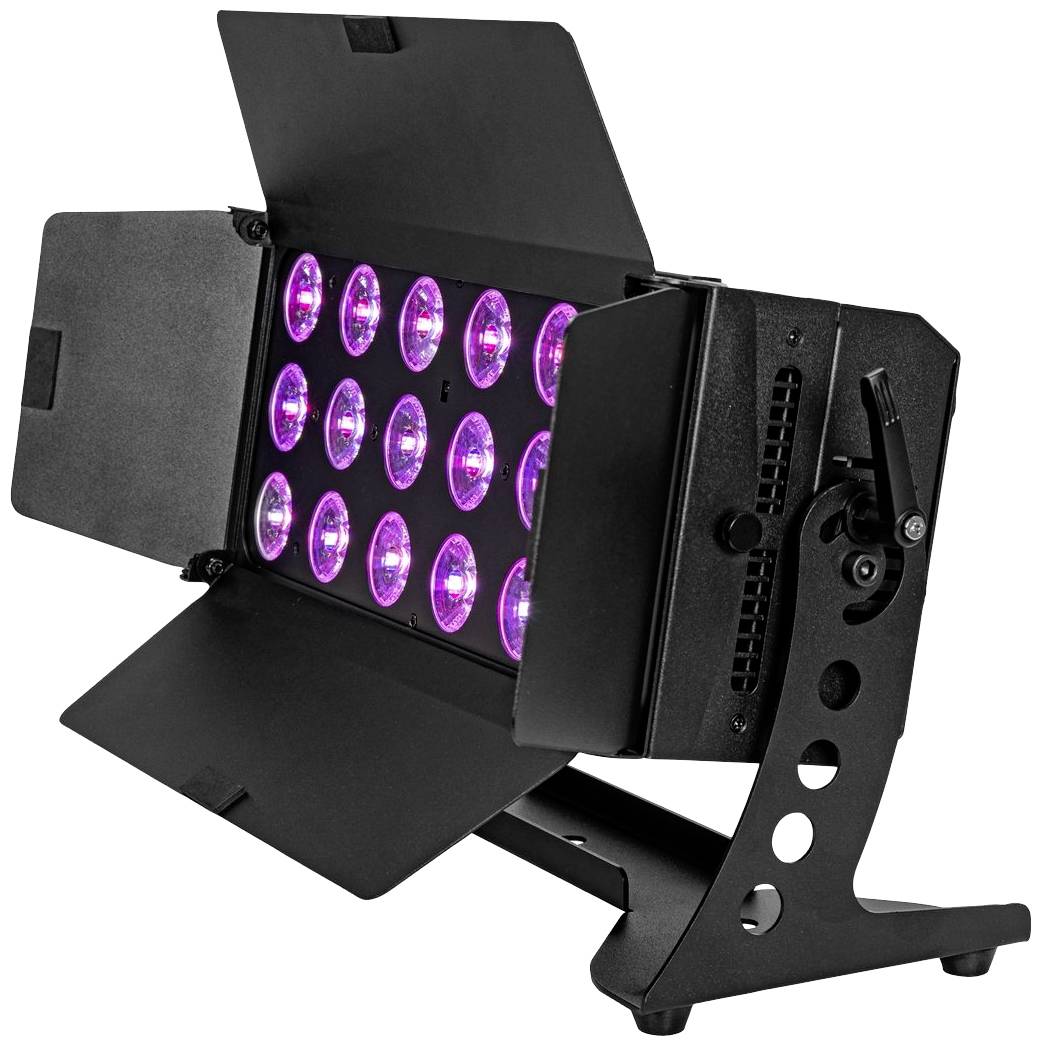

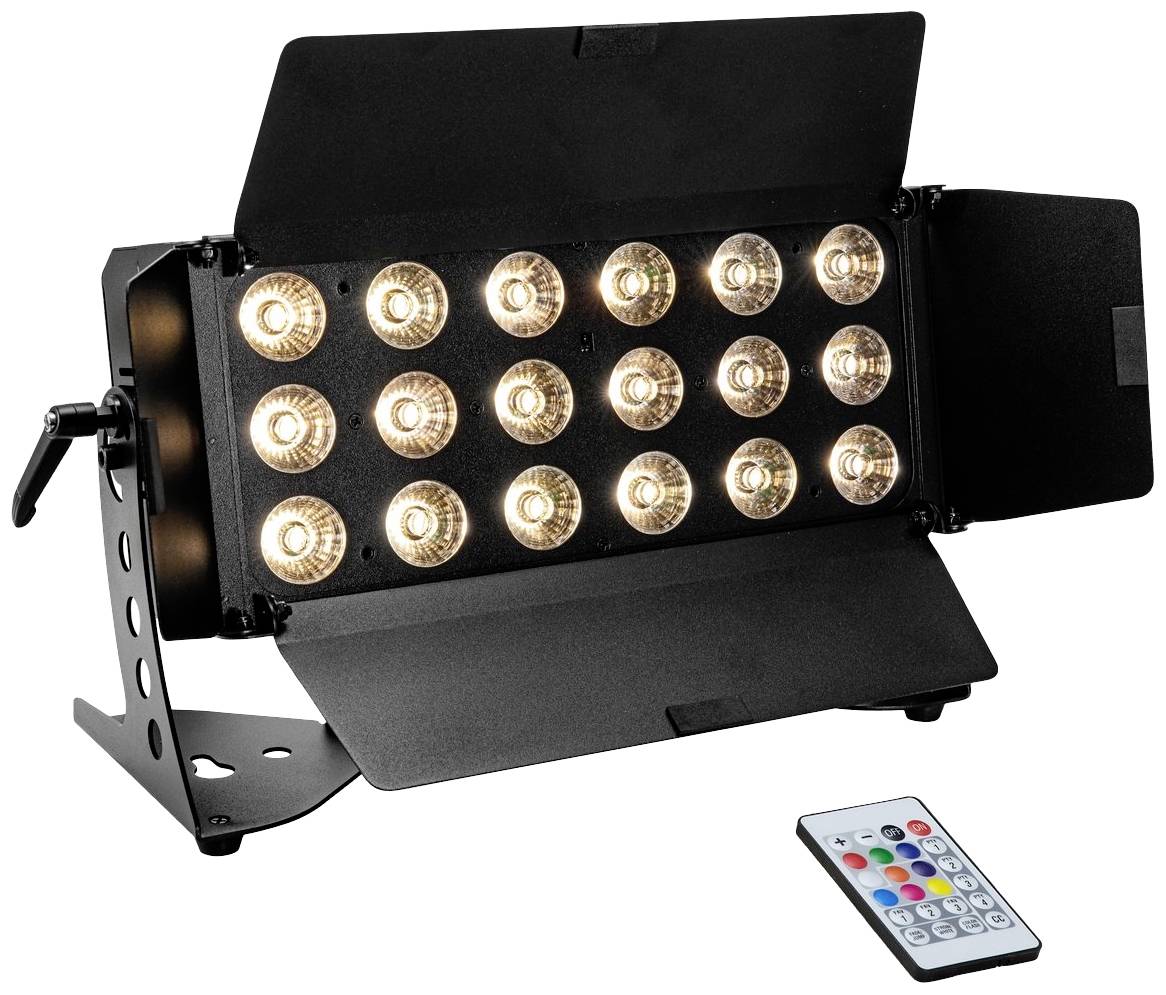

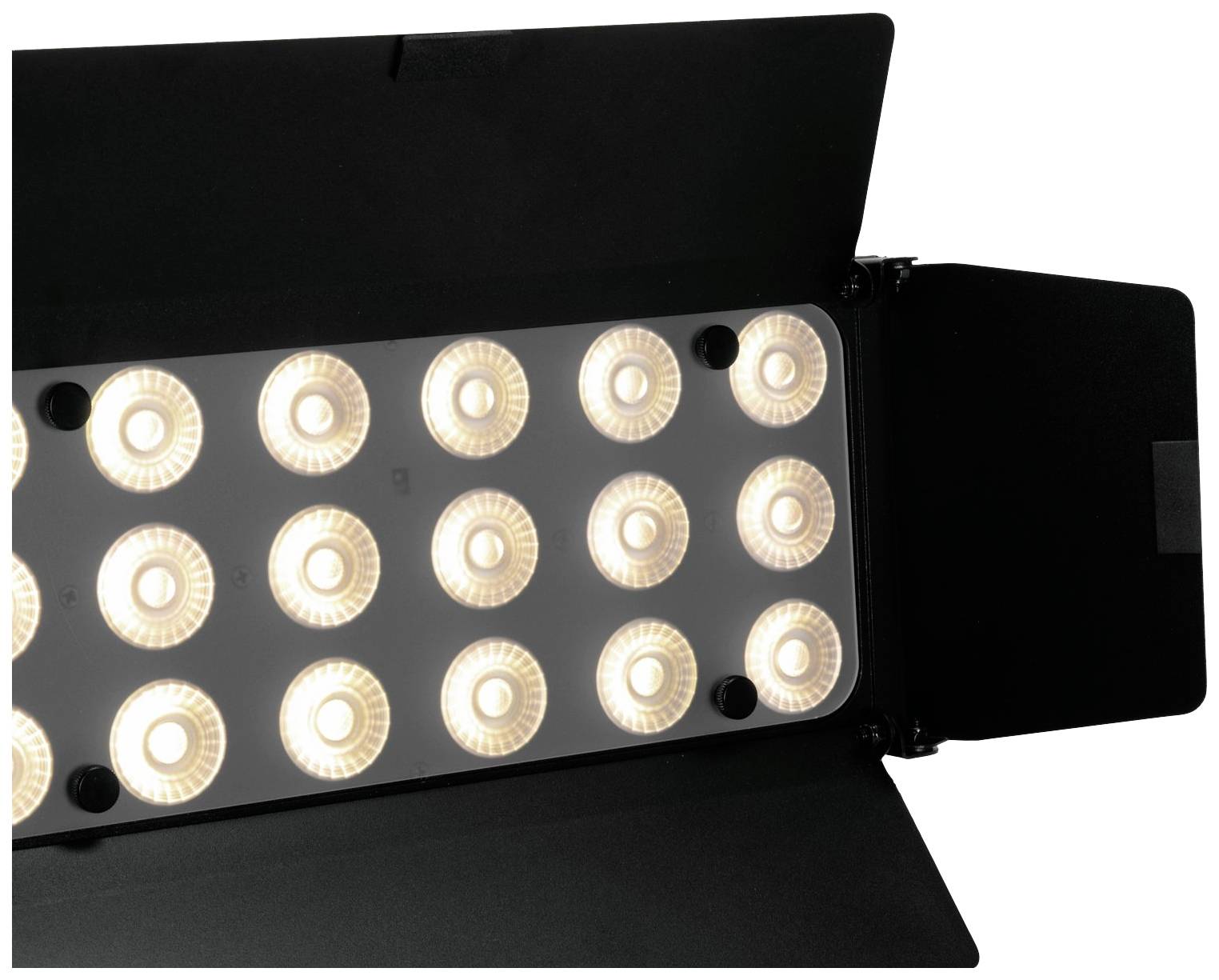

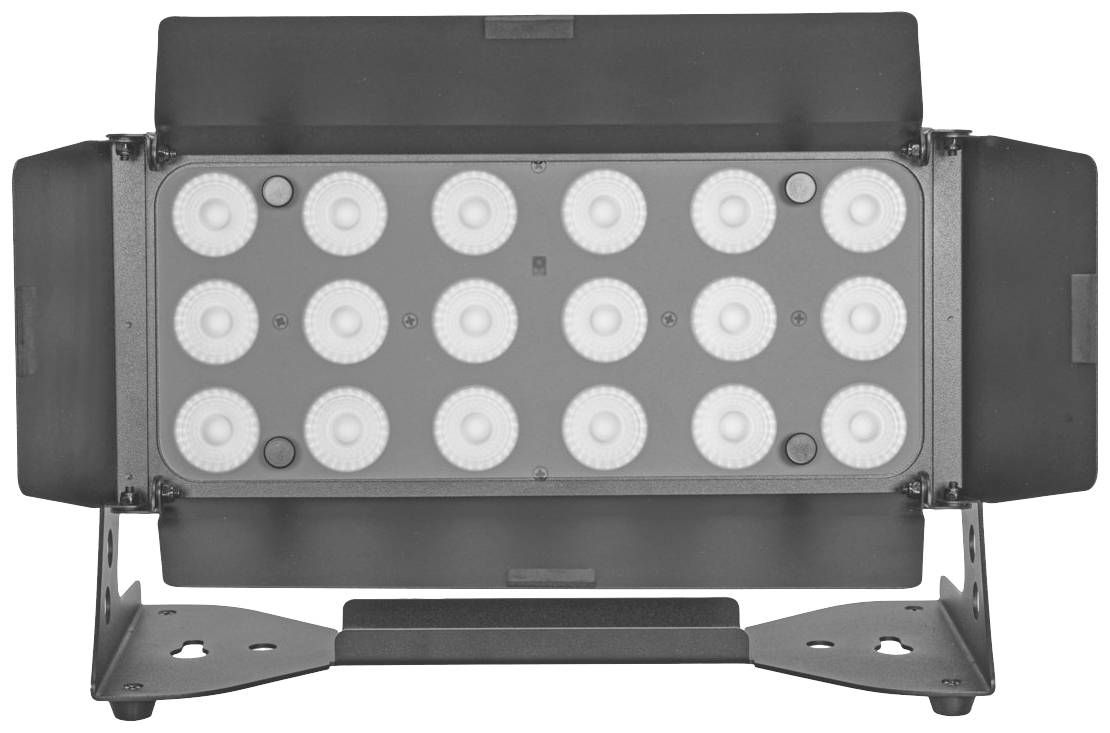

LED floodlight with RGB/WW color mixing, vane, IR remote control and frost-filter Additional frost filter for a wide, homogeneous and soft light.
This text is machine translated.
This text is machine translated.
Features
- 3 buttons on the remote control to store your own color mixes

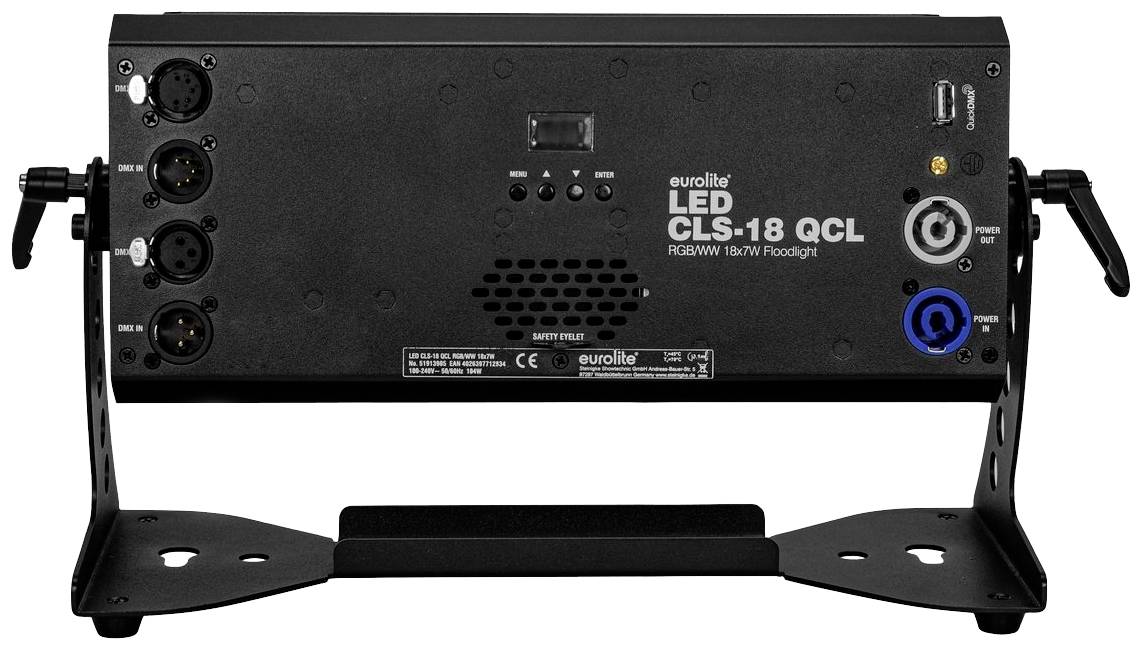

- Power input and power output for easy wiring
- 18 powerful LEDs 7 W 4in1 QCL RGB/WW (homogeneous color mixing)
- Colour mixing variable; color change adjustable; color cross-fading adjustable; dimmer electronic; dimmer curves with adjustable response behavior; white balance
- Stroboscope-effect
- Can be used in 3; 4; 6; 8; 11 CH DMX mode
- The device is cooled by a temperature controlled fan
- Can be controlled via stand alone; DMX; QuickDMX (optional); W-DMX by wireless solution (optional); CRMX by Lumen Radio (optional); Master/Slave function; music synchronization via microphone; IR remote control
- Pre-programmed at Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
- Flicker-free
- With an angle of radiation of 11°
- With mounting bracket
- OLED Display
- Very quiet operation
Scope of delivery
- LED floodlight
- Diffuser disk
- Remote control
- Barn Doors
- Knurl head screws
- Battery
- Power cable;
- User manual
