Eurolite DMX Commander 24/48 Controller DMX controller 48-channel 19" rack mount, Music control
EAN:
Part number:
Item no:
Technical specifications
- Power supply: 230 V AC, 50 Hz ~

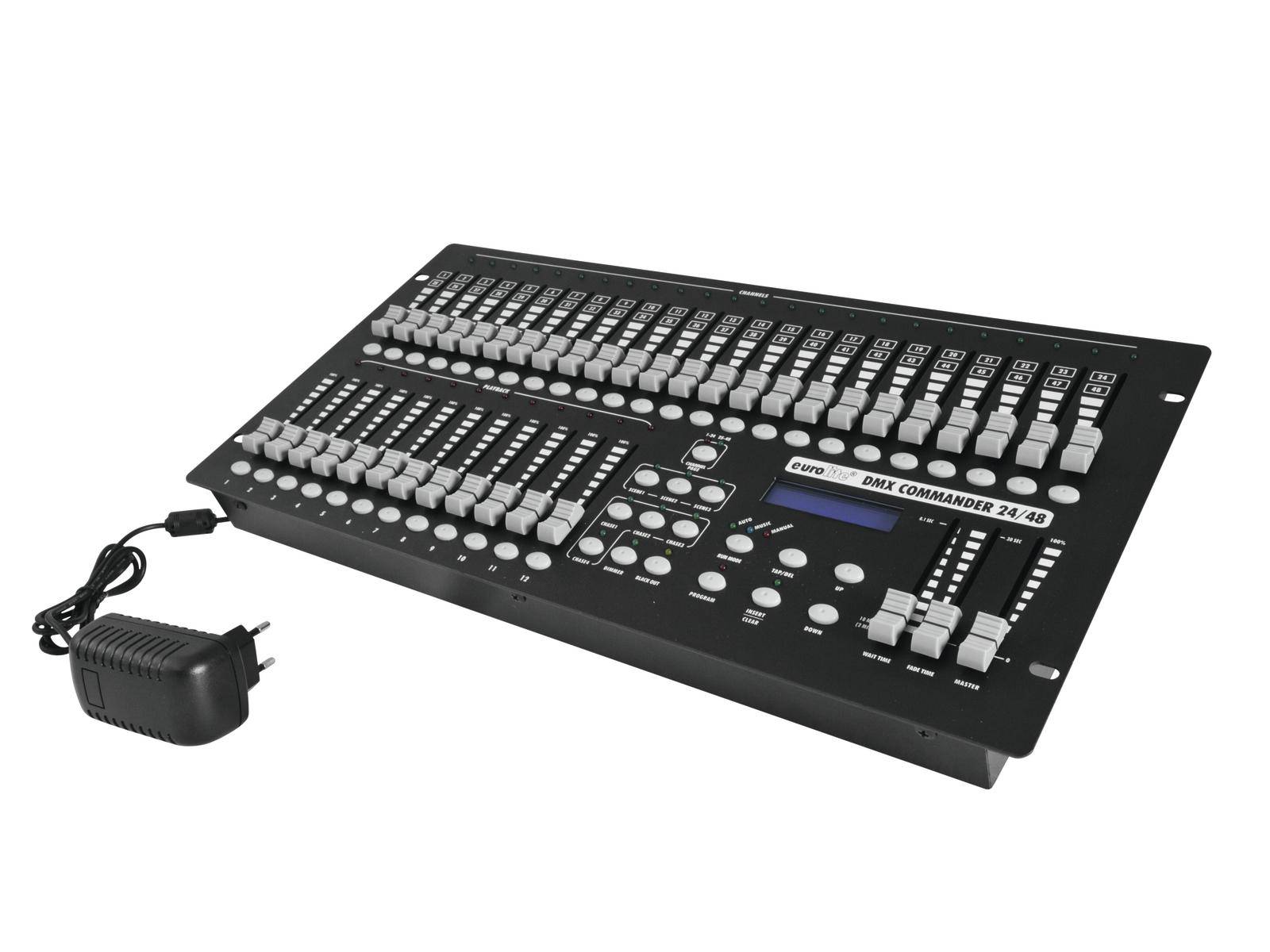

- Via the supplied 9 V DC, 300 mA power supply
- Total connection value: 3 W
- Number of control channels: 48
- Music control: via built-in microphone or
- Via line input, phono socket (at least 100 mV)

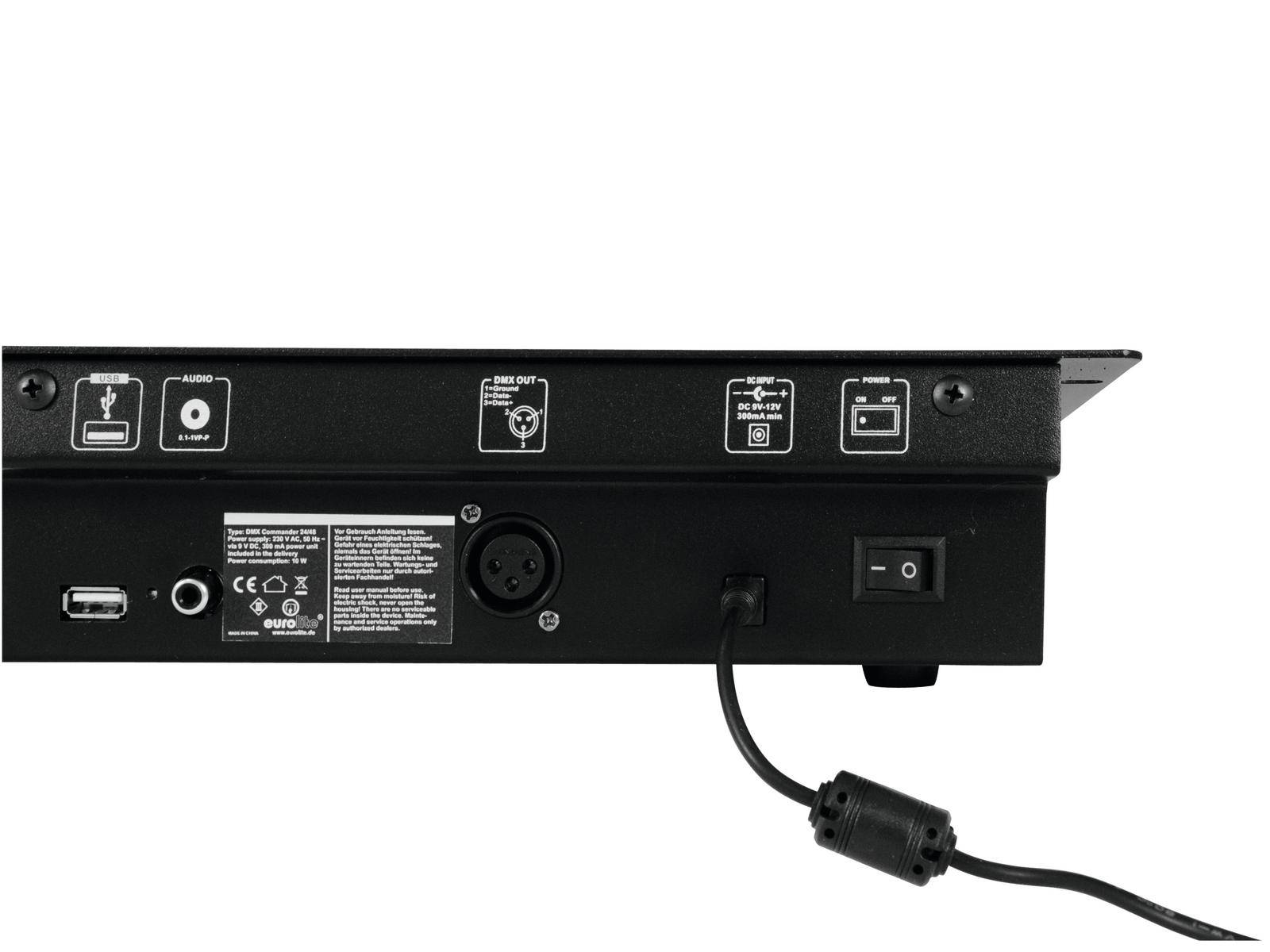

- DMX512 / RDM output: 3-pin XLR connector
- Dimensions (wxdxh): 483 x 245 x 73 mm
- Rack installation with 6 U
- Minimum mounting depth: 80 mm
- Weight: 4 kg.
- Shipping weight: 4,600 kg
- Product type
DMX controller
- No. of channels
48-channel
- No. of chase lights
48
- No. of scenes
36
- Features
19" rack mount
Music control
- Weight
4 kg
- Width
483 mm
- Height
73 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1375961 Eurolite DMX Commander 24/48 Controller DMX controller 48-channel 19" rack mount, Music control
Description
Comfortable DMX light control, with RDM functions.
This text is machine translated.
This text is machine translated.
Features
- 48 control channels
- 24 faders and 2 pages
- RDM functions
- 36 scenes can be called directly via 12 faders and 3 pages
- 24 control channels
- Good overview of the scenes and the chaser by intelligent status LEDs
- Blackout function
- Music control via built-in microphone or line input
- Firmware update and data backup via USB-connection
