Eurolite DMX controller 1-channel
EAN:
Part number:
Item no:
Highlights & Details

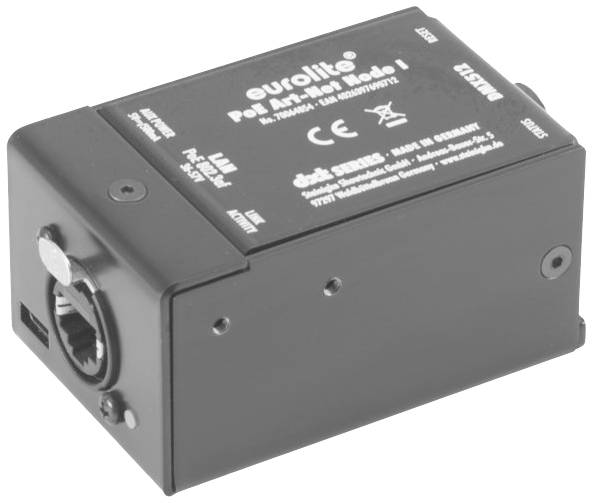

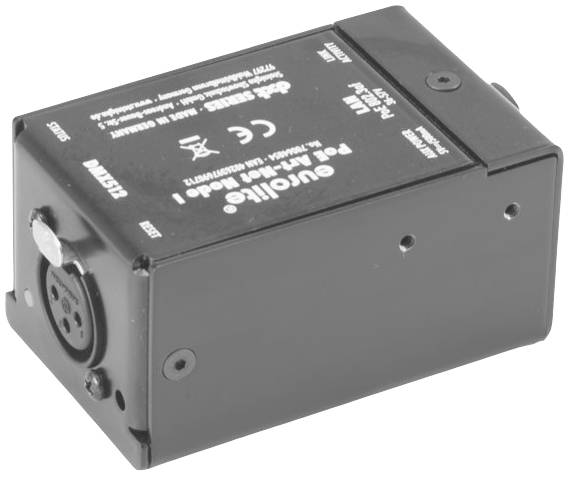

Eurolite DXT PoE art-net node I.
- ART-Net Interface for controlling 512 DMX channels
- Power supply via 48V PoE switch/ PoE injector (802.3af) or 5V USB-C port
Technical specifications
- Product type
DMX controller
- No. of channels
1-channel
- Weight
29 g
- Width
50 mm
- Height
42 mm
- Length
78 mm
- Factory colour
Black
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131174 Eurolite DMX controller 1-channel
Description
The online Fixture Library of the apps is constantly updated and already contains over 300 devices of Eurolite and FutureLight - you can easily create new device profiles with the help of editor.
This text is machine translated.
This text is machine translated.
Features
- Power supply 5 V DC 500 mA
- Power connection: Power feed via USB C (W) Installation version Power connection cable for USB A mains connection (included)
- Status LED: Signal, link
- Protection class: IP20
- Control: ArtNet
- DMX channels: Input 512

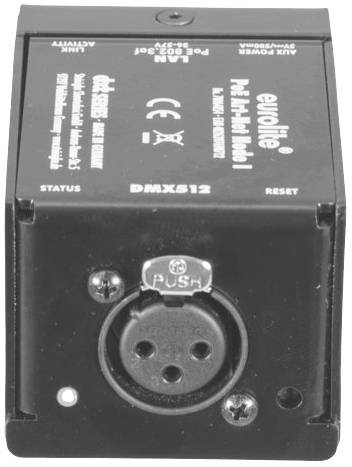

- DMX output 1 x 3-pin XLR (W) built-in version

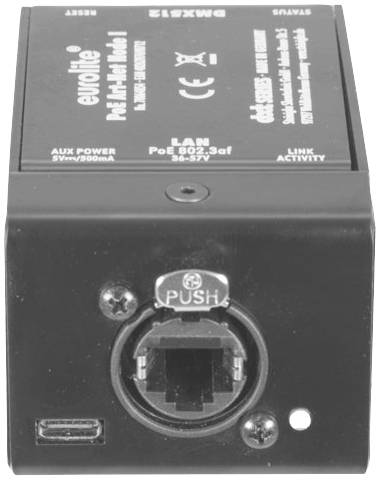

- Network connection: Ethernet TCP/IP via RJ-45 etherCON (W) mounting version, 10/100 Mbit/s.
- Brand use: Integrated Neutrik connector
- 37-56 V DC 37-56 V DC
- Power feed via RJ-45 (W) Installation version: Power feed via RJ-45 (W) Installation version
- Issue 512: Issue 512

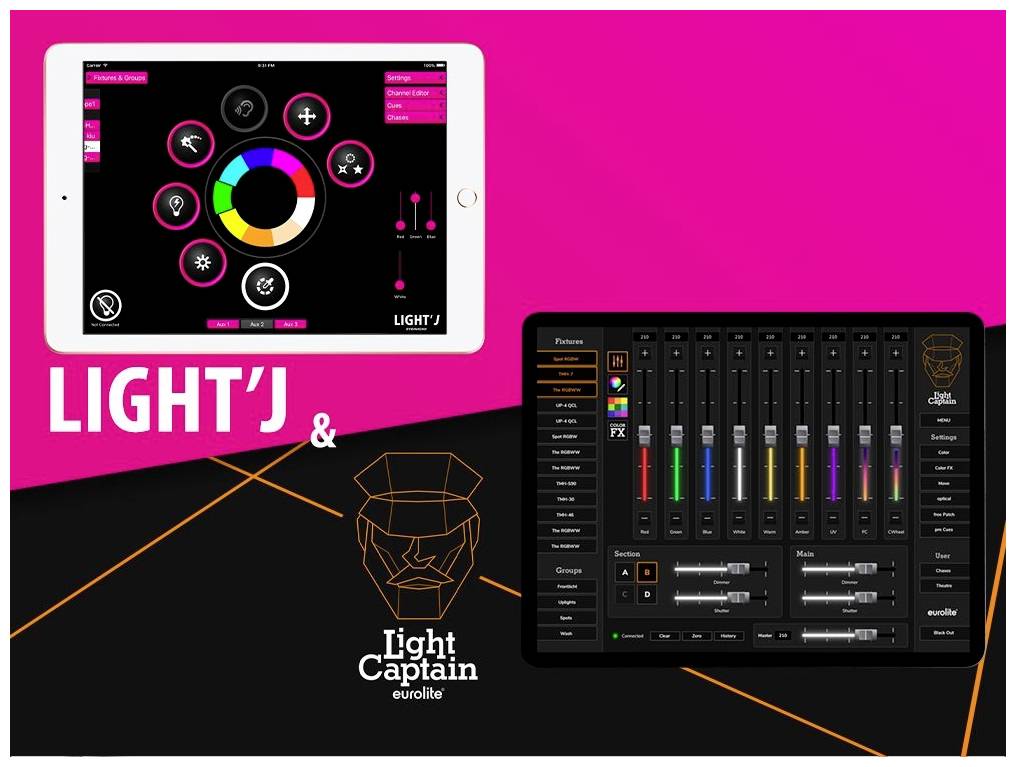

- Light´J APP: Light´J APP
- Light captain APP: Light captain APP
- DMX output frequency: 40 Hz , 30 Hz or 20 Hz
- ArtDMX reception via broadcast or unicast
- Configuration via website or ART-Net
- Settings: IP address / subnet mask / ART-Net ShortName / ART-Net LongName / ART-Net Net / ART-Net Subnet / ART-Net Universe as well as DMX repetition rate and DMX input/output via website
- Sturdy metal housing
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Can be controlled via ArtNet; Light´J APP; Light Captain APP
- Neutrik connector installed
- Made in Germany
