Eurolite DMX controller 28-channel
EAN:
Part number:
Item no:
Highlights & Details

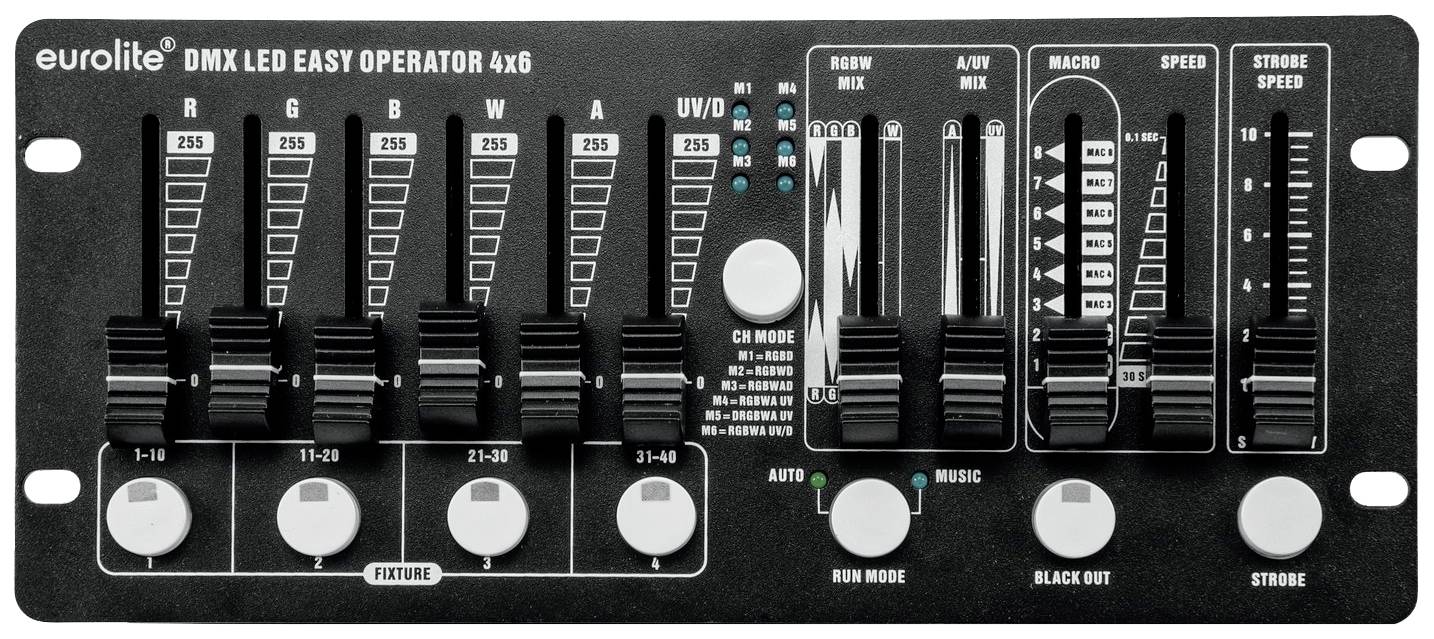

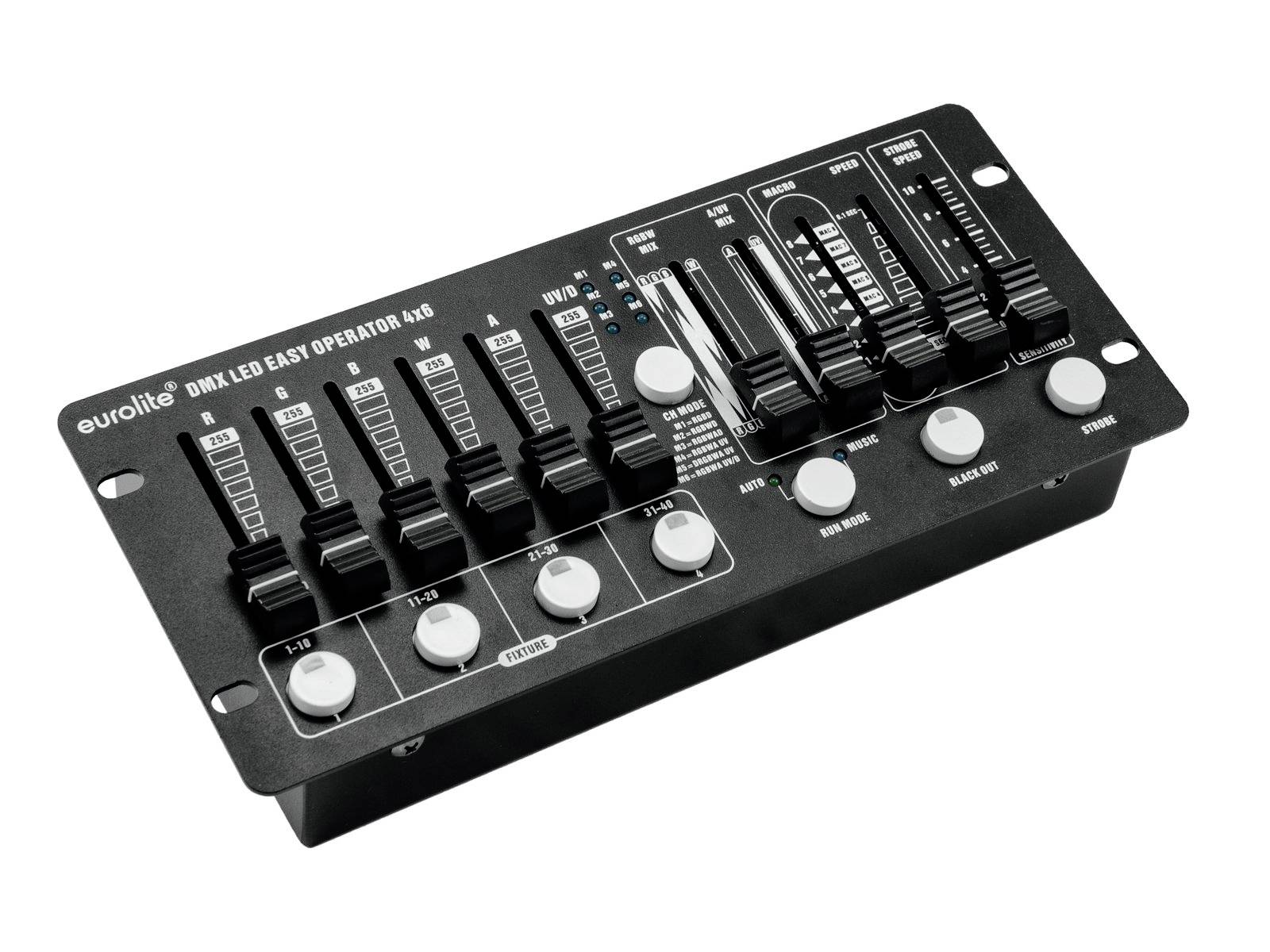

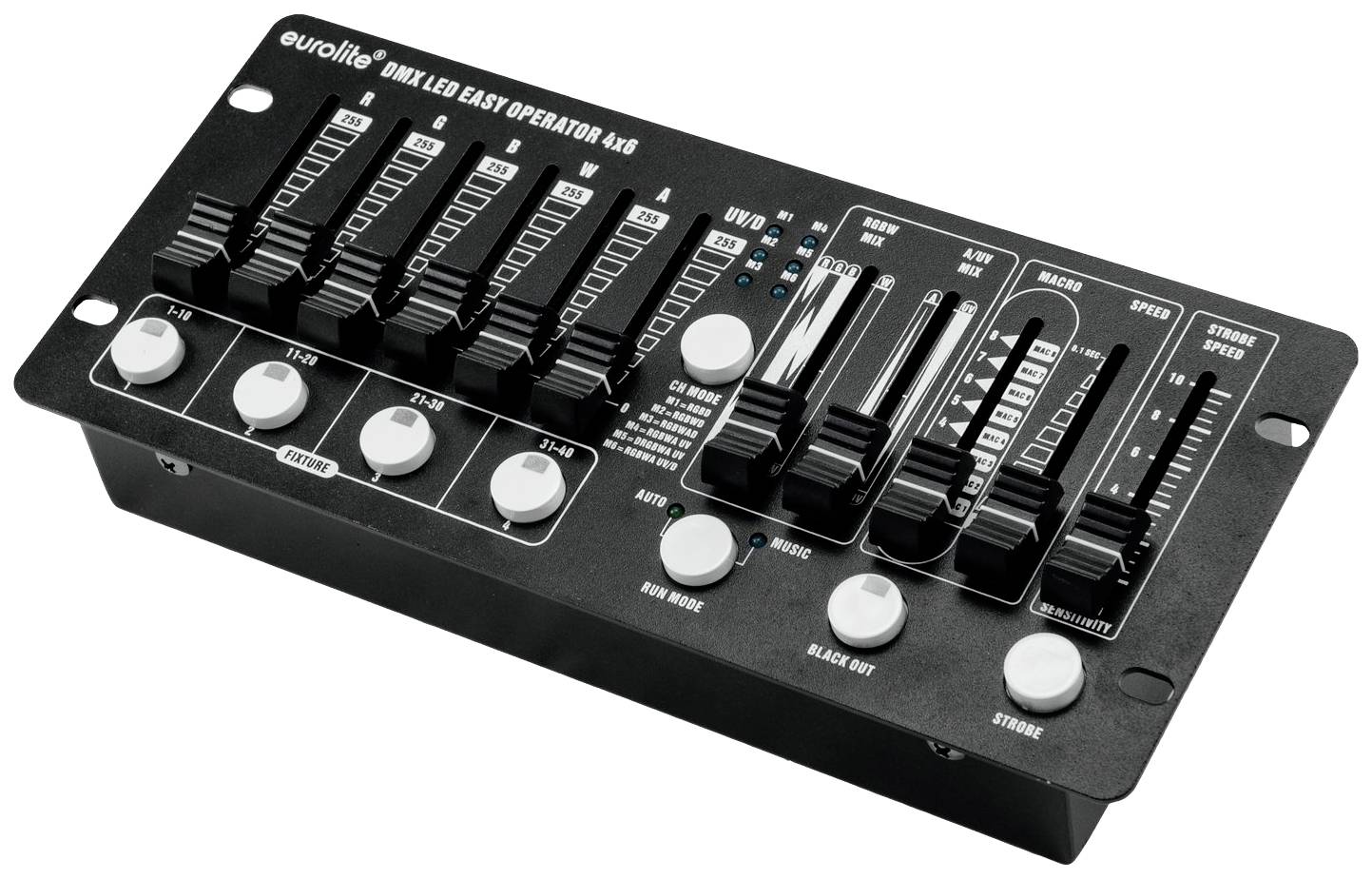

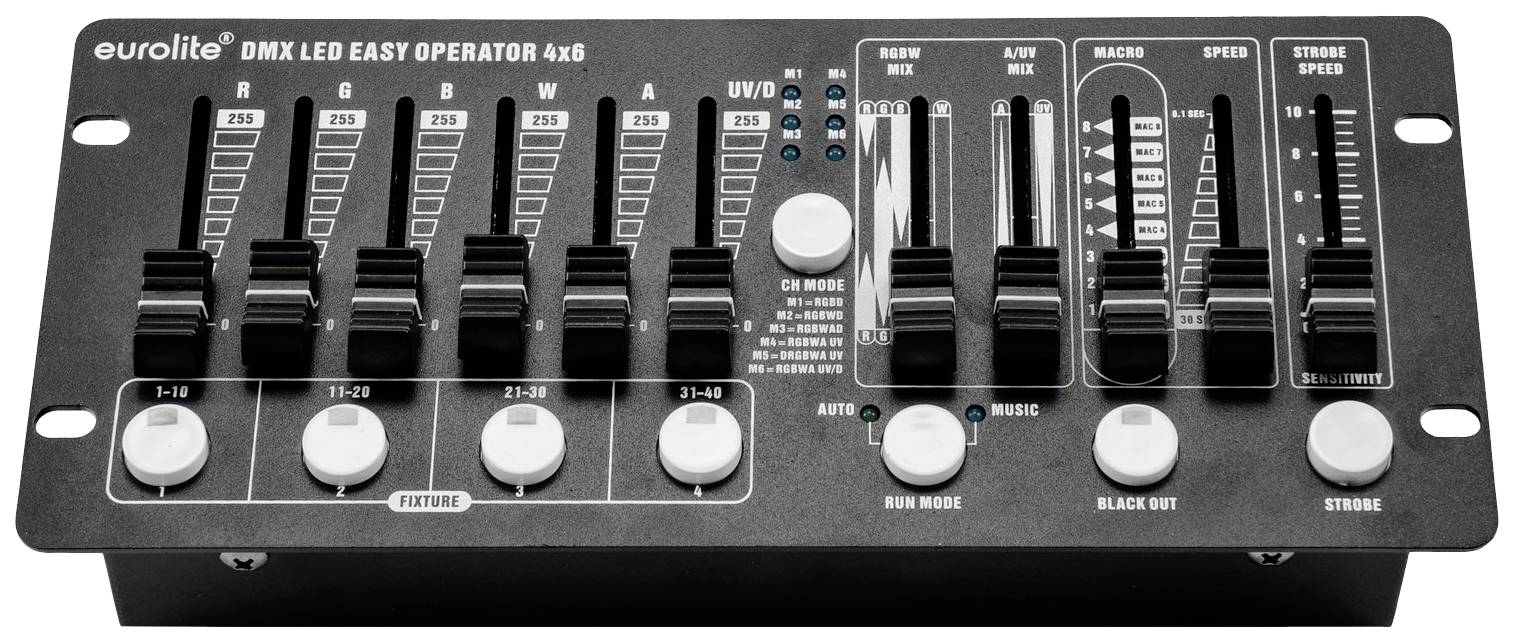

Eurolite DMX LED easy operator 4x6
- 4 spotlights with RGBAW+UV LEDs can be controlled separately or combined
- DMX channels for red, green, blue, amber, white, UV and Master
- Different modes for the sequence of the DMX channels can be selected
Technical specifications
- Product type
DMX controller
- No. of channels
28-channel
- No. of scenes
6
- Weight
14 g
- Width
115 mm
- Height
55 mm
- Length
25 mm
- Factory colour
Black
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3132741 Eurolite DMX controller 28-channel
Description
Compact DMX controller for 4 LED-headlights each with max. 6 colors
DMX-controller for controlling the common LED-headlights
This text is machine translated.
DMX-controller for controlling the common LED-headlights
This text is machine translated.
Features
- Easy to use
- Manual control via 6 faders
- 2 faders for direct RGBW and A/UV color mixing
- Adjustable strobe function
- Blackout function
- 8 integrated show programs
- Can transmit up to 28 DMX channels
- Can be controlled via DMX; music control via microphone; stand-alone
- Table stand case
- For application areas like: Party cellar; mobile DJ´s/solo entertainer; restaurants, bars and hotels
- Noiseless operation
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 10 W

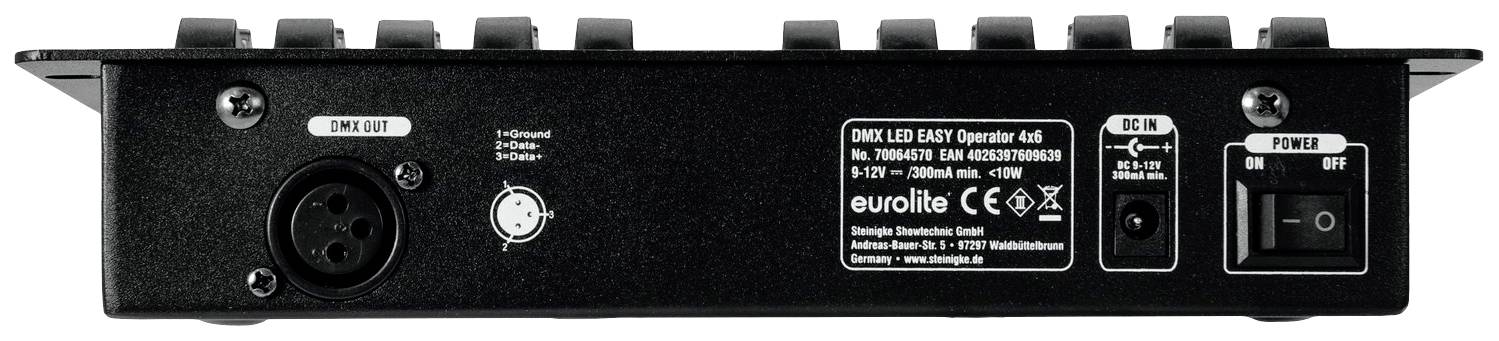

- Power connection: Power feed via hollow plug (M) Installation version Power connection cable with plug-in power supply (included)
- Housing design: Table stand housing
- Housing colour black.
- Protection class: IP20
- DMX control
- DMX channels: Output 28
- Noise classification: Class 0 (no noise)
- Music control via microphone: Music control via microphone
- Stand-alone: Stand-alone
- Programs: Pre-programmed 8 Scenes/Chases )
- 9 V DC 800 mA 9 V DC 800 mA
Scope of delivery
- Controller
- User manual
- External mains adapter
