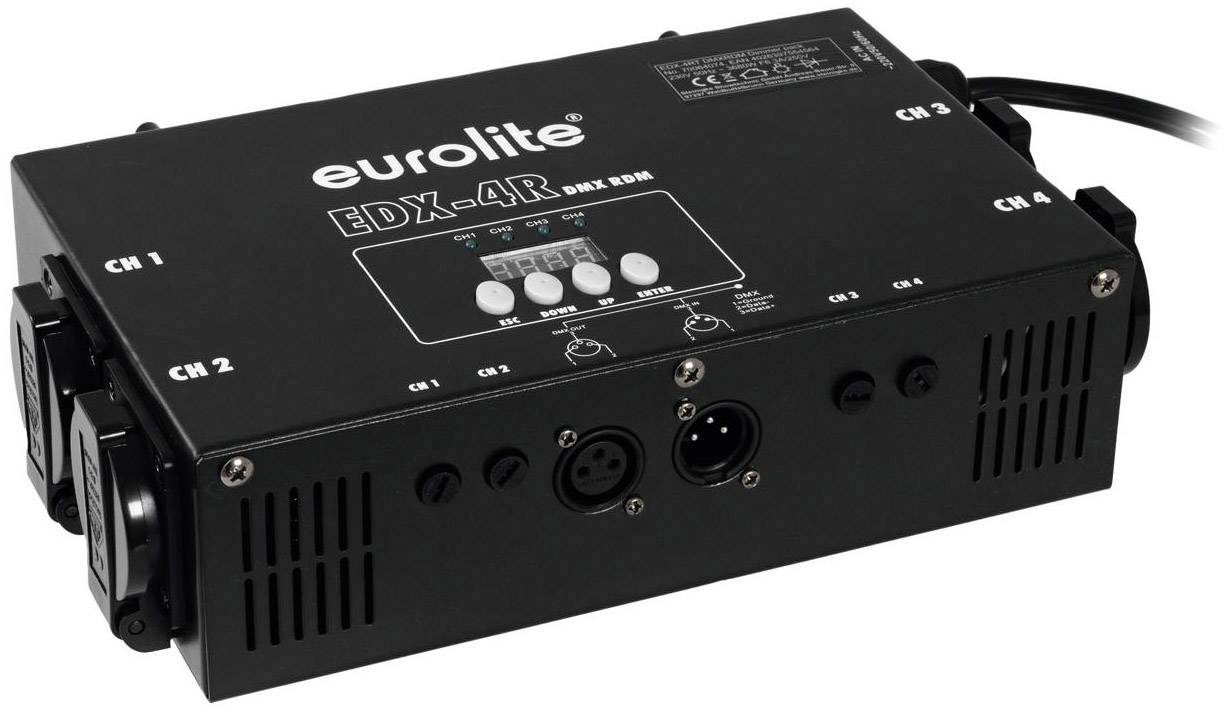

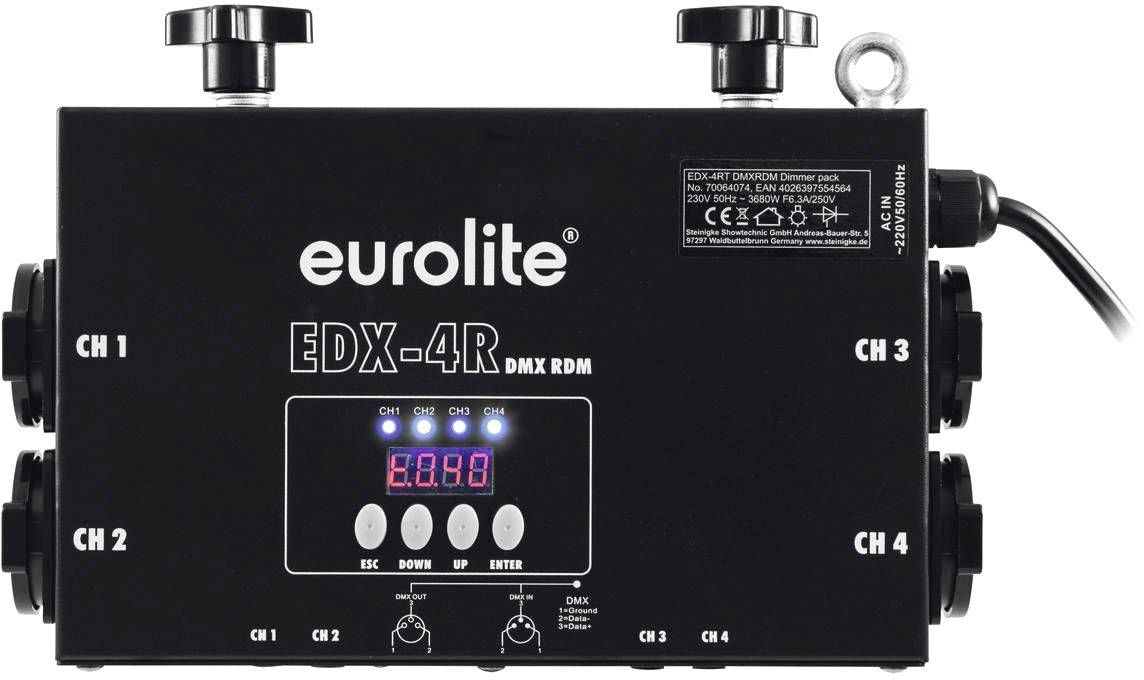

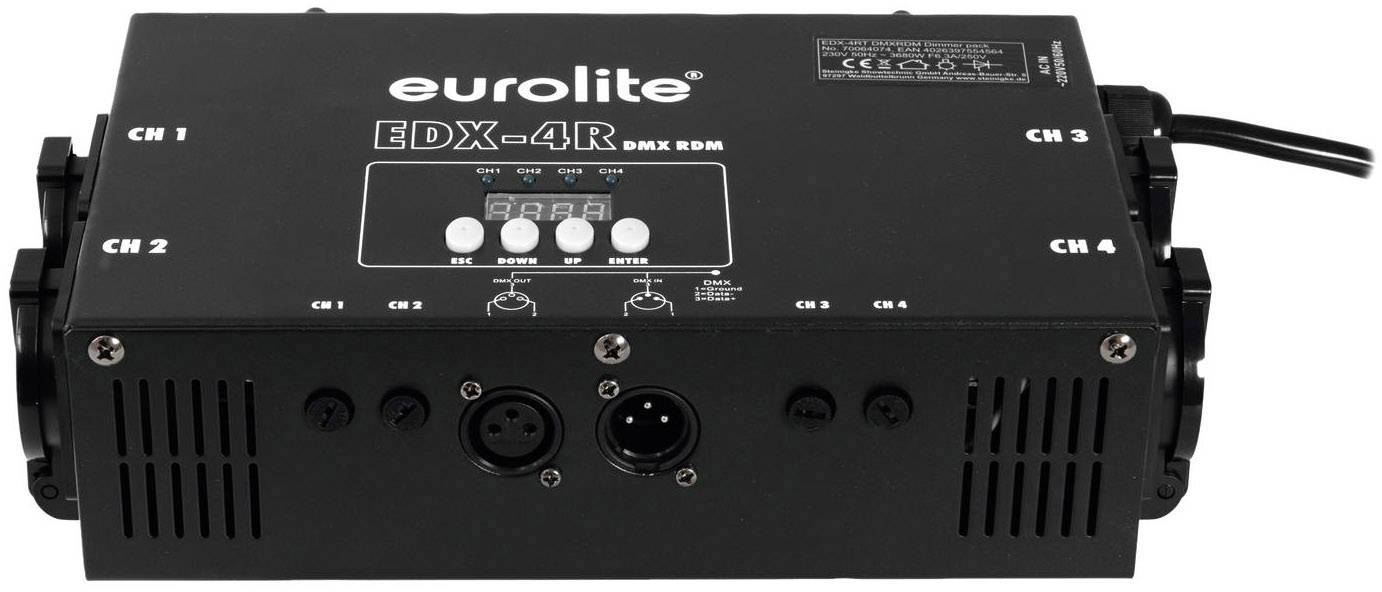

Eurolite DMX controller 4-channel
EAN:
Part number:
Item no:
Highlights & Details
DMX dimmer pack RDM truss
- 4 DMX channels
- 10 programmable chases each with up to 30 scenes
- Chase playback automatically or controlled by the music is possible
Technical specifications
- Operating voltage 230 V/50 Hz.
- Total output: 3680 W
- Total current: 16 A
- Musiks
- DMX Output/Input: 3-pin XLR socket/3-pin XLR connector.
- Product type
DMX controller
- No. of channels
4-channel
- No. of chase lights
10
- No. of scenes
300
- Weight
2.3 kg
- Width
18.5 cm
- Height
7.5 cm
- Length
27 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1601488 Eurolite DMX controller 4-channel
Description
DMX dimmer pack for truss mounting
This text is machine translated.
This text is machine translated.
Features
- LED status indicator per output channel
- Control unit with 4-digit LED display for addressing and settings
- Music control via built-in microphone
- Separate dimmer curves for each channel (linear, square, inverse square, switch)
- RDM support
- DMX 512 input and output

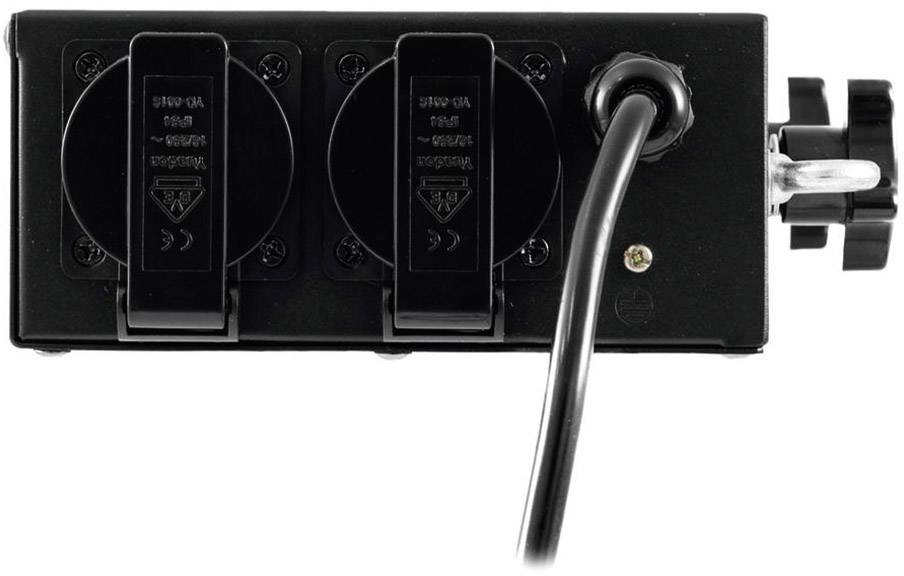

- Outputs via 4 protective contact sockets
- 2 x M8 thread.
Scope of delivery
- DMX dimmer pack RDM truss
- User manual.
