Eurolite DMX dimmer 4-channel
EAN:
Part number:
Item no:
Highlights & Details

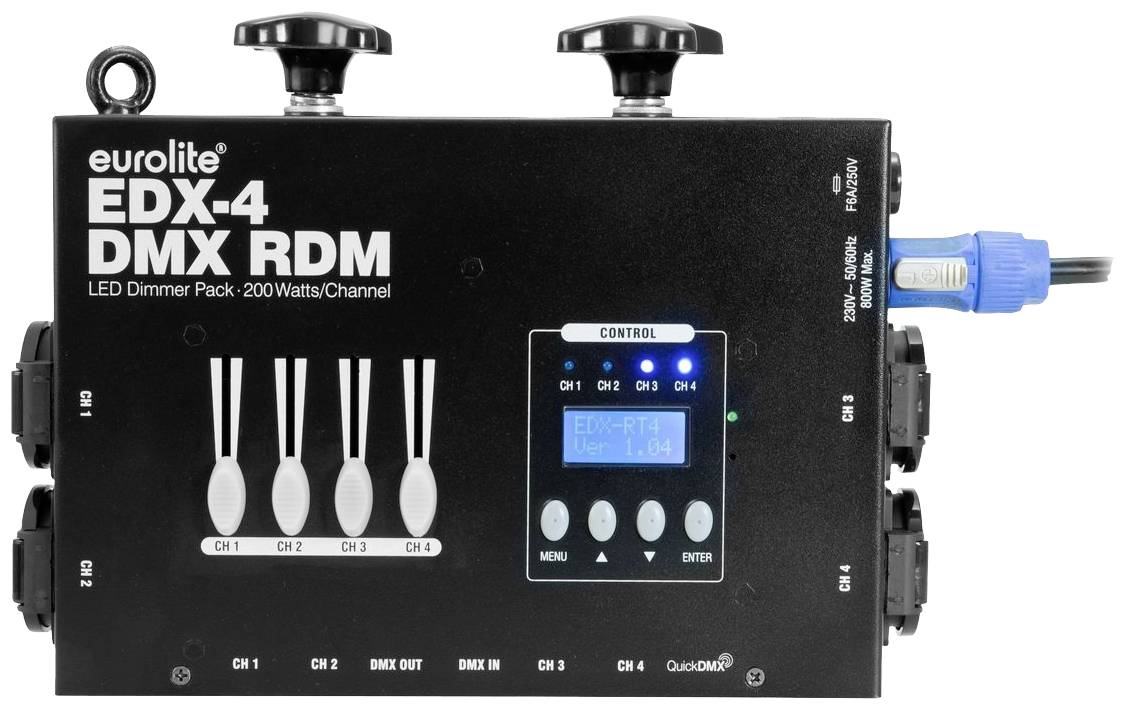

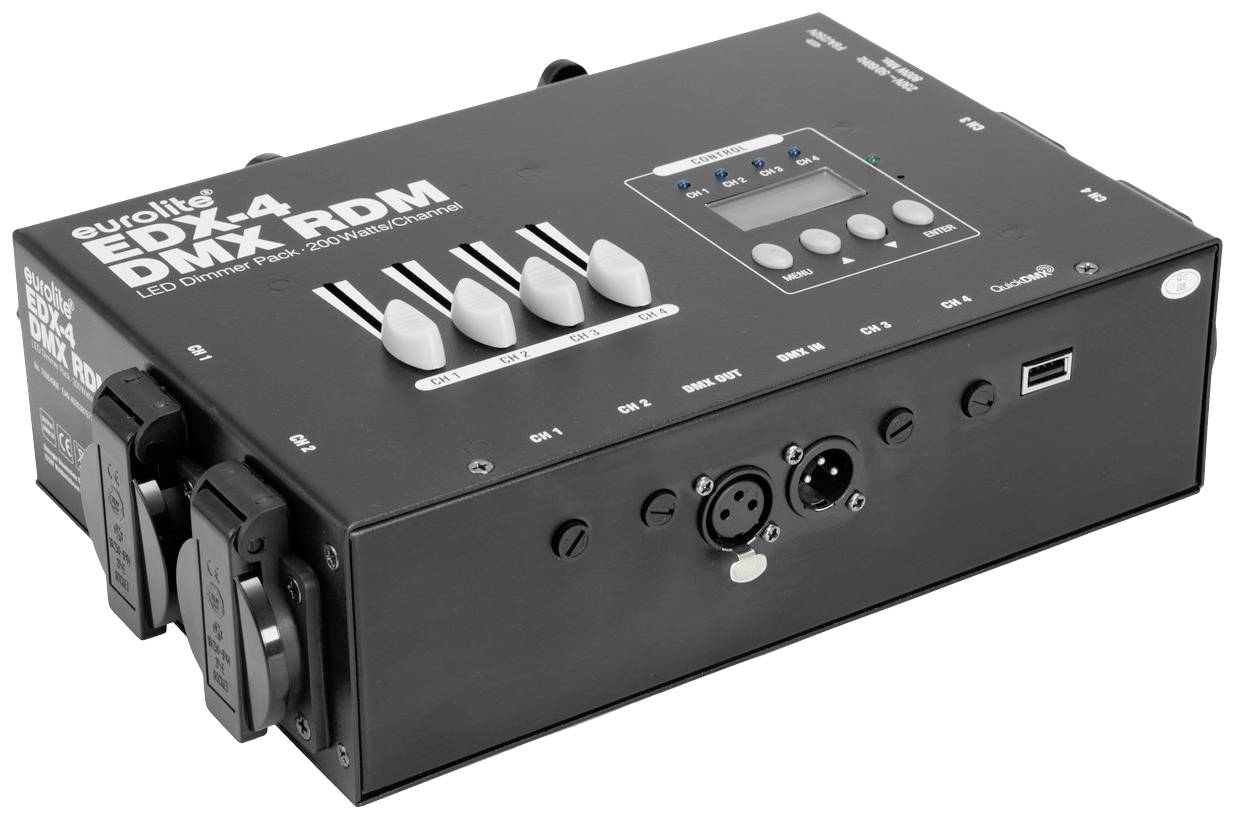

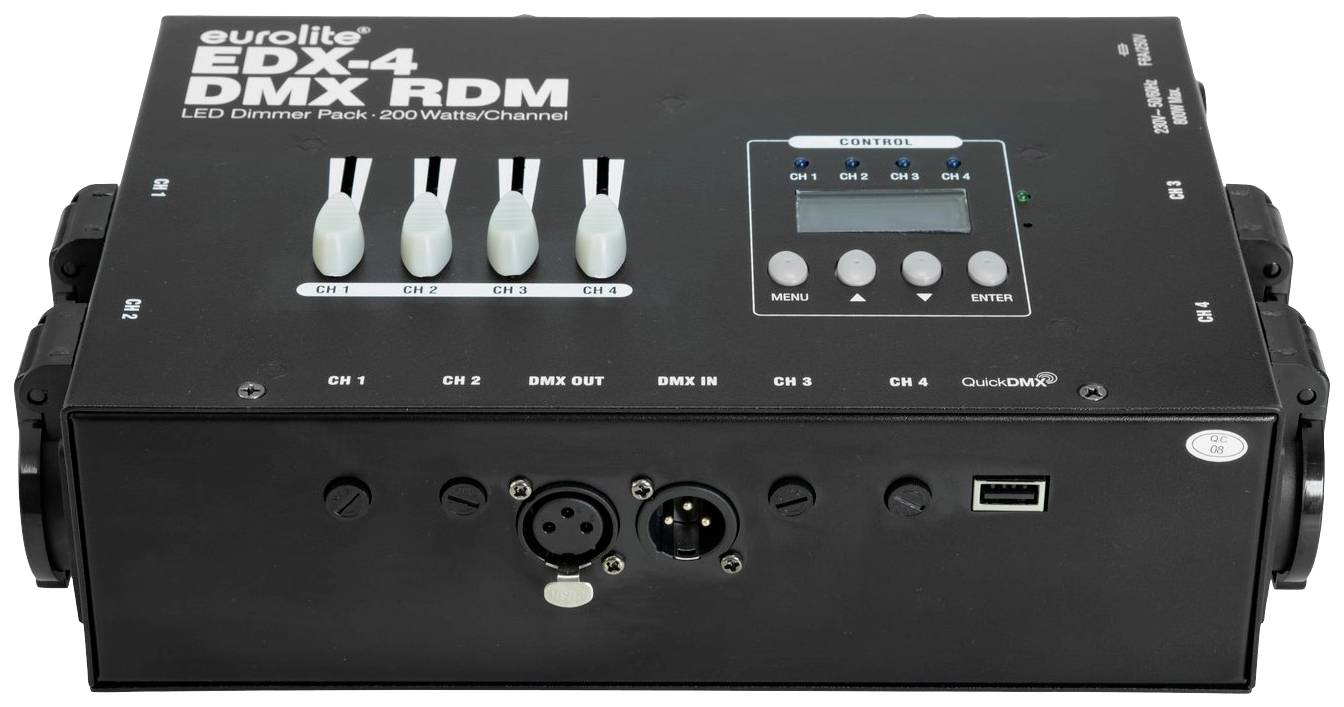

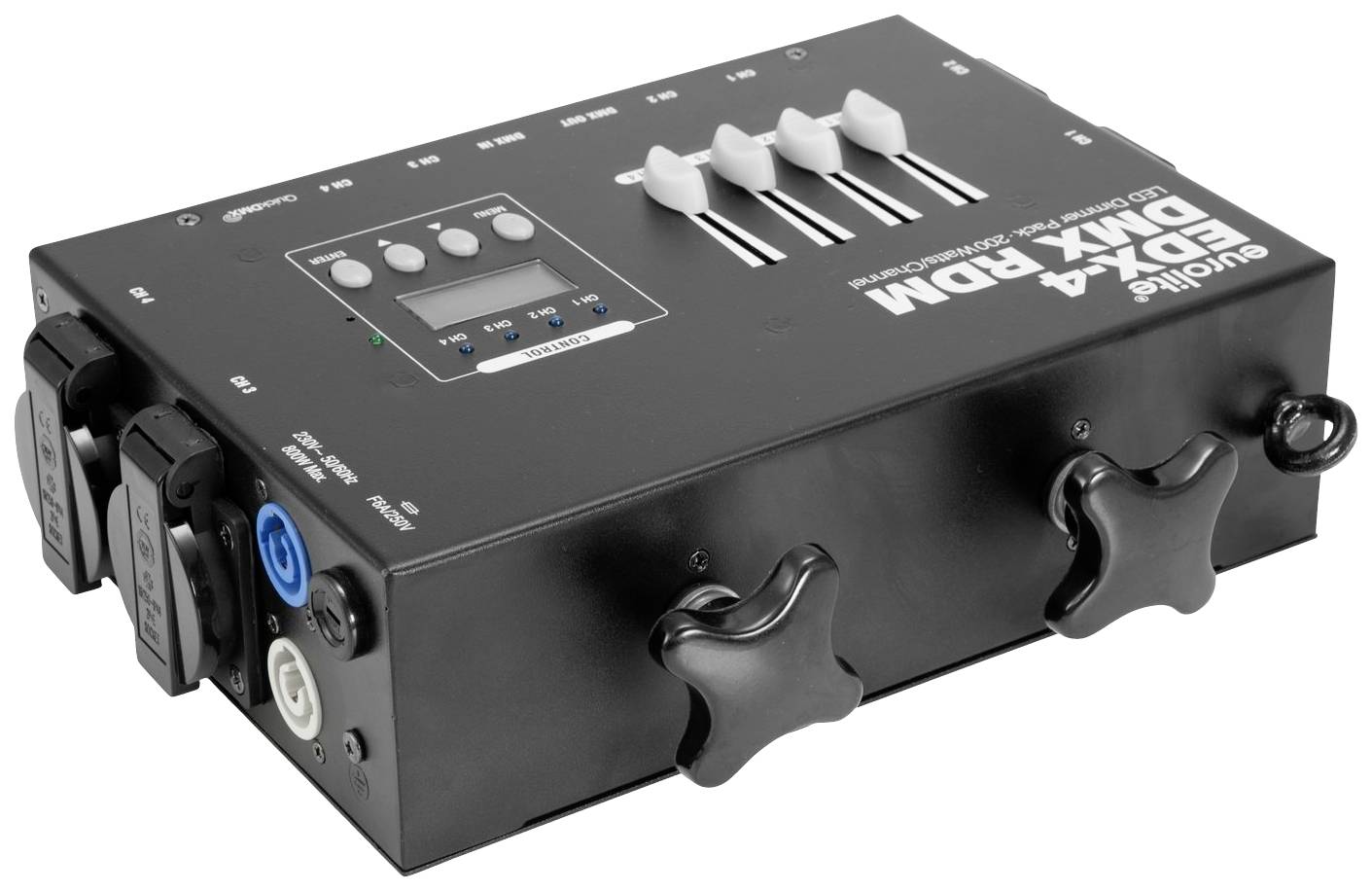

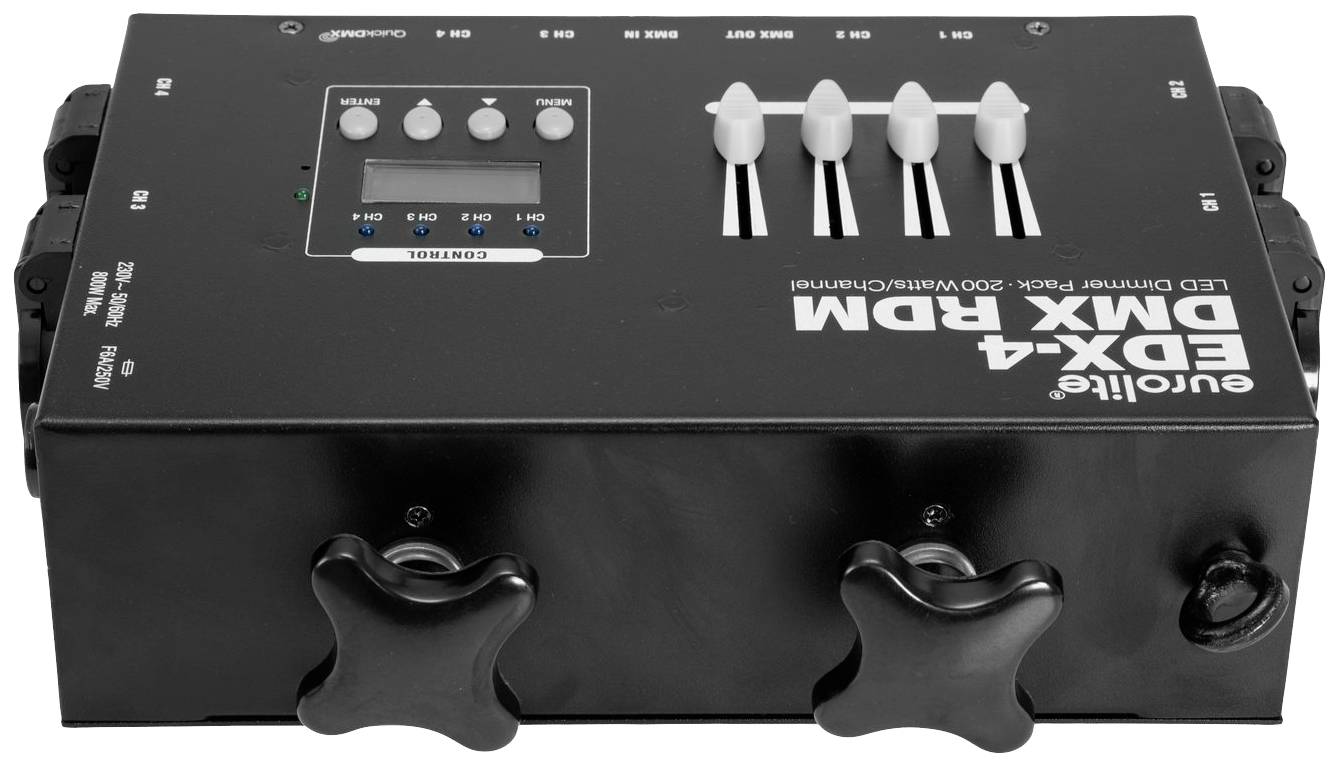

Eurolite EDX-4 DMX RDM LED dimmer pack
- 4-channel dimmer for LED lights with 230 V operation
- Phase section dimmer with 4 channels
- Max. Load 200 watts per channel
Technical specifications
- Product type
DMX dimmer
- No. of channels
4-channel
- Weight
245 g
- Width
290 mm
- Height
90 mm
- Length
210 mm
- Factory colour
Black
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131170 Eurolite DMX dimmer 4-channel
Description
Independent DMX addressing per channel is possible
Dimmer or switch operation
4 channel fader for control on the device
Note: Suitable only for LEDs - not for conventional bulbs
16 integrated show programs
Can be controlled via RDM; stand-alone; music control via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional)
With flight points
LCD display
For application areas such as: Trade fair and shop building; theater; distributors; video and photography; restaurants, Bars and hotels
Noiseless operation
Possible application: Wall mounting
This text is machine translated.
Dimmer or switch operation
4 channel fader for control on the device
Note: Suitable only for LEDs - not for conventional bulbs
16 integrated show programs
Can be controlled via RDM; stand-alone; music control via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by Lumen Radio via USB (optional)
With flight points
LCD display
For application areas such as: Trade fair and shop building; theater; distributors; video and photography; restaurants, Bars and hotels
Noiseless operation
Possible application: Wall mounting
This text is machine translated.
Features
- Power supply 230 V AC 50 Hz
- Power supply: Power feed via P-Con (blue), installation version power supply cable with safety plug
- LCD display type
- Status LED: Channel level display
- Output power: Max. 200 W per channel
- Flying points 2 x M10 thread
- RDM control
- DMX channels: 1
- DMX input 3-pin XLR (M)
- DMX
- Noise classification: Class 0 (no noise)
- DMX output 3-pin XLR (W)
- 4 x earthing contact socket (W), hinged lid version
- Music control via microphone: Music control via microphone
- CRMX by Lumen Radio via USB (optional): CRMX by LumenRadio via USB (optional)
- W-DMX by Wireless Solution via USB (optional): W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional): QuickDMX via USB (optional)
- Stand-alone: Stand-alone
- 1 x P-Con (gray), Installation version Bypass: 1 x P-Con (gray), Installation version Bypass
- Control channels 4
- Max. Max. 800 W 800 W
Scope of delivery
- Device
- User manual
- Network cable/power cable
