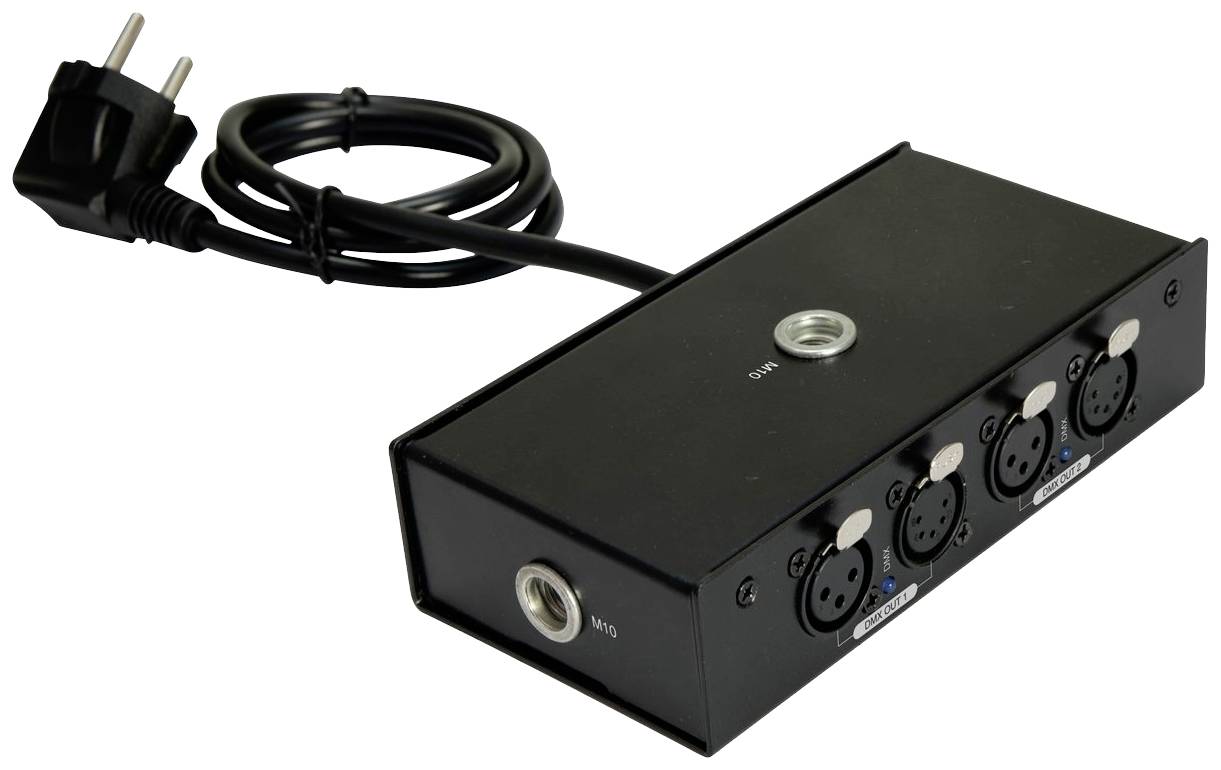

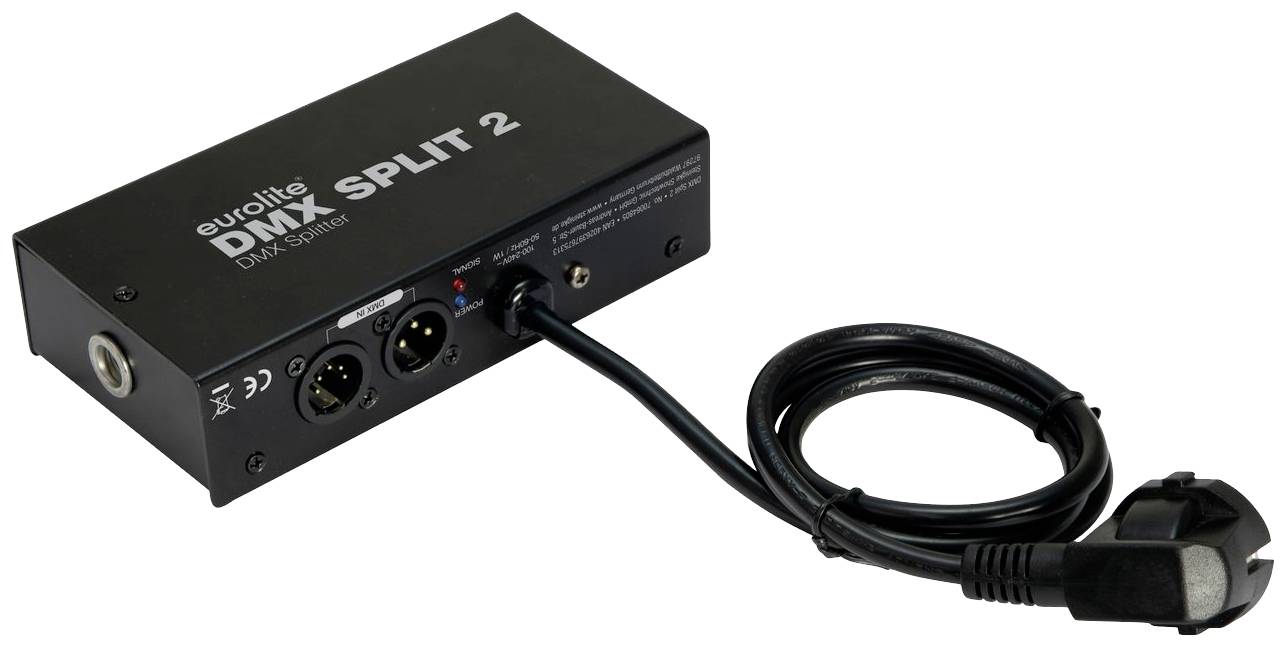

Eurolite DMX splitter 2-channel
EAN:
Part number:
Item no:
Highlights & Details
Eurolite DMX split 2 splitter 3/5-pin
- 2-way DMX Splitter
- Small splitter with 3- and 5-pin XLR-connections
- Sturdy metal housing
- This text is machine translated.
Technical specifications
- Product type
DMX splitter
- No. of channels
2-channel
- Weight
42 g
- Width
80 mm
- Height
40 mm
- Length
160 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131166 Eurolite DMX splitter 2-channel
Description
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 1 W
- Power connection: Fixed power connection cable with protective contact plug
- Status LED DMX
- Housing colour black.
- DMX input 3-pin XLR (M), built in version

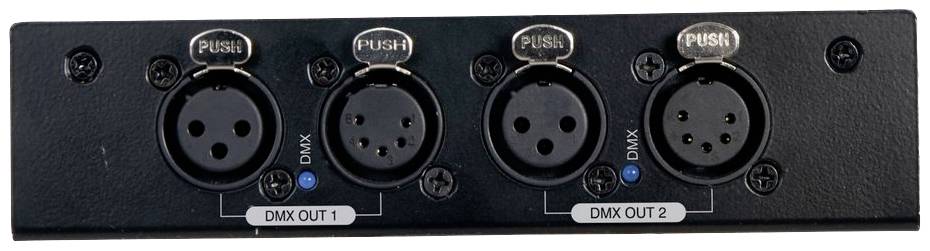

- DMX output 2 x 3-pin XLR (W) built-in version
- 5-pin XLR (M) Installation version: 5-pin XLR (M) Installation version
- 2 x 5-pin XLR (W) installation version 2 x 5-pin XLR (W) installation version
Scope of delivery
- Device
- User manual
