Eurolite DMX splitter 2-channel
EAN:
Part number:
Item no:
Highlights & Details

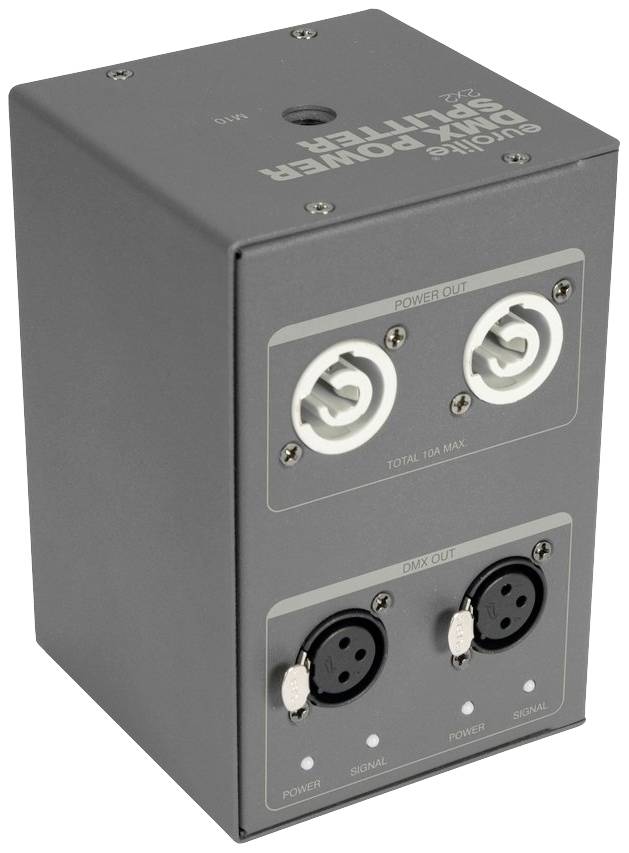

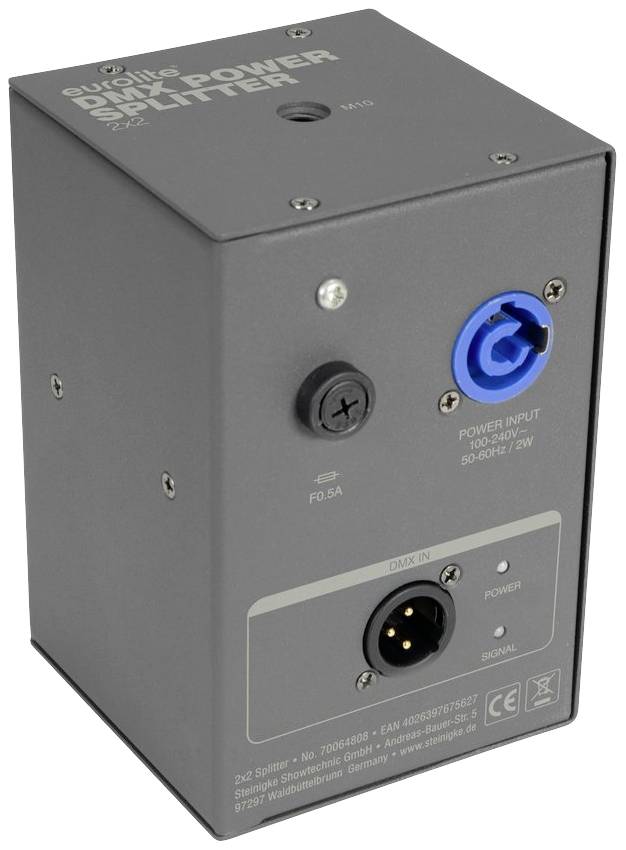

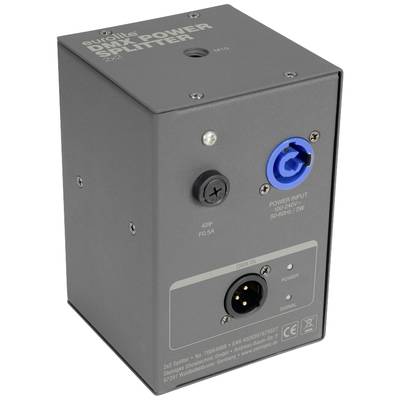

Eurolite DMX Power splitter 2x2
- Reliable Power and DMX distributor
- 1 P-Con input on 2 outputs, max. 10 A
- 1 DMX input on 2 outputs
Technical specifications
- Product type
DMX splitter
- No. of channels
2-channel
- Width
10 mm
- Height
136 mm
- Length
90 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131167 Eurolite DMX splitter 2-channel
Description
2-way Power- and DMX-splitter for truss mounting
Input and output galvanically separated
Sturdy metal housing
Each DMX output with independent driver and status display
This text is machine translated.
Input and output galvanically separated
Sturdy metal housing
Each DMX output with independent driver and status display
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 2 W
- Power supply: Power feed via P-Con (blue), installation version power supply cable with safety plug
- Status LED Power, DMX
- DMX input 3-pin XLR (M)
- DMX output: 2 x 3-pin XLR (W) electrically isolated with independent driver and status indicator
- Power output 2 x P-Con (gray), installation version
- Output current: Max. 2 x 5 A per channel
Scope of delivery
- Device
- Network cable/power cable
- User manual
