Eurolite DMX splitter 4-channel
EAN:
Part number:
Item no:
Highlights & Details
Eurolite DMX split 4 mini splitter 3-pin
- 4-way DMX Splitter for Russia mounting
- Small splitter with 3-pin XLR connectors
- Sturdy metal housing
- This text is machine translated.
Technical specifications
- Product type
DMX splitter
- No. of channels
4-channel
- Weight
99 g
- Width
95 mm
- Height
14 mm
- Length
9 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131168 Eurolite DMX splitter 4-channel
Description
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 1.5 W

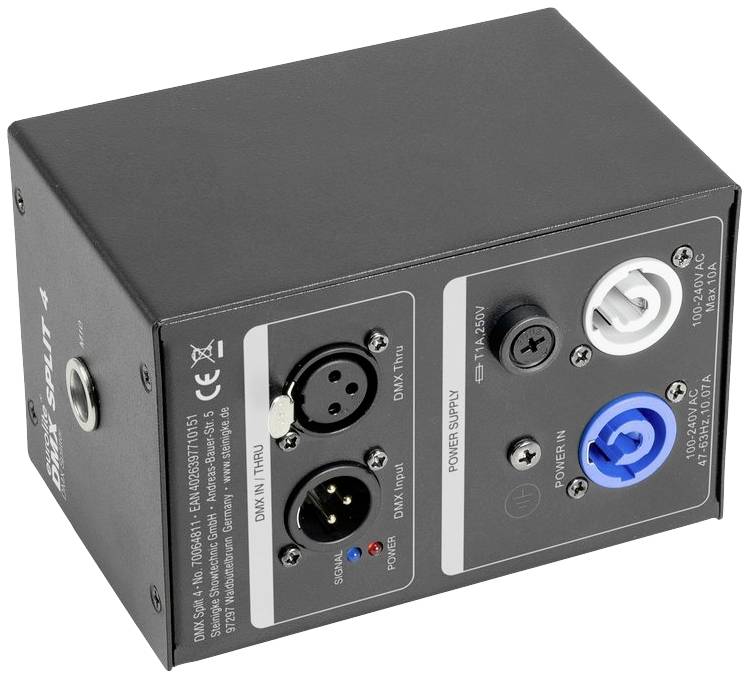

- Power connection: Power feed via P-Con (blue), installation version power connection cable with safety plug (included)
- Status LED Power, DMX
- DMX input 1 x 3-pin XLR (M) installation version

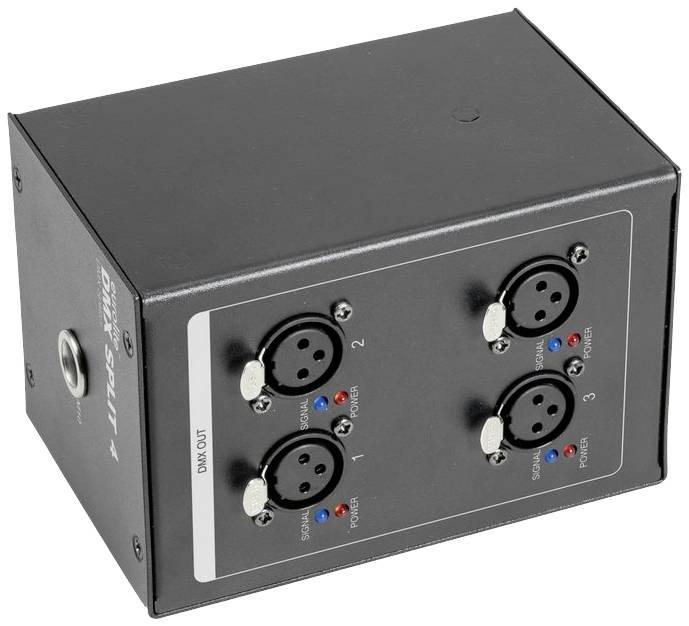

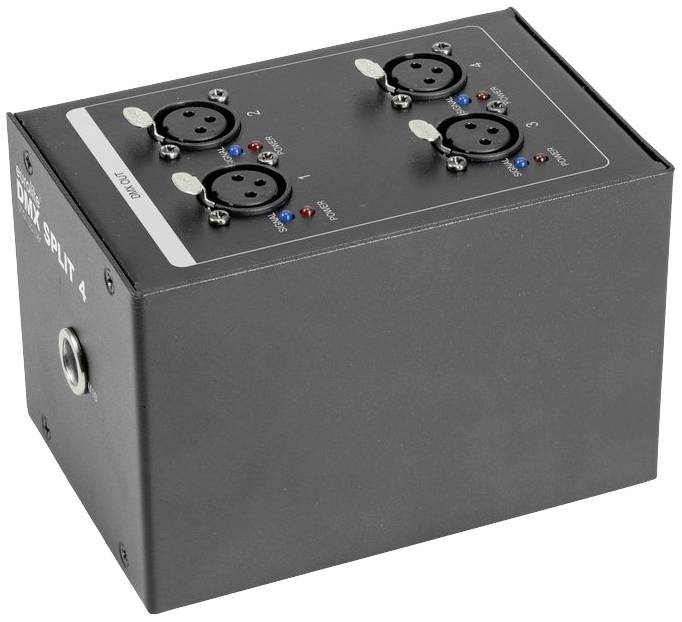

- DMX output 4 x 3-pin XLR (W) installation version electrically isolated
- P-Con (gray), installation version
- Output current: Max. 10 A
- 1 x 3-pin XLR (W) Installation version Bypass:1 x 3-pin XLR (W) Installation version bypass

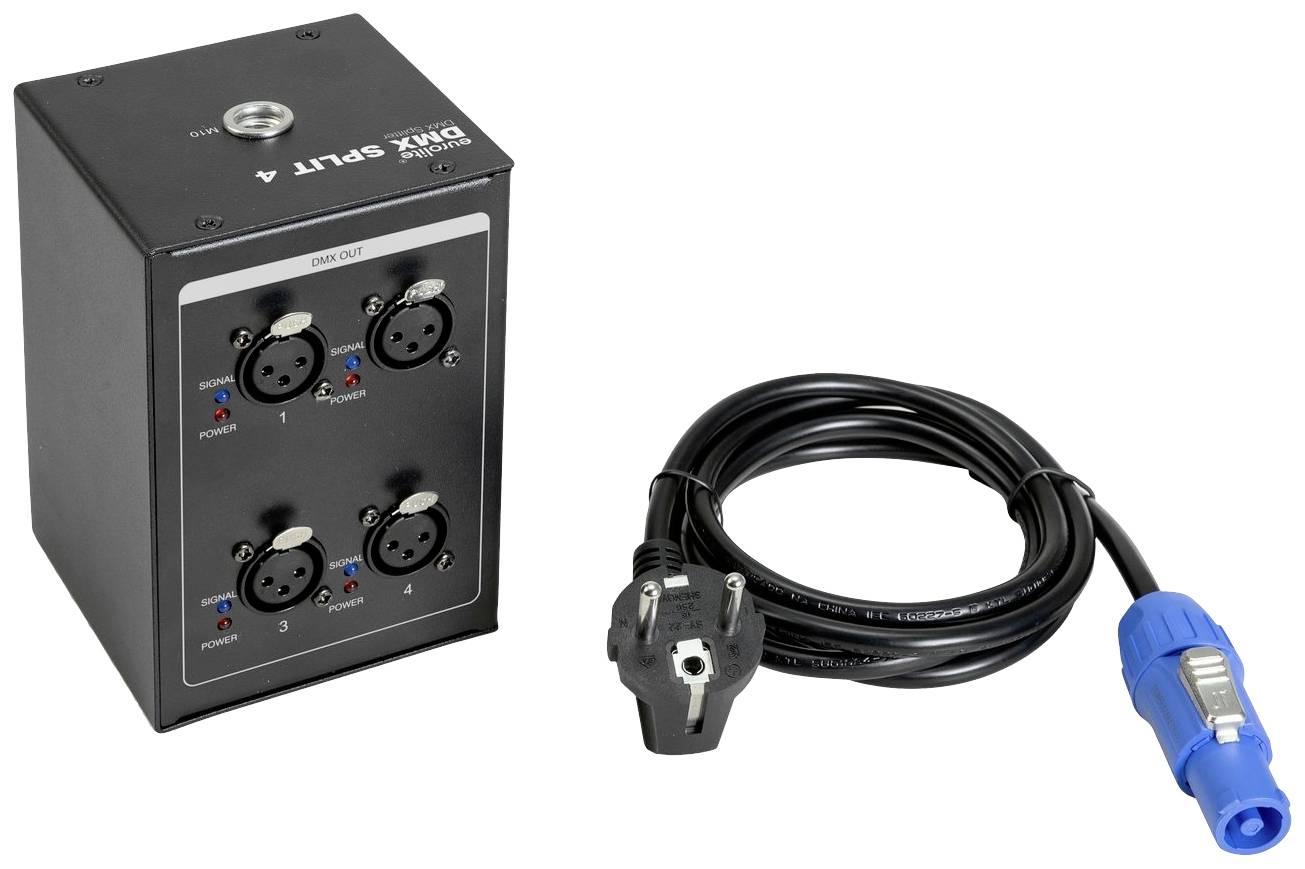

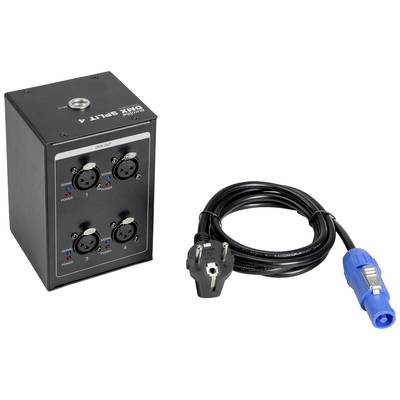

Scope of delivery
- Device
- Network cable/power cable
- User manual
- 4 x Base
