Eurolite DMX splitter 4-channel
EAN:
Part number:
Item no:
Highlights & Details

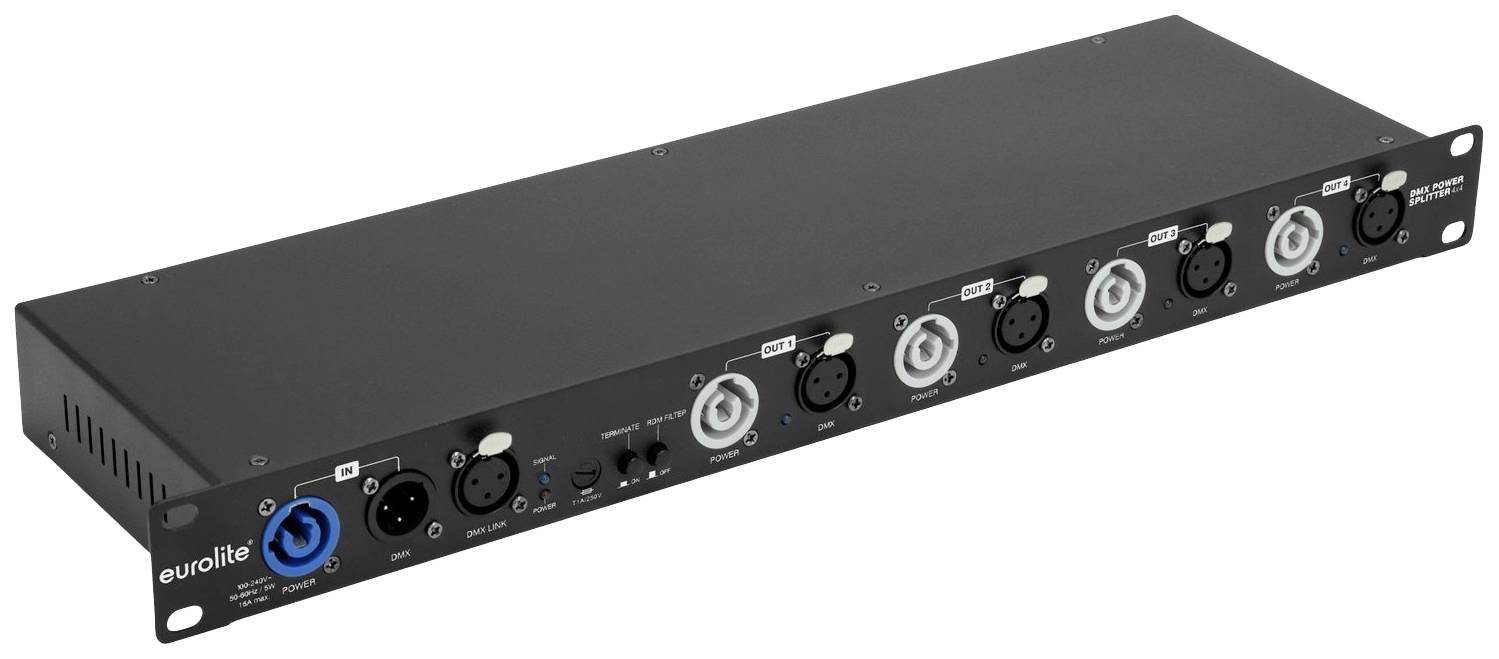

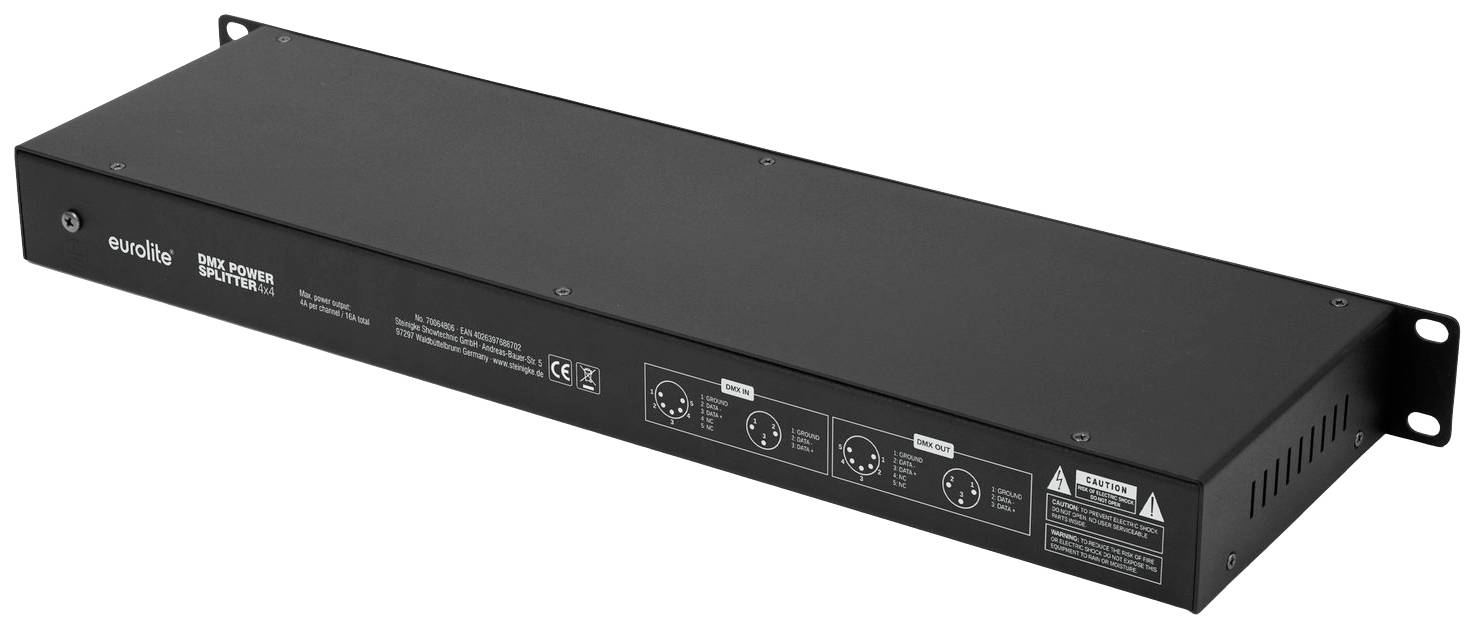

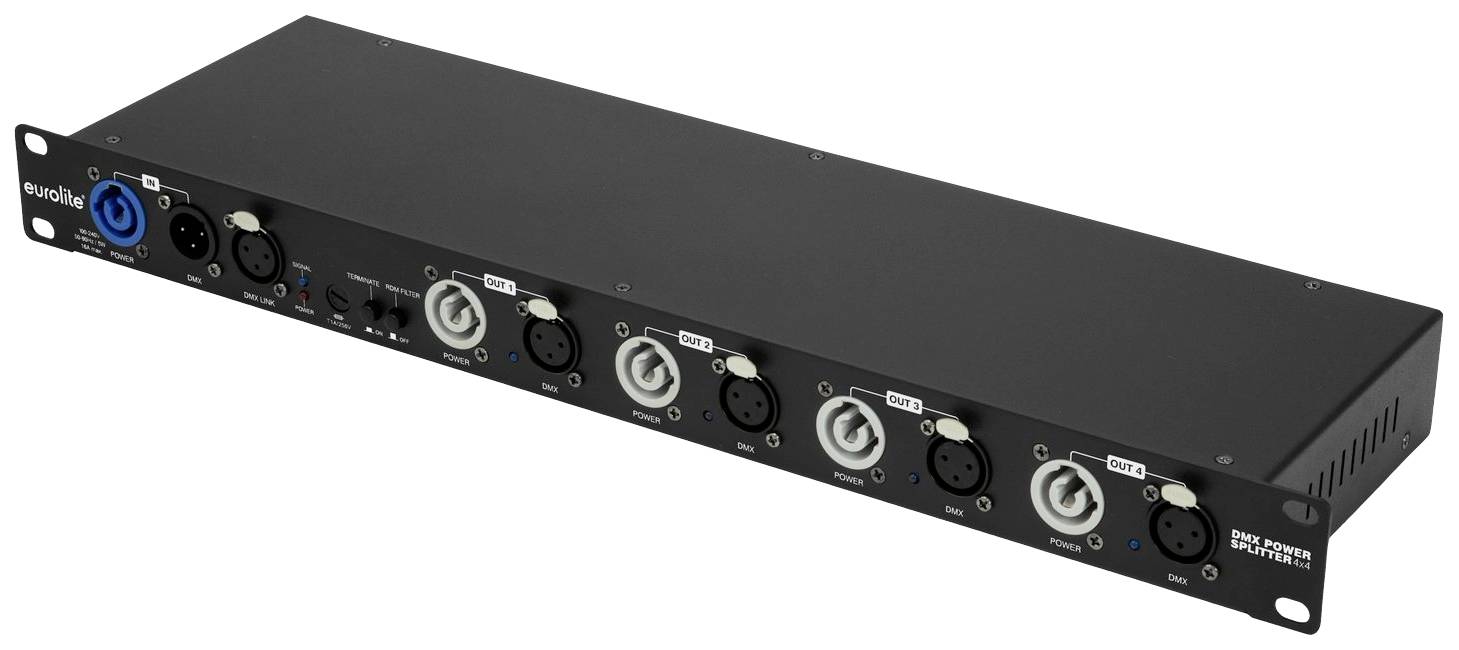

Eurolite DMX Power splitter 4x4 3-pin XLR
- RDM-enabled Power and DMX splitter 1 in/4out for rack mounting
- P-Con input on 4 outputs, max. 16 A
- 1 DMX input on 4 outputs
- This text is machine translated.
Technical specifications
- Product type
DMX splitter
- No. of channels
4-channel
- Weight
256 g
- Width
138 mm
- Height
43 mm
- Length
483 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131274 Eurolite DMX splitter 4-channel
Description
Features
- 1 DMX loop-through output
- Switchable RDM filter mode
- Switchable terminating resistor
- Input and output galvanically separated
- Each DMX output with independent driver and status display
- Can be controlled via RDM
- (19") 48.3 cm rack installation 1 HE
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 5 W
- Power connection: Via P-Con (blue), installation version
- Housing design (19") 48.3 cm Rack installation 1 HE
- Protection class SK I
- RDM control
- DMX input 1 x 3-pin XLR (M)
- 5 x 20 mm, T 1 A fuse can be replaced

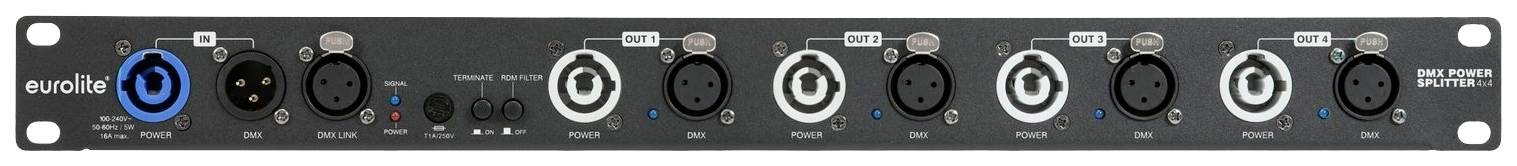

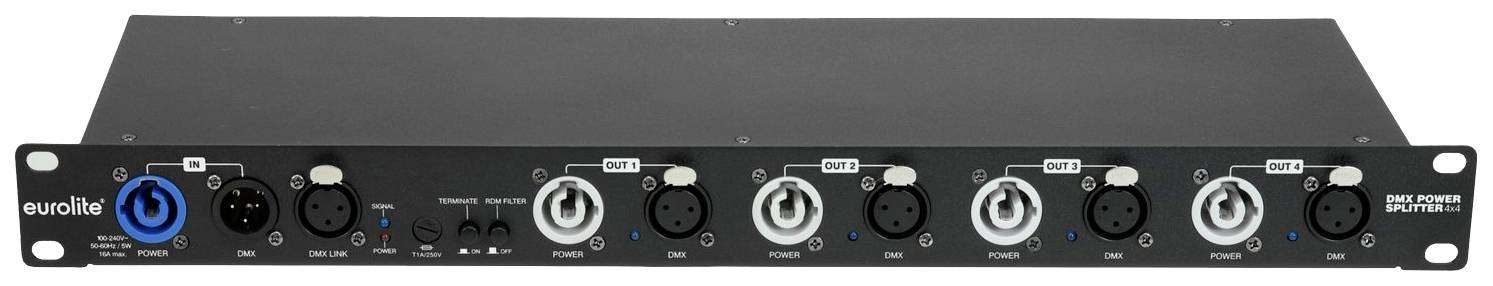

- DMX output: 4 x 3-pin XLR (W) with independent driver and status display
- Power output 4 x P-Con (gray), installation version
- Output current: Max. 4 x 4 A per channel
Scope of delivery
- Device
- User manual
- Network cable/power cable
