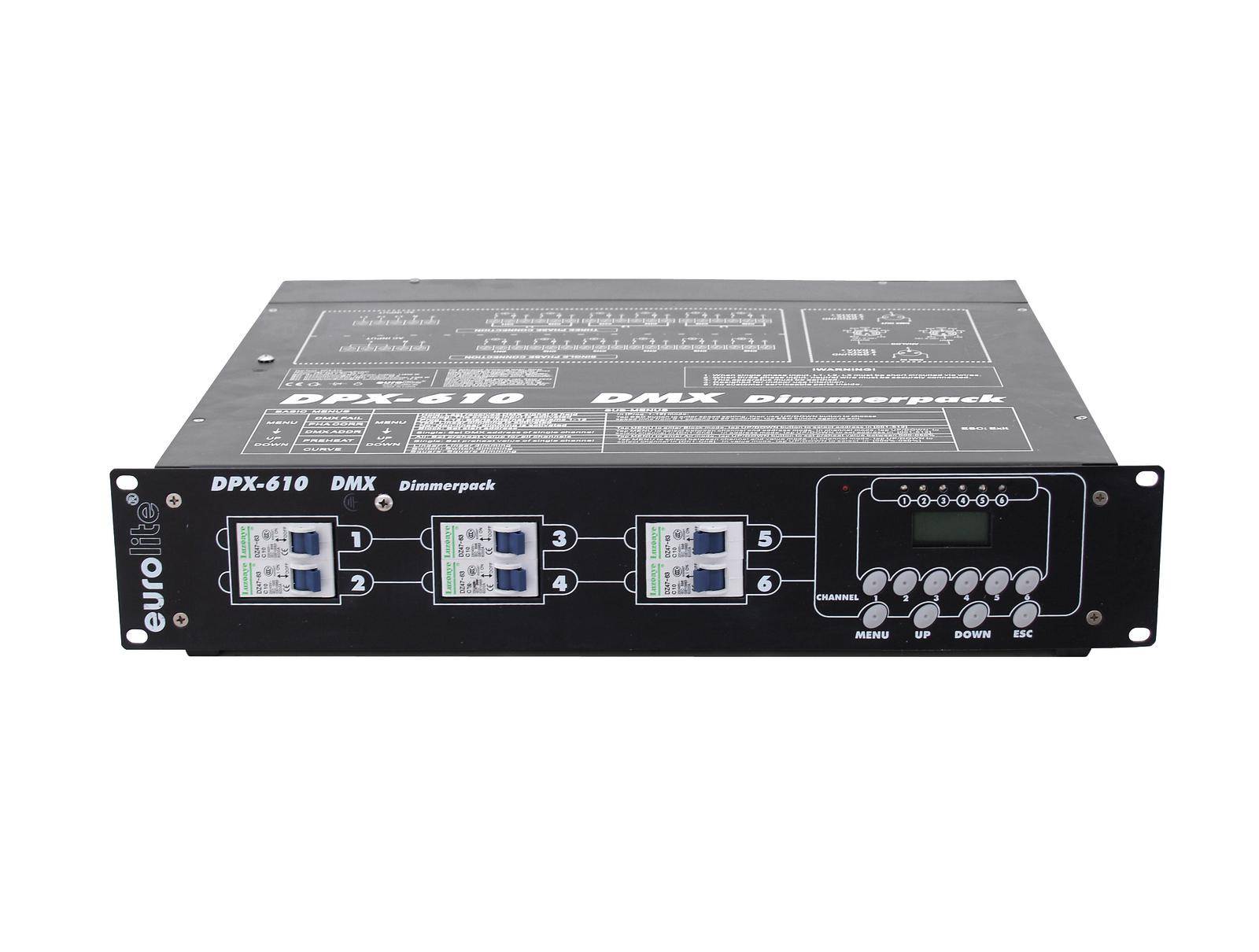

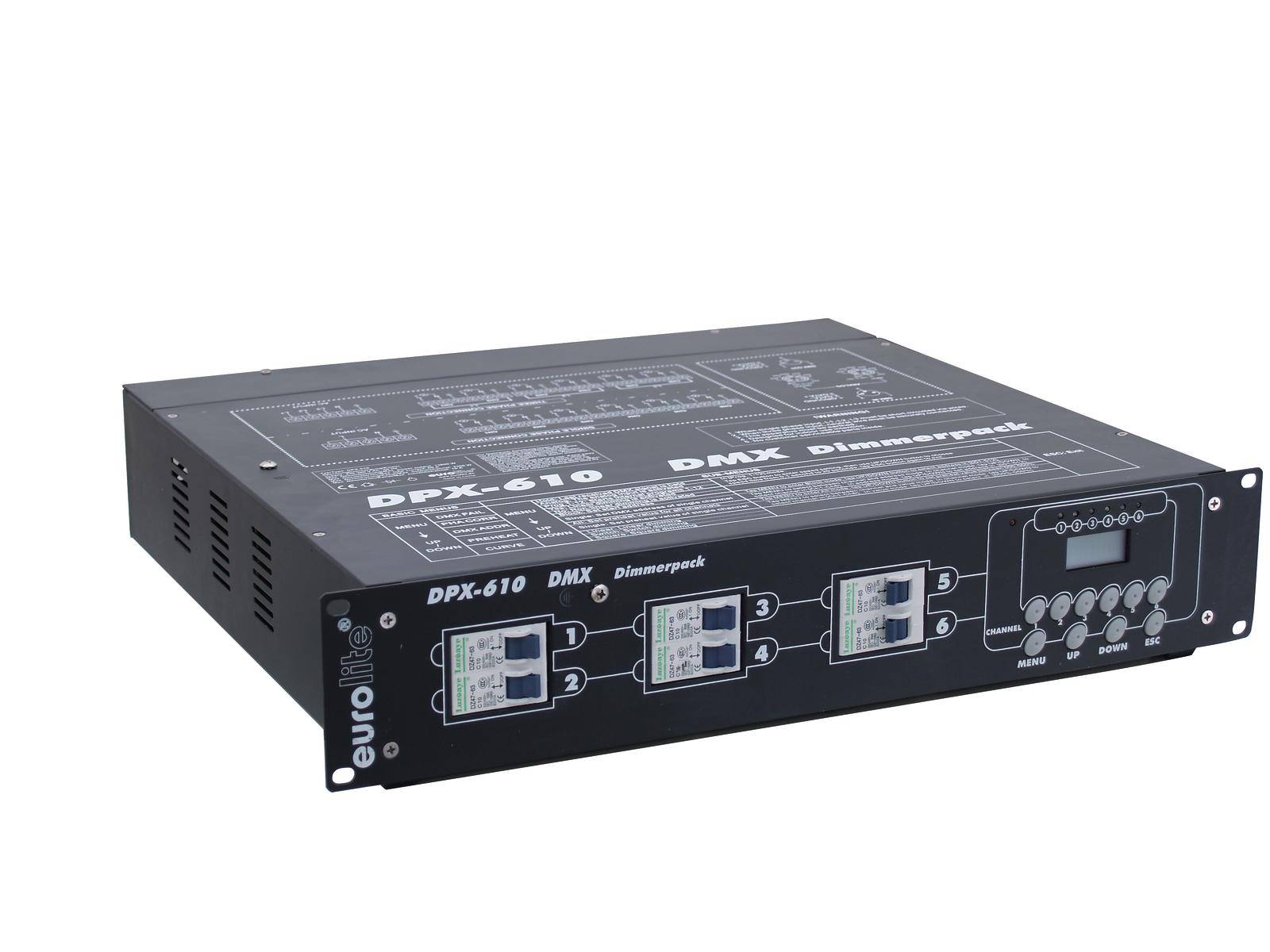

Eurolite DPX-610 DMX dimmer 6-channel
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Power supply: number 230-380 V AC, 50 Hz~
- Max. Total power: 13800 W
- Max current: 60 A.
- Number of control channels: 6
- Max. Nominal power/channel: 2300 W
- Max. Nominal current/channel: 10 A
- Integrated programs: 12
- Output Sockets: via terminal block
- Circuit breaker: 6 x C 10 A
- Dimensions (wxdxh): 410 x 482 x 95 mm
- Rack installation with 2 HE
- Minimum mounting depth: 500 mm
- Weight: 8 kg.
- Shipping weight: 8.950 kg
- Product type
DMX dimmer
- No. of channels
6-channel
- Weight
8 kg
- Width
410 mm
- Height
95 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1375972 Eurolite DPX-610 DMX dimmer 6-channel
User & Safety Instructions
User & Safety Instructions 1375972 Eurolite DPX-610 DMX dimmer 6-channel
Description
Digital 6-Channel Dimmer Pack.
This text is machine translated.
This text is machine translated.
Features
- Universal light amplifier for professional use
- Can be used in single-phase and three-phase
- 6 x 10 A
- Both DMX control and analogue control available
- The DMX start address can be set on the unit
- Several DPX-610 can be synchronised using DMX
- Lamp preheating can be set
- All modes are displayed both by LEDs and the display
- With Circuit breaker per channel

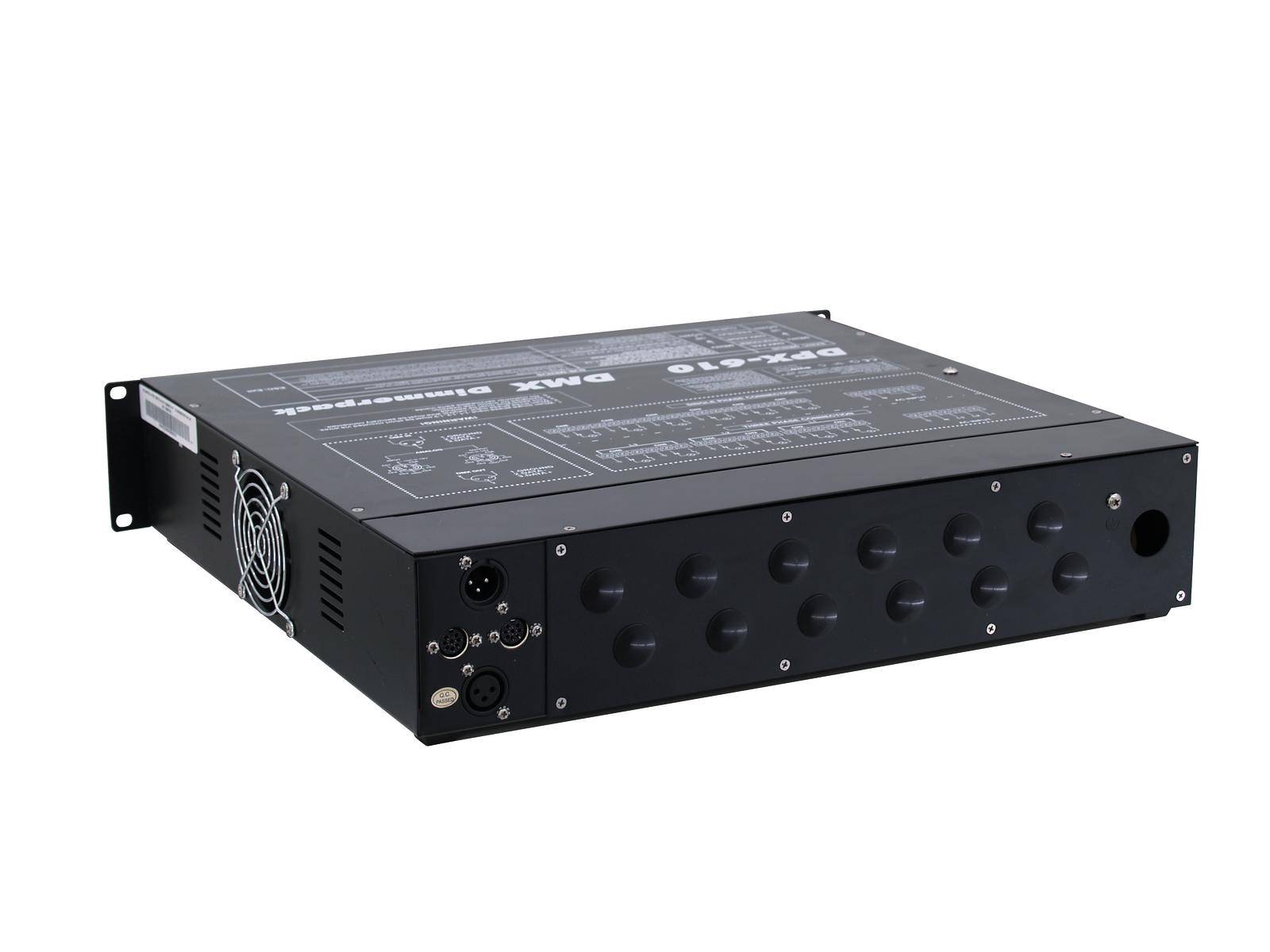

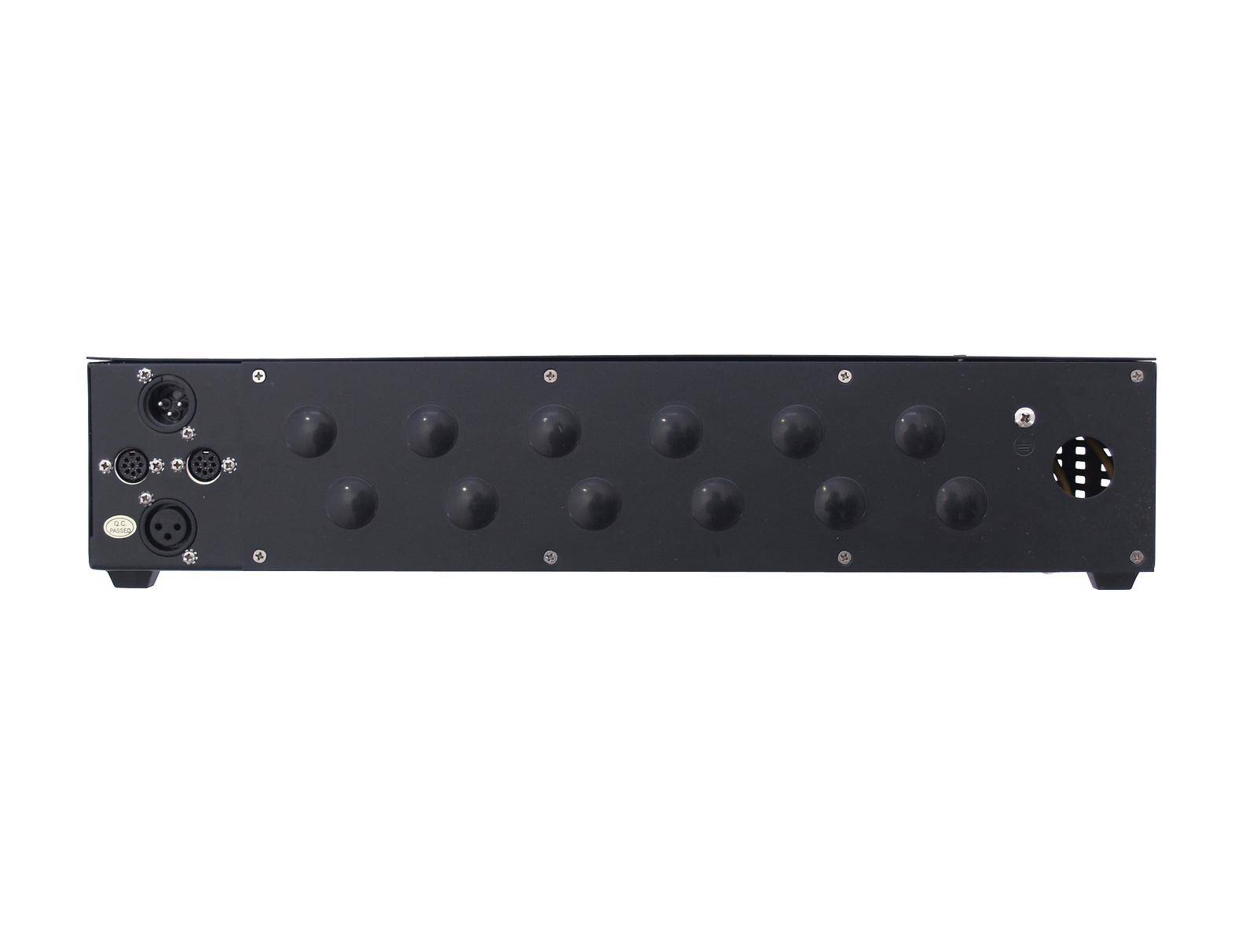

- Channel outputs on rear of device via terminals
- Only for professional use.
