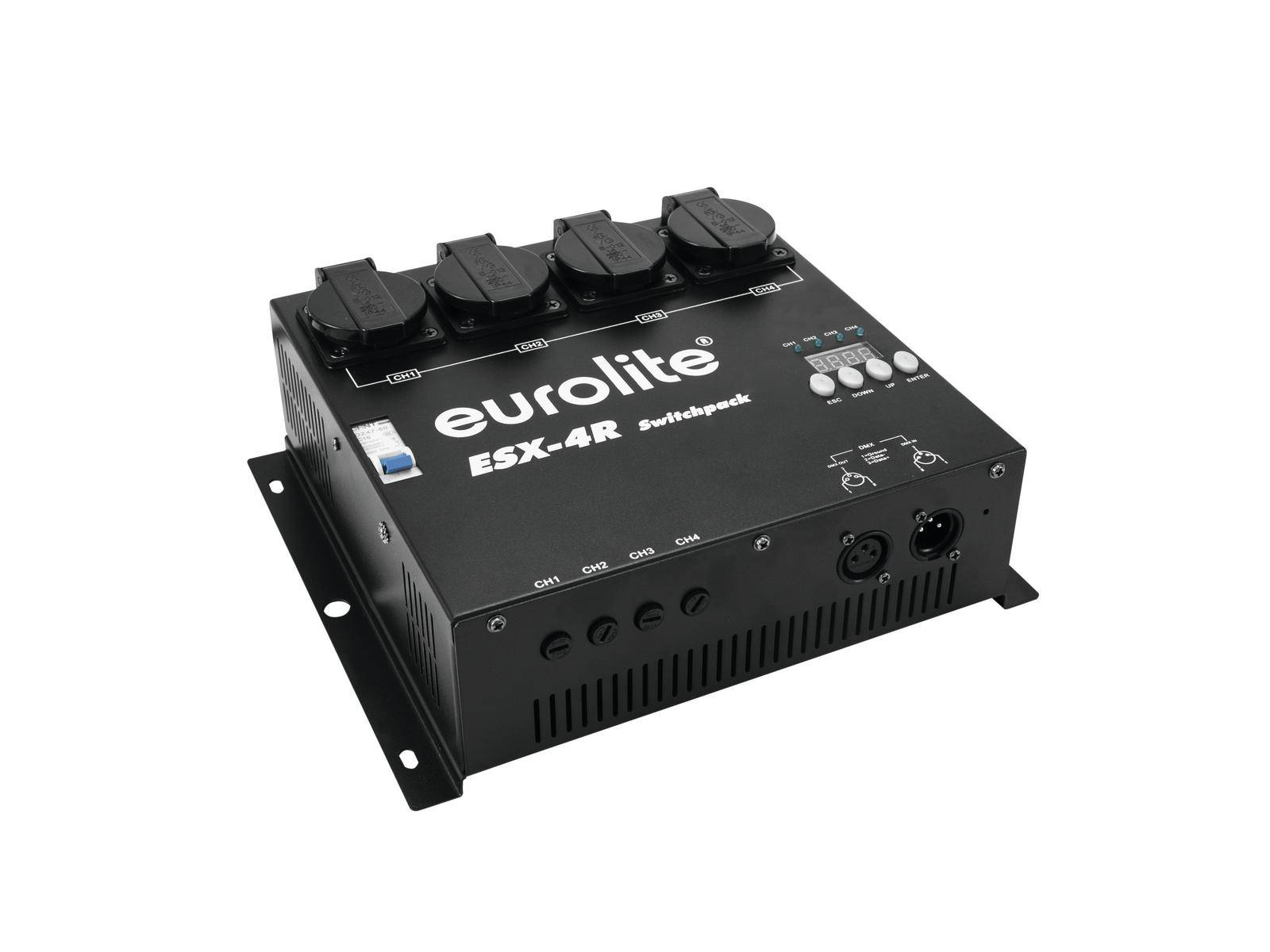

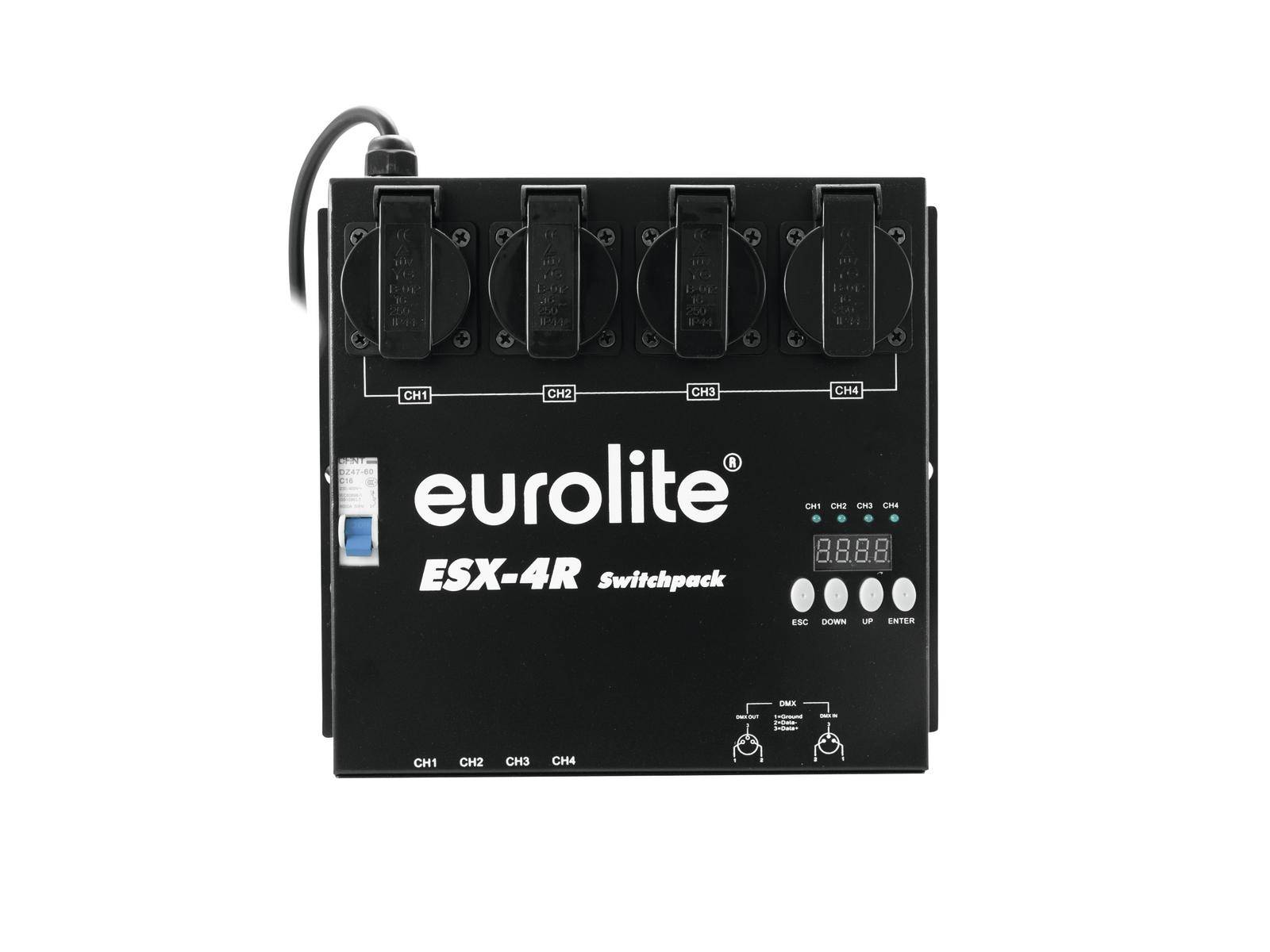

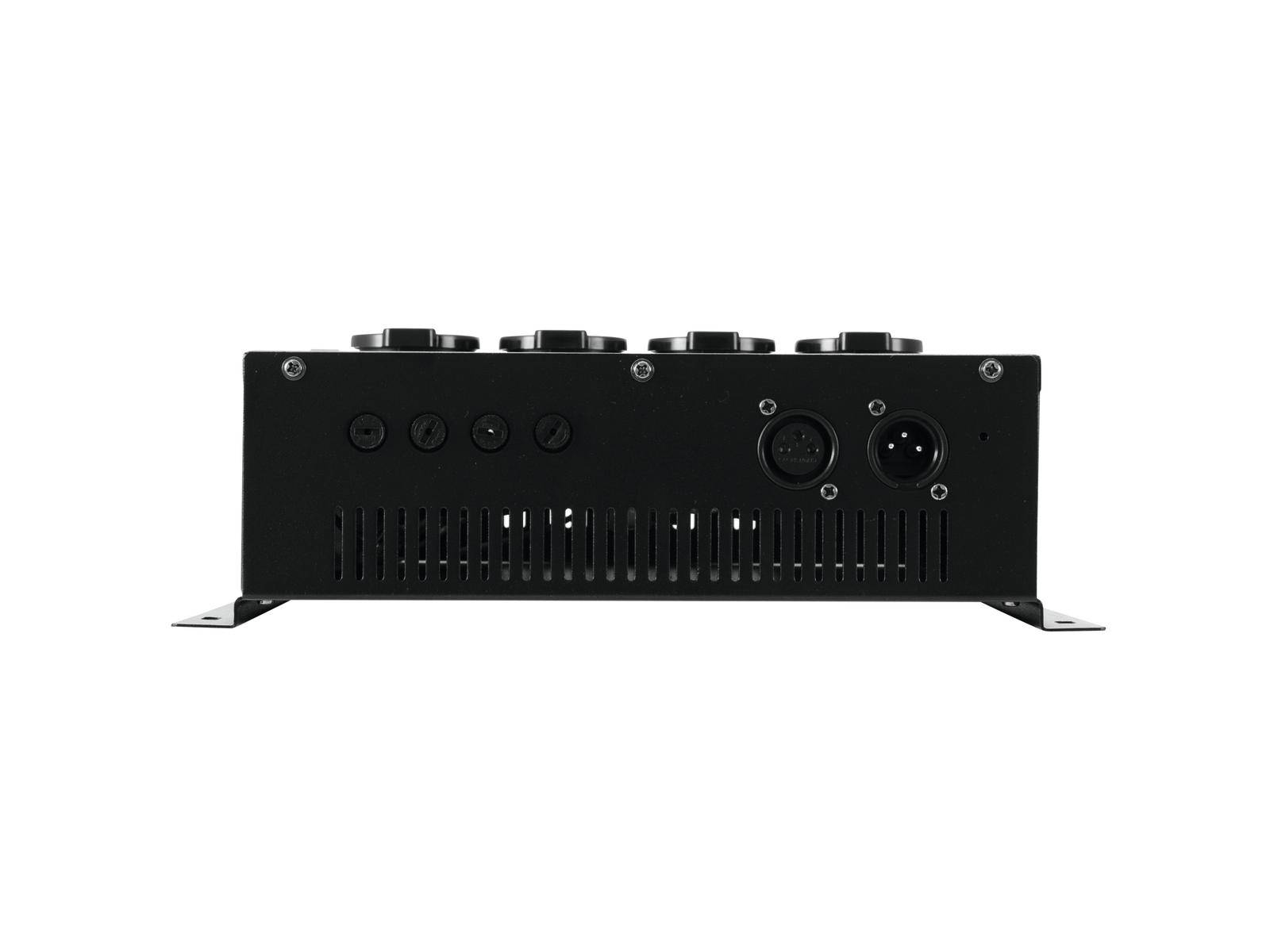

Eurolite ESX-4R DMX switcher set 4-channel
EAN:
Part number:
Item no:
Technical specifications
- Power supply: 230 V AC, 50 Hz ~
- Max. Total output: 3680 W
- Max current: 16 A.
- Number of Channels: 4
- Resistive load / channel: 1150 W
- Max. Nominal current/channel: 5 A
- Output Sockets: 4 protective contact sockets
- DMX output: 3-pin XLR panel socket
- DMX Input: 3-pin XLR connector
- Dimensions (wxdxh): 270 x 260 x 95 mm
- Weight: 3 kg.
- Shipping weight: 3,200 kg
- Product type
DMX switcher set
- No. of channels
4-channel
- Weight
3 kg
- Width
270 mm
- Height
95 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1375967 Eurolite ESX-4R DMX switcher set 4-channel
Description
4-channel DMX switch pack.
This text is machine translated.
This text is machine translated.
Features
- 4 controllable channels
- 5 A ohms load per channel
- Maximal total current: 16 A
- Outputs via 4 protective contact sockets
- LED display of the four channels
- DMX512 input and output
- Supports RDM
- With Control board for programming simple scenes and Chasers
- For fitting on cross beams or directly on the device
