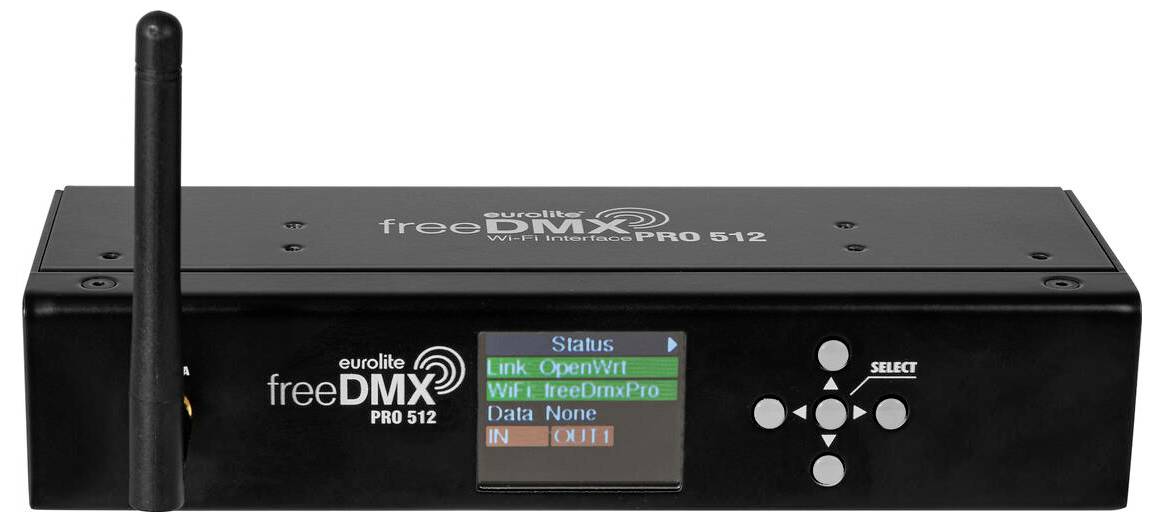

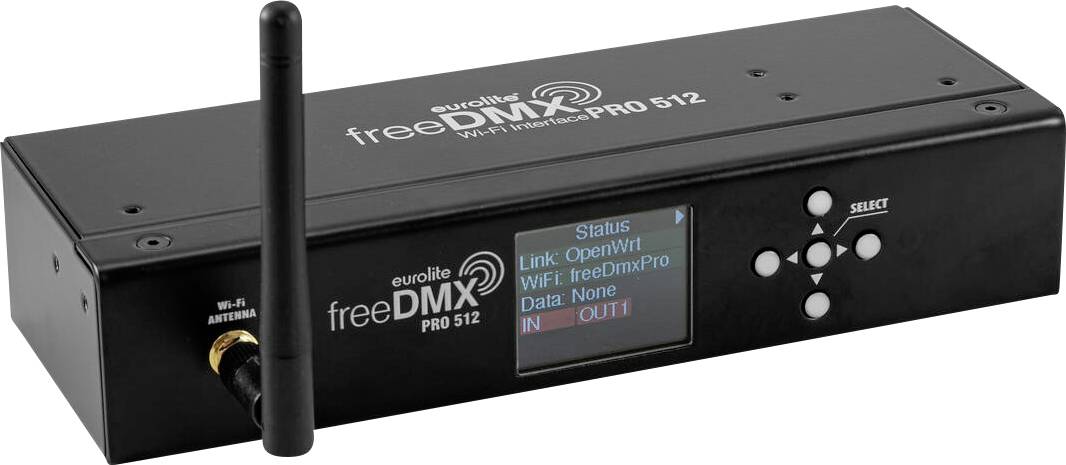

Eurolite freeDMX PRO 512 DMX interface Wi-Fi-enabled
EAN:
Part number:
Item no:
Technical specifications
- Product type
DMX interface
- Features
Wi-Fi-enabled
- Width
20 cm
- Height
4.1 cm
- Factory colour
Black
- Depth
8 cm
IP20
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642551 Eurolite freeDMX PRO 512 DMX interface Wi-Fi-enabled
Description
Wireless WLAN DMX interface for apps and programs such as Light Captain. Wireless WLAN DMX interface for wireless light control from your tablet or PC. Receives the control signals via the network and forwards these via cable to the DMX chain. Compatible with iOS and Android devices. The online Fixture Library of the apps is constantly updated and already contains over 300 devices of Eurolite and FutureLight - you can easily create new device profiles with the help of editor. Can be controlled via DMX; Light´J APP; WLAN; Light Captain APP; QuickDMX via USB (optional). Configuration via integrated web server Access Point and infrastructure mode. Internal memory for 1 DMX mood. DMX looping and Merge Mode. Can transmit up to 512 DMX channels. Mounting bracket for rack mounting, table and beam mounting available as accessories. Range up to 60 m outdoors. Range of up to 30m indoors. 2.4 GHz world-wide registration and call free. Multi-colored TFT display. Neutrik connector installed. The device can be connected to the PC via RJ-45 etherCON (W) installation version, in connection with e.g. Freestyler, DMXControl 3, PC_DIMMER, Lightkey (MAC). Made in Germany. Noiseless operation For application areas such as: Clubs/dance schools; wedding/gala/events; stage; theater; mobile DJs / solo entertainers; trade fair and shop building; distributors; video and photography
This text is machine translated.
This text is machine translated.
Features

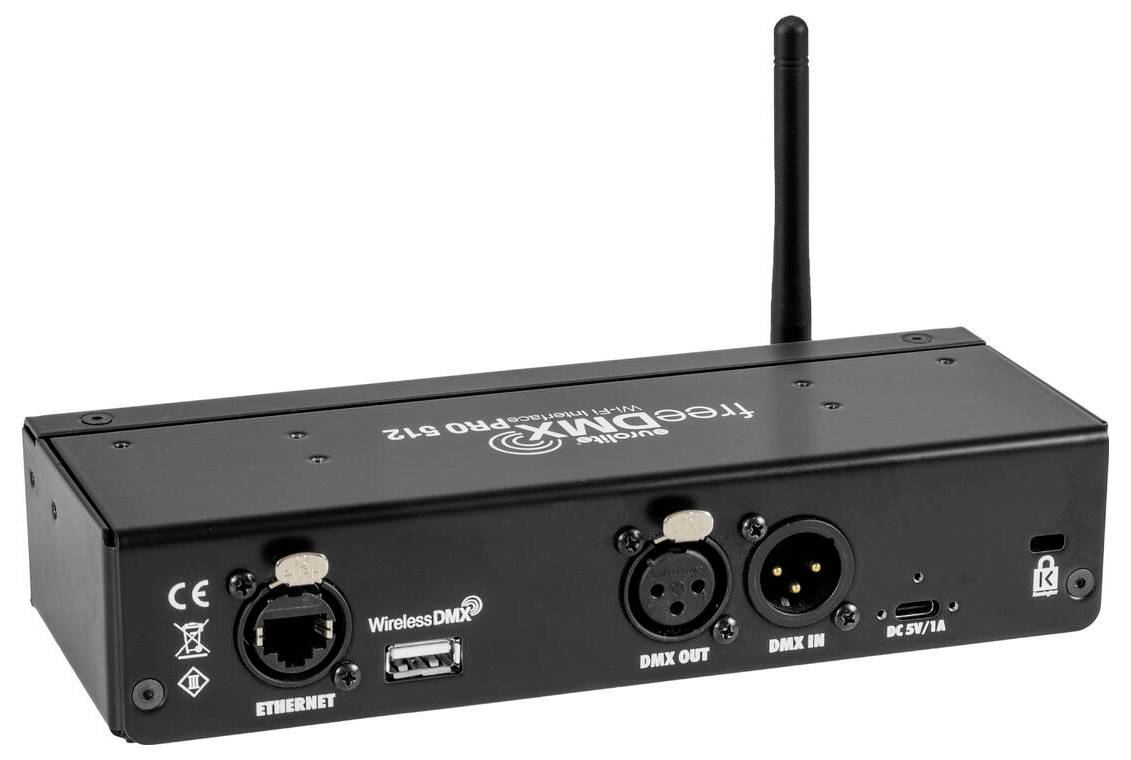

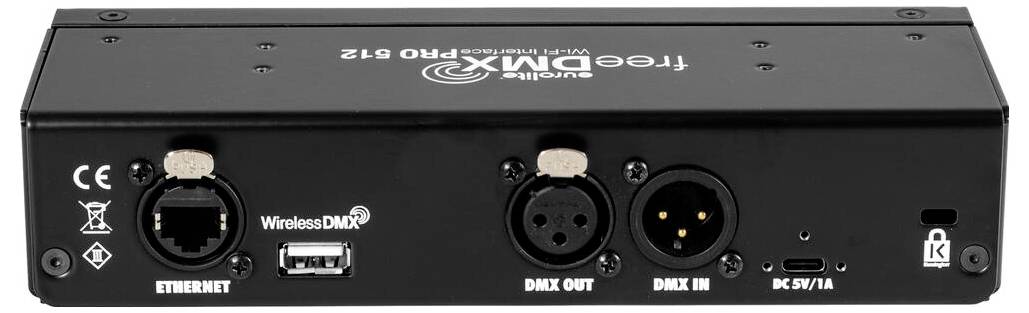

- Power supply: 100-240 V AC, 50/60 Hz; 5V DC 1000 mA; Protection type: IP20; WLAN: Standard: IEEE 802.11 b/g/n; DMX channels: Output 512; DMX input: 10 x 3-pin XLR (M) mounting version; DMX output: 1 x 3-pin XLR (W) mounting version; Network connection: Protocol: ART-Net 3 via RJ-45 etherCON (W) mounting version, 1 Mbit/s; Standard: DMX 802.3u; light J APP; WLAN; Light Captain APP; QuickDMX via USB (optional); Range: Up to 60m outdoors; Up to 30m indoors; Frequency band: 2.4 GHz; Antenna gain: 2 dBi; Display type: multicolor TFT display; USB port: Type C, 1 A; Brand use: Neutrik plug connector installed; Colour: black; PC connect: E.G. Freestyler, DMXControl 3, PC_DIMMER, Lightkey (MAC) via RJ-45 etherCON (W) mounting version; Dimensions: width: 20 cm; depth: 8 cm; height: 4.1 cm; noise classification: class 0 (no noise)
Scope of delivery
- 1 x device
- 1 x external power supply
- 1x USB cable
- 1x user manual
- 1 x Antenna.
