Eurolite IP PAR 14x10W HCL DMX LED effect light No. of LEDs (details): 14 10 W
EAN:
Part number:
Item no:
Technical specifications
- Product type
DMX LED effect light
- Colour
RGBAW
UV/blacklight
140 W
n.rel.
- LEDs
14
- Weight
6.80 kg
- Height
36.5 cm
- Watt per LED
10 W
- Cable length
1.5 m
- Depth
22.5 cm
IP65
- Case colour
Black (matt)
- Material
Plastic
- Radiation angle
15°
- Protection class
I
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642552 Eurolite IP PAR 14x10W HCL DMX LED effect light No. of LEDs (details): 14 10 W
Description

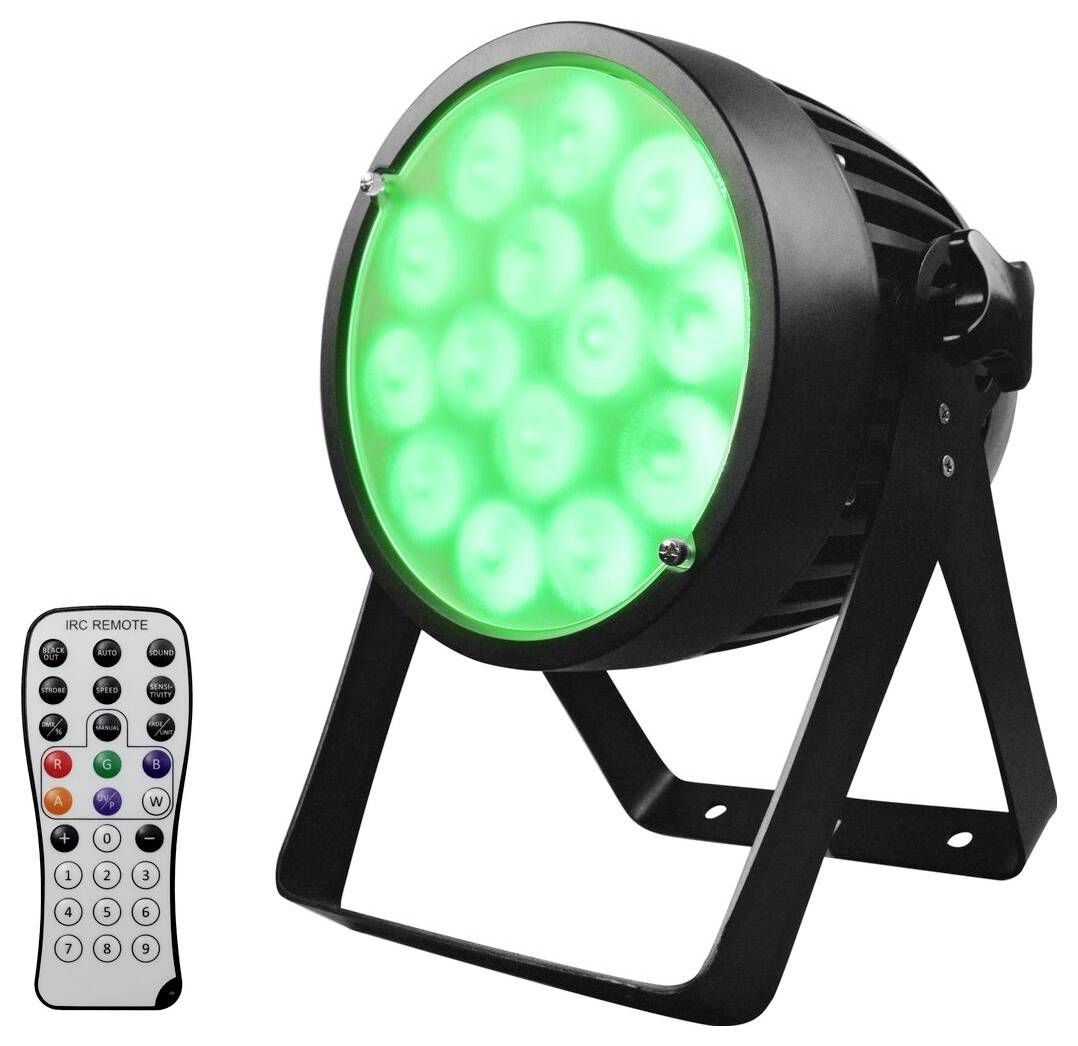

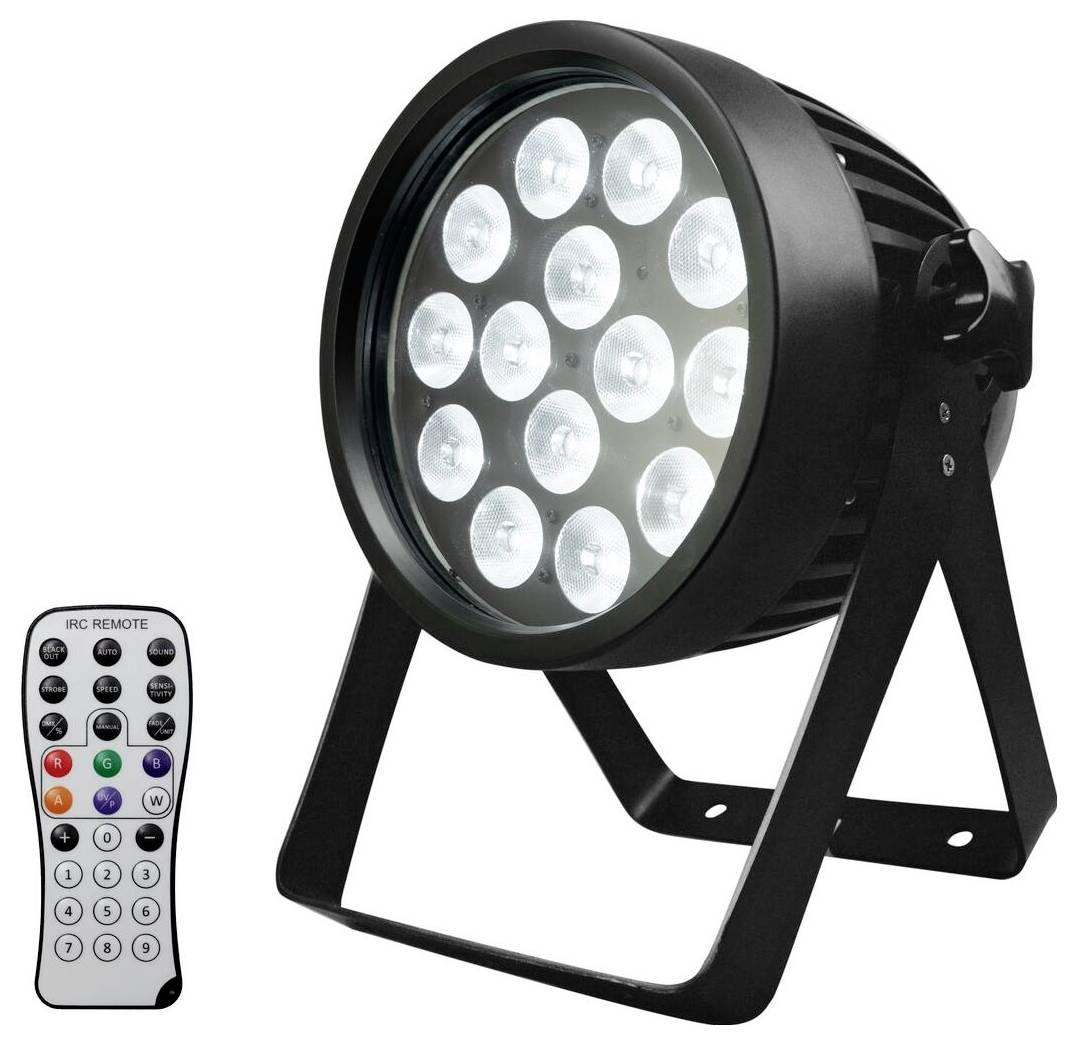

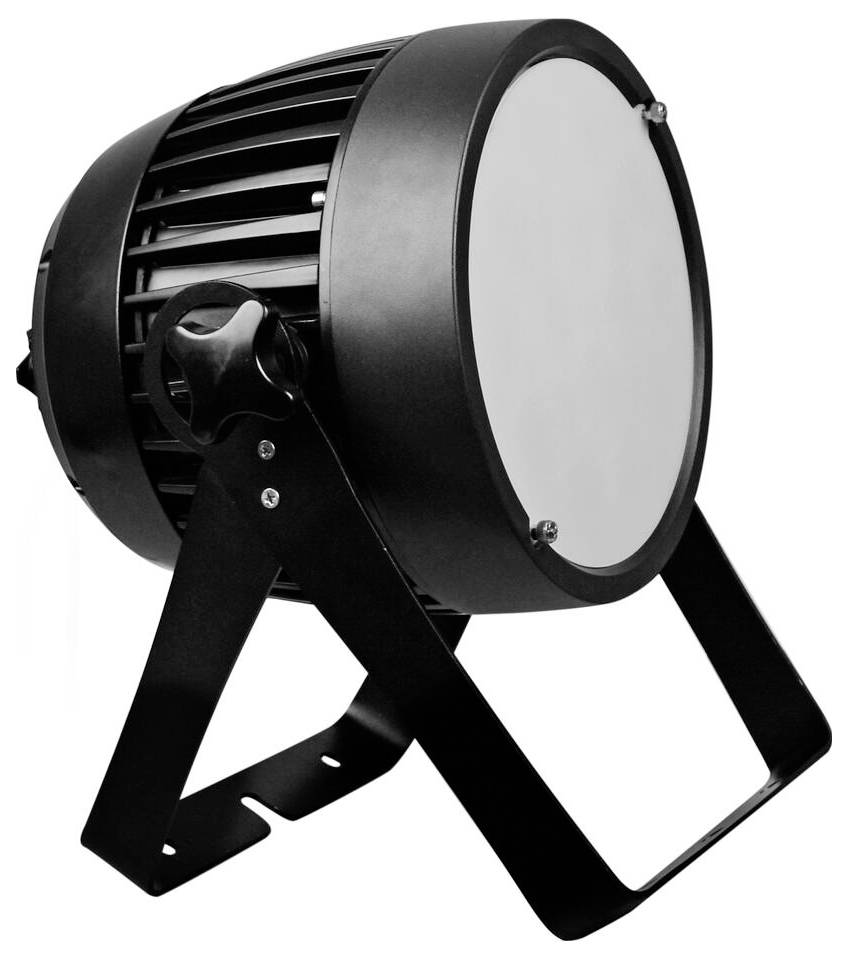

Weather-proof (IP65) headlight with 6in1 HCL RGBWA/UV color mixing and frost filters. 14 powerful LEDs 10 W high-Power 6in1 HCL RGBWA/UV (homogeneous color mixing) Frost filter Colour mixing infinitely variable; color change adjustable, color cross-fading adjustable, dimmer electronic. Stroboscope-effect Direct color selection for 25 preset colors. The device is cooled by passive convection cooling. Can be controlled via DMX; stand-alone; IR remote control. Already pre-programmed with Light´J; LED PC-Control 512; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3. Flicker-free. With an angle of radiation of 15°. With double bow. LCD display Power input and power output for simple connection of up to 8 devices. Suitable for outdoor areas IP65. For application areas like: Architecture; stage; wedding/gala/events; theater; distributor; Video and photography. Noiseless operation Possible application: Standing; flying; on a tripod
This text is machine translated.
This text is machine translated.
Features

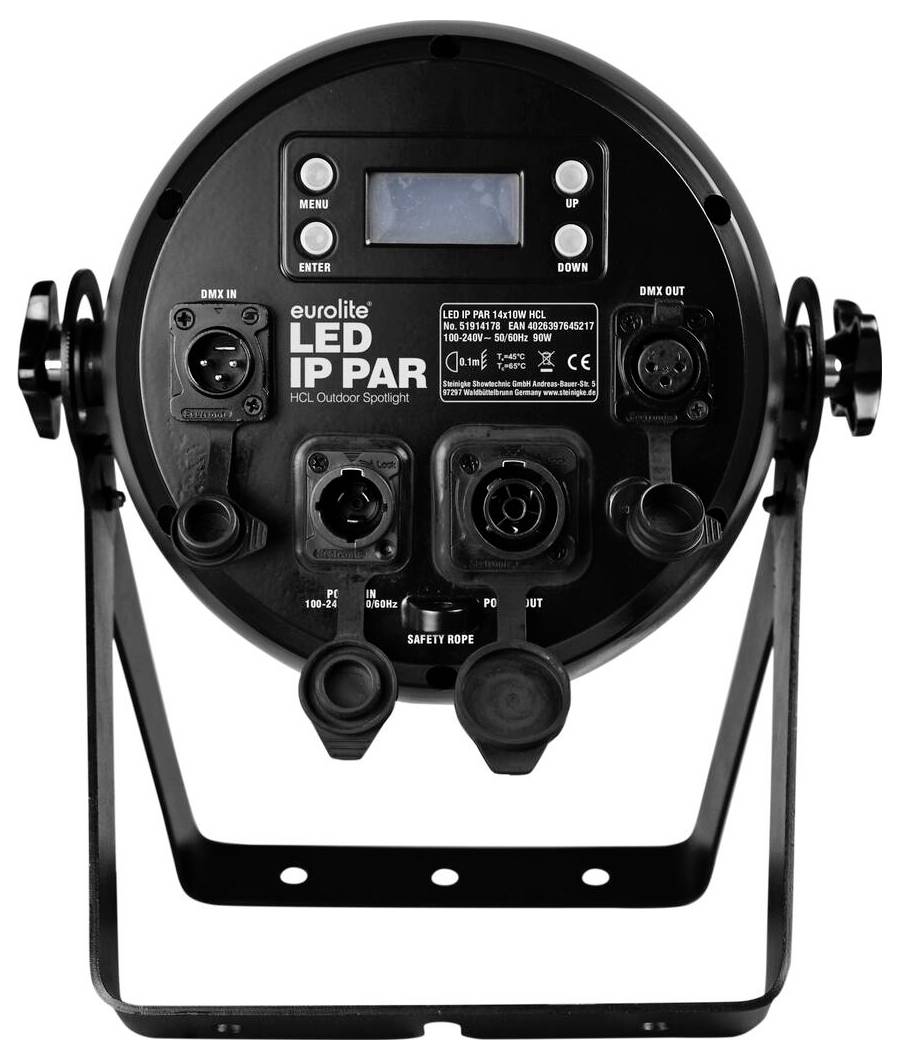

- Power supply: 100-240 V AC, 50/60 Hz; total connected wattage: 95 W; protection class: IP65; protection class: SK I; Power connection: Power feed via IP T-Con (M) Installation version Power supply cable with safety plug (included); Current output: 1 x IP T-Con (W) Installation version; Lamp type: LED lamp; LED-lamp: 14 x 10 W high-Power 6in1 HCL RGBWA/UV (homogeneous color mixing); Flash rate: 5 - 6 Hz; Equipment: Frost filter; DMX channels: 3; 0; 20; 8; 12; DMX input: 3-pin XLR (M) mounting version IP; DMX output: 3-pin XLR (W) mounting version IP; Cooling: passive convection cooling; control: DMX; stand-alone; IR remote control; Pre-programmed with: Light´J; LED PC-Control 512; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light´J; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Projection: flicker-free; Radiation angle: 15°; Radiation angle (1/2 peak): 15°; 27°; 30°; 60°; Housing color: black matt; Recording system: double frame; display type: LCD display; material: aluminum cast; dimensions: width: 31 cm; depth: 22.5 cm; height: 36.5 cm; weight: 6.80 kg; noise classification: class 0 (no noise); photobiological safety: risk group 3; mounting bracket; diameter mounting holes: 1.0 x Ø11mm; material: metal, 3 mm; power cable/power cable; construction: 0 x 3 mmH05RN-F; cable length: Approx. 1.2 m; Remote control; Battery: 1 x button cell 3.0 V CR2025 Lithium-manganese installed; Frost filter; Material: plastic, 2 mm; Dimensions: Diameter: Ø 20.5 cm; XLR cable; Cable length: Approx. 1.5 m; Legal specifications; Special product: Not intended for use in domestic lighting; Intended purpose: Lighting for show-effects

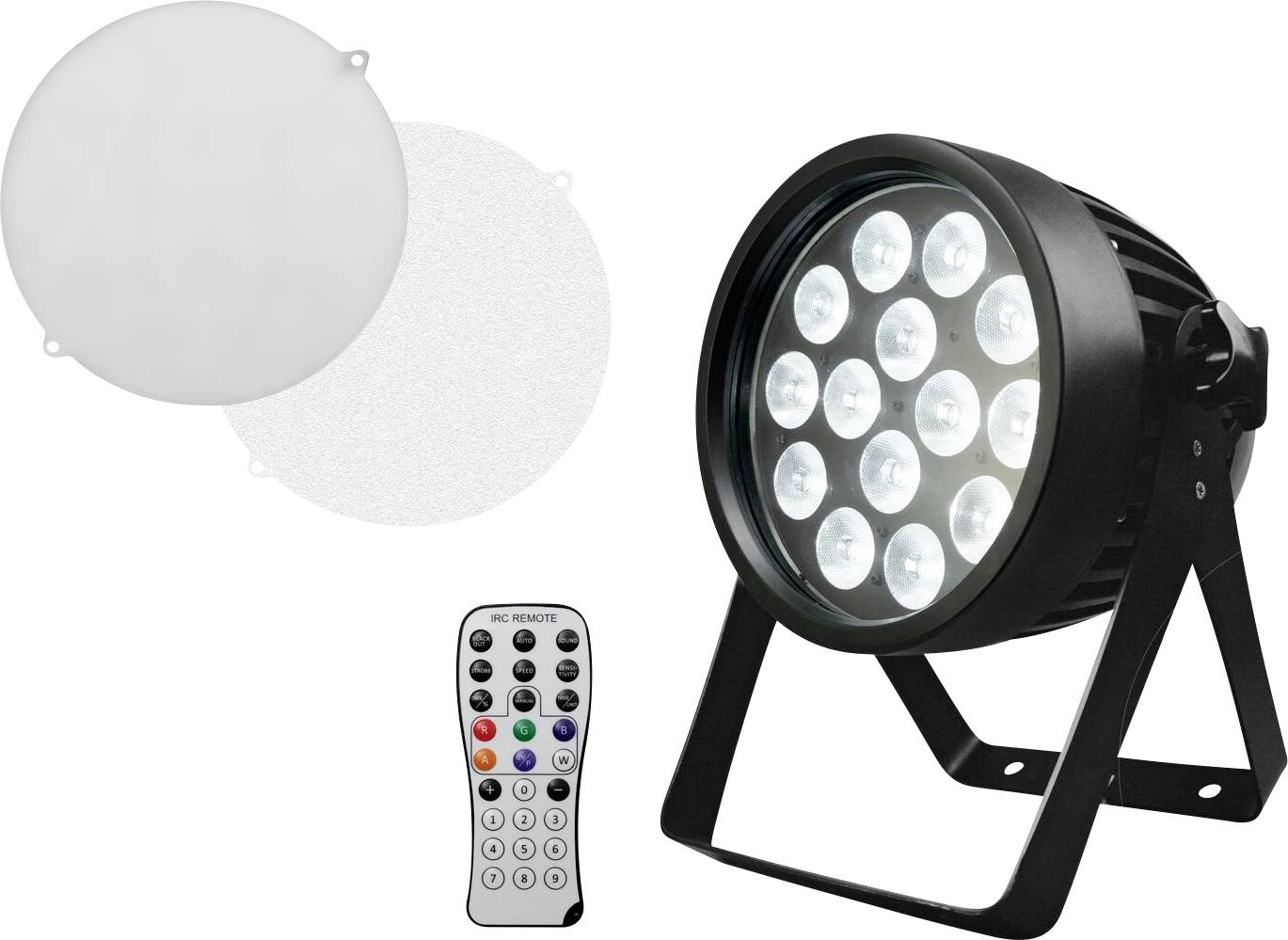

Scope of delivery
- 1 x spotlights
- 1 x Power cable/power cable
- 1x remote control
- 3 x frost filters
- 1 x XLR cables
- 2 x Knurled screw
- 1 x Operating manual
