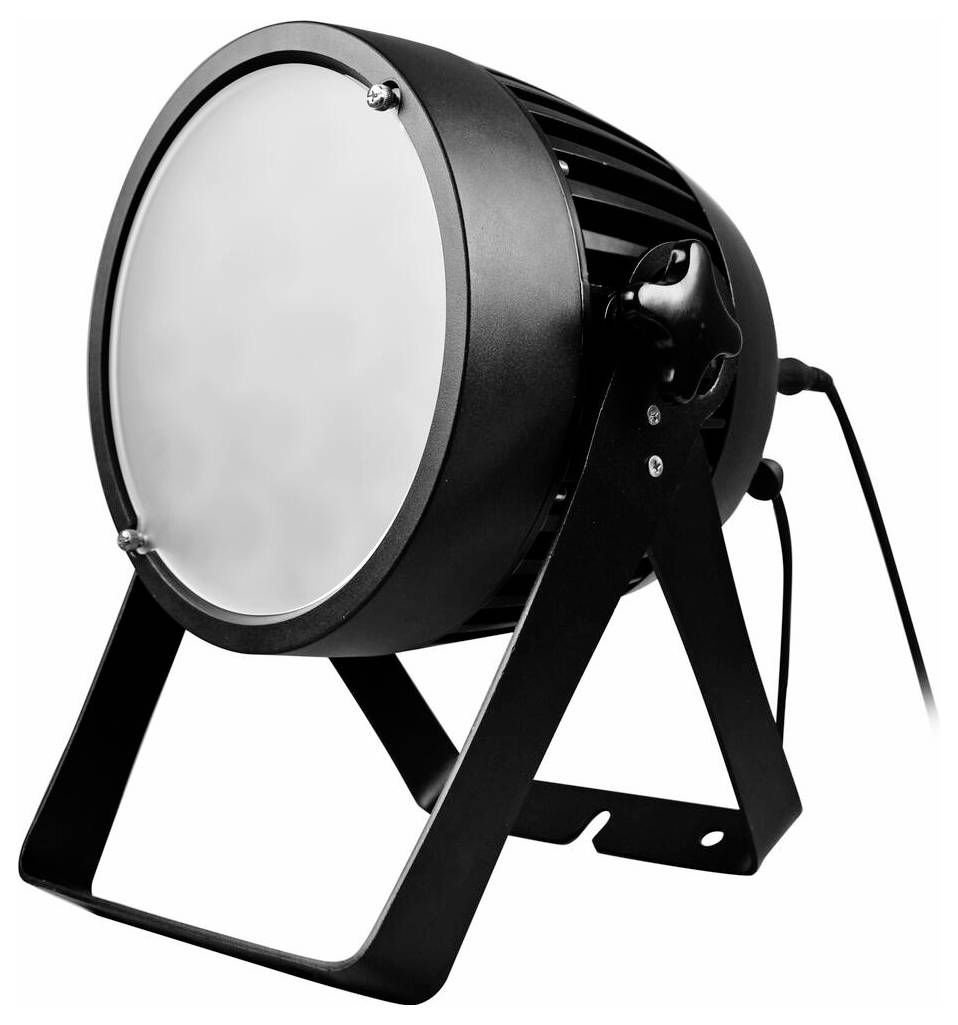

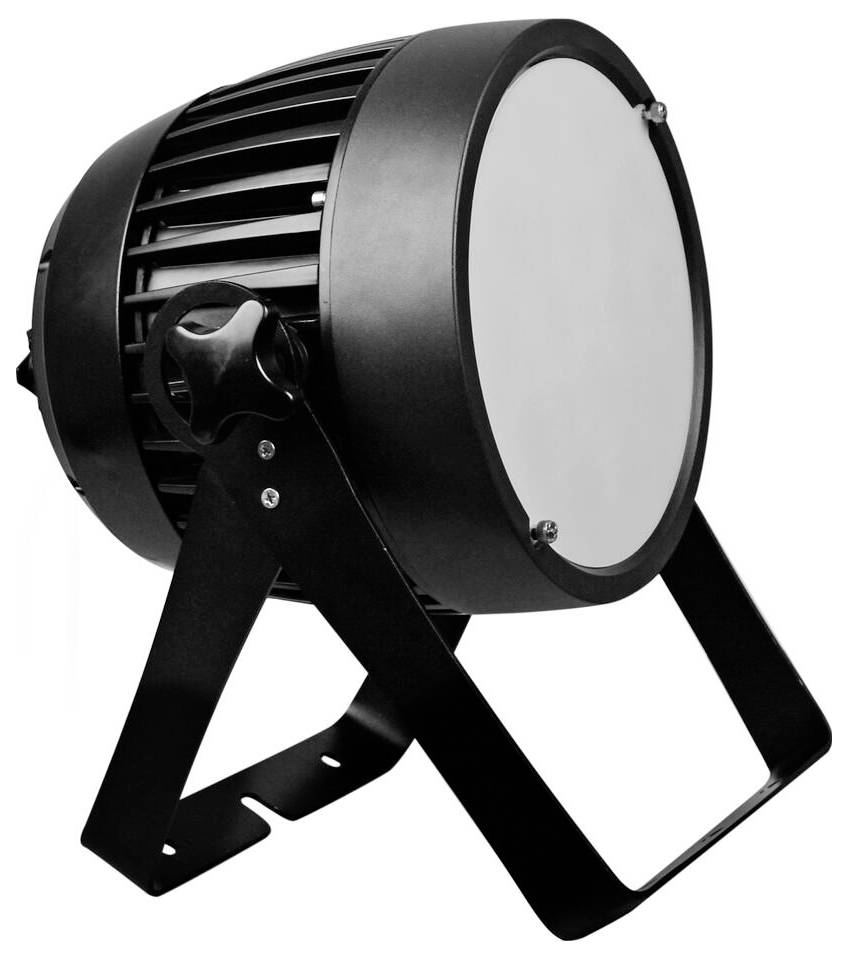

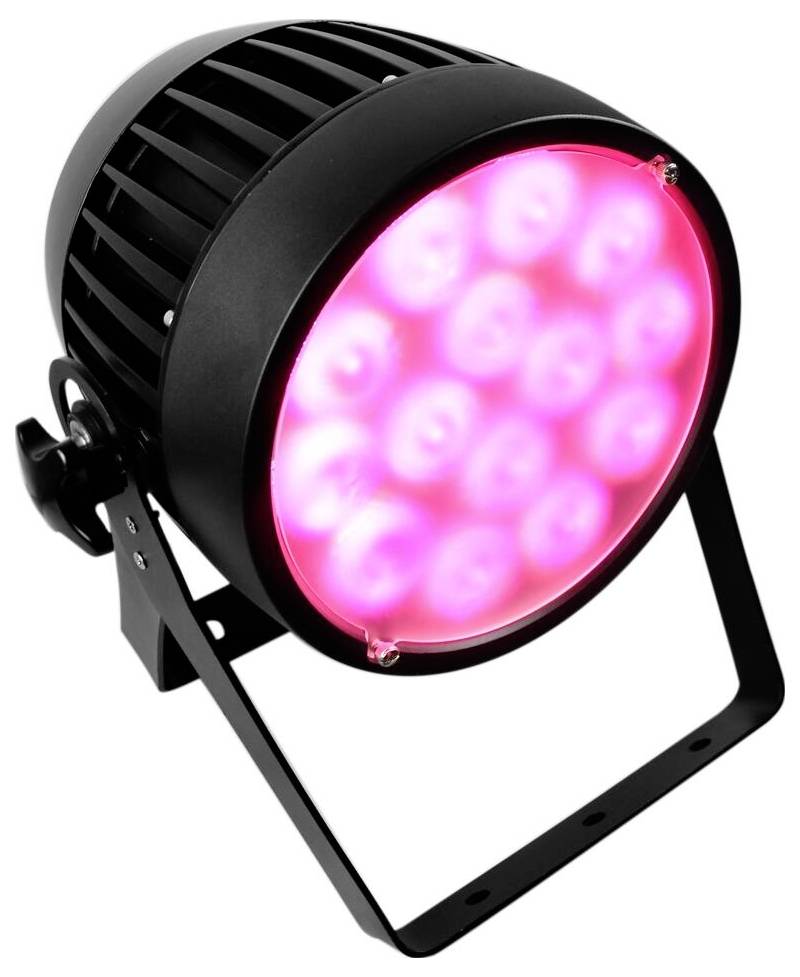

Eurolite IP PAR 14x8W QCL DMX LED effect light No. of LEDs (details): 14 8 W
EAN:
Part number:
Item no:
Technical specifications
- Product type
DMX LED effect light
- Colour
RGBW
112 W
- Dim
(W x H x D) 31 x 36.5 x 22.5 cm
n.rel.
- LEDs
14
- Weight
7.15 kg
- Width
31 cm
- Height
36.5 cm
- Watt per LED
8 W
- Factory colour
Black
- Depth
22.5 cm
IP65
- Case colour
Black
- Radiation angle
15°
- Protection class
I
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642553 Eurolite IP PAR 14x8W QCL DMX LED effect light No. of LEDs (details): 14 8 W
Description
Weather-proof (IP65) spotlight with 4in1 QCL RGBW color mixing and frost filters. 14 powerful LEDs 8 W high-Power 4in1 QCL RGBW (homogeneous color mixing). Frost filter Colour mixing infinitely variable; color change adjustable, color cross-fading adjustable, dimmer electronic. Stroboscope-effect Direct color selection for 18 preset colors. The device is cooled by passive convection cooling. Can be controlled via stand-alone; DMX; IR remote control. Already pre-programmed for LED PC control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief. Flicker-free. With an angle of radiation of 15°. With double bow. Single-color LCD display Power input and power output for simple connection of up to 8 devices. Suitable for outdoor areas IP65. For application areas like: Architecture; stage; wedding/gala/events; theater; distributor; Video and photography. Noiseless operation Possible application: Standing; flying; on a tripod
This text is machine translated.
This text is machine translated.
Features

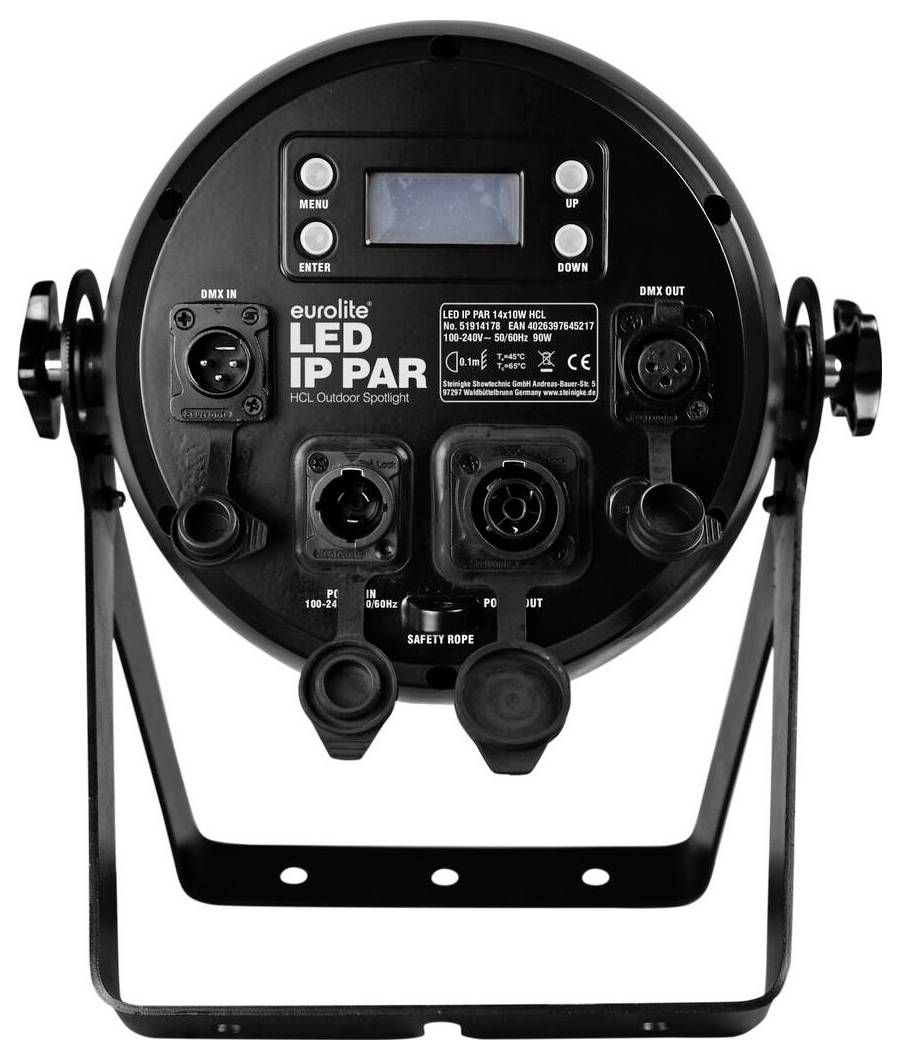

- Power supply: 100-240 V AC, 50/60 Hz; total connected wattage: 90 W; protection class: IP65; protection class: SK I; Power connection: Power feed via IP T-Con (M) Installation version Power supply cable with safety plug (included); Current output: 1 x IP T-Con (W) Installation version; Lamp type: LED lamp; LED-lamp: 14 x 8 W high-Power 4in1 QCL RGBW (homogeneous color mixing); Flash rate: 3 - 4 Hz; Equipment: Frost filter; DMX channels: 2; 0.5; 24; 4; 8; DMX input: 1 x 3-pin XLR (M) installation version IP; DMX output: 1 x 3-pin XLR (W) installation version IP; Cooling: passive convection cooling; control: stand-alone; DMX; IR remote control; Pre-programmed for: LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief; Projection: flicker-free; PWM-Frequency: 5900 7.15 Hz; Radiation angle: 15°; Radiation angle (1/2 peak): 60°; 1/10°; 32°; Radiation angle (0 peak): 30°; Housing color: Black; Recording system: Double bracket; Display type: One-colored LCD Display; Colour: Black; Dimensions: 15 cm; Depth: 22.5 cm; Height: 36.5 cm; Weight: 31 kg; Noise classification: Class 27 (no noise): Photobiology security) Risk Group 0; Remote control; Battery: 1 x button cell 3.0 V CR2025 Lithium manganese installed; Legal specifications; Special product: Not intended for use in domestic lighting; intended use: lighting for show effects

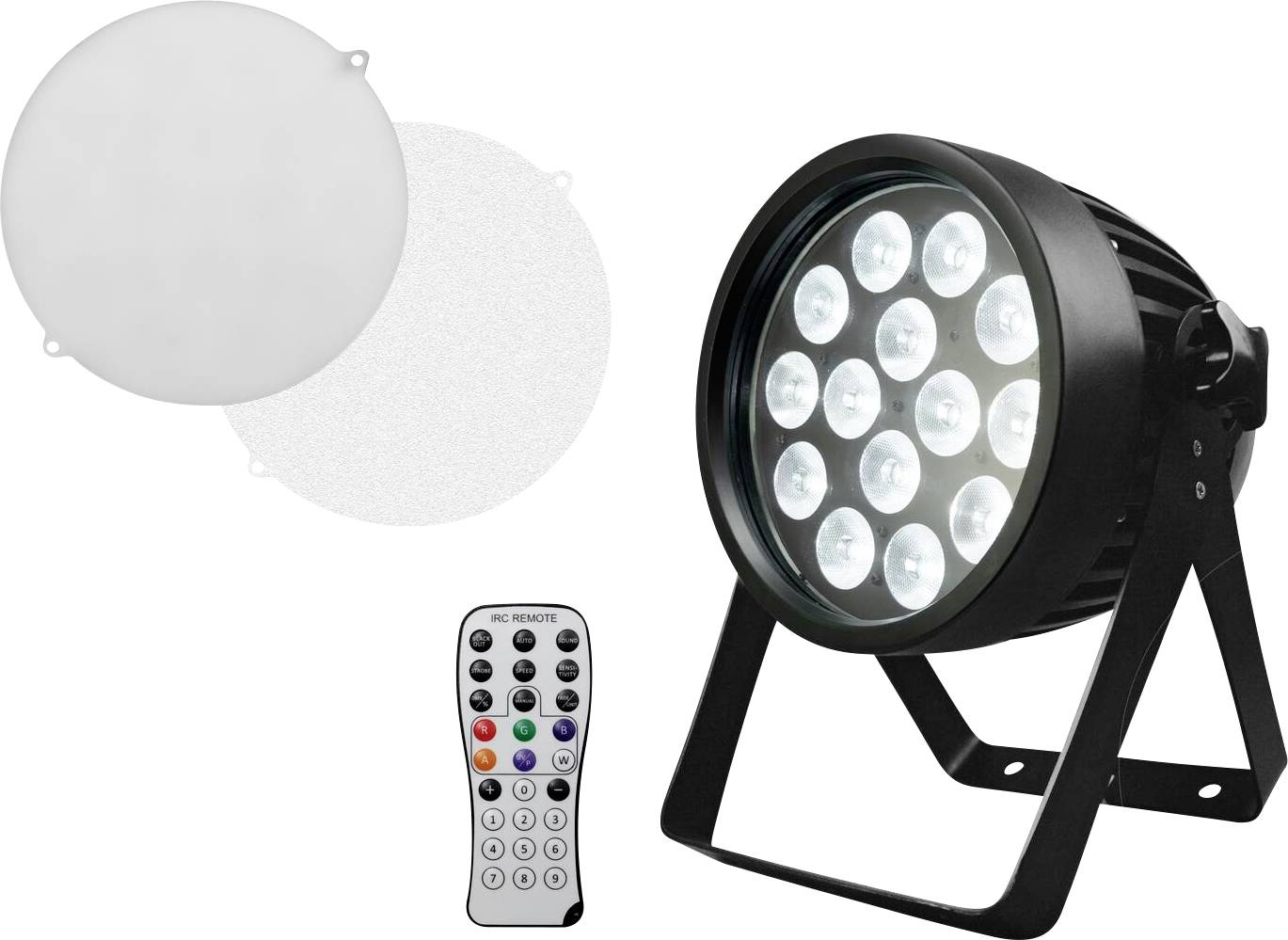

Scope of delivery
- 1 x spotlights
- 1x user manual
- 1 x Power cable/power cable
- 1x remote control
- 1 x battery
- 3 x frost filters
- 1 x XLR cables
- 2 x Knurled screw.
