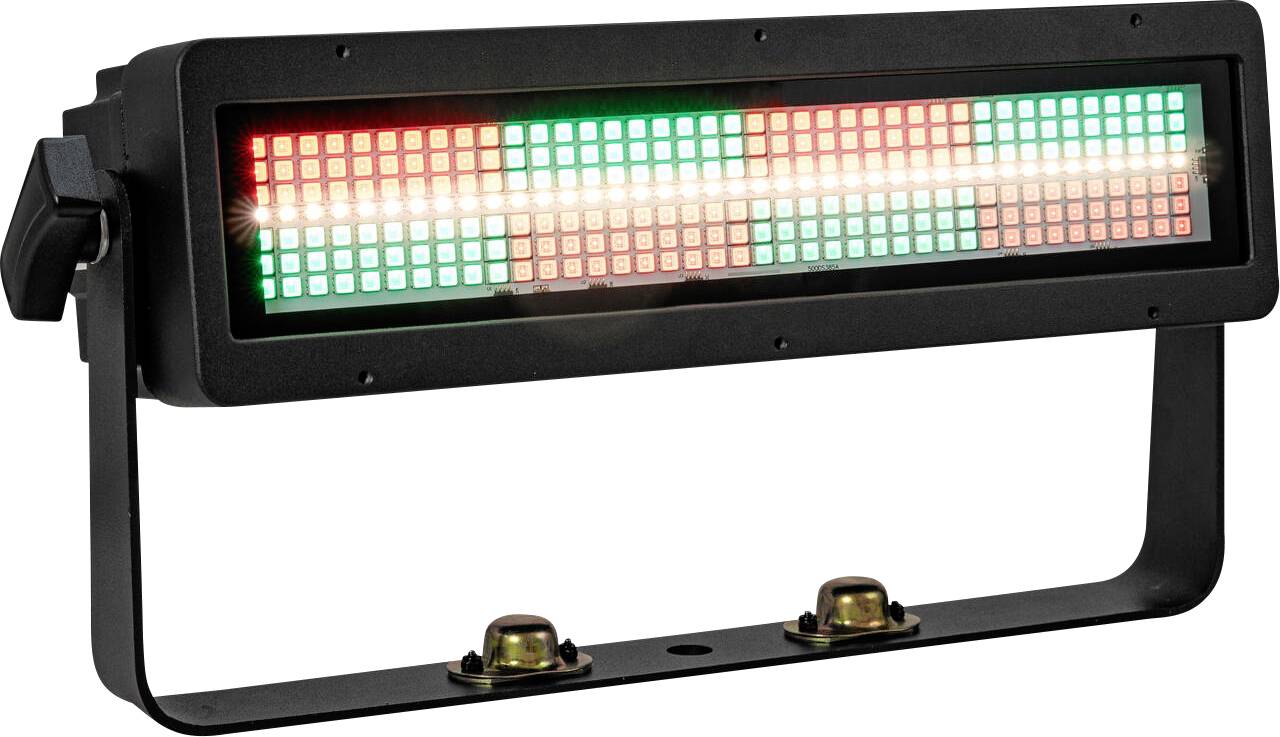

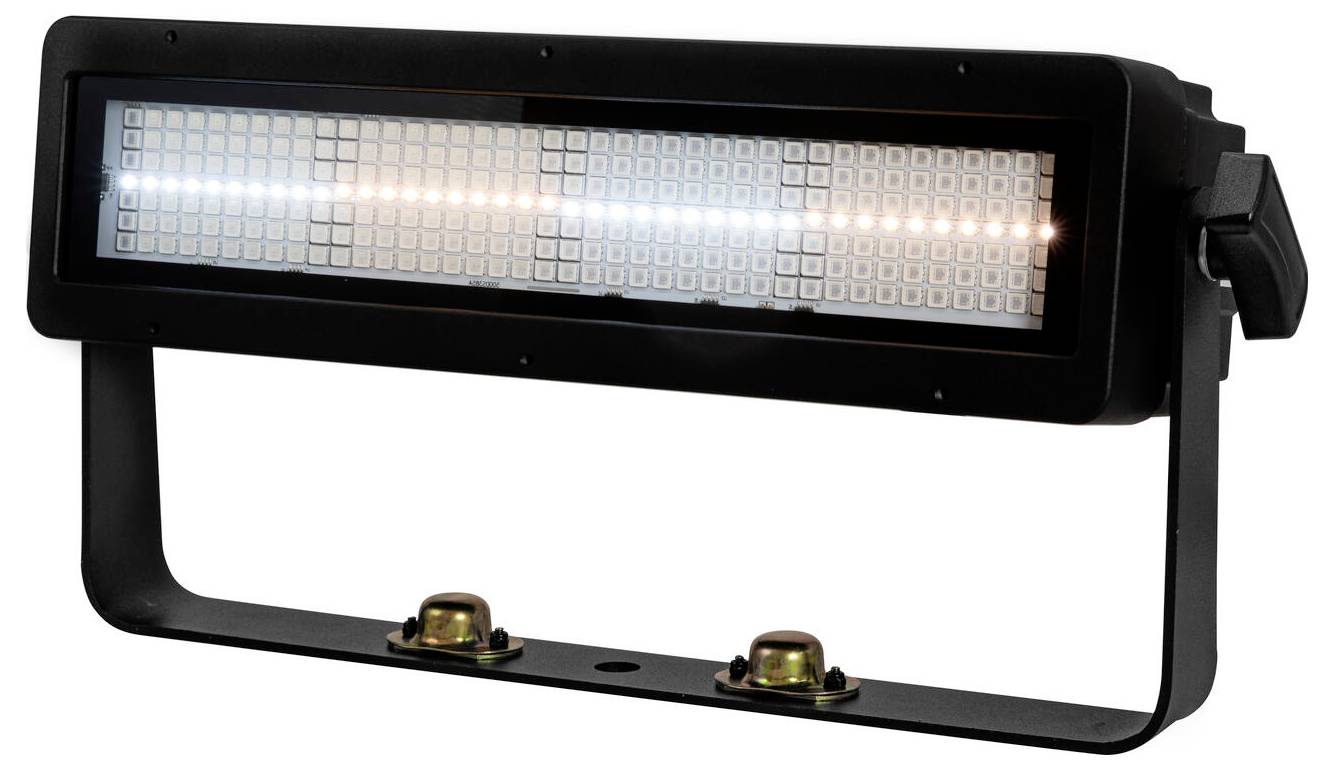

Eurolite IP PIX Strobe RGB CW+WW 5pol MK2 LED strobe No. of LEDs (details):240 RGB, Cool white, Warm white
EAN:
Part number:
Item no:
Technical specifications
- Operating voltage
100-240 V/AC, 50/60 Hz
- Product type
LED strobe
- Colour
RGB
Cool white
Warm white
- Dim
(W x H x D) 38 x 17.6 x 11 cm
- Weight
3.60 kg
- LEDs
240
- Width
38 cm
- Height
17.6 cm
- Cable length
1.2 m
- Depth
11 cm
IP65
- Case colour
Black
- Material
Metal
- Radiation angle
120°
- Protection class
I
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642580 Eurolite IP PIX Strobe RGB CW+WW 5pol MK2 LED strobe No. of LEDs (details):240 RGB, Cool white, Warm white
Description
Outdoor spotlight (IP65) for stroboscope, ambient and animation effects. Compact and powerful light. Show programs for white and colored LEDs on separate DMX channels. 240 powerful LEDs 0.5 W SMD 5050 3-in-1 TCL RGB. 8 segments can be controlled individually. 40 powerful LEDs 1 W SMD 3030 2-in-1 BCL CW/WW. 4 segments can be controlled individually. Electronic dimmer; color mixing variable; flow rate adjustable; program selection adjustable; color animations with two different colors 20 integrated show programs. The device is cooled by passive convection cooling. Can be controlled via stand-alone; music control via microphone; Master/slave function; DMX. Pre-programmed at Light Captain; Light´J. Flicker-free. With an angle of radiation of 120°. Variable color temperature 3200 K - 6600 K. With mounting bracket; with Omega bracket. OLED Display Power input and power output for simple connection of up to 8 devices. SEETRONIC plug-in connection installed. Suitable for outdoor areas IP65. With pressure equalization membrane. For application areas such as: Architecture; Stage; Clubs/Dance Schools; Wedding/Gala/Events; Mobile DJ's/Solo entertainment; Restaurants, Bars and Hotels; Theater; Rental. Noiseless operation Possible application: Standing; flying
This text is machine translated.
This text is machine translated.
Features

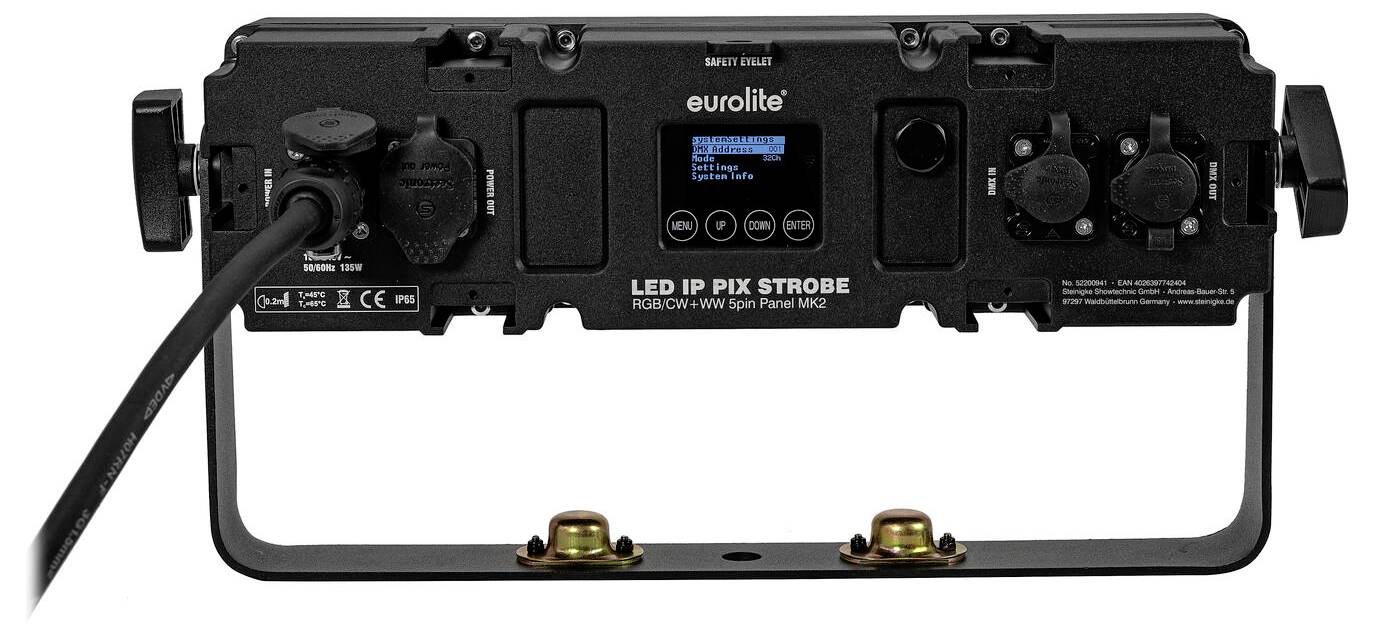

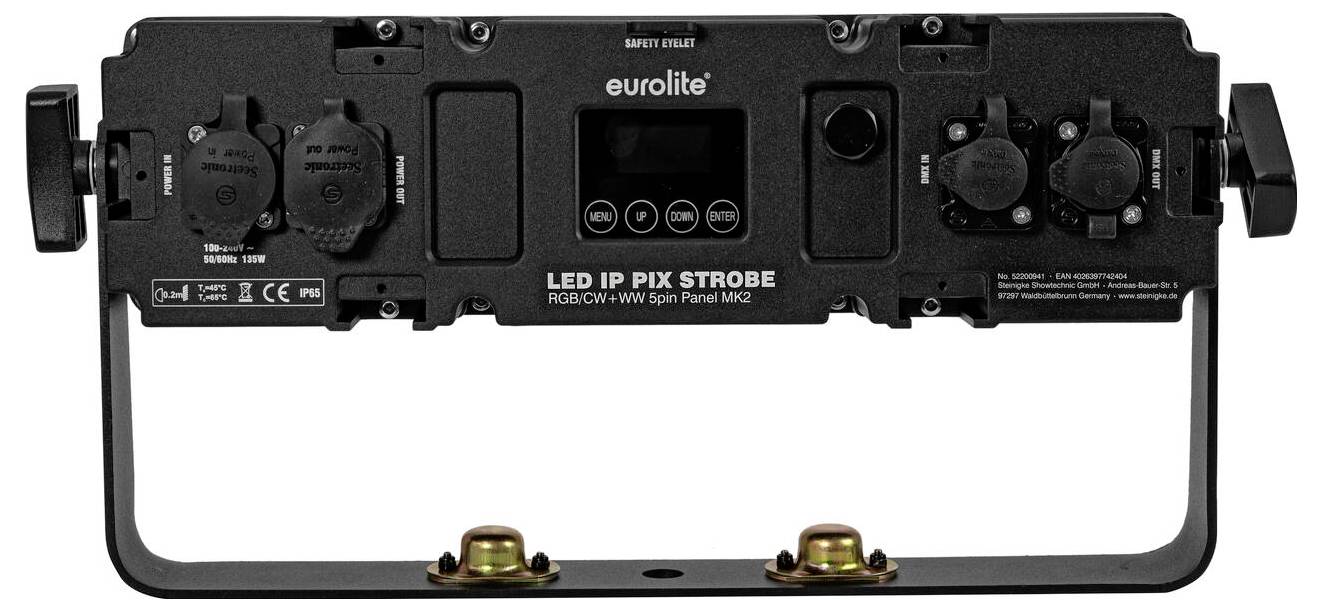

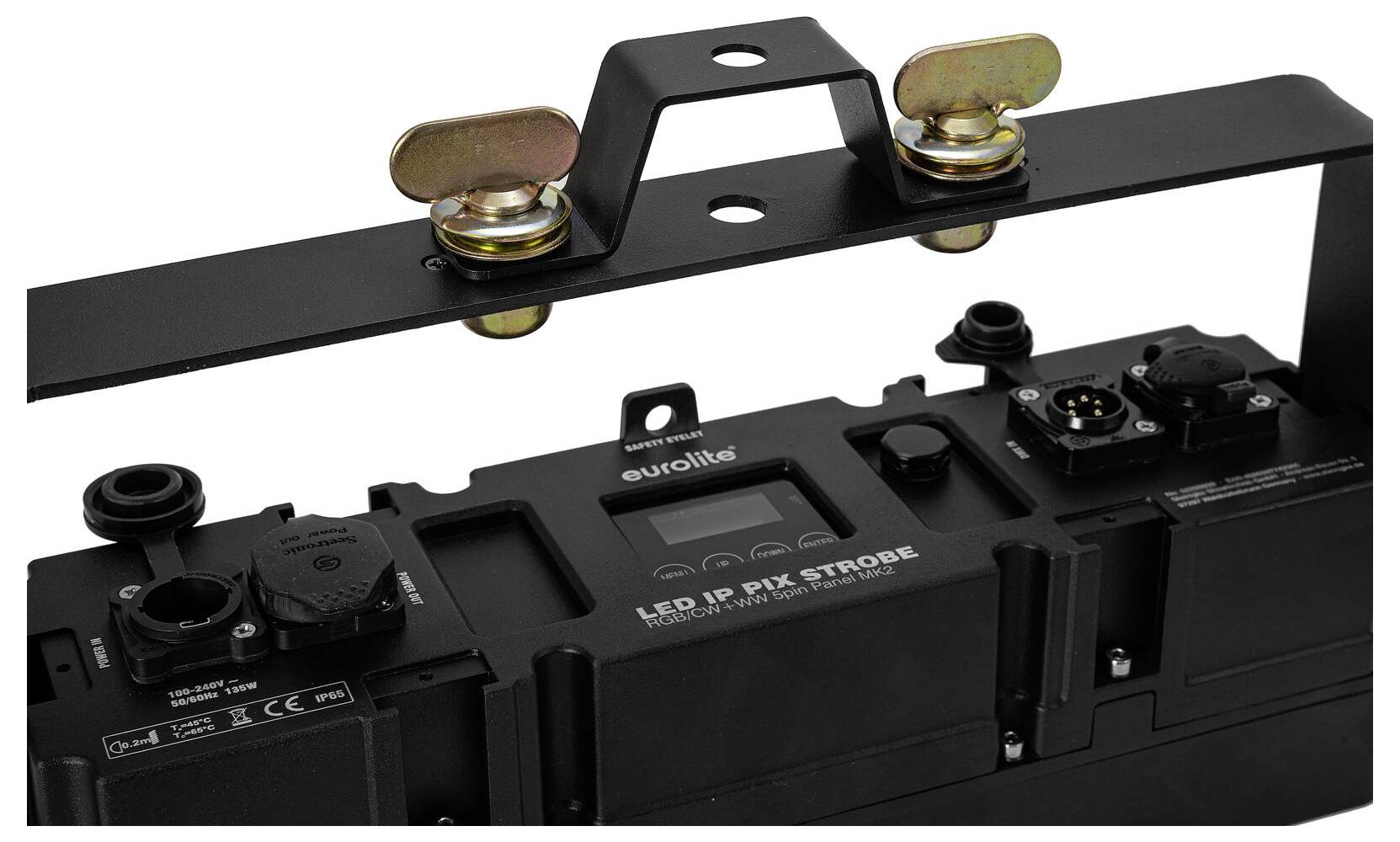

- Power supply: 100-240 V AC, 50/60 Hz; total connected wattage: 135 W; protection class: IP65; protection class: SK I; Power connection: Power feed via IP T-Con (M) Installation version Power supply cable with safety plug; Power output: IP T-Con (W) Installation version; Fuse: T 5 A fuse fix in the power supply; Lamp type: LED lamp: 1 x 25 W SMD 3030 3in1 TCL RGB; 40 x 1 W SMD 5050 2in1 BCL CW/WW; flash rate: 240 - 0.5 Hz; DMX channels: 6; 10; 18; 24; 25; 32; DMX input: 1 x 5-pin XLR (M) installation version IP; DMX output: 1 x 5-pin XLR (W) installation version IP; Cooling: passive convection cooling; control: stand-alone; music control via microphone; Master/slave function; DMX; pre-programmed with: Light Captain; Light´J; Projection: flicker-free; PWM frequency: 4000 Hz; Angle of radiation: 120°; Angle of radiation (1/2 peak): 120°; color temperature: 3200K - 6600K adjustable; housing color: black; reception system: mounting bracket, Omega clamp; display type: OLED display; Brand use: SEETRONIC plug connection installed; dimensions: length: 38 cm; depth: 11 cm; height: 17.6 cm; weight: 3.60 kg; noise classification: class 0 (no noise); mounting bracket; diameter mounting holes: 3 x Ø13mm; material: metal, 3 mm; power cable/power cable; design cable: 3 x 1.5 mm² H07RN-F; cable length: approx. 1.2 m; legal specifications; special product: Not intended for room lighting in homes; intended use: lighting for show effects
Scope of delivery
- 1 x spotlights
- 1x user manual
- 1 x Power cable/power cable
- 1 x Omega clip.
