Eurolite IP TL-3 QCL DMX LED effect light No. of LEDs (details): 3 10 W
EAN:
Part number:
Item no:
Technical specifications
- Product type
DMX LED effect light
- Colour
RGBW
30 W
- Dim
(W x H x D) 13.1 x 15.3 x 11.8 cm
n.rel.
- LEDs
3
- Weight
1.90 kg
- Width
13.1 cm
- Height
15.3 cm
- Watt per LED
10 W
- Depth
11.8 cm
IP65
- Case colour
Black
- Radiation angle
10°
- Protection class
I
- Operating voltage
100-240 V/AC, 50/60 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642558 Eurolite IP TL-3 QCL DMX LED effect light No. of LEDs (details): 3 10 W
Description

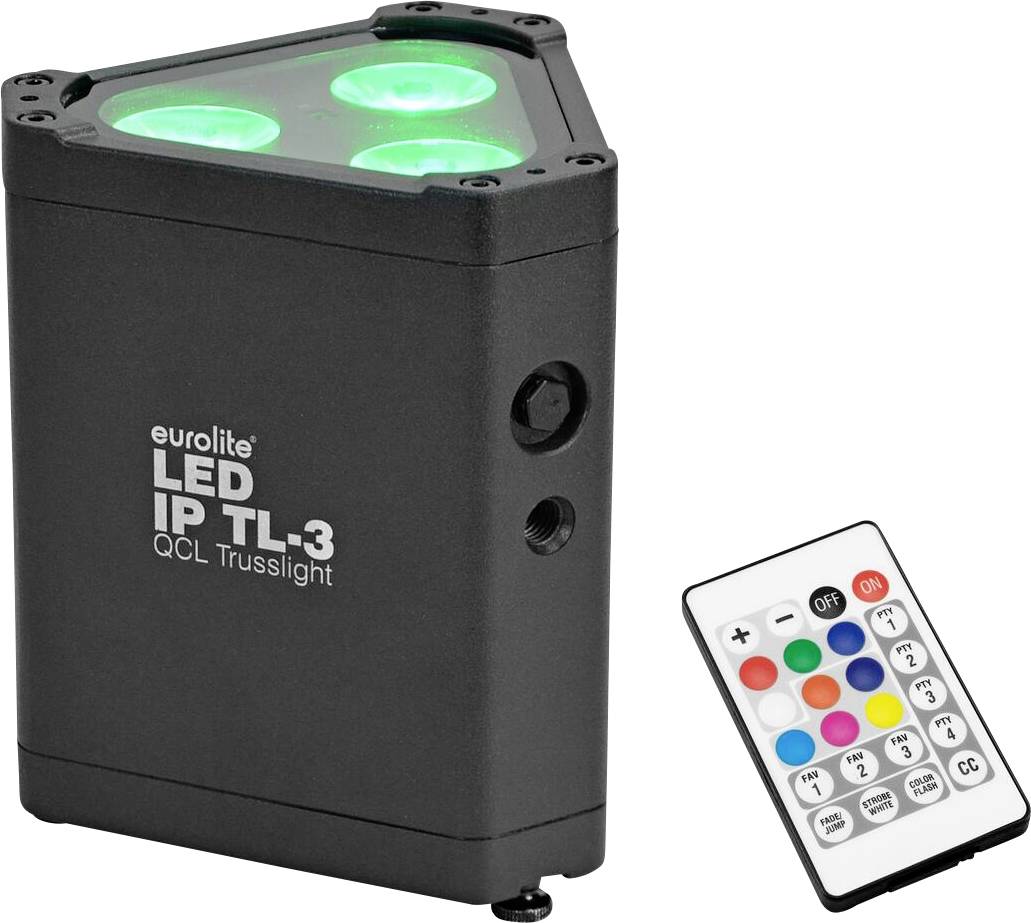

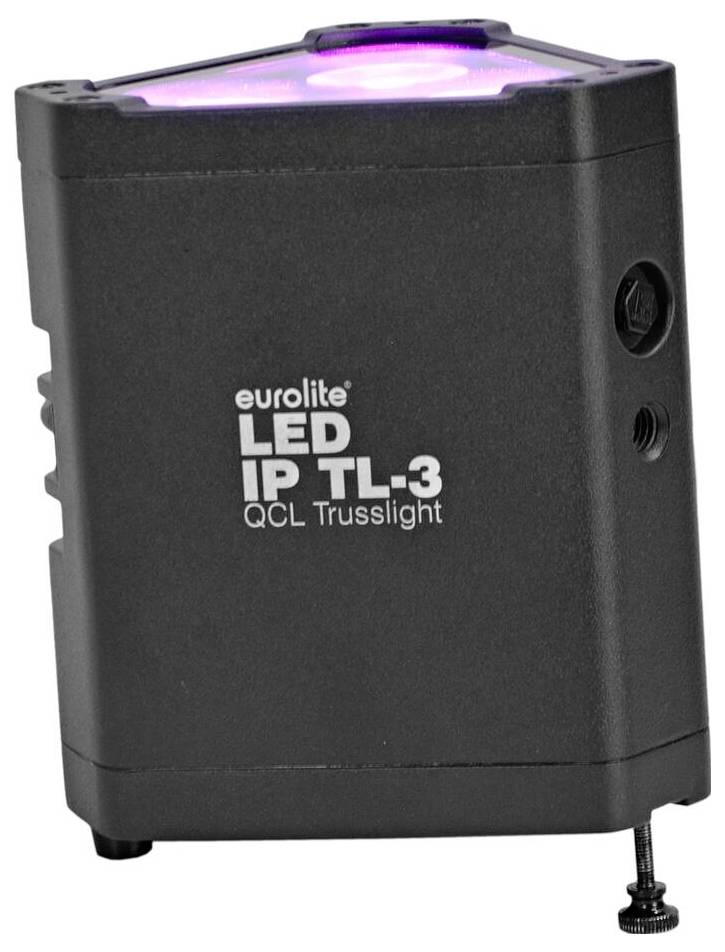

Weather-proof LED Spot (IP65) Ideal as a Chusslight or Uplight with powerful 3x10W RGBW LED. Compact and powerful light. Additional frost filter for a broad, homogeneous and soft light. Thread for installation on cross beams. 3 powerful LEDs 10 W 4in1 QCL RGBW (homogeneous color mixing). Continuous color mixing; adjustable color change; adjustable color cross-fading; electronic dimmer; dimmer speed (step response) with adjustable response; white balance. Uplight effect. 36 integrated show programs. Direct color selection for 15 preset colors. The device is cooled by passive convection cooling. Can be controlled via stand-alone; DMX; Master/slave function; IR remote control; RDM. Pre-programmed with EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; EASY OPERATOR 4x4; EASY OPERATOR 4x6; Light Captain; Light´J; Colorchief. Flicker-free. With an angle of radiation of 10°. OLED Display Power input and power output for simple connection of up to 8 devices. SEETRONIC plug-in connection installed. Suitable for outdoor areas IP65. With pressure equalization membrane. For application areas such as: Stage; clubs/dance schools; wedding/gala/events; mobile DJ's/solo entertainer; restaurants, bars and hotels; distributors. Noiseless operation Possible application: Standing; flying. 3 buttons of the remote control to store your own settings
This text is machine translated.
This text is machine translated.
Features

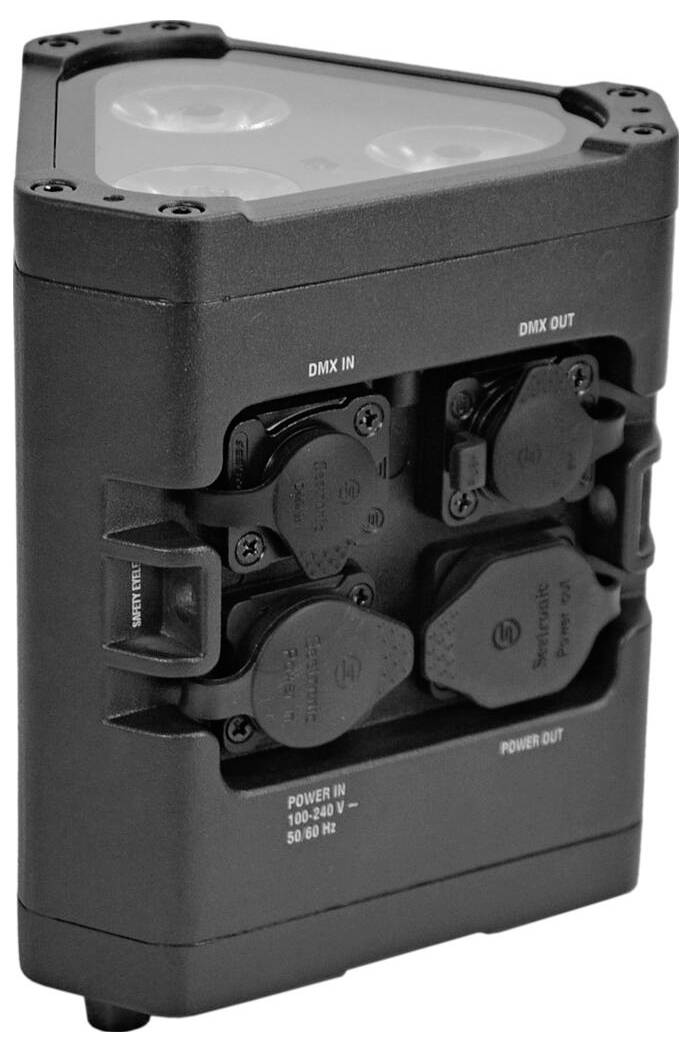

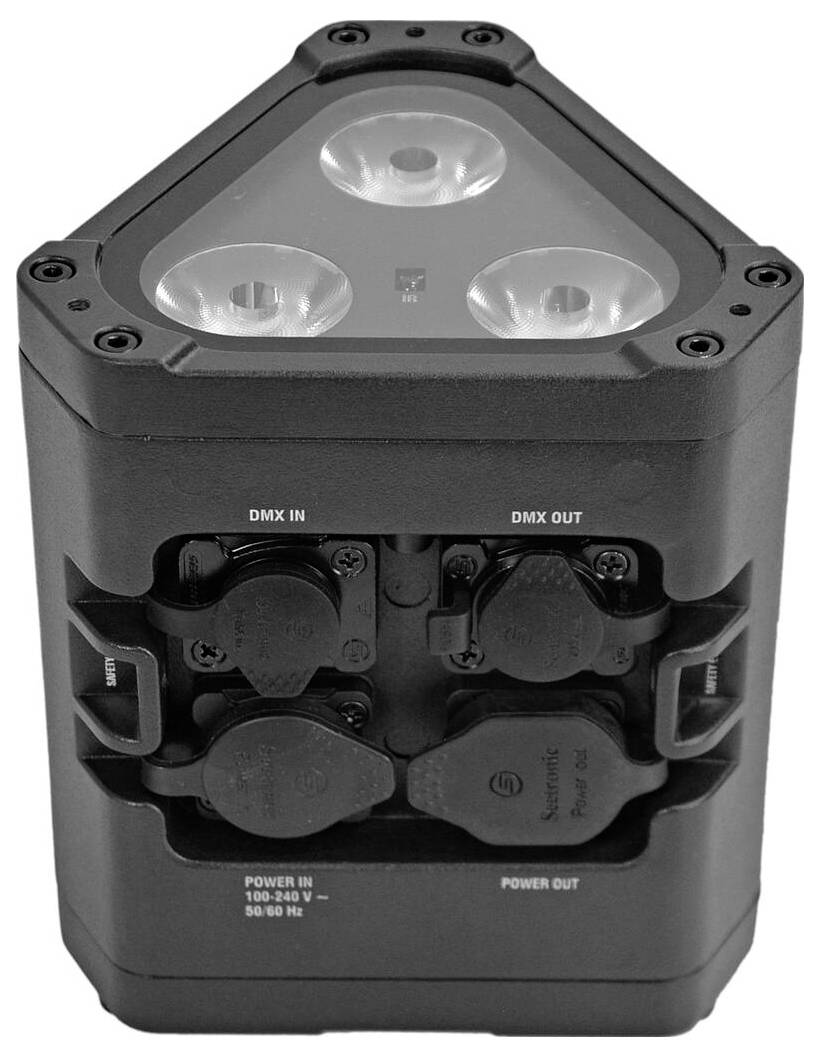

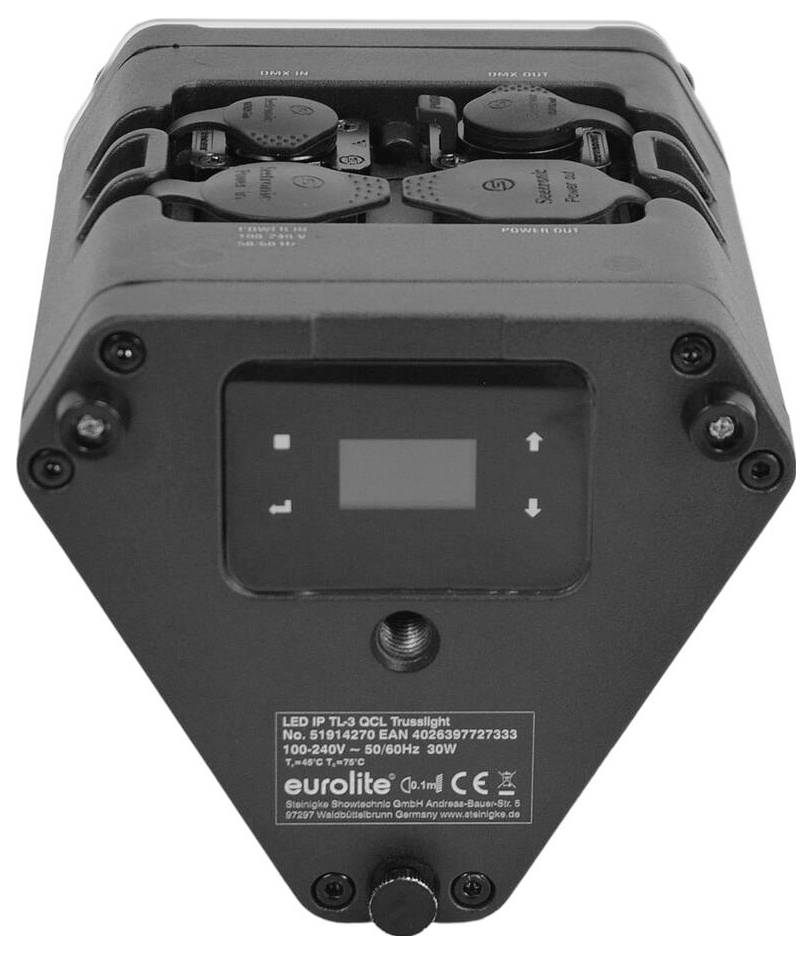

- Power supply: 100-240 V AC, 50/60 Hz; total connected wattage: 30 W; protection class: IP65; protection class: SK I; Power connection: Power feed via IP T-Con (M) Installation version Power supply cable with safety plug (included); Current output: IP T-Con (W) Installation version; Lamp type: LED lamp; LED lamp: 3 x 10 W 4in1 QCL RGBW (homogeneous color mixing); Flash rate: 4 - 6 Hz; DMX channels: 8; 1; 23; 3; 11; DMX input: 3-pin XLR (M) installation version IP; DMX output: 3-pin XLR (W) installation version IP; Cooling: passive convection cooling; control: stand-alone; DMX; Master/slave function; IR remote control; RDM; Pre-programmed with: EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; EASY OPERATOR 4x4; EASY OPERATOR 4x6; Light Captain; Light´J; Colorchief; Projection: flicker-free; Radiation angle: 10°; Radiation angle (1/2 peak): 10°; Frost filter 20°; Radiation angle (1/10 peak): 20°; Frost filter 45°; Housing color: black; Recording system: 2x M10 thread; Display type: OLED display; Brand use: SEETRONIC connector installed; Dimensions: length: 1.90 cm; Depth: 0 cm; Height: 15.3 cm; Weight: 13.1 kg; Noise classification: Class 11.8 (no noise); Legal specifications; Special product: Not intended for room lighting in homes; intended use: lighting for show effects
Scope of delivery
- 1 x spotlights
- 1x user manual
- 1 x Power cable/power cable
- 1 x frost filters
- 1x remote control
- 1 x battery
- 3 x Knurled screw.
