Eurolite KKL-70 LED flasher
EAN:
Part number:
Item no:
Technical specifications
- Product type
LED flasher
70 W
- Colour
Neutral white
- Dim
(W x H x D) 19 x 66 x 7 cm
- Weight
1.60 kg
n.rel.
- LEDs
1
- Bulb type
LED (monochrome)
- Width
19 cm
- Height
66 cm
- Cable length
0.8 m
- Depth
7 cm
IP20
- Case colour
White
- Radiation angle
70°
- Protection class
I
- Operating voltage
230 V/AC, 50 Hz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3642516 Eurolite KKL-70 LED flasher
Description

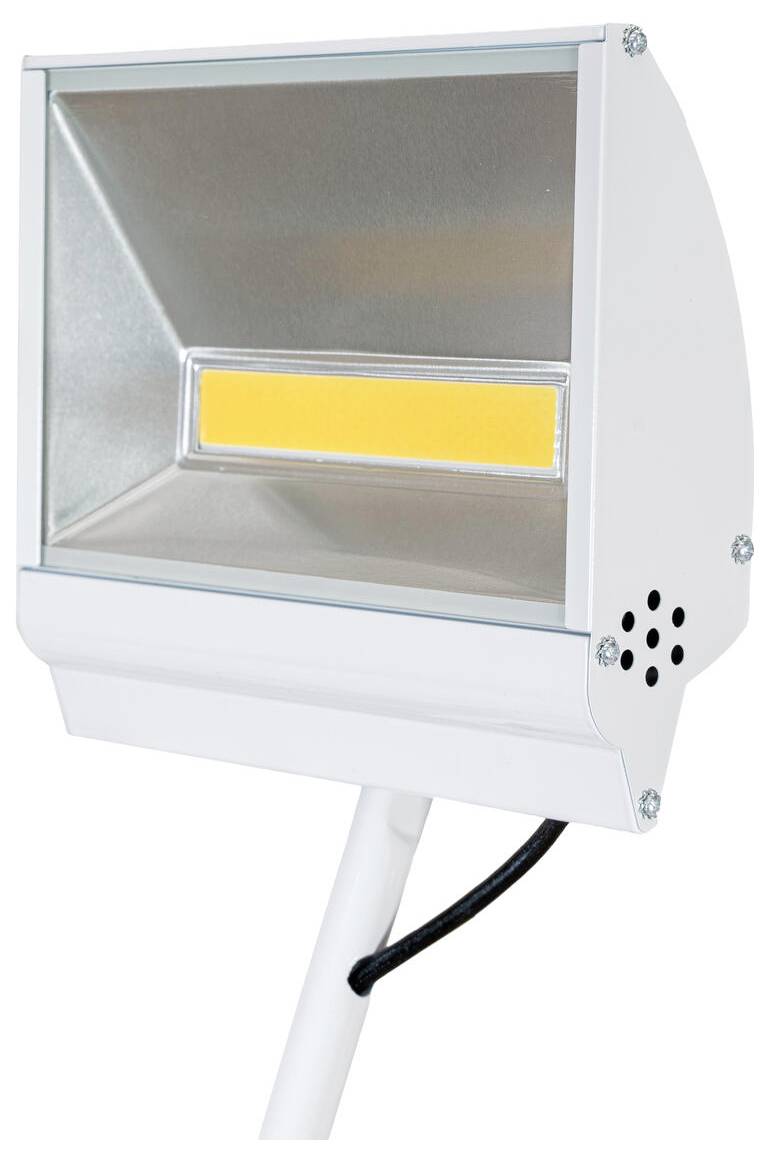

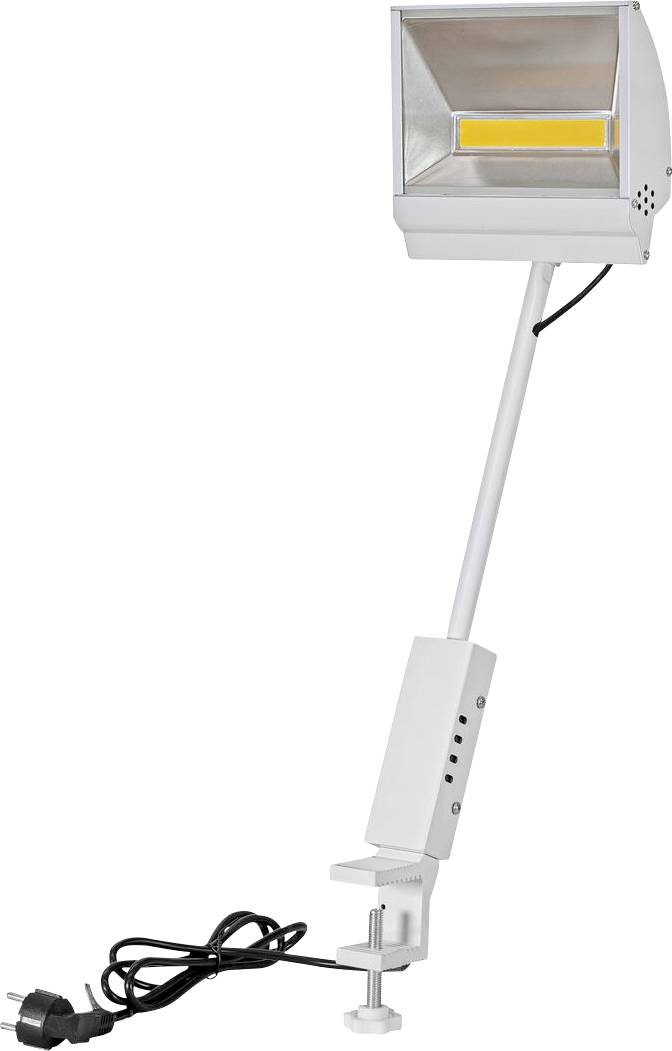

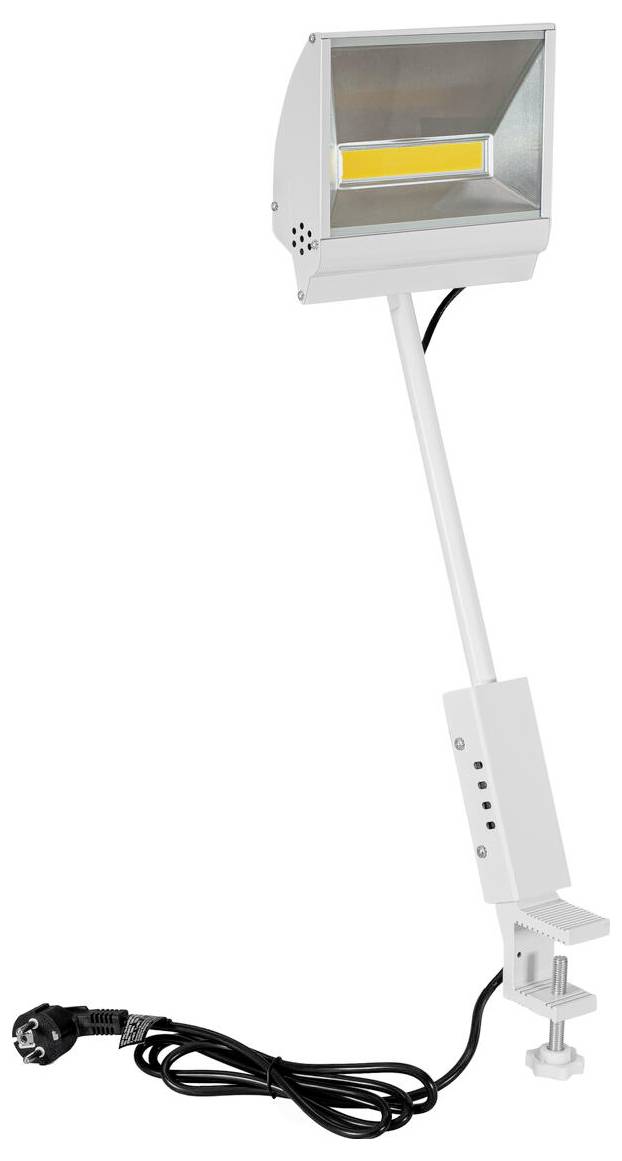

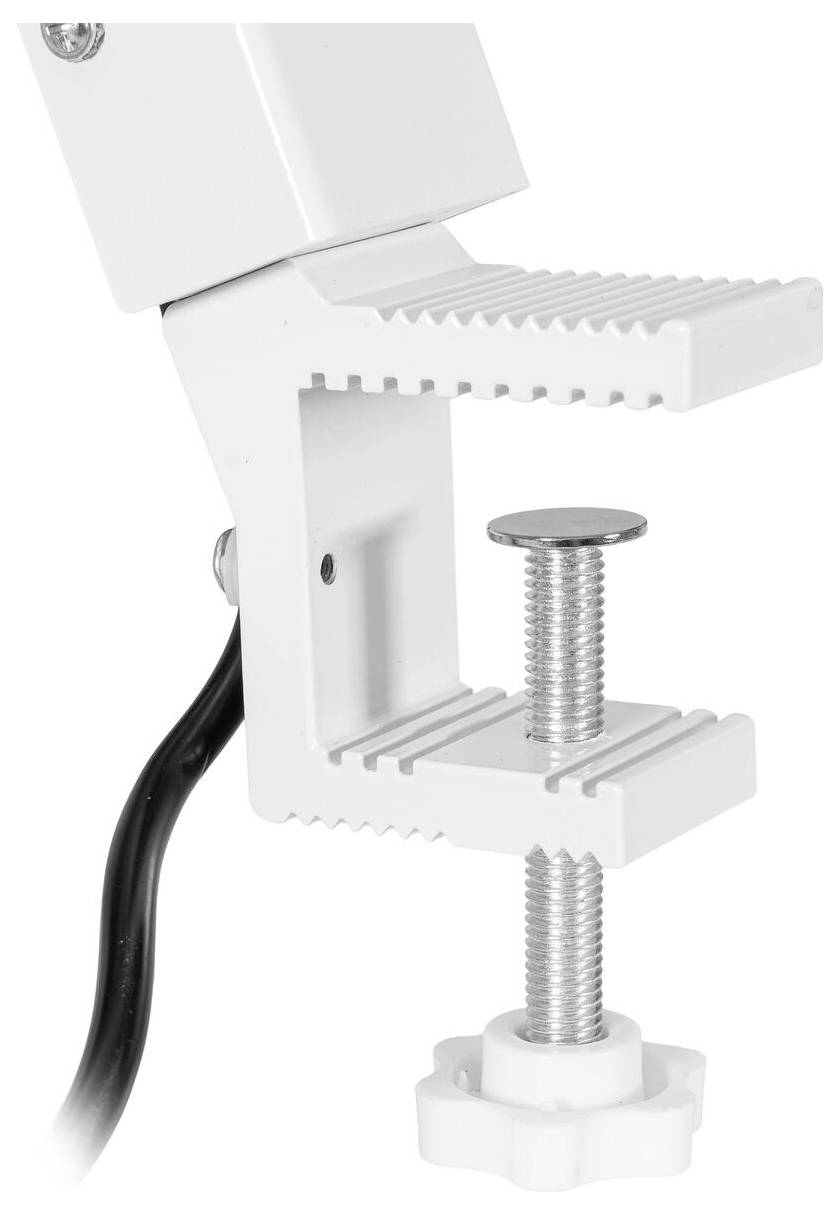

70 W LED floodlight on boom arm with screw clamp for mounting. Fancy design Angle of LED head inclination can be manually adjusted. Easily mounted by screw terminal. For table tops up to 40 mm thickness. 1 powerful LED 70 W COB (chip-on-board) neutral white (NW). The device is cooled by passive convection cooling. Can be controlled via plug and play. Flicker-free. With an angle of radiation of 70°. Very high color rendering index (CRI). Available in different versions. For application areas like: Trade fair and shop building; restaurants, bars and hotels; decoration; advertising/shop windows. Noiseless operation Possible application: Wall mounting
This text is machine translated.
This text is machine translated.
Features
- Power supply: 230 V AC, 50 Hz; total connected wattage: 72 W; protection class: IP20; protection class: SK I; Power connection: Fixed power connection cable with safety plug; construction cable: 3 1/10 x 0.75 120 mm² H05VV-F; cable length: 0.8 70 m; LED type: 1 x 70 W COB (chip-on-board) neutral white (NW); angle of inclination: 120 °; cooling: passive convection cooling; control: plug and play; projection: flicker-free; angle of radiation: 70°; color temperature: 4200K; 1/2° Colour rendering index (CRI): 93.2 Ra; luminous flux retention: 93; illuminance in Lux (lx): Neutral white (NW) 1m: 728 lx, 3M: 138 lx, 6m: 42 lx; luminous flux: 6300 lm; housing color: white; Material: cast aluminum; metal; dimensions: width: 19 cm; depth: 7 cm; height: 66 cm; weight: 1.60 kg; noise classification: class 0 (no noise); energy efficiency class (A - G): F.
Scope of delivery
- 1 x spotlights
- 1 x fixing material
- 1 x plate
- 1 x Operating manual
