Eurolite KLS-60 LED bar No. of LEDs (details): 1
EAN:
Part number:
Item no:
Highlights & Details

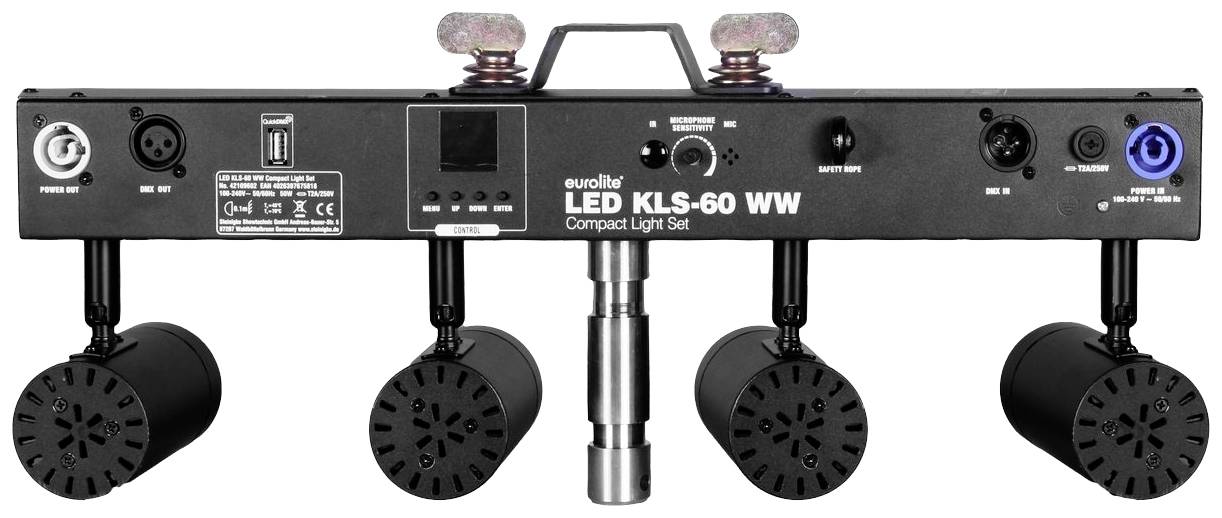

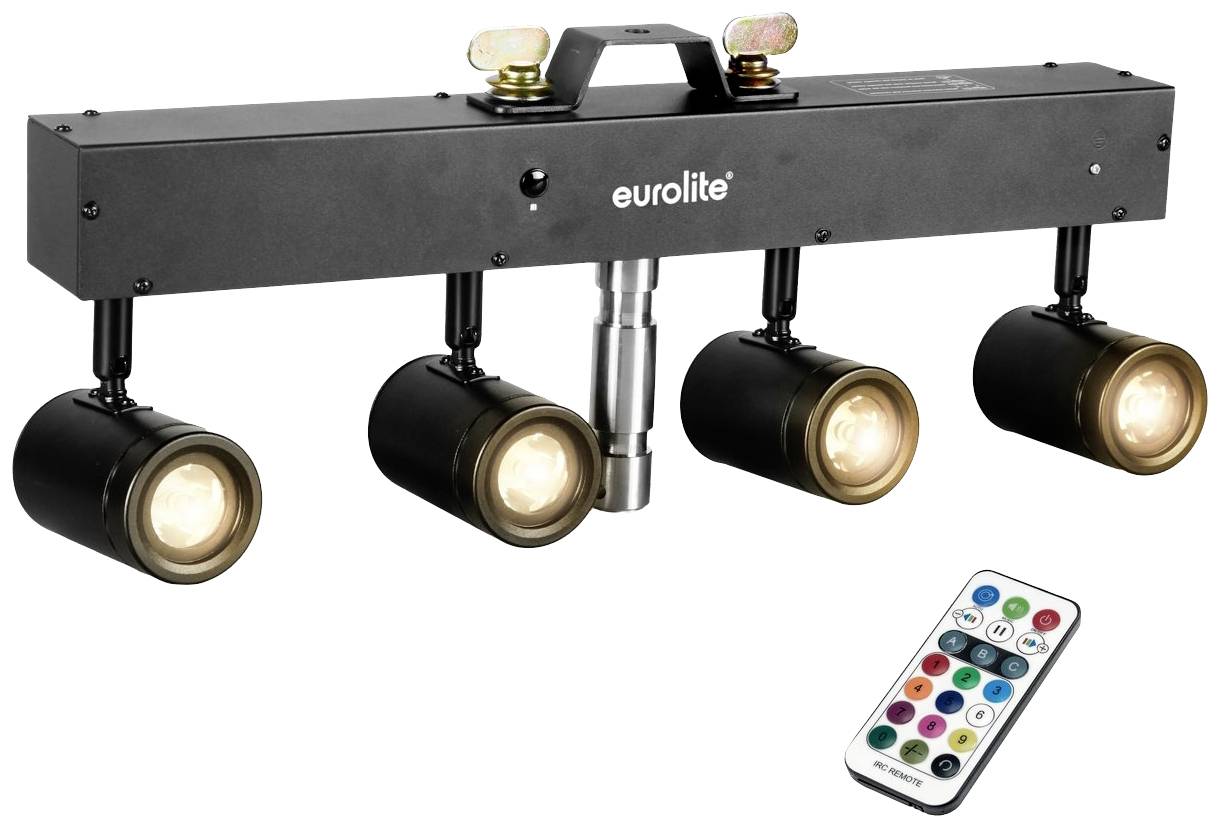

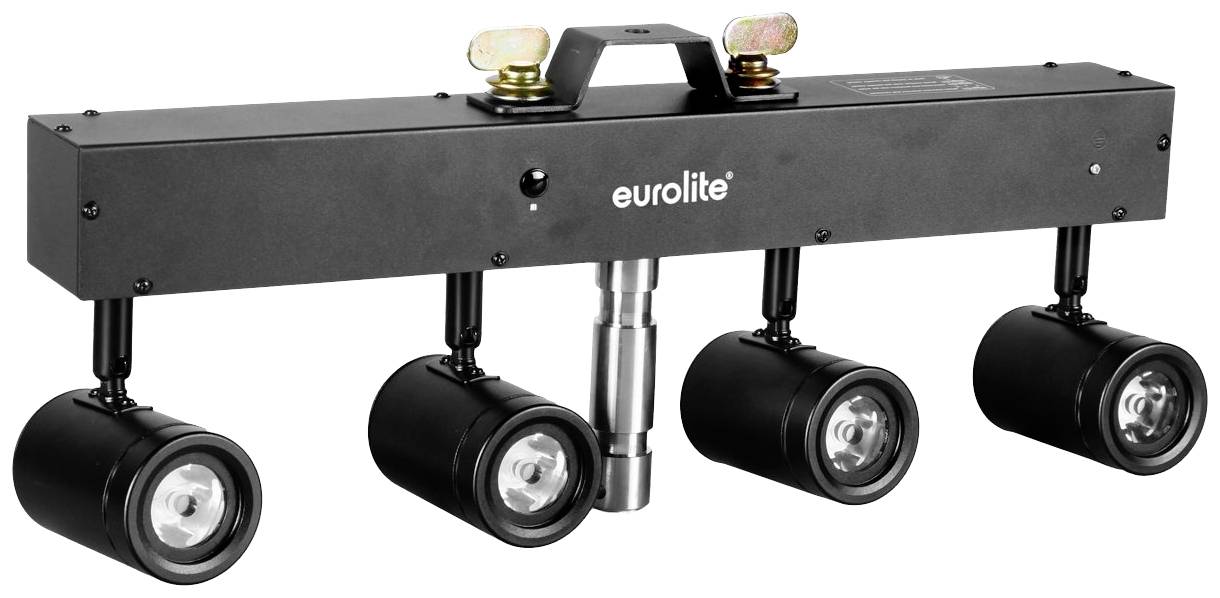

Eurolite LED KLS-60 WW compact light-set
- Spots can be rotated 170° vertically and 340° horizontally
- 4 powerful LEDs 15 W high-power warm-white (WW)
- 4 spots can be controlled individually
- 12 integrated show programs
Technical specifications
- Operating voltage
100 - 240 V
- Product type
LED bar
50 W
- LEDs
1
- Colour
Warm white
- Dim
(L x W x H) 510 x 121 x 212 mm
- Weight
4.2 kg
n.rel.
- DMX control
Yes
- Width
121 mm
- Height
212 mm
- Length
510 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131247 Eurolite KLS-60 LED bar No. of LEDs (details): 1
Description
Bar with 4 bright, warm-white spots, Quick
DMX socket, IR remote control and case
Compact lightweight
Noiseless operation
Stroboscope-effect
Electronic dimmer
Very high color rendering index (CRI)
Flicker-free
Multi-colored OLED display
Can be controlled via DMX; stand-alone; IR remote control, master/slave function, music control via microphone QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by Lumen Radio via USB (optional)
Pre-programmed by Light Captain
Power input and power output for simple connection of up to 8 devices
For application areas such as: Mobile use; wedding/gala/events; trade fair and shop building; restaurants, bars and hotels
Possible application: On-the-fly; on a tripod
This text is machine translated.
DMX socket, IR remote control and case
Compact lightweight
Noiseless operation
Stroboscope-effect
Electronic dimmer
Very high color rendering index (CRI)
Flicker-free
Multi-colored OLED display
Can be controlled via DMX; stand-alone; IR remote control, master/slave function, music control via microphone QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by Lumen Radio via USB (optional)
Pre-programmed by Light Captain
Power input and power output for simple connection of up to 8 devices
For application areas such as: Mobile use; wedding/gala/events; trade fair and shop building; restaurants, bars and hotels
Possible application: On-the-fly; on a tripod
This text is machine translated.
Features
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 50 W
- Power connection: Power feed via P-Con (blue), installation version power connection cable with safety plug (included)
- Display type: Multicolor OLED display
- Protection class SK I
- Cooling: Passive convection cooling
- Housing colour black.
- Protection class: IP20
- Mounting system: TV-tap Ø 28mm
- DMX control
- LED lamp type
- LED:4 x 15 W high-power warm white
- Colour temperature: 3200K
- DMX channels: 1
- DMX input 1 x 3-pin XLR (M) installation version
- Master/slave function: Master/slave function
- Pre-programmed with: Light Captain
- Radiation angle: 5°
- Beam angle (1/2 peak) 5°
- Beam angle (1/10 peak) 10°
- Colour rendering index (CRI): 91 Ra
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- 5 x 20 mm, T 2 A fuse can be replaced
- DMX output 1 x 3-pin XLR (W) built-in version
- Illuminance (lx): 350 lx
- Power output 1 x P-Con (gray), installation version
- Music control via microphone
- CRMX by Lumen Radio via USB (optional)
- W-DMX by Wireless Solution via USB (optional)
- QuickDMX via USB (optional)
- Stand-alone
- IR remote control
- Omega clip
Scope of delivery
- Device
- User manual
- Network cable/power cable
- 8 x diffuser disk
- Remote control

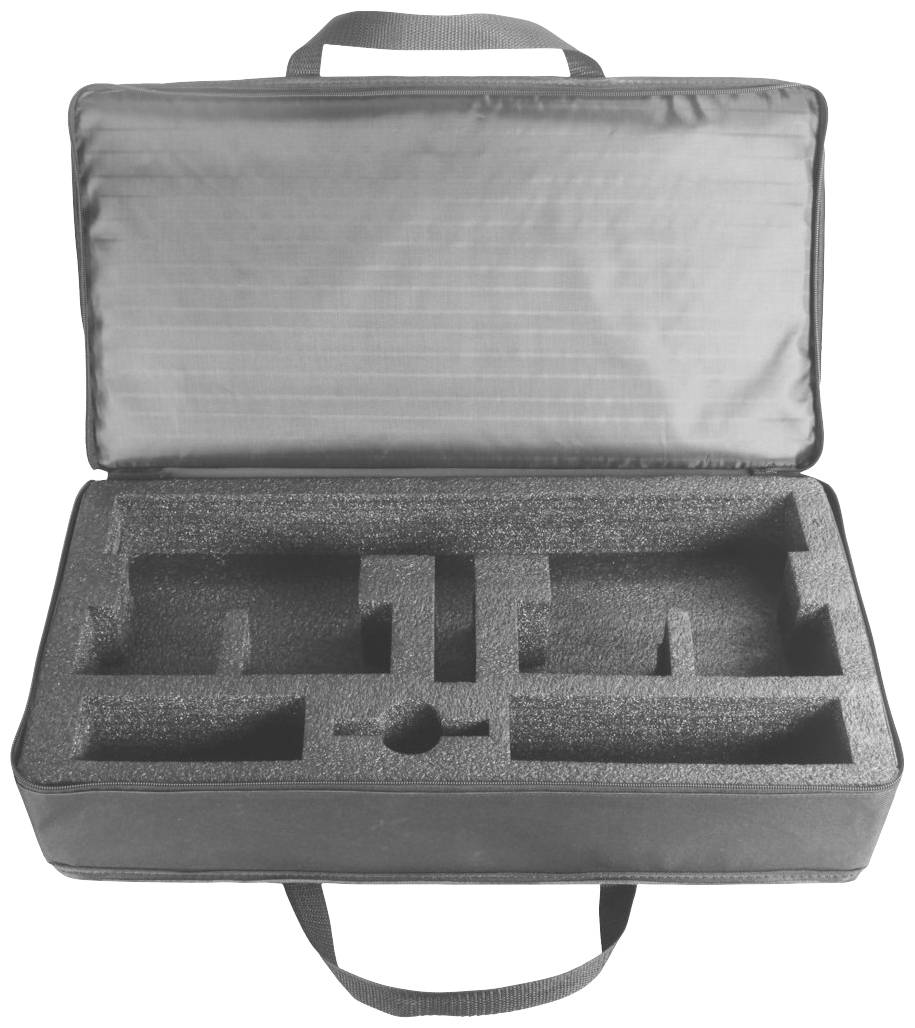

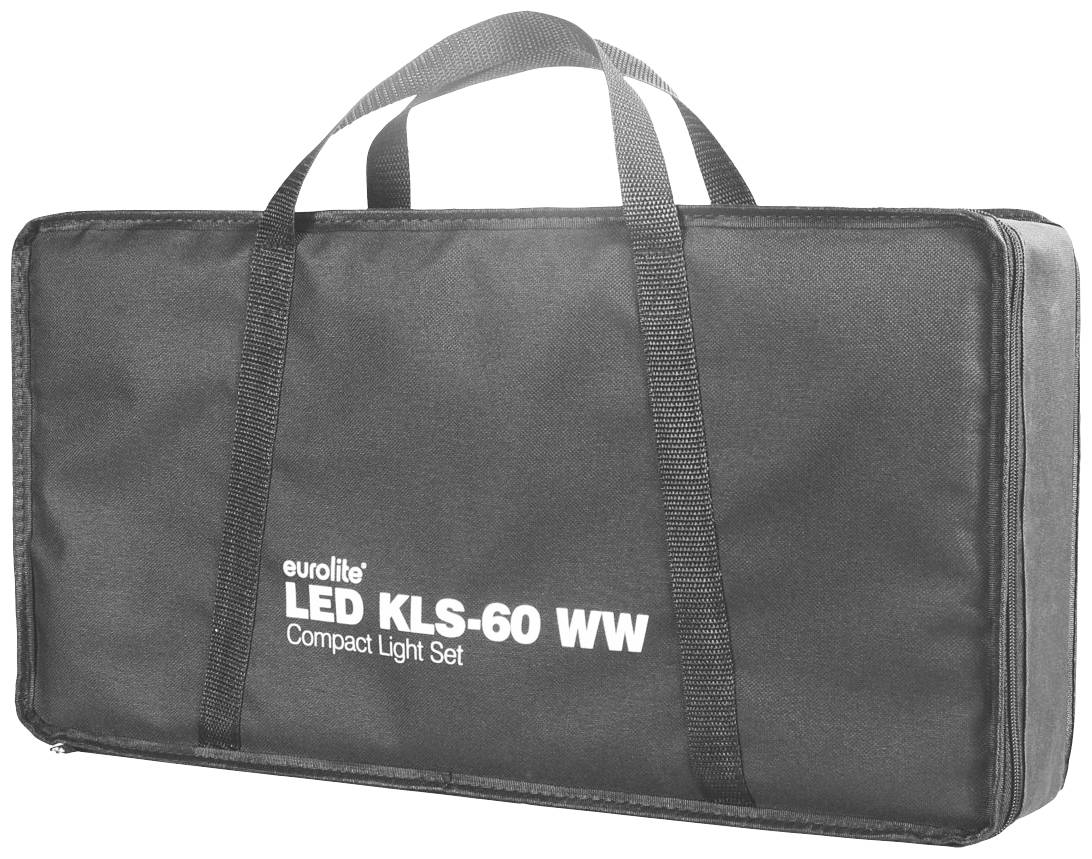

- Bag
- Omega clip
