Eurolite LED flasher LED IP FL-30 SMD RGB RGB 30 W
EAN:
Part number:
Item no:
Highlights & Details
Eurolite LED IP FL-30 SMD RGB
- Direct color selection for 16 colors
- 36 powerful LEDs SMD 2835 R/G/B
- With an angle of radiation of 82°
Technical specifications
- Product type
LED flasher
- Case colour
Black
30 W
- Dim
(L x W x H) 220 x 35 x 185 mm
- Weight
1 kg
n.rel.
- Colour
RGB
- Width
35 mm
- Height
185 mm
- Length
220 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131263 Eurolite LED flasher LED IP FL-30 SMD RGB RGB 30 W
Description

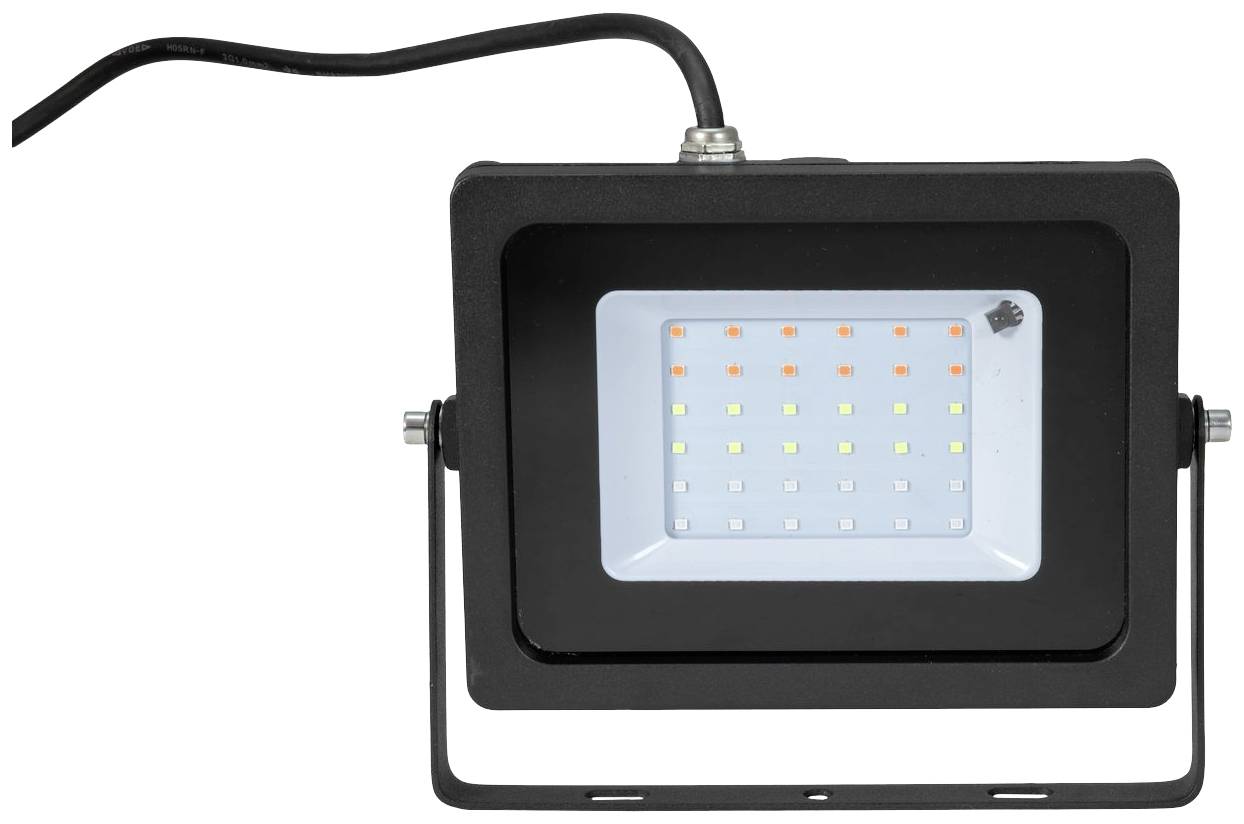

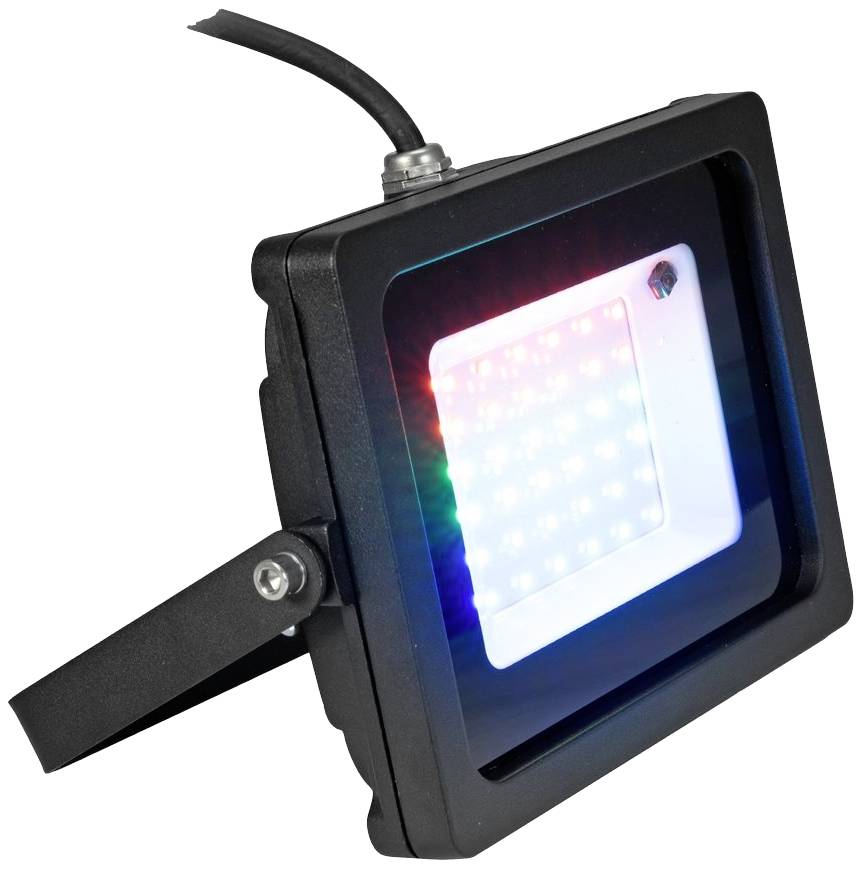

Outdoor spotlight (IP65) with RGB LEDs and IR remote control

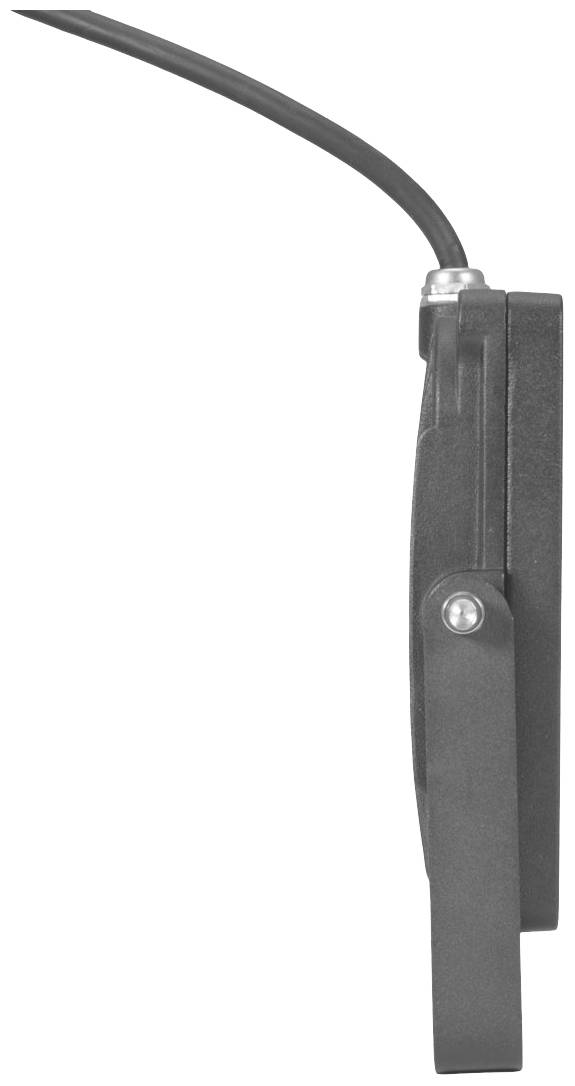

Extremely flat and attractive casing
36 powerful LEDs SMD 2835 R/G/B
Colour change automatic; program selection manual; color selection manual; color cross-fading can be set; processing speed can be set; Electronic dimmer
Stroboscope-effect
Direct color selection for 16 colors

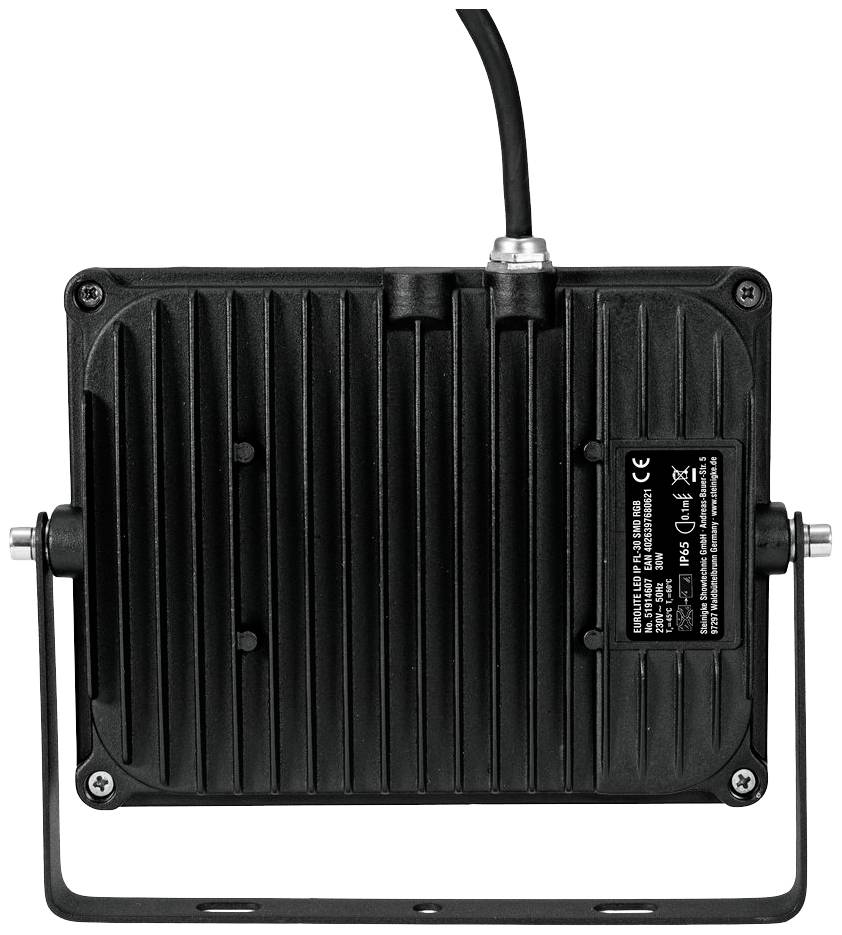

The device is cooled by passive convection cooling

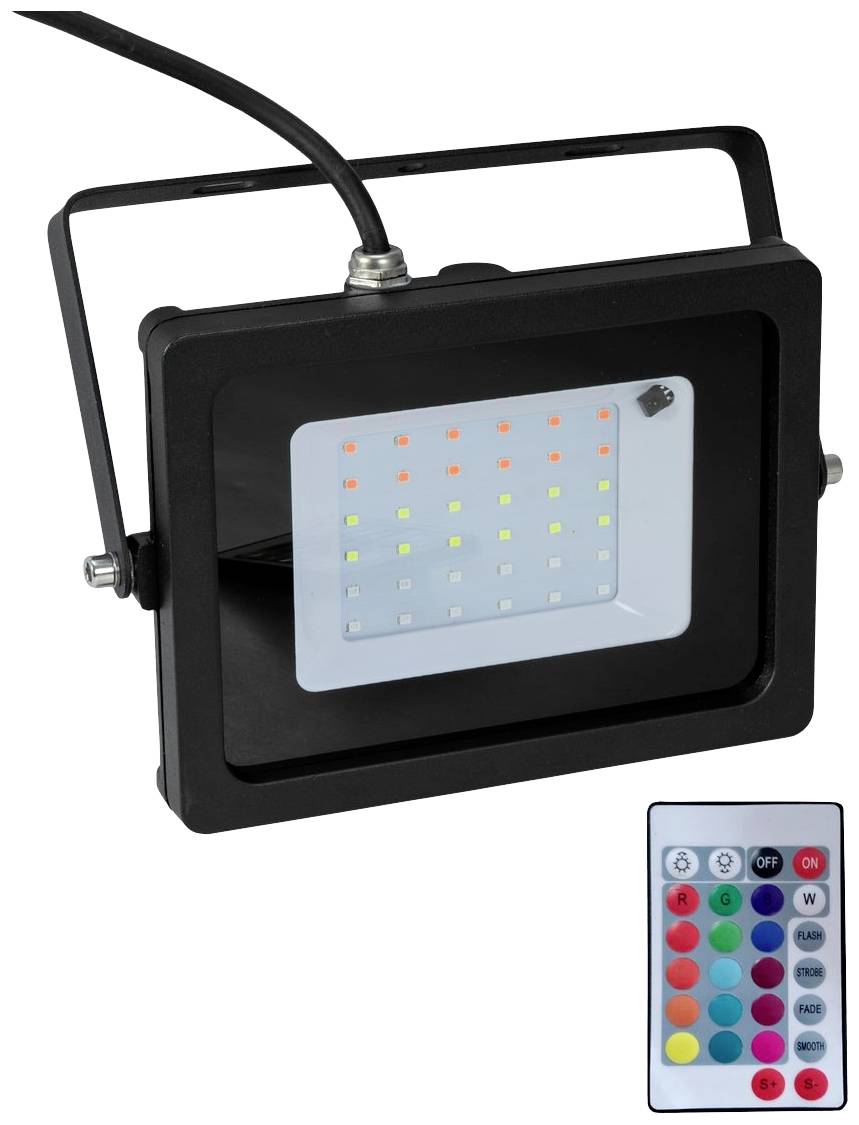

Can be controlled via IR remote control
With mounting bracket
Suitable for outdoor areas IP65
Noiseless operation
For application areas such as: Installation; restaurants, bars and hotels; party room; small rental
Possible application: Flying
This text is machine translated.
Extremely flat and attractive casing
36 powerful LEDs SMD 2835 R/G/B
Colour change automatic; program selection manual; color selection manual; color cross-fading can be set; processing speed can be set; Electronic dimmer
Stroboscope-effect
Direct color selection for 16 colors
The device is cooled by passive convection cooling
Can be controlled via IR remote control
With mounting bracket
Suitable for outdoor areas IP65
Noiseless operation
For application areas such as: Installation; restaurants, bars and hotels; party room; small rental
Possible application: Flying
This text is machine translated.
Features
- Power supply 230 V AC 50 Hz
- Total connected wattage 30 W
- Power connection: Fixed power connection cable with protective contact plug
- Protection class SK I
- Cable length approx. 1 m
- Cooling: Passive convection cooling
- Housing colour black.
- Protection system: IP65
- Supporting system: Mounting bracket
- Controls IR remote control
- Cable layout: 3 x 1.0 mm² H05RN-F
- LED lamp type
- LED:36 X SMD 2835 R/G/B
- Beam angle: 82°
- Beam angle (1/2 peak) 82°
- Beam angle: 1/10 peak, 120
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- Diameter of mounting holes 3 x Ø8mm
- Colour temperature: Switchable colors
Scope of delivery
- Device
- Remote control
- User manual
