Eurolite LED IP PAR 3x8W QCL Spot DMX LED effect light No. of LEDs (details): 3 8 W Black
EAN:
Part number:
Item no:
Highlights & Details

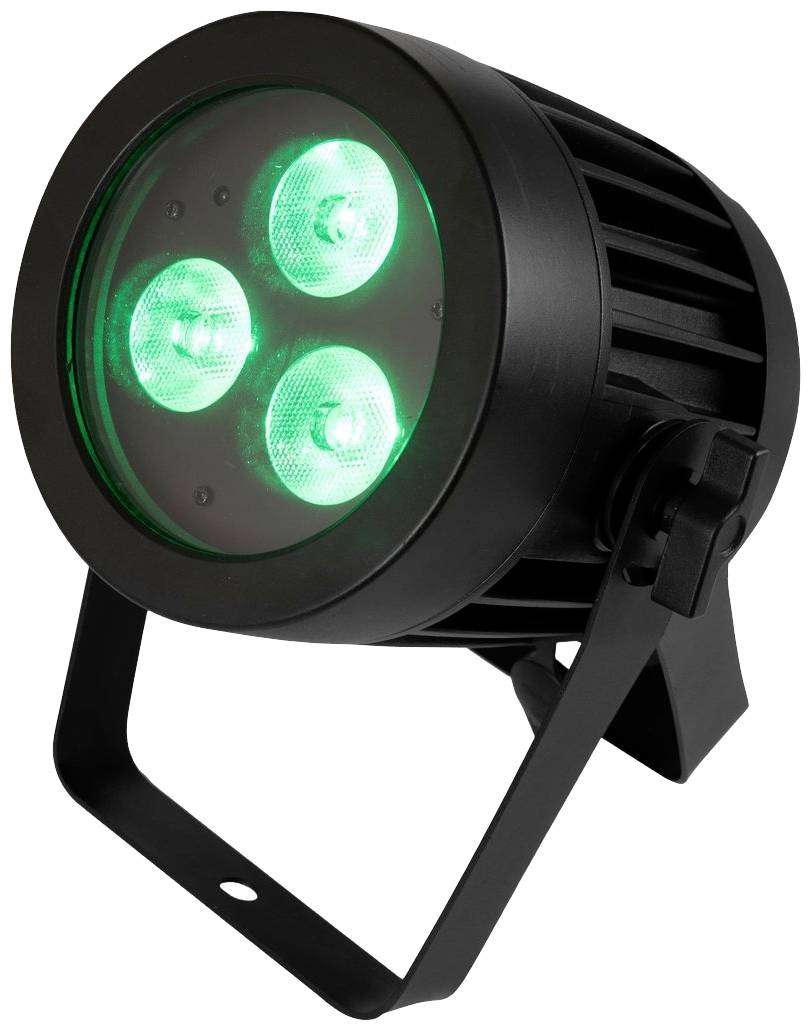

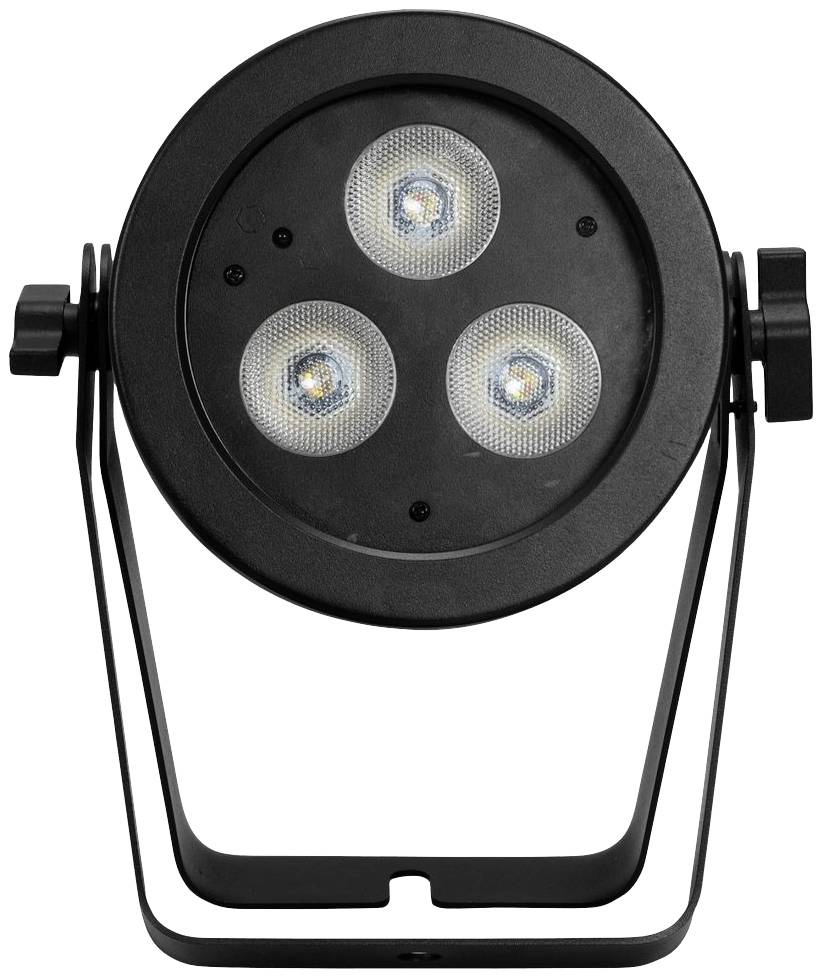

Eurolite LED IP PAR 3x8W QCL Spot
- Weather-proof (IP65) headlights
- 3 powerful LEDs 8 W high-power 4in1 QCL RGBW (homogeneous color mixing)
- Stroboscope-effect
- Direct color selection for 25 colors
Technical specifications
- Product type
DMX LED effect light
- Case colour
Black
- Colour
RGBW
30 W
- Dim
(L x W x H) 215 x 171 x 244 mm
n.rel.
- LEDs
3
- Weight
3 kg
- Width
171 mm
- Height
244 mm
- Length
215 mm
- Watt per LED
8 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131302 Eurolite LED IP PAR 3x8W QCL Spot DMX LED effect light No. of LEDs (details): 3 8 W Black
Description
Weather-proof (IP65) spotlight with 3 x 8-W LED and 4-in-1 QCL RGBW color mixture
The device is cooled by passive convection cooling
Can be controlled via stand-alone; IR remote control; DMX.
This text is machine translated.
The device is cooled by passive convection cooling
Can be controlled via stand-alone; IR remote control; DMX.
This text is machine translated.
Features
- Pre-programmed with EASY SHOW 1; EASY OPERATOR 4x4 LED; EASY OPERATOR 4x6 LED; EASY OPERATOR DELUXE LED; Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
- Flicker-free
- With an angle of radiation of 15°
- With double bow
- LCD display
- Suitable for outdoor areas IP65
- With pressure equalization membrane
- Noiseless operation
- For application areas like: Installation; stage; distributors; architecture
- Possible application: Standing; flying; on a tripod
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 30 W
- Power connection: Power feed via IP T-Con (M) Installation version Power connection cable with safety plug (included)
- LCD display type
- Cooling: Passive convection cooling
- Housing colour black.
- Protection system: IP65
- Admission system: Double handles
- Control: Stand-alone
- Cable layout: 3 x 1.0 mm² H05RN-F
- LED lamp type
- LED:3 x 8 W high-power 4in1 QCL RGBW (homogeneous color mixing)

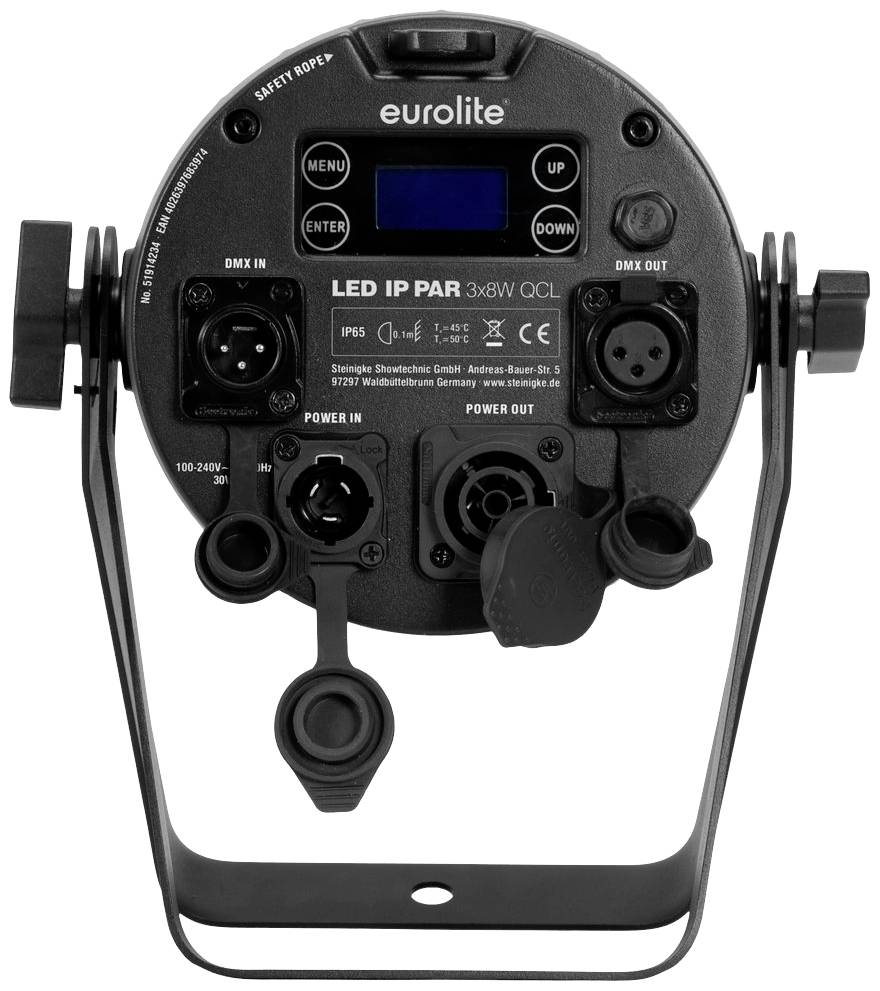

- DMX input 3-pin XLR (M) installation version IP
- Pre-programmed at: EASY SHOW 1
- Light captain: Light captain
- Beam angle: 15°
- Beam angle (1/2 peak) 15°
- Beam angle (1/10 peak) 30°
- Noise classification: Class 0 (no noise)
- Special product: Not intended for room lighting in homes
- Intended use: Lighting for show effects
- Fuse: 5 x 20 mm, T 1 A fuse to be replaced in service
- DMX output 3-pin XLR (W) installation version IP
- Diameter of mounting holes 1 x Ø11mm
- Current output IP T-Con (W) Installation version
- Flash rate 0 - 20 Hz

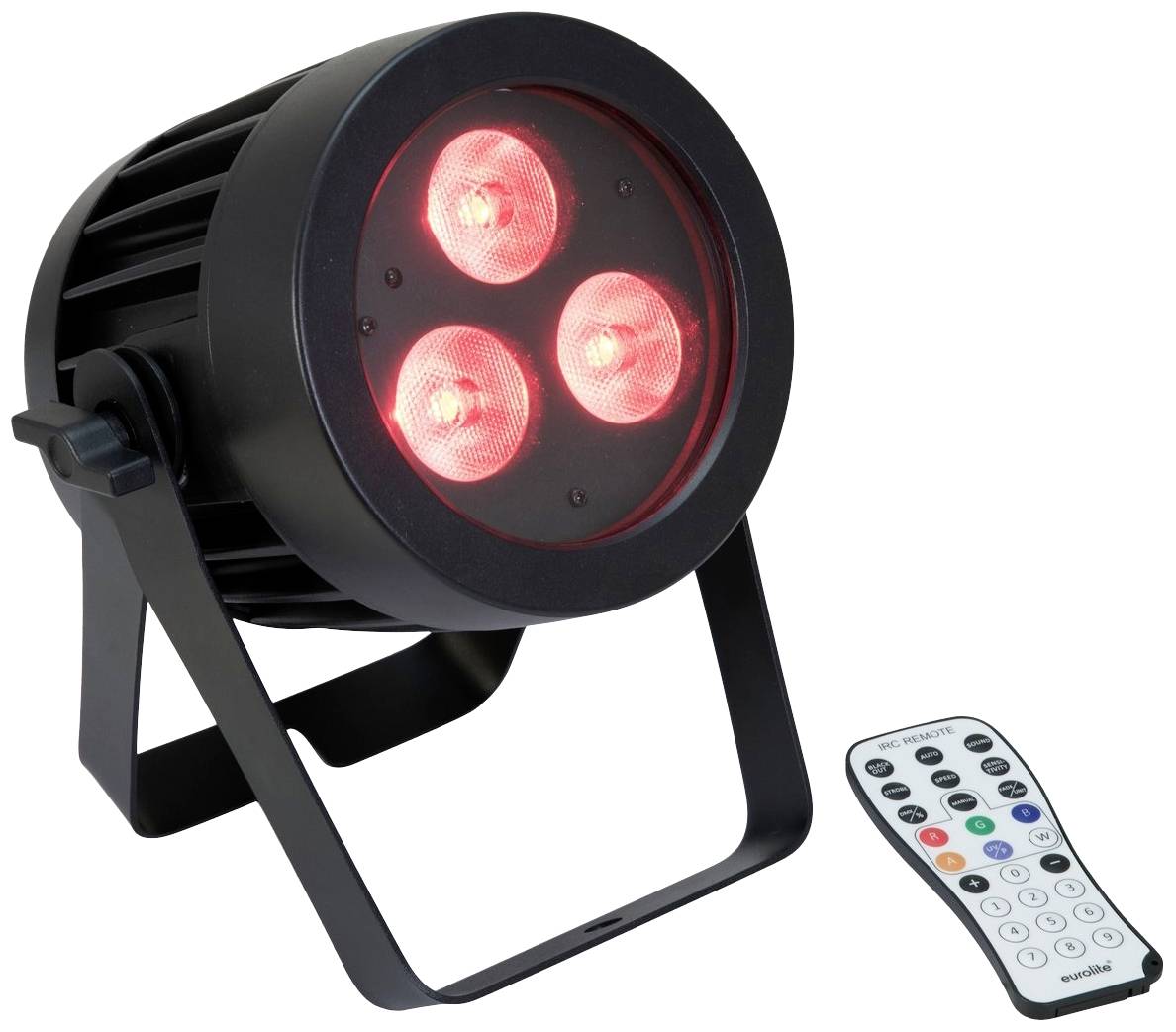

- IR remote control
Scope of delivery
- Headlamps
- Network cable/power cable
- Remote control
- Battery
- User manual
