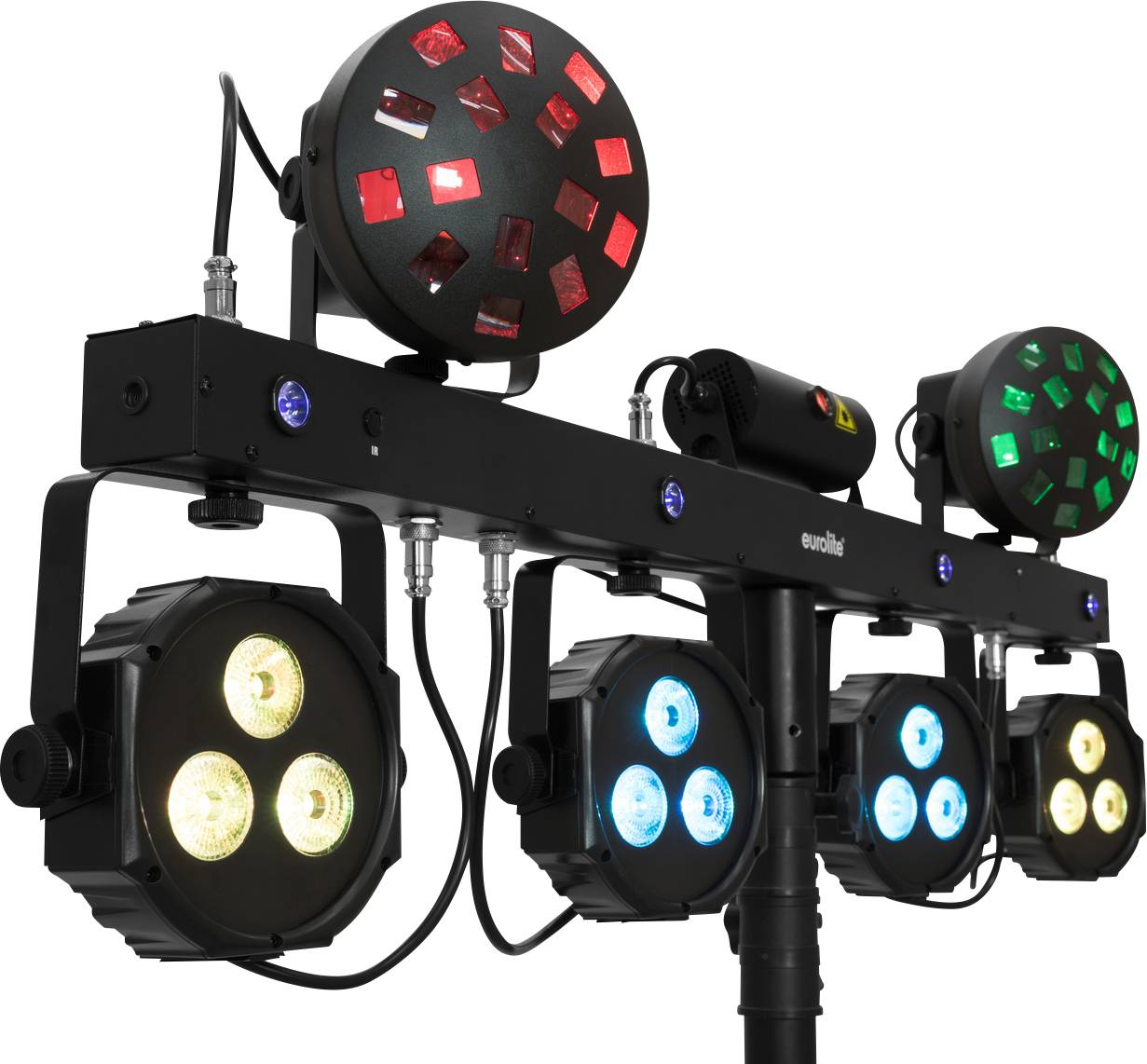

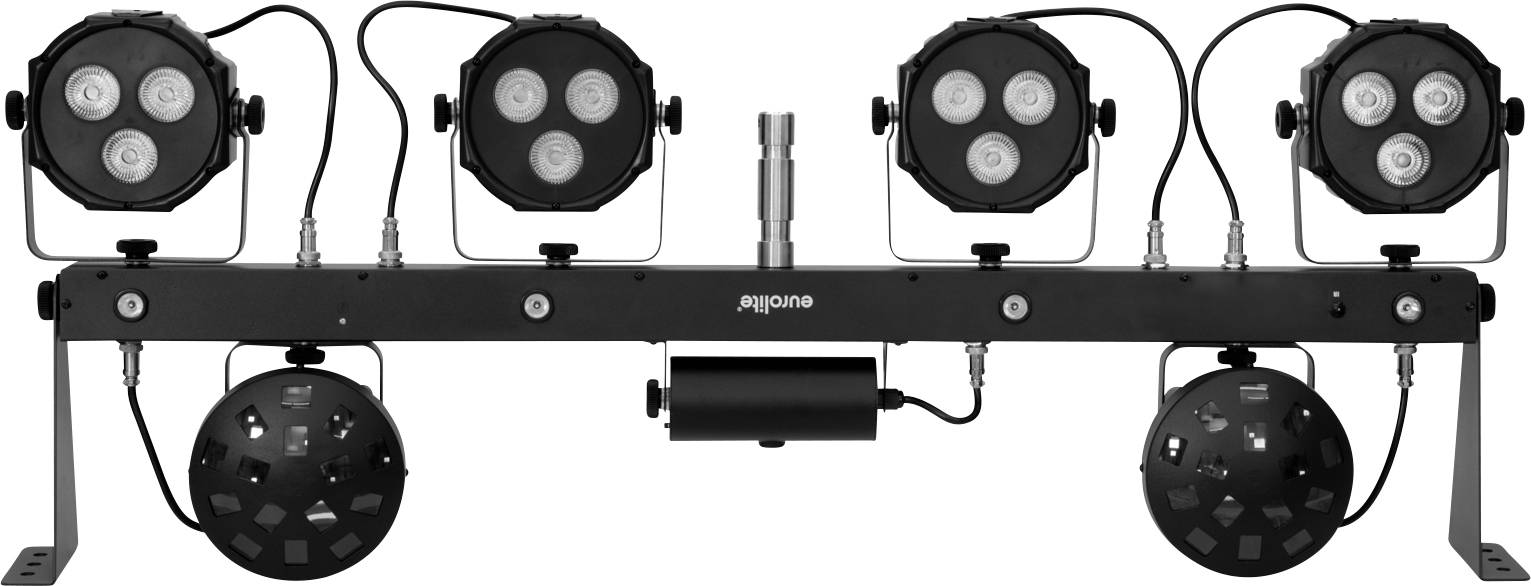

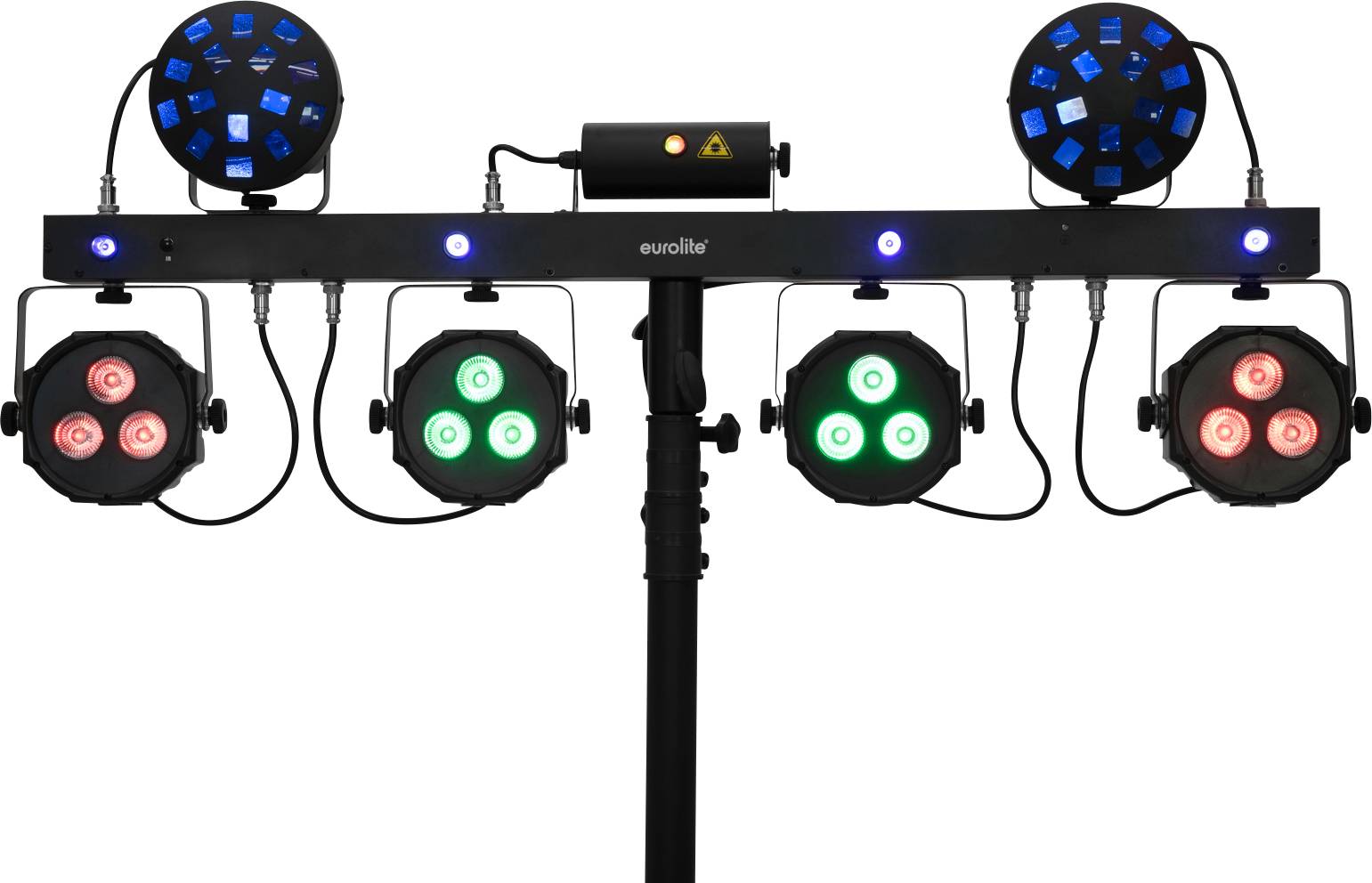

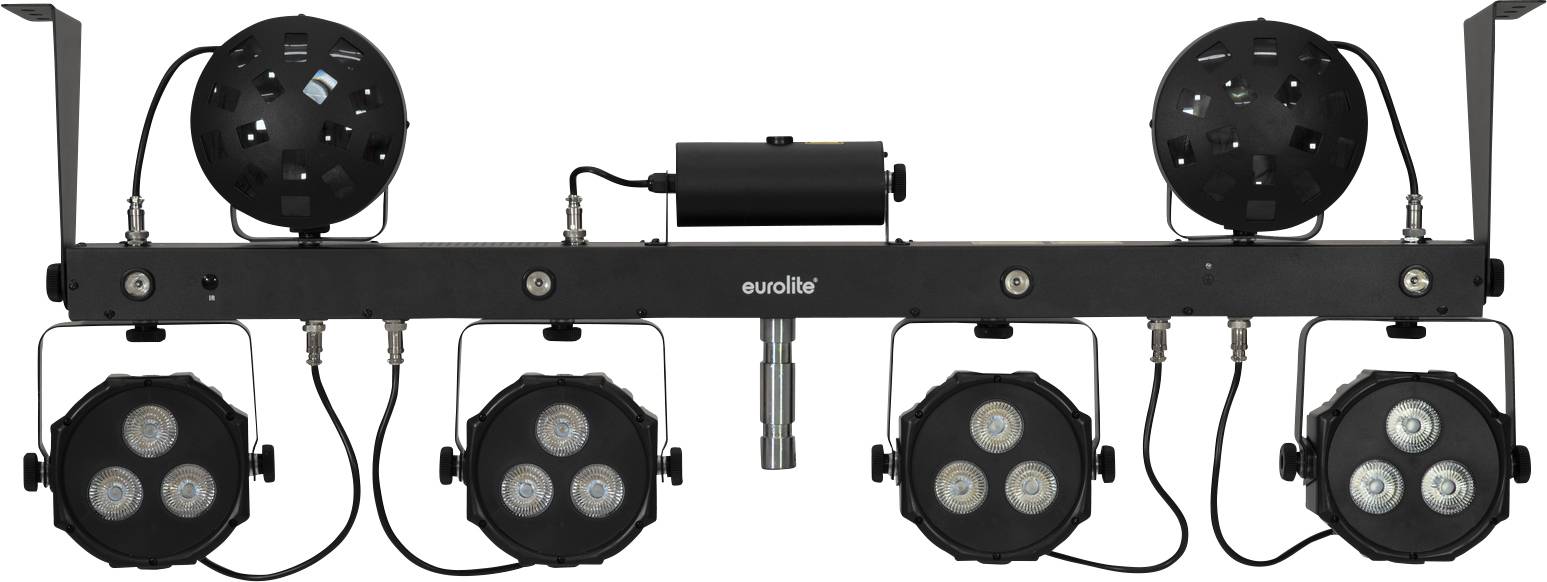

Eurolite LED KLS Laser Bar Next FX LED PAR spotlight system
EAN:
Part number:
Item no:
Highlights & Details
Eurolite LED KLS Laser Bar Next FX-Lightset
- 2 rotating LED-Mushrooms
- 4 LED spots and UV strobe LEDs
- 26 integrated show programs
Technical specifications
- Power supply 100-240 V AC, 50/60 Hz
- Total connected wattage 90 W
- Protection class: IP20
- Protection class SK I
- Current output: 1 x P-Con (gray), built-in version
- Fuse: T 1 A fuse replaceable
- Type of lamp: LED lamp
- LED: spot 3 x high-power 4 W 4in1 QCL RGB/WW (homogeneous color mixing)
- Rays-Effect: 4 x high-power 3 W RGB/WW
- Stroboscope-effect: 4 x high-power 1.5 W UV
- Flash rate 0 - 30 Hz
- DMX channels: 6; 8; 11; 21; 25; 29
- DMX input: 1 x 3-pin XLR (M) mounted version
- DMX output: 1 x 3-pin XLR (W) mounted version
- Power connection: Power feed P-Con (blue), built-in version
- Power connection cable with safety plug (included)
- Construction of cable: 3 x 1.0 mm² H05VV-F.
- Cable length 3 m
- Beam angle: 7°
- Beam angle (1/2 peak): spot 7°
- Beam angle (1/10 peak): spot 20°
- Housing colour black.
- Mounting system: TV-tap Ø 28 mm
- Laser Laser class: Class 2M
- Laser color: RG
- Laser module: R red 100 mW 650 nm, G green 30 mW 532 nm
- Remote control battery: Button cell 3.0 V CR2025 Lithium-manganese, built-in
- Product type
LED PAR spotlight system
n.rel.
- Dim
(L x W x H) 110 x 1110 x 410 mm
- Weight
10.5 kg
- Width
1110 mm
- Height
410 mm
- Length
110 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2354717 Eurolite LED KLS Laser Bar Next FX LED PAR spotlight system
Description
Eurolite KLS NEXT FX: A bar, versatile possibilities
Four spots on a bar provide good basic lighting, while additional effects spread party mood. The KLS NEXT FX has four spots and two mushroom effects on the bar. Four UV-LEDs in the bar provide for the popular black light effect. In addition, a class 2 show laser is on board.
This text is machine translated.
Four spots on a bar provide good basic lighting, while additional effects spread party mood. The KLS NEXT FX has four spots and two mushroom effects on the bar. Four UV-LEDs in the bar provide for the popular black light effect. In addition, a class 2 show laser is on board.
This text is machine translated.
Features
- Bar with bright spots, UV strobe LEDs, laser (RG 2M), QuickDMX socket and bag
- DMX light effect bar with laser, 2 rotating LED mushroom, 4 LED spots and UV strobe LEDs
- 2 laser diodes project hundreds of red and green laser beams
- 2 rotating mushrooms each with four bright LEDs (red, green, blue and warm white)
- 4 spotlights with four powerful RGB/WW LEDs each (4in1)
- 4 UV strobe LEDs
- Laser class 2M: No acceptance or order of a laser safety officer required
- Extremely lightweight, ideally suited to mobile use
- Cross beam with integrated DMX control unit and TV-pin for stand mounting
- Swiveling mounting bracket for mounting cross beam
- Supplied pre-assembled in convenient carrying bag
- Convenient remote control via the included IR remote control or optional wireless foot switch
- Music control via built-in microphone with sensitivity control
- LED-Mushrooms and LED-spots can be individually arranged and controlled
- Spots with 7° angle of radiation
- Auto, music, master/slave and DMX mode
- Newly designed software with attractive programs
- 26 integrated show programs (which include all 4 effect devices) In auto and music mode
- Addressing and settings via control unit with four-digit LED display
- Brightness can be set manually via the built-in dial
- Compatible with QuickDMX - the radio DMX system from Eurolite
- Phantom-powered USB socket for QuickDMX receiver (accessories)
- This effect is particularly well appreciated in foggy conditions.
- P-Con mains connections for easy connection of up to 8 devices
- Switched-mode power supply technology for mains voltage between 100 and 240 volts
- IM 6; 8; 11; 21; 25; 29 CH DMX mode can be operated
- Can be controlled via QuickDMX via USB (optional)
- DMX
- Stand alone
- UV
- Radiation effect
- Cooling: Fan.
Scope of delivery
- Remote control included.
