Eurolite LED outdoor spotlight 51915112 Orange 110 W
EAN:
Part number:
Item no:
Highlights & Details
Eurolite LED IP FL-100 SMD orange
- 108 high power LEDs SMD 2835 orange (O)
- Suitable for outdoor areas IP65
Technical specifications
- Product type
LED outdoor spotlight
110 W
- Dim
(W x H x D) 300 x 245 x 42 mm
- Weight
1.95 kg
n.rel.
- Colour
Orange
- Width
300 mm
- Height
245 mm
- Depth
42 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131200 Eurolite LED outdoor spotlight 51915112 Orange 110 W
Description

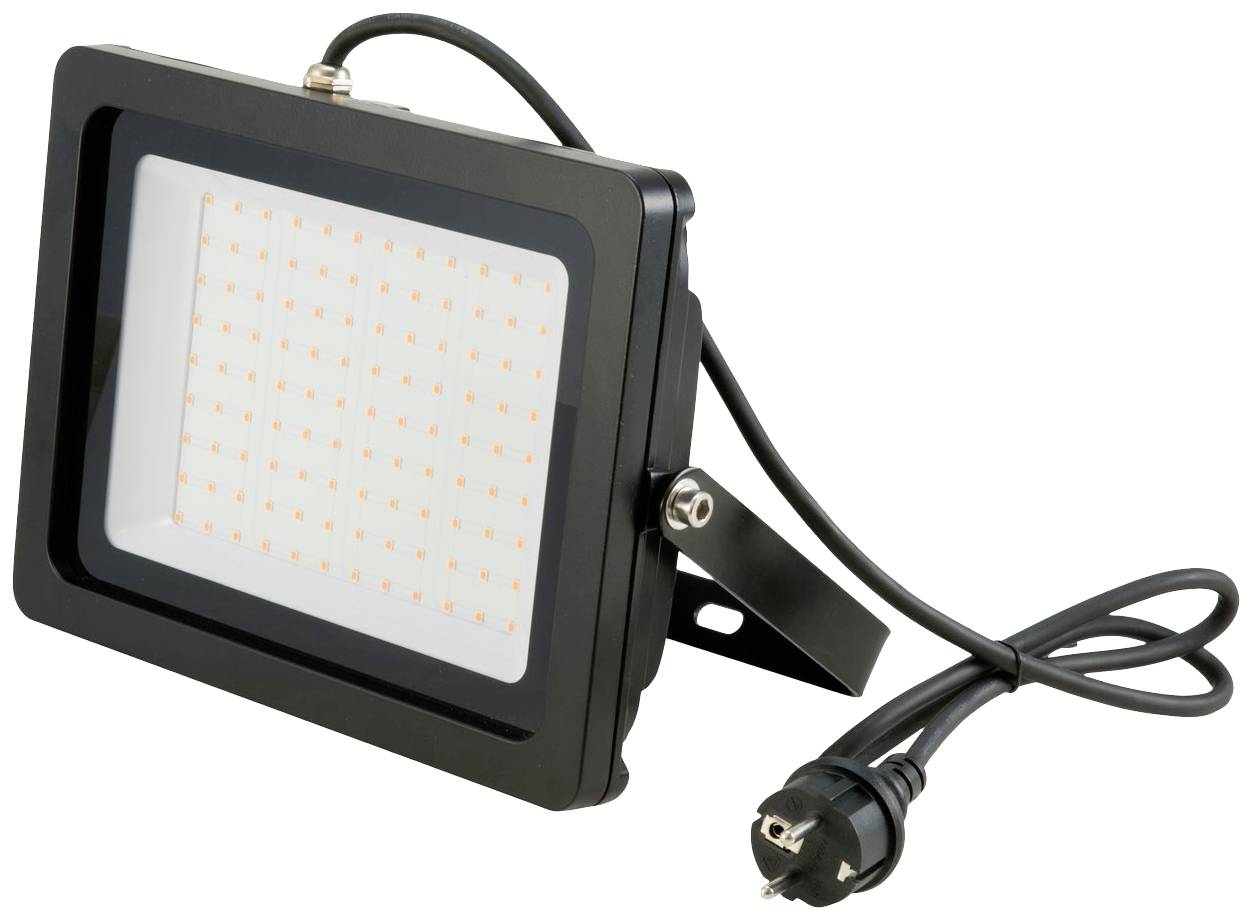

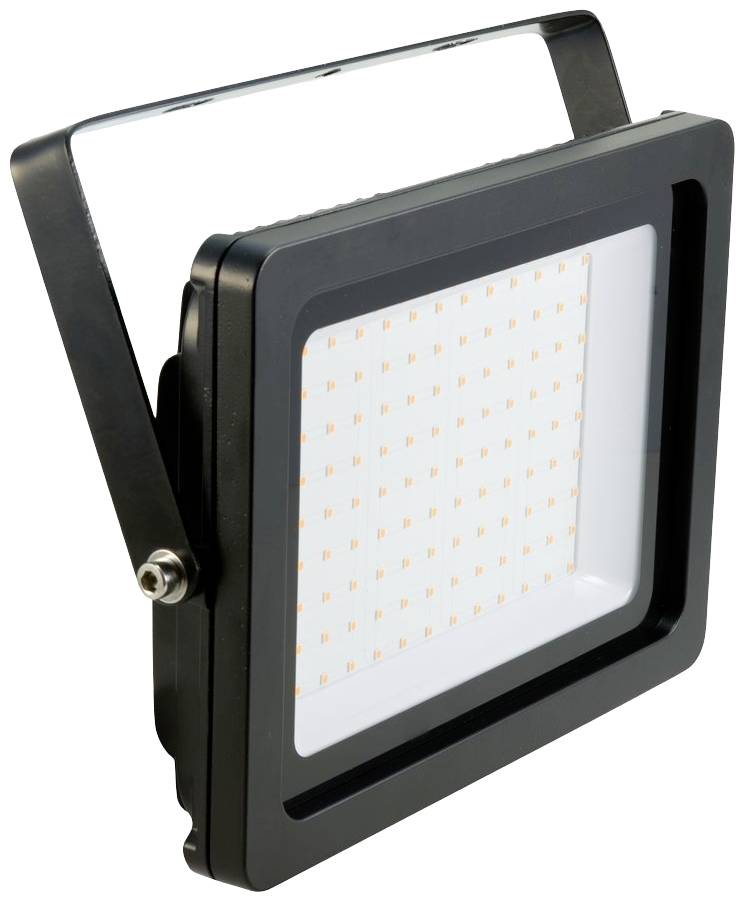

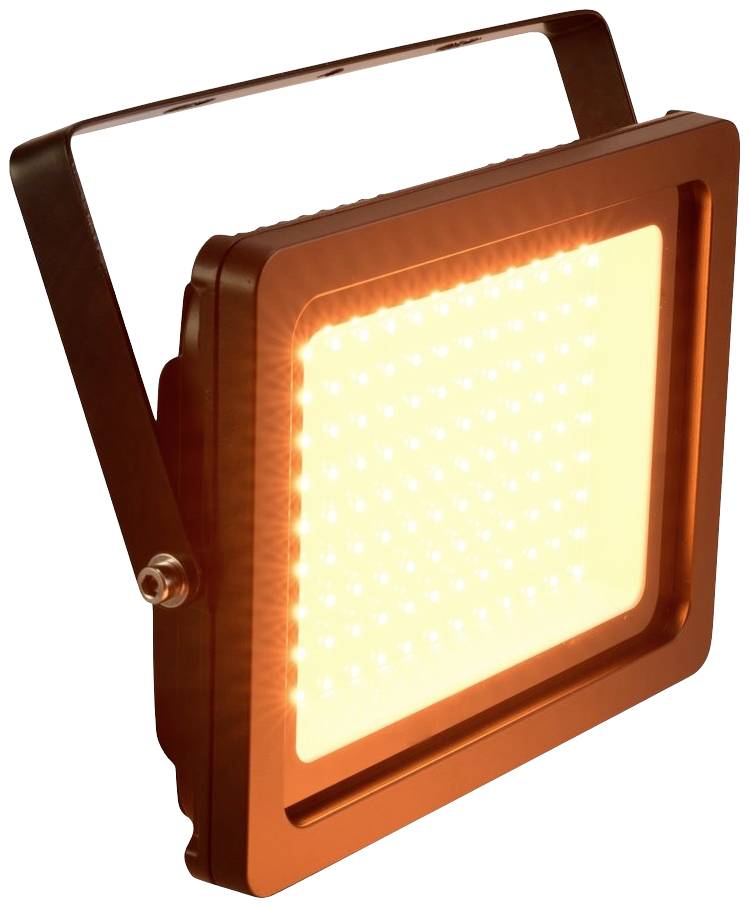

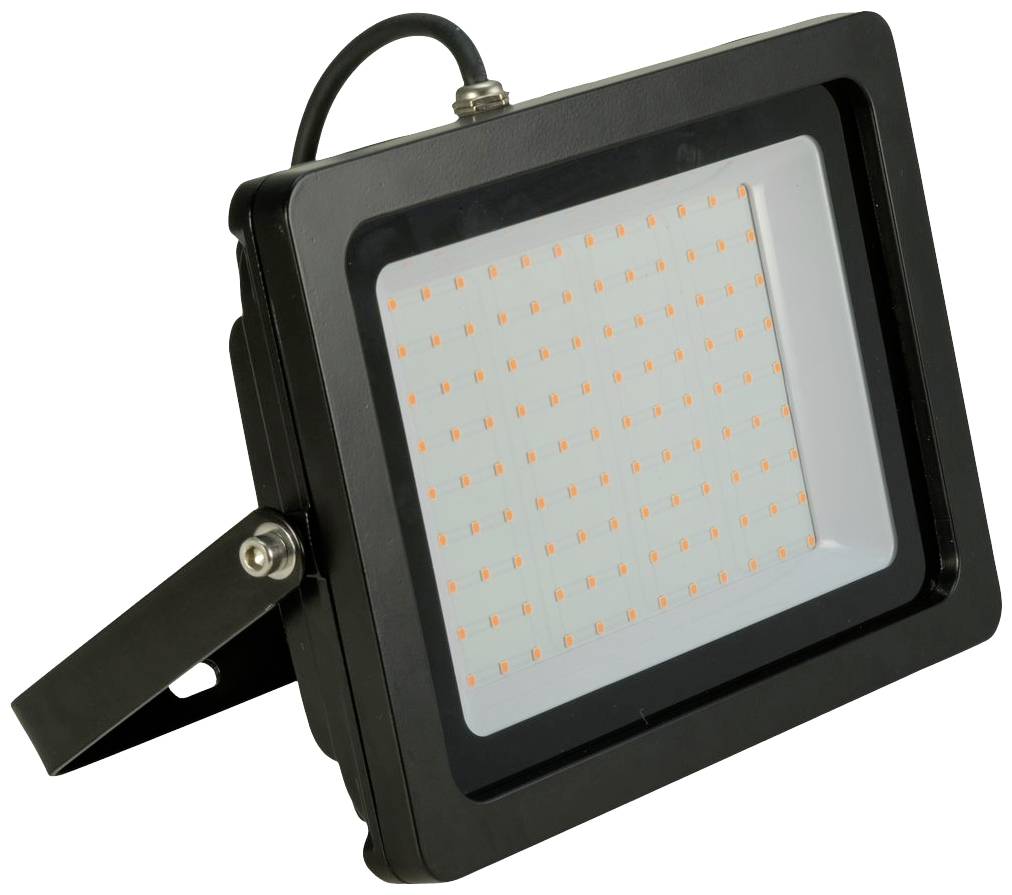

Flat IP65 outdoor spotlight with 108 SMD LEDs orange
108 high power LEDs SMD 2835 orange
The device is cooled by passive convection cooling
Can be controlled via plug and play
With mounting bracket
Suitable for outdoor areas IP65
Available in different colors
Noiseless operation
For application areas such as: Installation; restaurants, bars and hotels; architecture
Possible application: Flying
This text is machine translated.
108 high power LEDs SMD 2835 orange
The device is cooled by passive convection cooling
Can be controlled via plug and play
With mounting bracket
Suitable for outdoor areas IP65
Available in different colors
Noiseless operation
For application areas such as: Installation; restaurants, bars and hotels; architecture
Possible application: Flying
This text is machine translated.
Features
- The device is cooled by passive convection cooling
- Can be controlled via plug and play
- With mounting bracket
- Available in different colors
- Noiseless operation
- Power supply 230 V AC 50 Hz
- Total connected wattage 110 W
- Power connection: Fixed power connection cable with protective contact plug
- Protection class SK I
- Cable length approx. 1 m
- Cooling: Passive convection cooling
- Housing color: Matt black
- Protection system: IP65
- Supporting system: Mounting bracket
- Material: Metal, 2 mm
- Control: Plug and play
- Cable layout: 3 x 1.0 mm² H05RN-F
- Beam angle (1/2 peak) 80°
- Beam angle (1/10 peak) 120°
- Diameter of mounting holes 3 x Ø8mm
Scope of delivery
- Headlamps
- Network cable/power cable
