Eurolite LED outdoor spotlight LED IP FL-100 Blue 110 W
EAN:
Part number:
Item no:
Highlights & Details
Eurolite LED IP FL-100 SMD blue
- 108 high-performance LEDs SMD 2835 blue (B)
- Suitable for outdoor areas IP65
Technical specifications
- Product type
LED outdoor spotlight
- Case colour
Black
110 W
- Dim
(W x H x D) 300 x 245 x 42 mm
- Weight
1.95 kg
n.rel.
- Colour
Blue
- Width
300 mm
- Height
245 mm
- Depth
42 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131198 Eurolite LED outdoor spotlight LED IP FL-100 Blue 110 W
Description

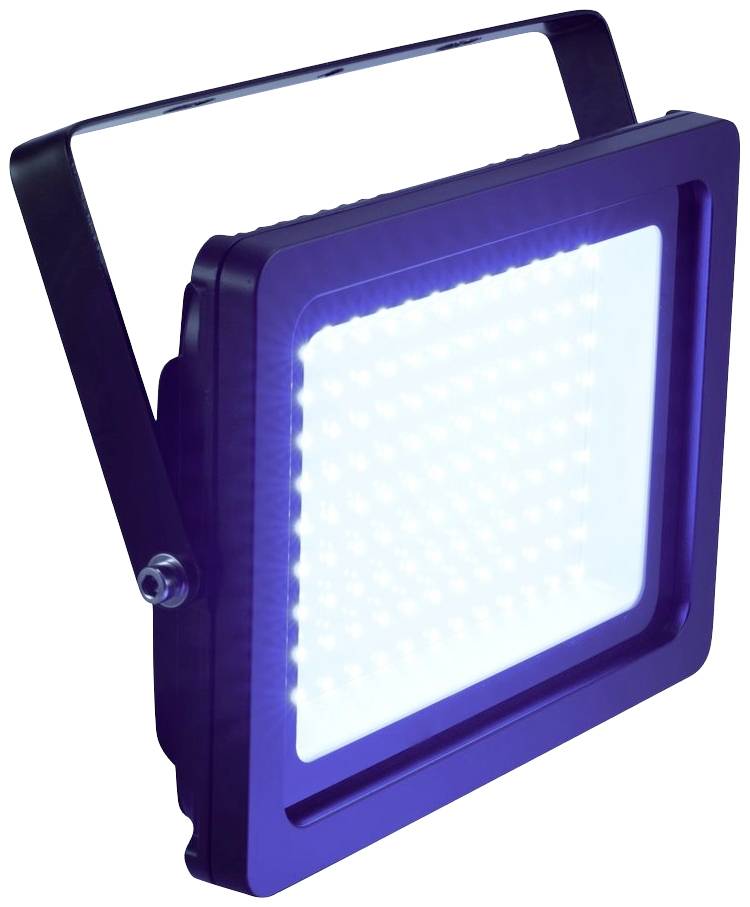

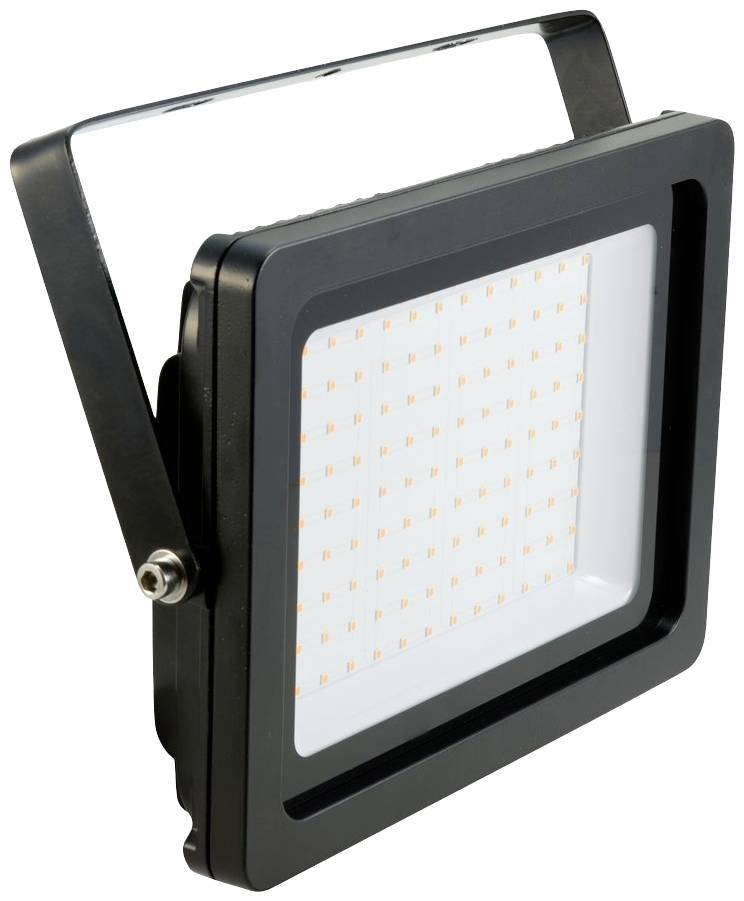

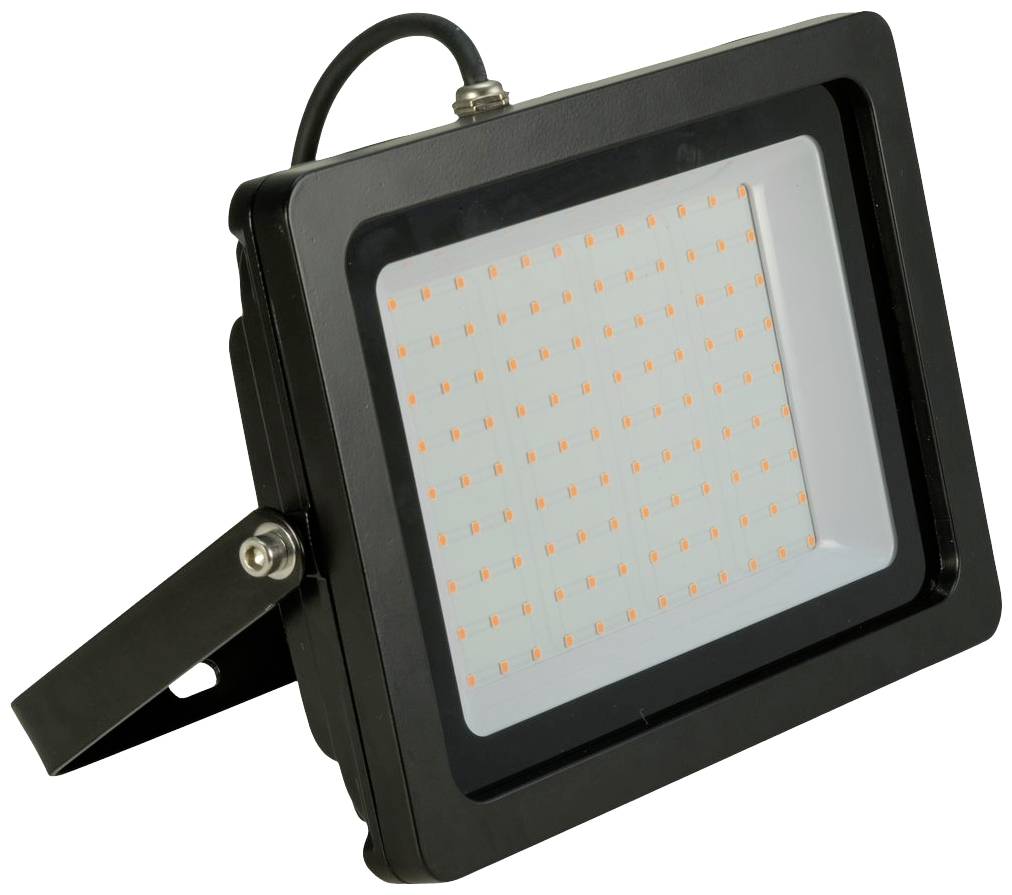

Flat IP65 outdoor spotlight with 108 SMD LEDs blue (B)
For application areas such as: Installation; restaurants, bars and hotels; architecture
Possible application: Flying
This text is machine translated.
For application areas such as: Installation; restaurants, bars and hotels; architecture
Possible application: Flying
This text is machine translated.
Features
- The device is cooled by passive convection cooling
- Can be controlled via plug and play
- With mounting bracket
- Available in different colors
- Noiseless operation
- Power supply 230 V AC 50 Hz
- Total connected wattage 110 W

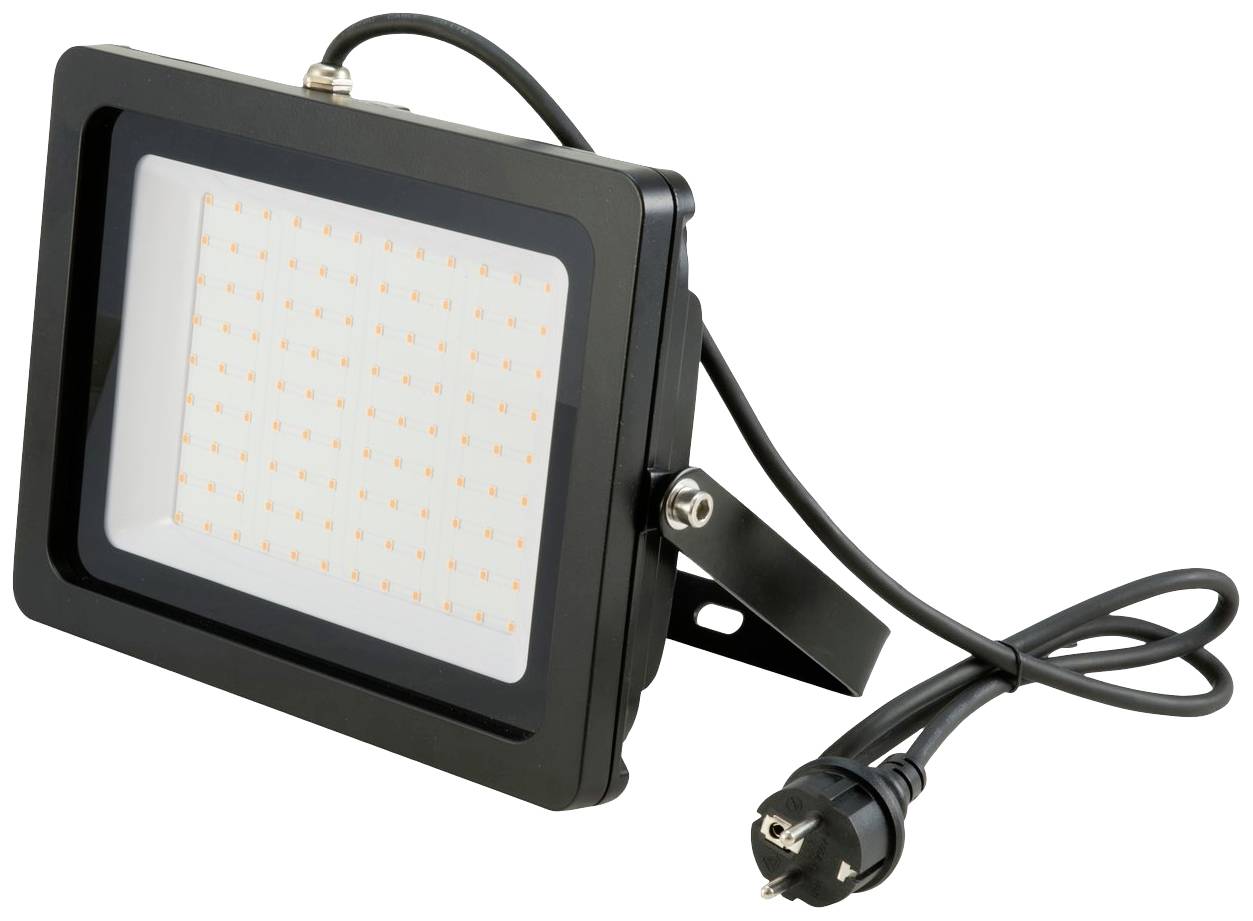

- Power connection: Fixed power connection cable with protective contact plug
- Protection class SK I
- Cable length approx. 1 m

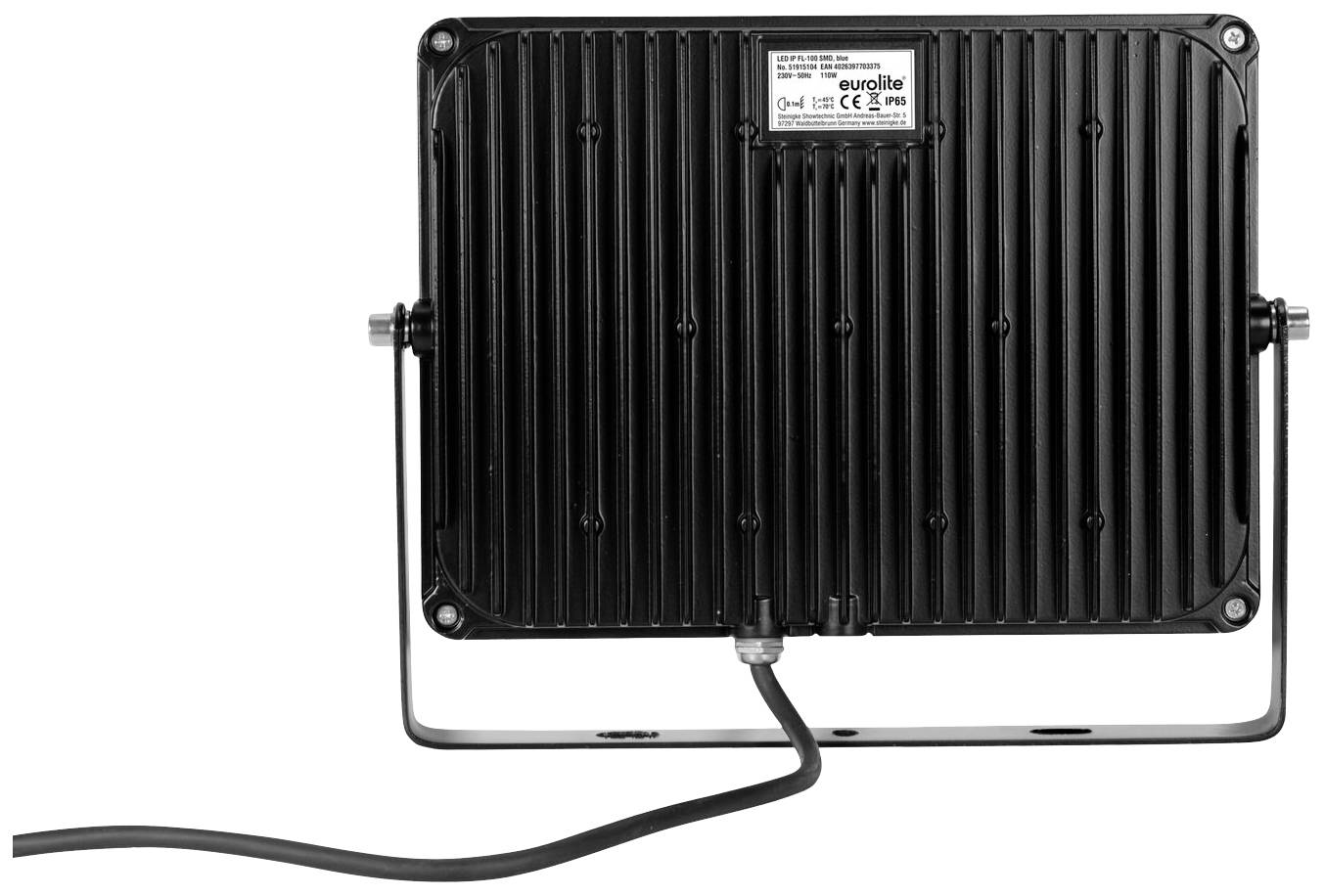

- Cooling: Passive convection cooling
- Housing color: Matt black
- Protection system: IP65
- Supporting system: Mounting bracket
- Material: Metal, 2 mm
- Control: Plug and play
- Cable layout: 3 x 1.0 mm² H05RN-F
- Beam angle (1/2 peak) 80°
- Beam angle (1/10 peak) 120°
- Diameter of mounting holes 3 x Ø8mm
Scope of delivery
- Headlamps
- User manual
