Buy Eurolite LED pin spot LED IP PFE-40 CW/WW 15-30° Warm white to cool white 30 W Dimmable

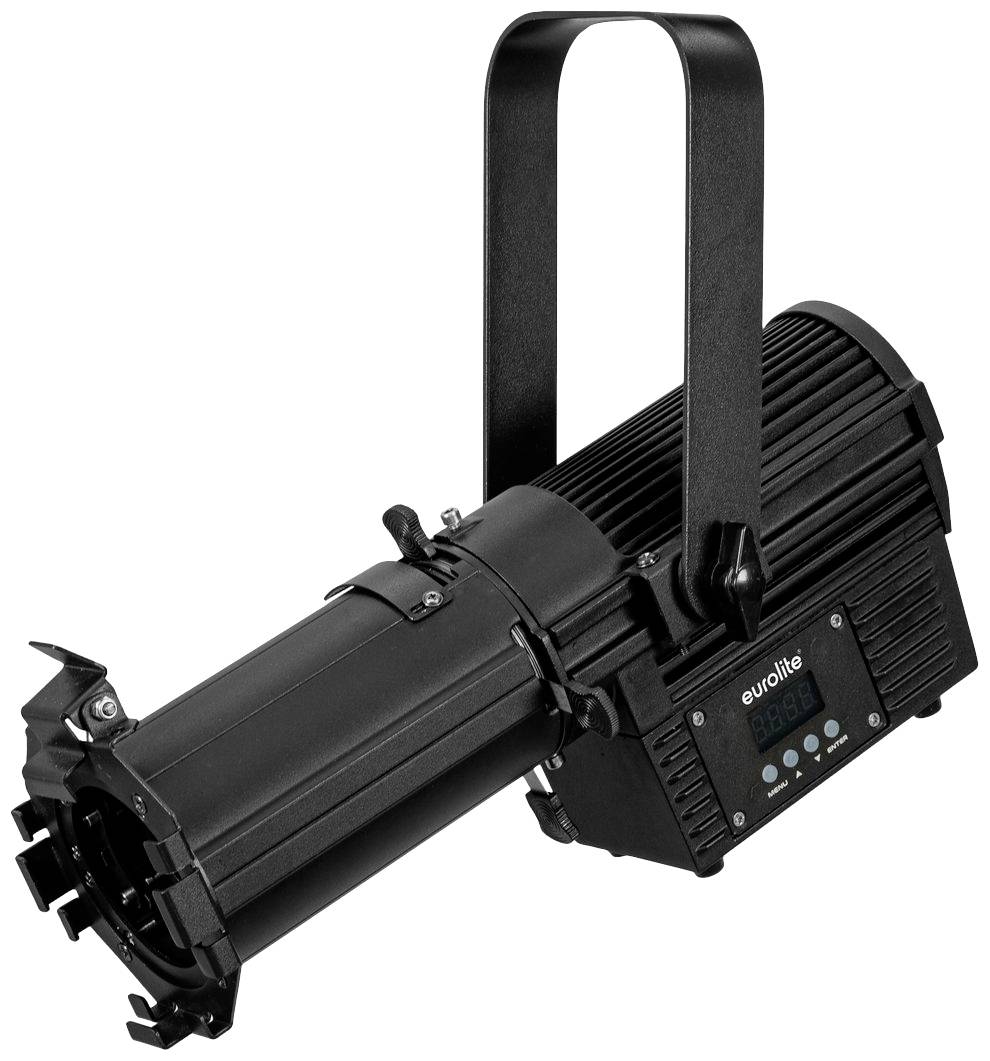

Black spotlight with focusable lens and handle, suitable for stage lighting in theatres and concerts.

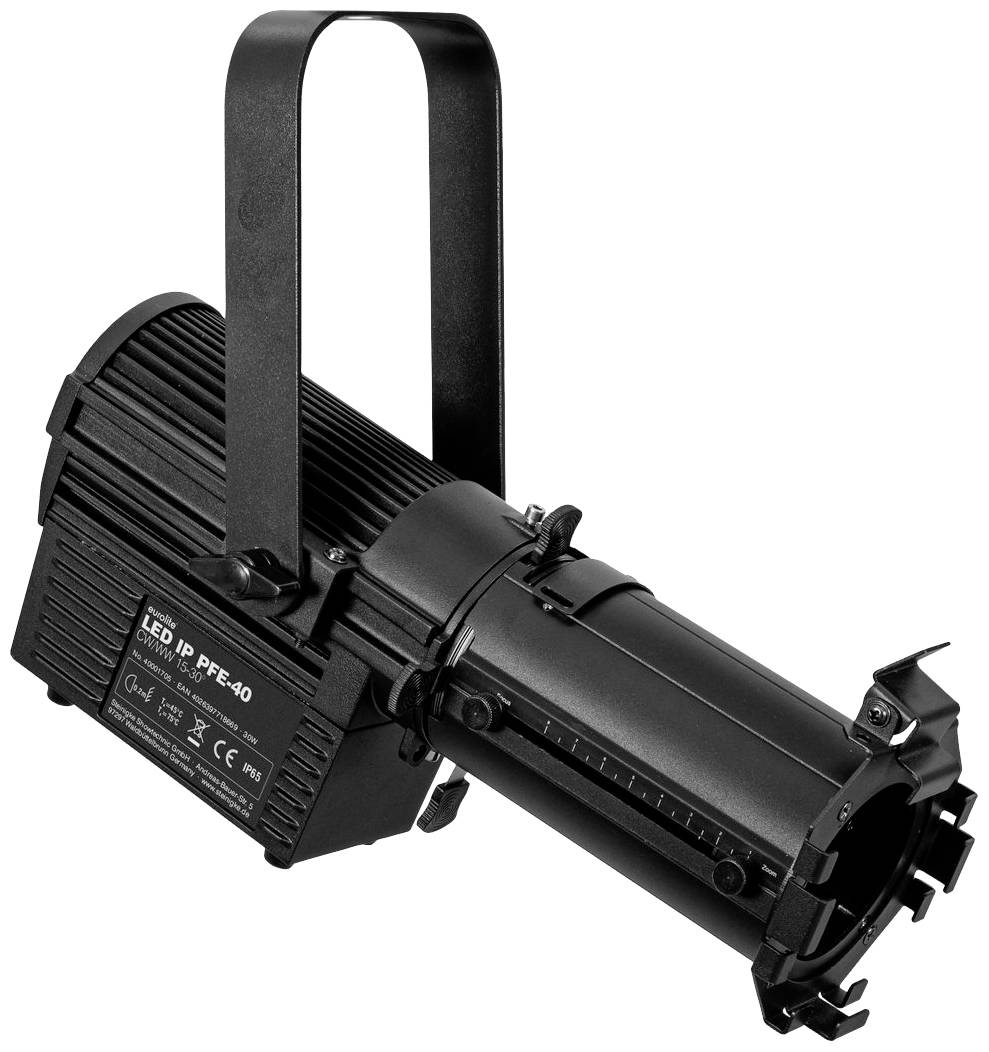

A black LED theatre spotlight with mounting bracket, model 'LED IP FE-40', with printed technical information on the side.

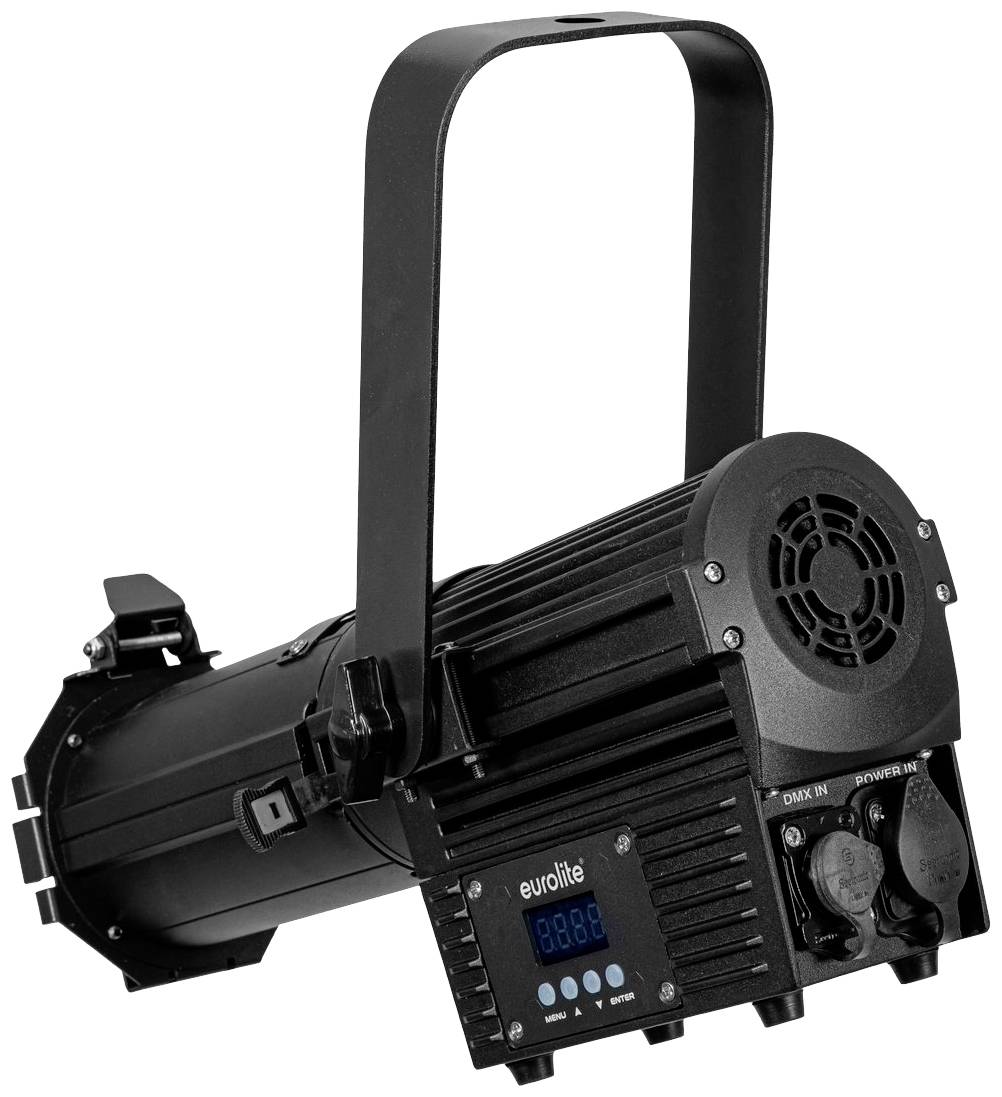

A black, cylindrical headlight with bracket mounting; digital display and connections visible on the rear.

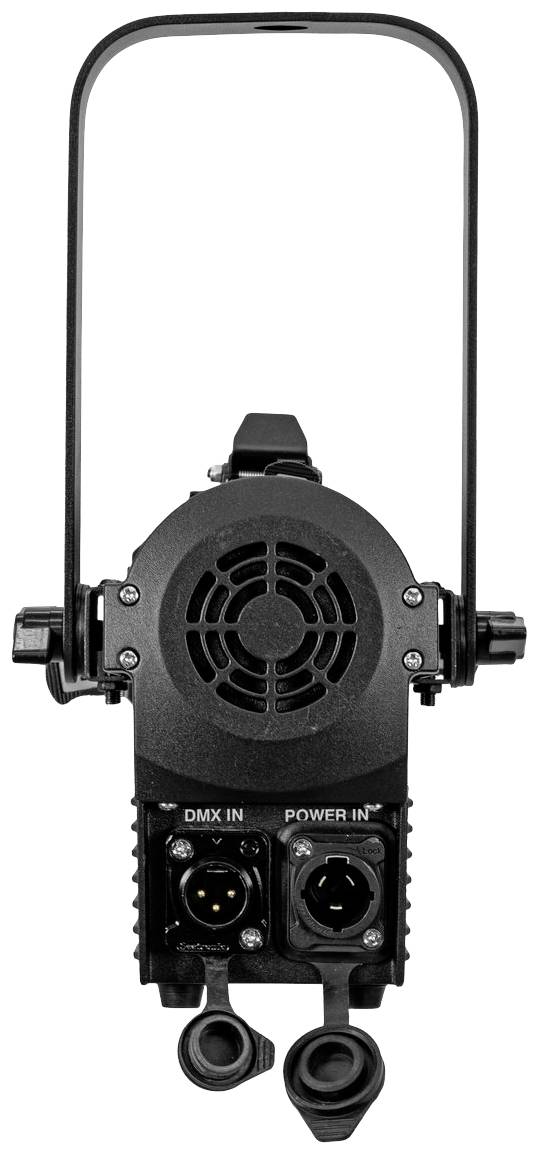

A black stage light with two connections 'DMX IN' and 'POWER IN' on the rear, ready for mounting.

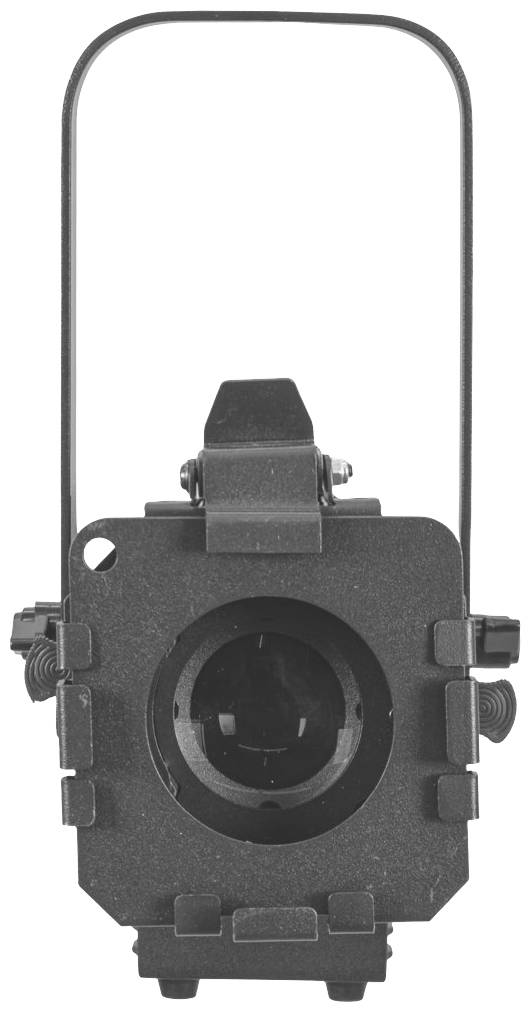

A rectangular, black torch with a handle and a circular opening in the centre, pointing forwards.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Eurolite LED IP PFE-40 CW/WW 15-30°

4 Shutter handle
1 powerful LED 40 W COB (Chip-on-board) 2 in 1 BCL CW/WW (homogeneous color mixing)
Variable color temperature 2700 K - 6000 K
Zoom manual; focus manual

Technical specifications

Product type: LED pin spot

Case colour: Black

: 30 W

Dim: (L x W x H) 345 x 155 x 285 mm

Weight: 3.95 kg

: n.rel.

Features: Dimmable

Colour: Warm white to cool white

: 2700 K

Width: 155 mm

Height: 285 mm

Length: 345 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3131313 Eurolite LED pin spot LED IP PFE-40 CW/WW 15-30° Warm white to cool white 30 W Dimmable

Description

Weather-proof spotlight (IP65), 40 W COB LED, variable color temperature, CRI 90, RDM

This text is machine translated.

Features

Electronic dimmer; dimmer speed (step response) adjustable; pulse width modulation variable
Stroboscope-effect
Can be controlled via stand-alone; master/slave function; DMX; RDM
Already pre-programmed at Light´J; Light Captain
With a beam angle of 15° - 30°
Very high color rendering index (CRI)
With mounting bracket
4 digit 7-segment LED display
Power input and power output for simple connection of up to 8 devices
Very quiet operation
For application areas like: Trade fair and shop building; installation; stage; theater
Possible application: On-the-fly; on a tripod
Power supply: 100 - -240 V AC 50/ 60 Hz
Total connected wattage 30 W
Power connection: Power feed via IP T-Con (M) Installation version Power connection cable with safety plug (included)
Display type: 4 digit 7-segment LED display
Protection class SK I
Housing colour black.
Protection system: IP65
Supporting system: Mounting bracket
Control: Stand-alone
Width: 15.5 cm
LED lamp type
LED:1 x 40 W COB (Chip-on-board) 2 in 1 BCL CW/WW (homogeneous color mixing)
Colour temperature adjustable 2700K - 6000K
Equipment: Manual Zoom
Manual focus: Manual focus
DMX input 1 x 3-pin XLR (M) installation version IP
Master/slave function: Master/slave function
Pre-programmed at: Light´J
Light captain: Light captain
Angle of radiation 15° - 30°
Max. Beam angle: 1/2 peak, 15 - 30°
Max. Beam angle: 1/10 peak, 15 - 30°
Colour rendering index (CRI): 92 Ra
Gobos: Outer diameter 37.5mm
Special product: Not intended for room lighting in homes
Intended use: Lighting for show effects

Scope of delivery

Device
Gobo holder
Filter frame
User manual
Network cable/power cable
Adapter cable
Safety cable
