Buy Eurolite LED pin spot LED PFE-60 WW/CW Warm white to cool white 60 W

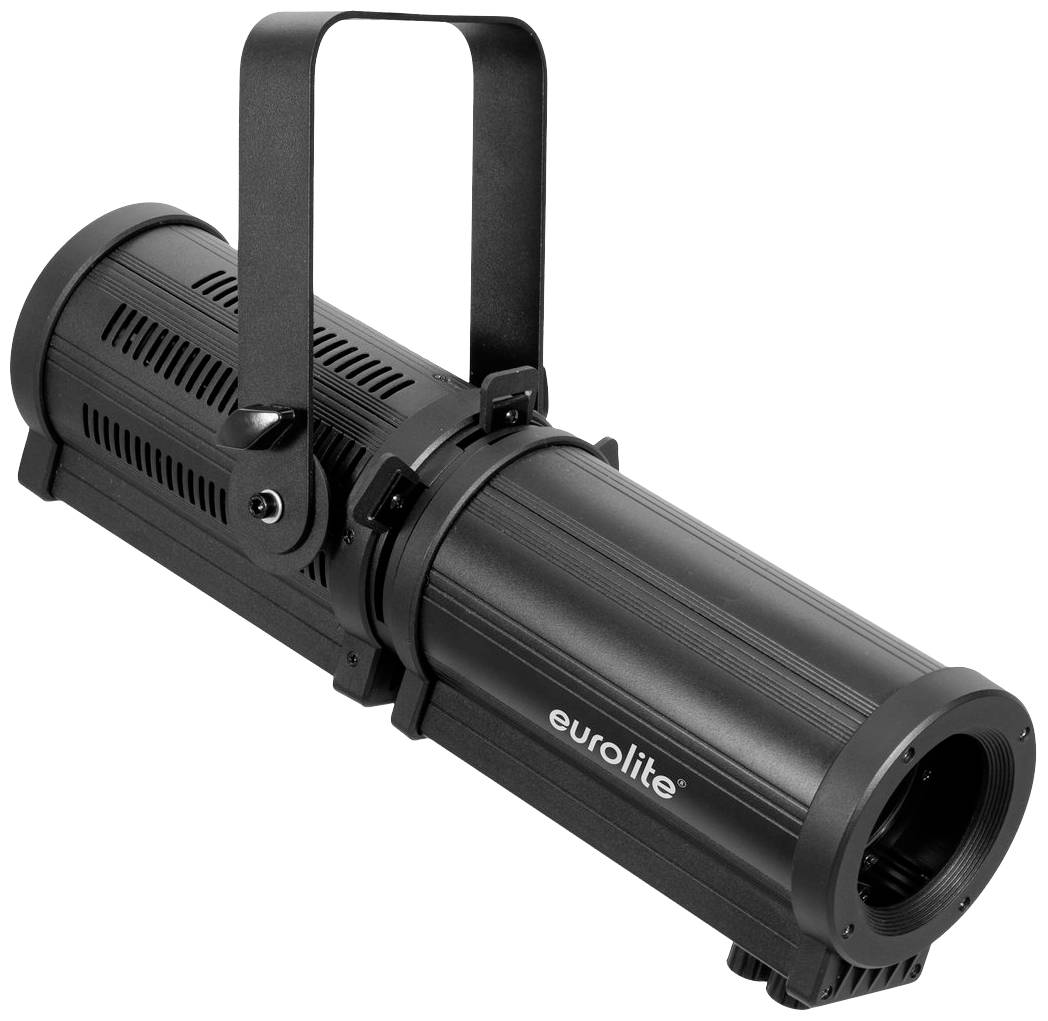

Black Eurolite spotlight with mounting bracket, suitable for stage lighting. Cylindrical design with ventilation slots.

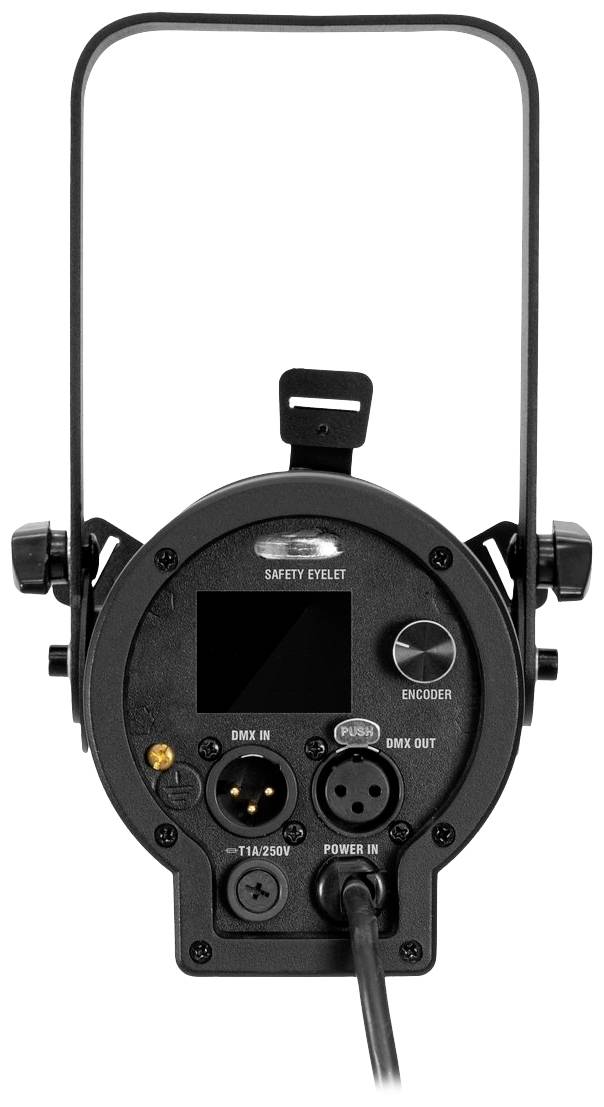

Back of a stage light with connections: DMX in/out, Power in, and Display. Control knob on the right, mounting bracket on top.

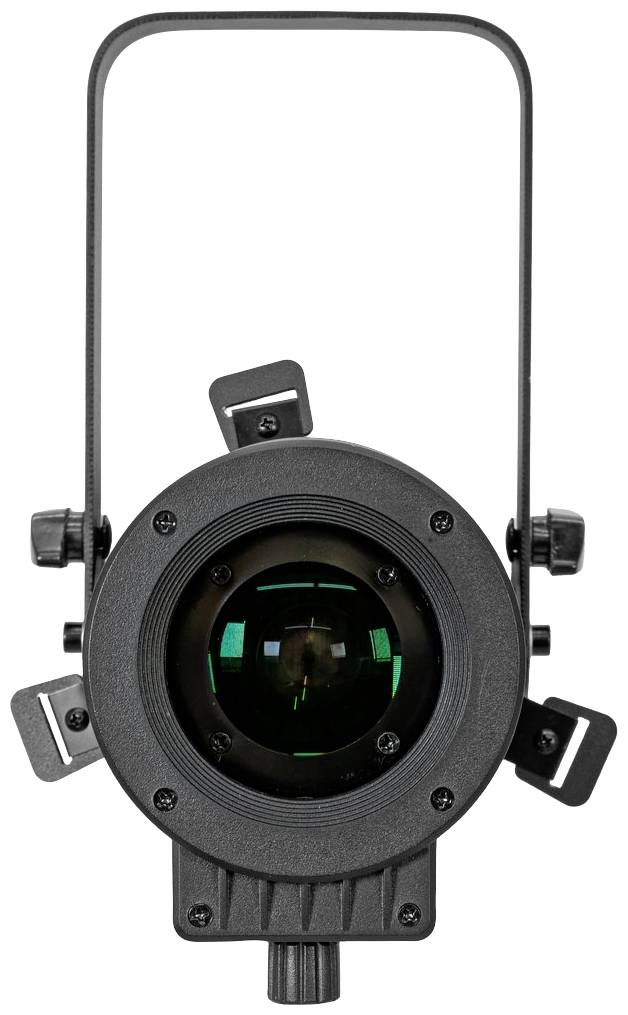

A black theatre spotlight with a round, green-iridescent glass in the centre, surrounded by a metal frame and holders.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Eurolite LED PFE-60 WW/CW profile Spot 9-25°

1 powerful LED 60 W COB (chip-on-board) CW/WW
Variable color temperature 3200 K - 5600 K
Zoom manual; focus manual
With a beam angle of 9° - 25°

Technical specifications

Product type: LED pin spot

Case colour: Black

: 60 W

Dim: (L x W x H) 425 x 160 x 255 mm

Weight: 3.38 kg

: n.rel.

Colour: Warm white to cool white

: 3200 K

Width: 160 mm

Height: 255 mm

Length: 425 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3131267 Eurolite LED pin spot LED PFE-60 WW/CW Warm white to cool white 60 W

Description

Profile headlights, 60 W WW/CW LED, Manual Zoom, Aperture slider, CRI90
Electronic dimmer; Pulse width modulation variable
Stroboscope-effect

This text is machine translated.

Features

Flicker-free
The device is cooled by a temperature controlled fan
Can be controlled via stand-alone; master/slave function; DMX; RDM
Very high color rendering index (CRI)
Multi-colored OLED display
With mounting bracket
For application areas like: Stage; theater; installation; distributors
Pre-programmed by Light Captain
Very quiet operation
Possible application: On-the-fly; on a tripod
Power supply: 100 - -240 V AC 50/ 60 Hz
Total connected wattage 60 W
Power connection: Fixed power connection cable with protective contact plug
Display type: Multicolor OLED display
Protection class SK I
Cooling: Fan temperature controlled
Housing colour black.
Protection class: IP20
Supporting system: Mounting bracket
Control: Stand-alone
Width: 16.0 cm
Diameter: Ø 11.5 cm
LED lamp type
LED:1 x 60 W COB (Chip-on-board) CW/WW
Colour temperature 3200K – 5600K adjustable
Equipment: Manual Zoom
Manual focus: Manual focus
DMX input 3-pin XLR (M), built in version
Master/slave function: Master/slave function
Pre-programmed with: Light Captain
Angle of radiation 9° - 25°
Max. Beam angle: 1/2 peak, 9 - 25°
Max. Beam angle: 1/10 peak, 9 - 25°
Colour rendering index (CRI): 94 Ra
Noise classification: Class 1 (very light noise, suitable for noise-sensitive environments)
Gobos: Outer diameter 37mm
DMX output 3-pin XLR (W) built-in version
Life: 50,000 h
Luminous flux: 4500 lm
Image diameter 25 mm

Scope of delivery

Headlamps
Gobo holder
User manual
