Buy Eurolite LED pin spot LED PPC-20 WW Warm white 20 W

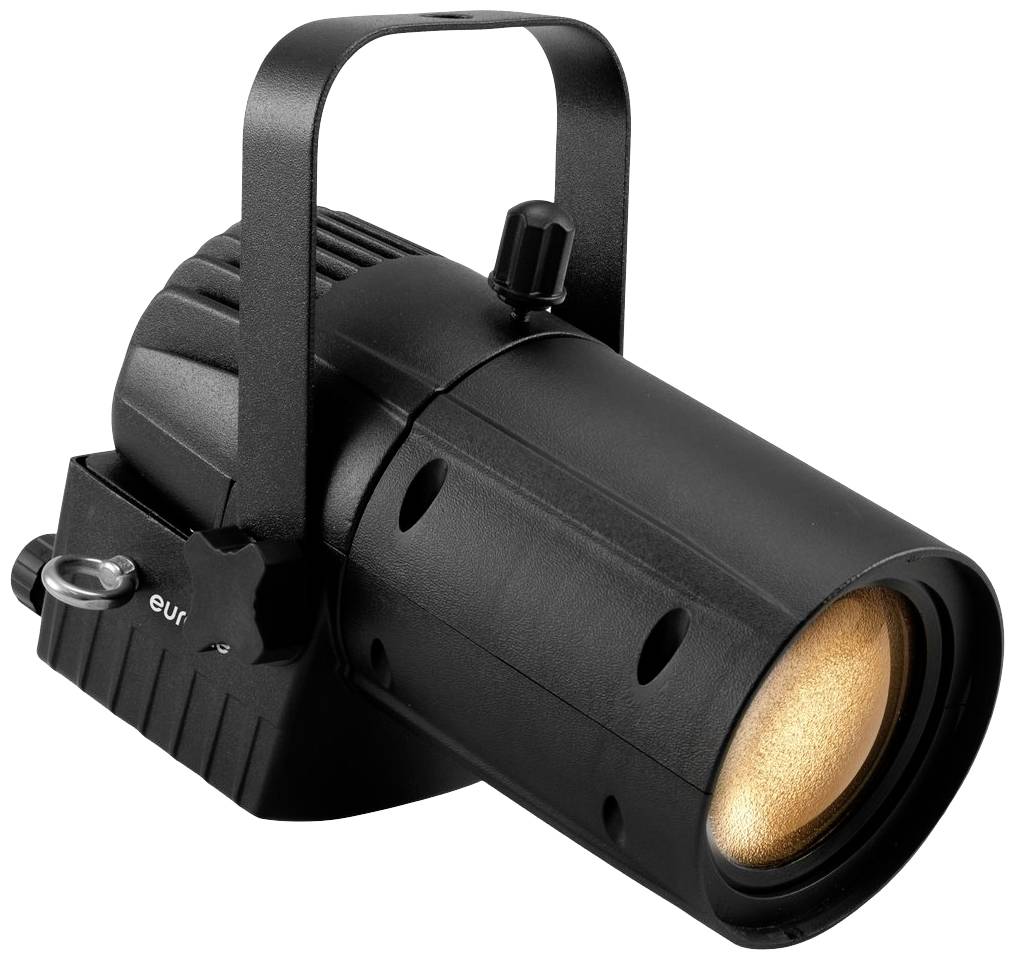

A black spotlight with a yellow light cone, mounted on a bracket. Suitable for stage or event lighting.

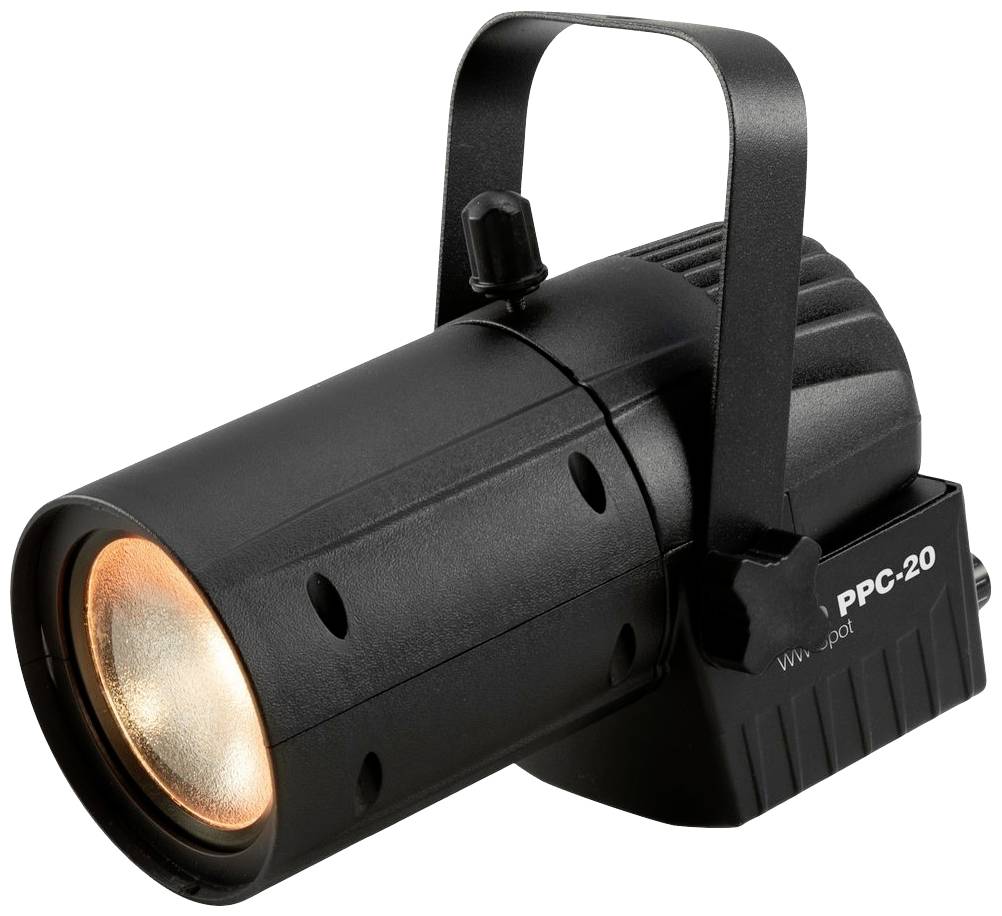

Black stage spotlight with orange light glow, Model PPC-20, suitable for illuminating event spaces or stages.

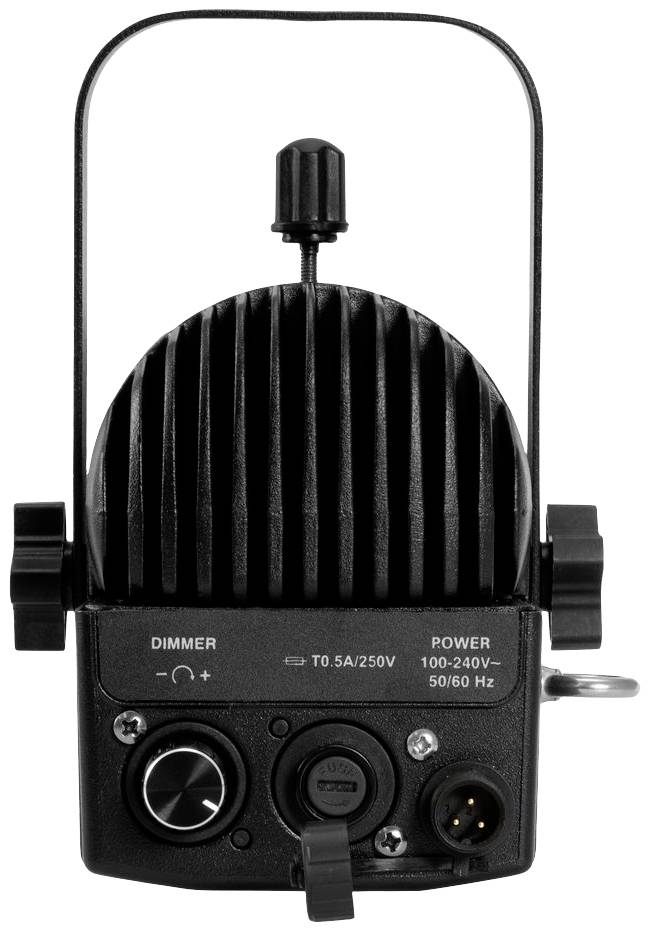

Rear view of a stage spotlight with dimmer rotary control, power connection, and handle.

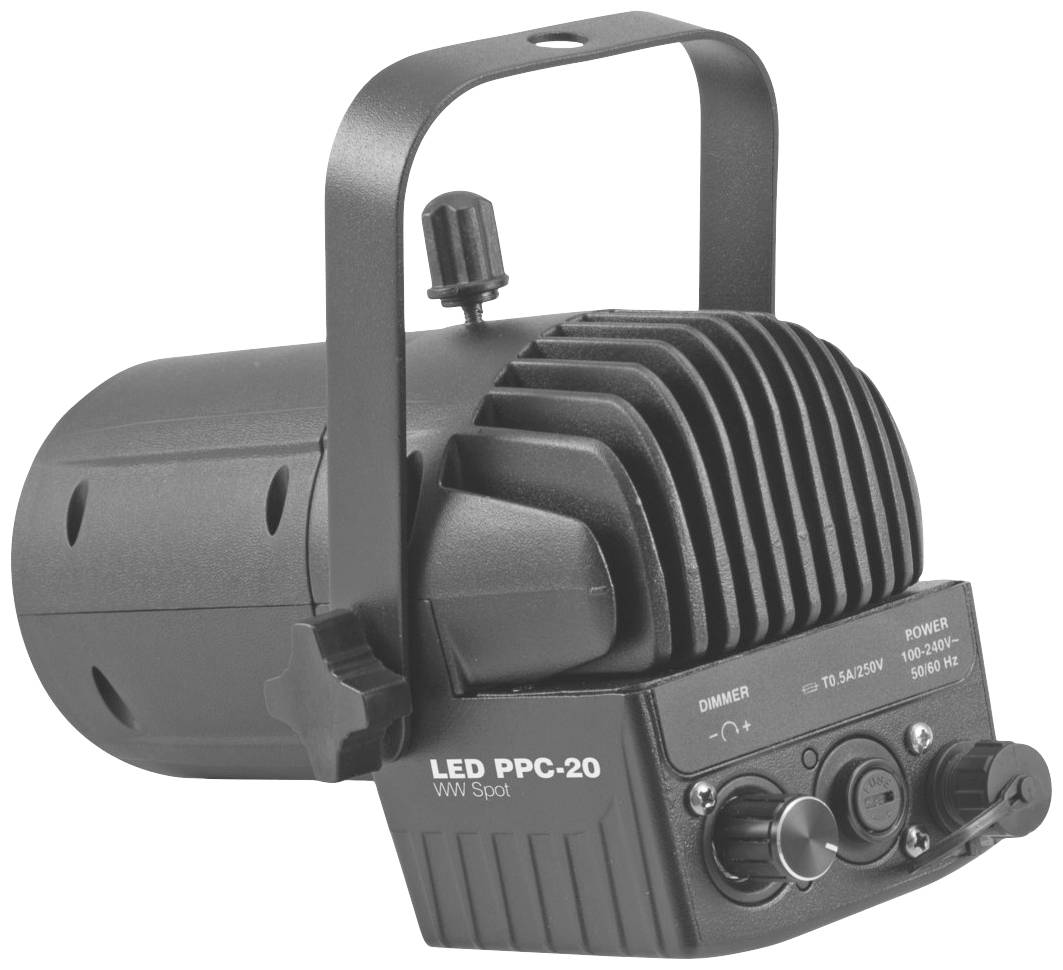

A LED floodlight, model 'LED PPC-20 WW Spot', with handle and control knobs, displays technical details on the reverse.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Eurolite LED PPC-20 WW Spot

Four angle of radiation adjustable via lens position in the housing
With plane convex lens
1 powerful LED 20 W COB (chip-on-board) warm white (WW)

Technical specifications

Product type: LED pin spot

Case colour: Black

: 20 W

Dim: (L x W x H) 195 x 115 x 165 mm

Weight: 1.12 kg

: n.rel.

Colour: Warm white

: 3000 K

Width: 115 mm

Height: 165 mm

Length: 195 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3131252 Eurolite LED pin spot LED PPC-20 WW Warm white 20 W

Description

Fanless Spot with 20 W COB LED, adjustable beam angle, color reproduction (CRI) 95
The device is cooled by passive convection cooling

This text is machine translated.

Features

Can be controlled via rotary knob for brightness
Flicker-free
With an angle of radiation of 10°
Very high color rendering index (CRI)
Ideal for applications such as: Trade fair and shop fitting; installation; restaurants, bars and hotels; video and photography
Noiseless operation
Possible application: On-the-fly; on a tripod
Power supply: 100 - -240 V AC 50/ 60 Hz
Total connected wattage 15 W
Power connection: Power feed via 3-pin screw connector (M) Installation version Power connection cable with safety plug (supplied)
Protection class SK I
Device fuse 5 x 20 mm, T 0.5 A fuse can be replaced
Cooling: Passive convection cooling
Housing colour black.
Protection class: IP20
Control: Dial for brightness
Width: 11.5 cm
LED lamp type
LED:1 x 20 W COB (chip-on-board) warm white (WW)
Colour temperature: 3000K
Beam angle: 10°
Beam angle (1/2 peak) 10°
Beam angle (1/10 peak) 19°
Colour rendering index (CRI): 97 Ra
Special product: Not intended for room lighting in homes
Intended use: Lighting for show effects
15°:15°
18°:18°
22°:22°
27°:27°
30°:30°
34°:34°
Illuminance (lx): 194 lx
Wide warm white (WW) 1m: 92 lx

Scope of delivery

Headlamps
User manual
Network cable/power cable
